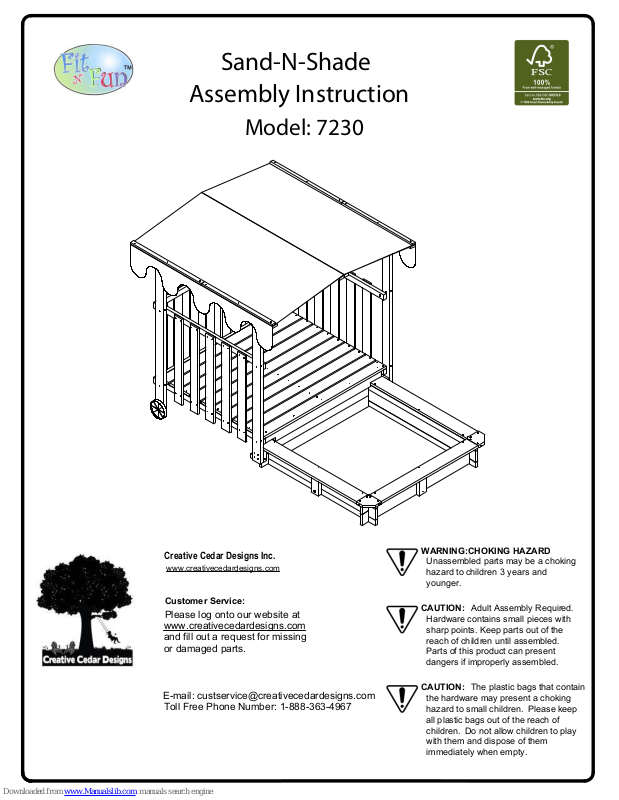

Creative Cedar Designs Sand-N-Shade, 7230 Assembly Instruction Manual

Sand-N-Shade

Assembly Instruction

Model: 7230

Creative Cedar Designs Inc.

www.creativecedardesigns.com

Customer Service:

Please log onto our website at

www.creativecedardesigns.com
and fill out a request for missing
or damaged parts.

E-mail: [e-mail]

Toll Free Phone Number: 1-888-363-4967

WARNING:CHOKING HAZARD

Unassembled parts may be a choking
hazard to children 3 years and
younger.

CAUTION: Adult Assembly Required.

Hardware contains small pieces with
sharp points. Keep parts out of the
reach of children until assembled.
Parts of this product can present
dangers if improperly assembled.

CAUTION: The plastic bags that contain

the hardware may present a choking
hazard to small children. Please keep
all plastic bags out of the reach of
children. Do not allow children to play
with them and dispose of them
immediately when empty.

Installaon Hints

1. Adult assembly is required.

2. Choose a level locaon for the equipment. This locaon should be not less than six feet (1.8 meters) from any
structure or obstrucon, such as fence, garage, house, overhanging branches, overhead wires, laundry lines, tree
stumps and/or roots, large rocks, bricks and concrete.

3. Idenfy all the parts for your Creave Cedar Designs play system. Keep all hardware and metal parts separate
from wooden pieces. Check carefully to ensure all parts are present.

4. Never ghten hardware comp

letely at first. It helps to have some adjustment for bolt alignment while you are

aaching parts together. Aer everything is square, ghten each joint bolt.

5. Make sure not to allow children to use the equipment unl it is properly installed.

Operang Instrucons

1. On-site adult supervision is required.

2. Parents should have the children dress appropriately with well-fing shoes. Loose clothing such as scarves and

ponchos should not be worn. Always take off, e up or tuck in cords and drawstrings on children’s clothing. These
things can get caught on playground equipment and strangle a child.

3. Instruct Children not to walk close to, in front of, behind or between moving items, not to get off equipment while

it is in moon, and not to aac

h items to the playground equipment that are not specifically designed for use with the
equipment such as but not limited to, jump ropes, clotheslines, pet leashes, cable and chain. They may cause a
strangulaon hazard.

Maintenance

1. Check all hardware twice a month during play season and ghten as required, but not too ght to crack the wood.
Check metal parts for rust. If found, sand and repaint with a non-lead based paint.

2. Oil all metallic moving parts monthly during play season.

3. Inspect wood parts monthly for deterioraon and splinters. Sand down splinters and replace deteriorang wood
parts.

4. To prolong the life of your play system, please store out of direct sunlight or exposure to extreme weather.

A

ny quesons regarding maintenance and care of your play system, please feel free to call us at

1-888-363-4967.

NOTE: Your children’s safety is our #1 concern. Observing the following statements

and warnings reduces the likelihood of serious or fatal injury. Please review these

safety rules regularly with your children.
