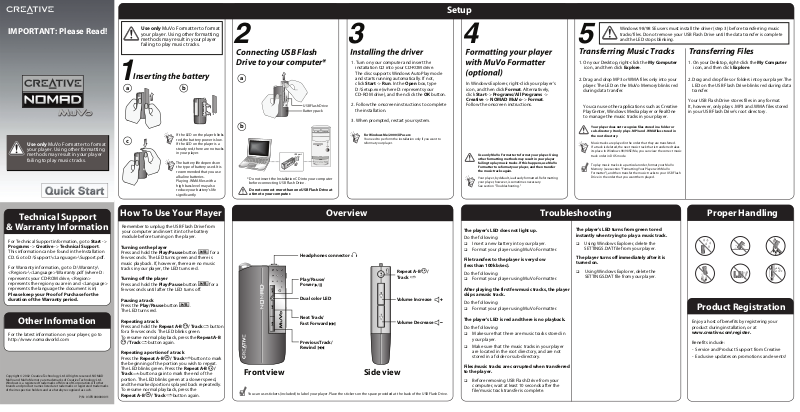

Creative NOMAD MuVo Quick Start

Connecting USB Flash Drive to your computer*

Do not connect more than one USB Flash Drive at a time to your computer.

Inserting the battery

If the LED on the player blinks red, the battery power is low. If the LED on the player is a steady red, there are no tracks in your player.

AAA battery

Turning on the player

Press and hold the Play/Pause button for a few seconds. The LED turns green and there is music playback. If, however, there are no music tracks in your player, the LED turns red.

Turning off the player

Press and hold the Play/Pause button for a few seconds until after the LED turns off.

Pausing a track

Press the Play/Pause button . The LED turns red.

Repeating a track

Press and hold the Repeat A-B / Track button for a few seconds. The LED blinks green. To resume normal playback, press the Repeat A-B

/ Track button again.

Repeating a portion of a track

Press the Repeat A-B / Track button to mark the beginning of the portion you wish to repeat. The LED blinks green. Press the Repeat A-B / Track button again to mark the end of the portion. The LED blinks green at a slower speed, and the marked portion is played back repeatedly. To resume normal playback, press the

Repeat A-B / Track button again.

Side view

A-B

Volume Decrease

Volume Increase

Repeat A-B / Track

A-B

Play/Pause/ Power

Dual color LED

Previous Track/ Rewind

Next Track/ Fast Forward

Headphones connector

Front view

Transferring Music Tracks

1. On your Desktop, right-click the My Computer icon, and then click Explore.

2. Drag and drop files or folders into your player. The LED on the

USB Flash Drive

blinks red during data

transfer.

Your USB Flash Drive stores files in any format. It, however, only plays .MP3 and .WMA files stored in your USB Flash Drive's root directory.

Music tracks are played in the order that they are transferred. If a track is deleted, the next music track that is transferred takes its place. In Windows 98/98SE/Me, you can view the correct music track order in DOS mode.

To play music tracks in a particular order, format your MuVo Memory (see section "Formatting Your Player with MuVo Formatter"), and then transfer the music tracks to your USB Flash Drive in the order that you want them played.

A-B

Remember to unplug the USB Flash Drive from your computer and insert it into the battery module before turning on the player.

installation CD into your CD-ROM drive.

The disc supports Windows AutoPlay mode and starts running automatically. If not, click Start -> Run. In the Open box, type D:\Setup.exe (where D: represents your CD-ROM drive), and then click the OK button.

2. Follow the onscreen instructions to complete the installation.

3. When prompted, restart your system.

Copyright © 2002 Creative Technology Ltd. All rights reserved. NOMAD MuVo and MuVo Memory are trademarks of Creative Technology Ltd. Windows is a registered trademarks of Mircosoft Corporation. All other brands and product names listed are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

113

RESET

BUSY VOL

- B

USB port

For Windows Me/2000/XP users:

You need to perform the installation only if you want to reformat your player.

A-B

USB Flash Drive Battery pack

A-B

P/N: 03PD000000011

You can use stickers (included) to label your player. Place the stickers on the space provided at the back of the USB Flash Drive.

click Start -> Programs/All Programs -> Creative -> NOMAD MuVo -> Format. Follow the onscreen instructions.

Enjoy a host of benefits by registering your product during installation, or at

www.creative.com\register.

Benefits include:

- Service and Product Support from Creative

- Exclusive updates on promotions and events!

IMPORTANT: Please Read!

Use only MuVo Formatter to format

your player. Using other formatting methods may result in your player failing to play music tracks.

Do the following:

Insert a new battery into your player. Format your player using MuVo Formatter.

Do the following:



Format your player using MuVo Formatter.

Do the following:



Format your player using MuVo Formatter.

Do the following:



Make sure that th ere are music tracks stored in your player.



Make sure that t he music tracks in your player are located in the root directory, and are not stored in a folder or sub-directory.

The player's LED does not light up.

File transfers to the player is very slow (less than 100kb/sec).

After playing the first few music tracks, the player skips a music track.

The player's LED is red and there is no playback.

Windows 98/98 SE users must install the driver (step 3) before transferring music tracks/files. Do not remove your USB Flash Drive until the data transfer is complete and the LED stops blinking.

The battery life depends on the type of battery used. It is recommended that you use alkaline batteries. Playing .WMA files with a high bass level may also reduce your battery's life significantly.

* Do not insert the Installation CD into your computer before connecting USB Flash Drive .

You can use other applications such as Creative PlayCenter, Windows Media player or RealOne to manage the music tracks in your player.

Transferring Files

1. On your Desktop, right-click the My Computer icon, and then click Explore.

2. Drag and drop MP3 or WMA files only into your player. The LED on the

MuVo Memory

blinks red

during data transfer.

Use only MuVo Formatter to format your player. Using other formatting methods may result in your player failing to play music tracks.

Your player, by default, ia already formatted. Reformatting your player, however, is sometimes necessary. See section "Troubleshooting."

Use only MuVo Formatter to format your player. Using other formatting methods may result in your player failing to play music tracks. If this happens, use MuVo Formatter to reformat your player, and then transfer the music tracks again.

Your player does not recognize files stored in a folder or sub-directory. It only plays .MP3 and .WMA files stored in the root directory.



Before removing USB Flash Drive from your computer, wait at least 10 seconds after the file/music track transfer is complete.

Files/music tracks are corrupted when transferred to the player.



Using Windows Explorer, delete the SETTINGS.DAT file from your player.

The player's LED turns from green to red instantly when trying to play a music track.



Using Windows Explorer, delete the SETTINGS.DAT file from your player.

The player turns off immediately after it is turned on.



For Technical Support information, go to Start -> Programs -> Creative -> Technical Support.

This information can be found in the Installation CD. Go to D:\Support\<Language>\Support.pdf.

For Warranty information, go to D:\Warranty\ <Region>\<Language>\Warranty.pdf (where D: represents your CD-ROM drive, <Region> represents the region you are in and <Language> represents the language the document is in)

Please keep your Proof of Purchase for the duration of the Warranty period.

For the latest information on your player, go to http://www.nomadworld.com

Setup

Overview

Troubleshooting Proper Handling

Product Registration

Other Information

Technical Support

& Warranty Information

How To Use Your Player
