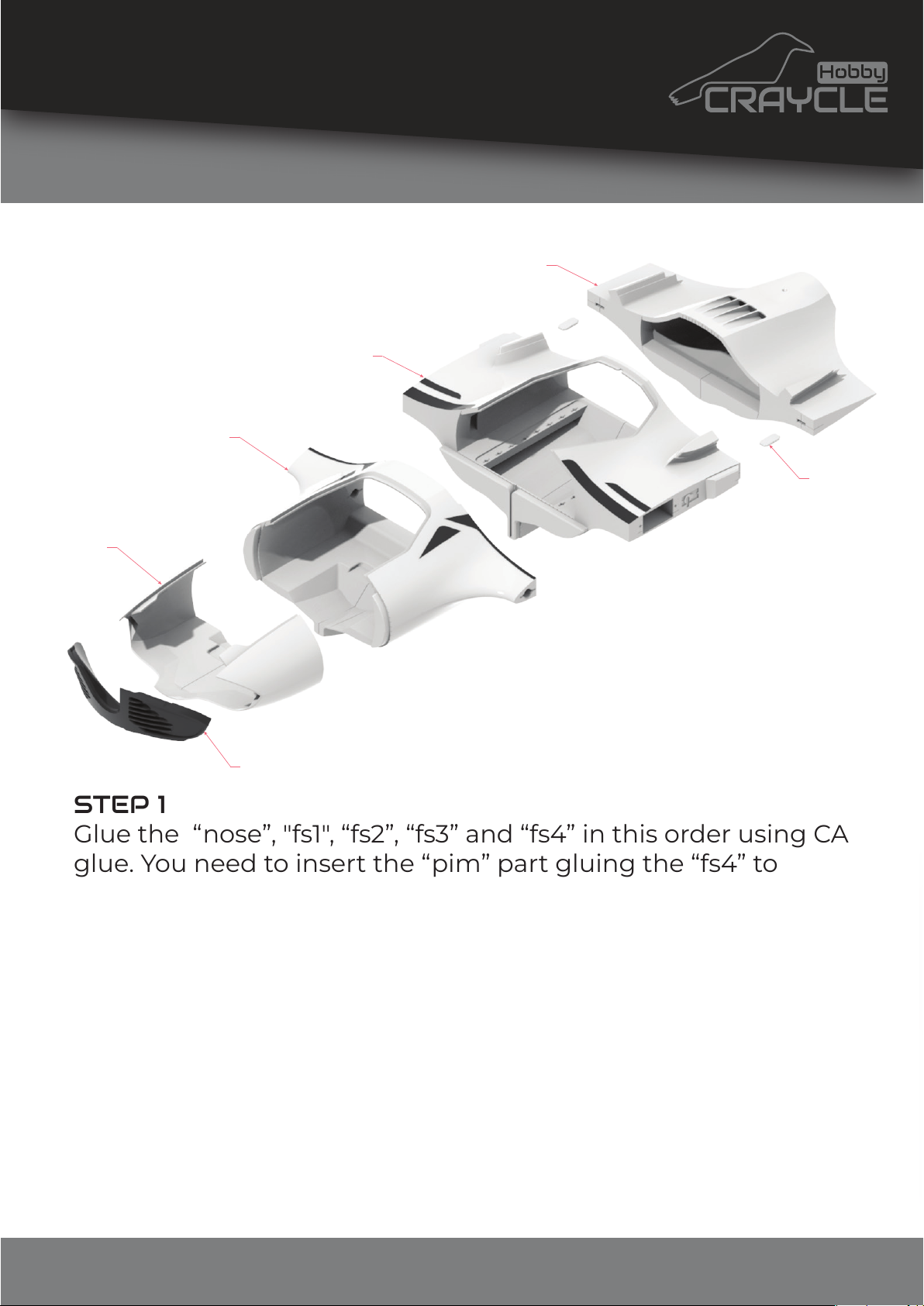

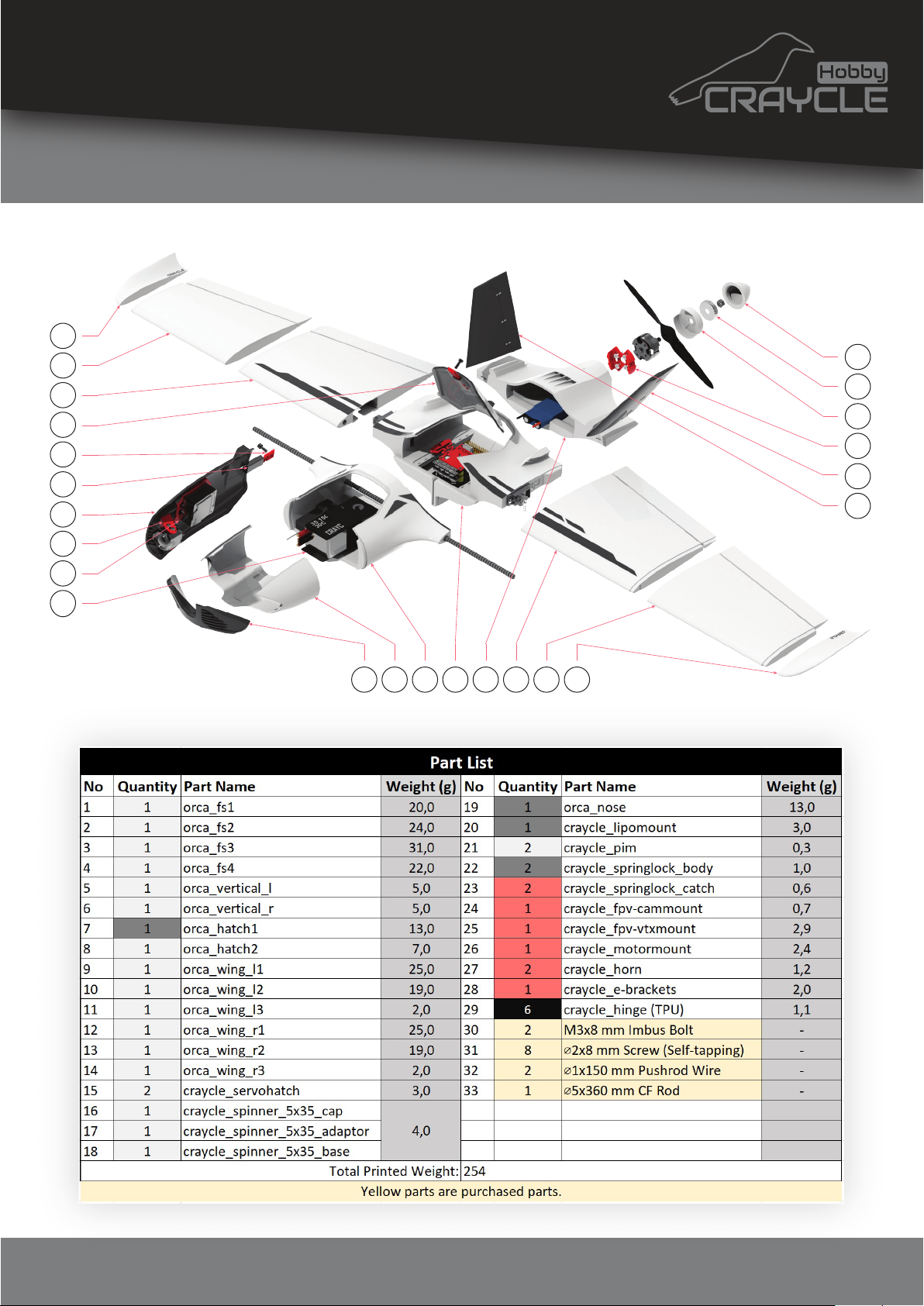

Glue the “nose”, "fs1", “fs2”, “fs3” and “fs4” in this order using CA glue. You need to insert the “pim” part gluing the “fs4” to
facilitate assembly. Other parts have their inserts already.
Apply glue to the insert surface and assemble the model parts.
Avoid spraying the accelerator to insert surfaces without
assembling the model parts. This can cause the CA to dry fast
while you try to assembly the model part.
Have a napkin with you and distribute the overflowing
adhesive onto the joint surface. This process will strengthen
the model. When spraying directly on CA, do not be excessive
and spray from a distance.

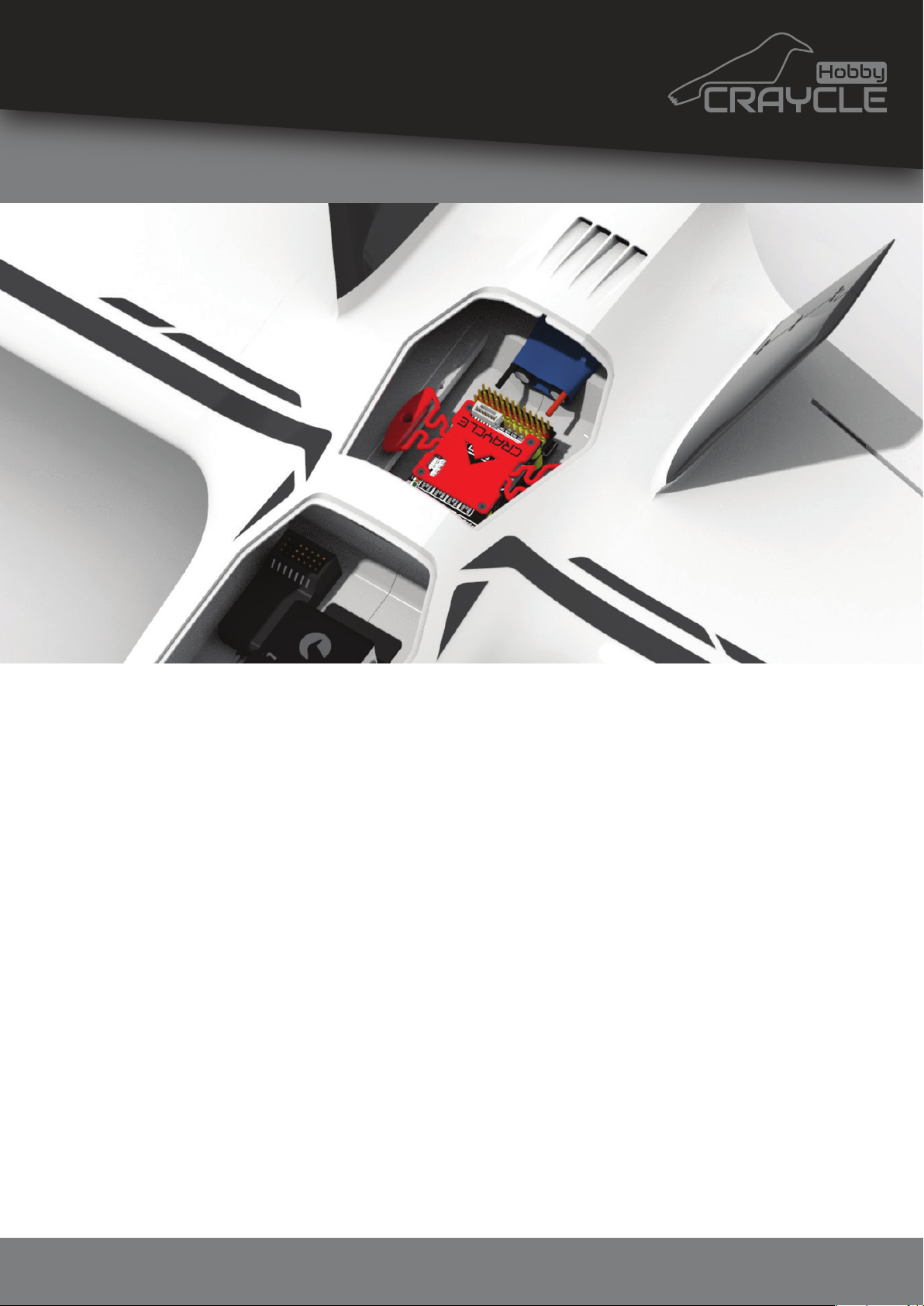

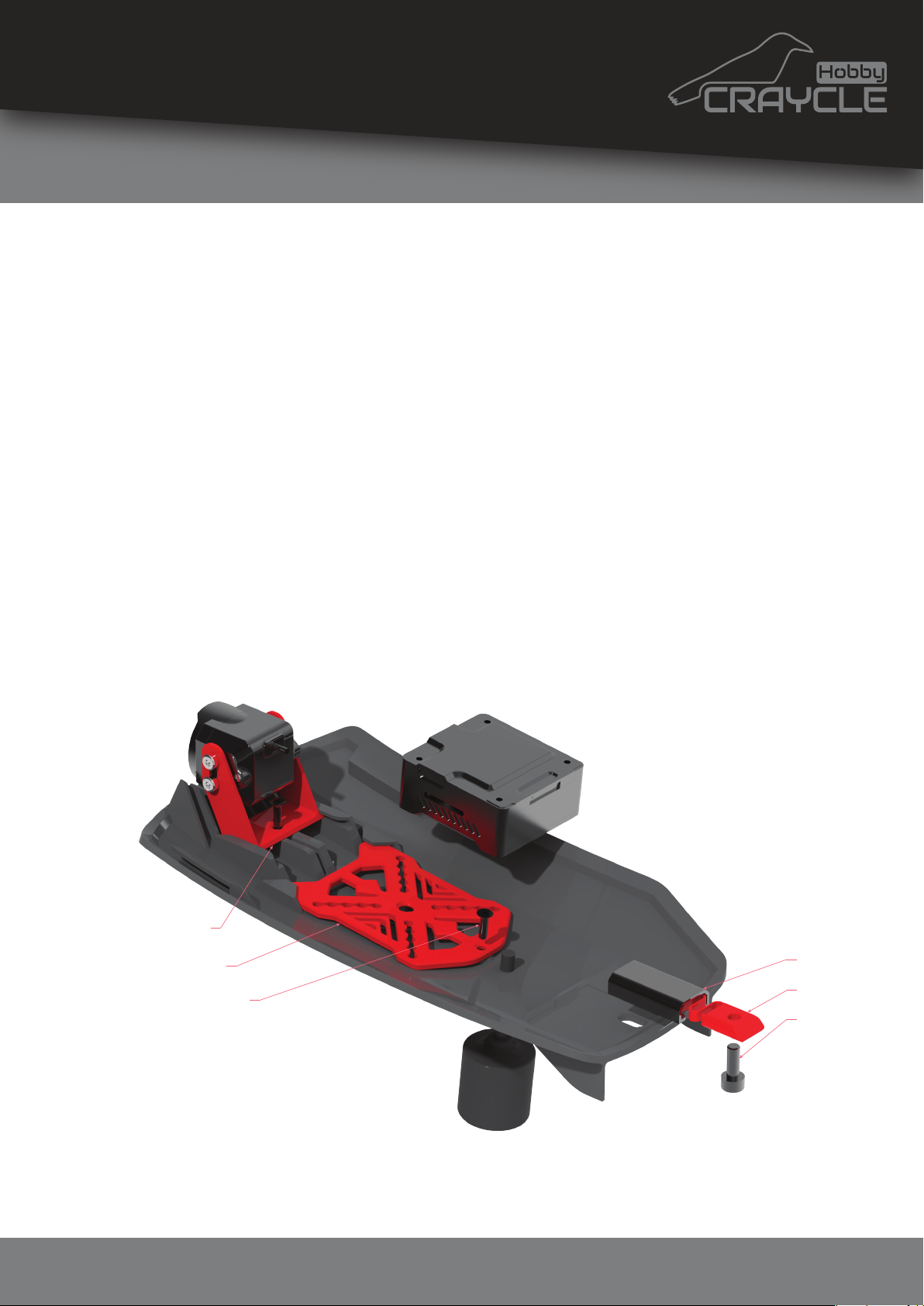

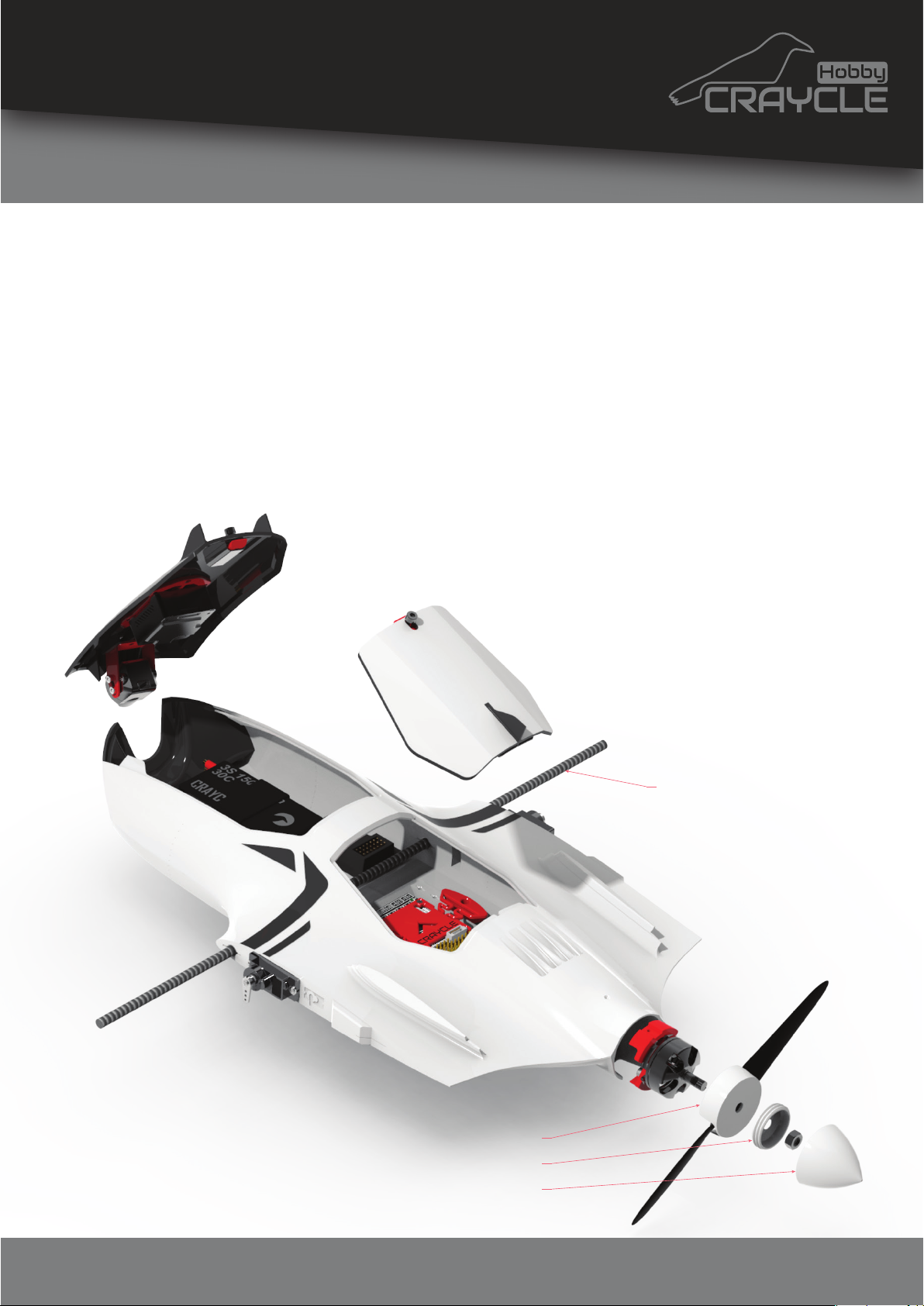

Install all your electronics to the fuselage before gluing the
wings. Insert the Ø5x360 mm CF rod. Prepare the Spinner by
gluing the “spinner_base” and “spinner_adaptor” parts
together. Then you can install the "spinner_cap" while
assembling the propeller.
Insert your servos according to the direction as shown on the
model.

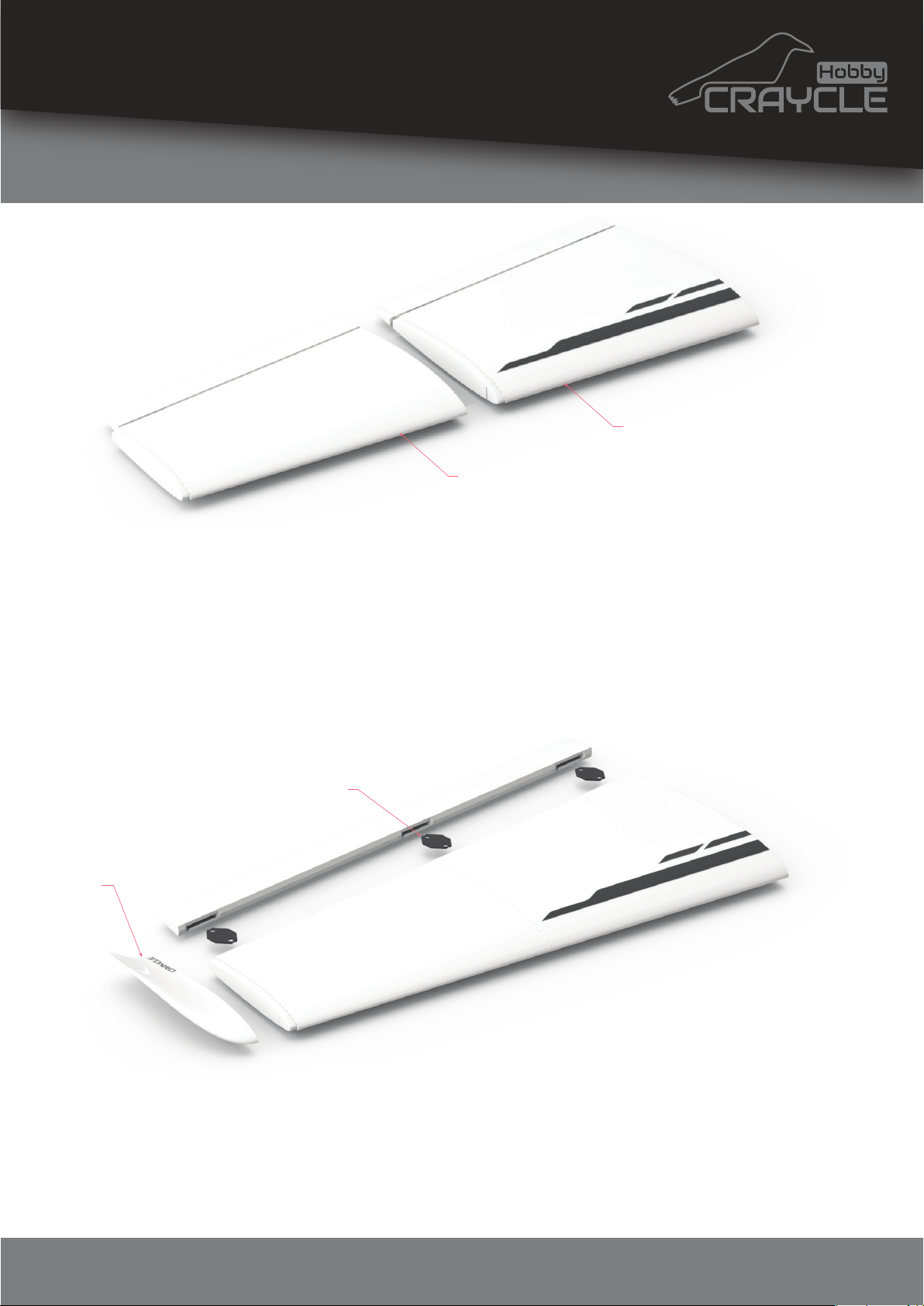

Test if the "wing_r1" and “wing_r2” parts fits together
comfartably and reassemble by gluing the insert surface.
Spread the overflowing adhesive by wiping it along the joint
line. This way you will get a stronger wing. Make sure the wing
parts are sticking in a straight line.
hinge
wing3
Now you can break the aileron from its tiny connections and
re-assemble them using CA Hinges. Then you can glue the
“wing3” part to its place. Avoid using excessive glue and spray
on the hinges. The same process goes for the other wing.
Now you can assemble the wings to the fuselage. Be careful to
not apply glue to under the aileron/elevator flaps.
You don’t have to apply glue to the CF rod. CF Rod will be
guide for the wings and spread the forces to the fuselage
without gluing. This way you can use it again. But if you want
to push limits with this model, better you apply glue to the CF
rod. This will make the model more rigit.

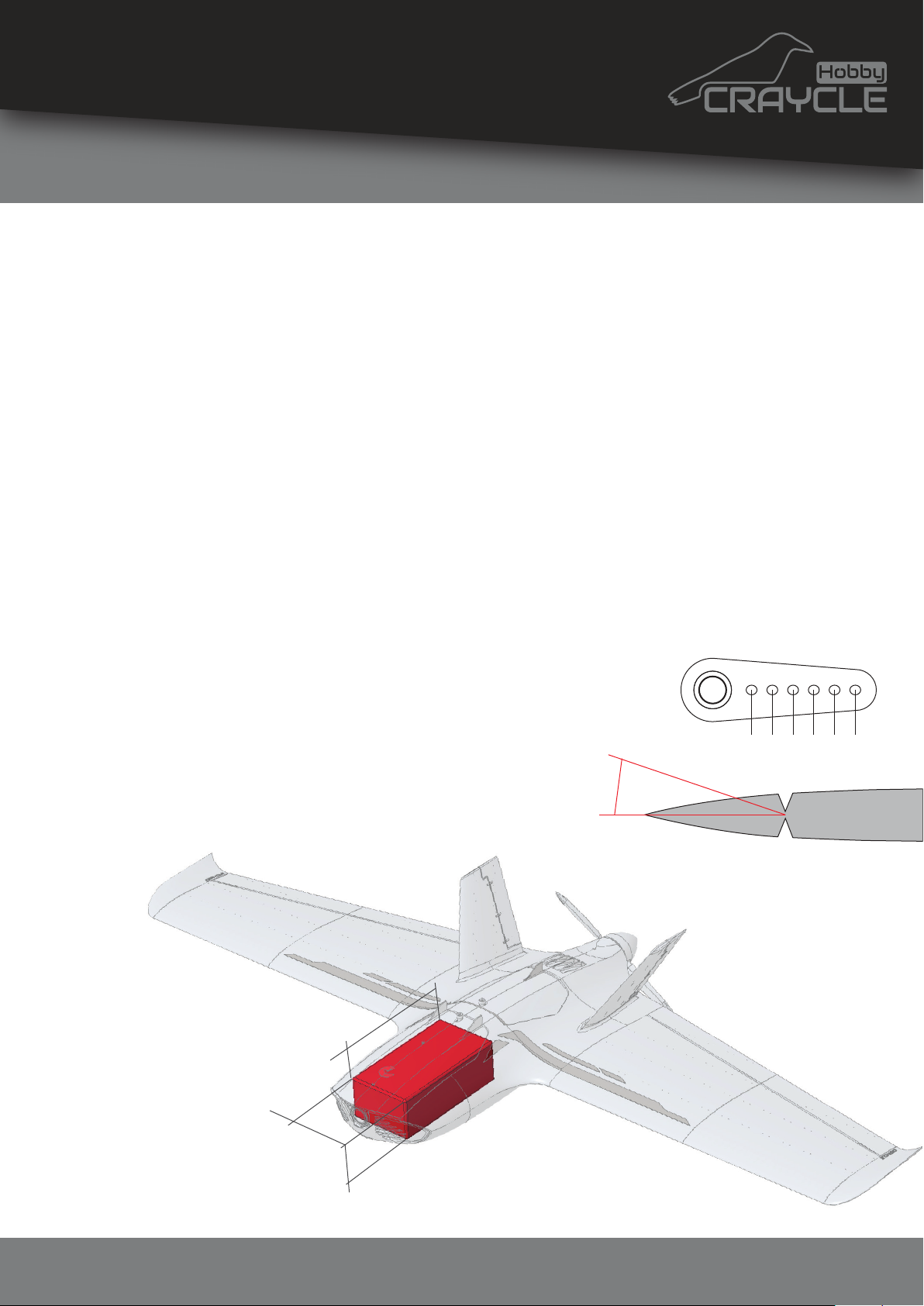

Make sure your servos is centered and the servo arms are 90
degree as shown in the image above.

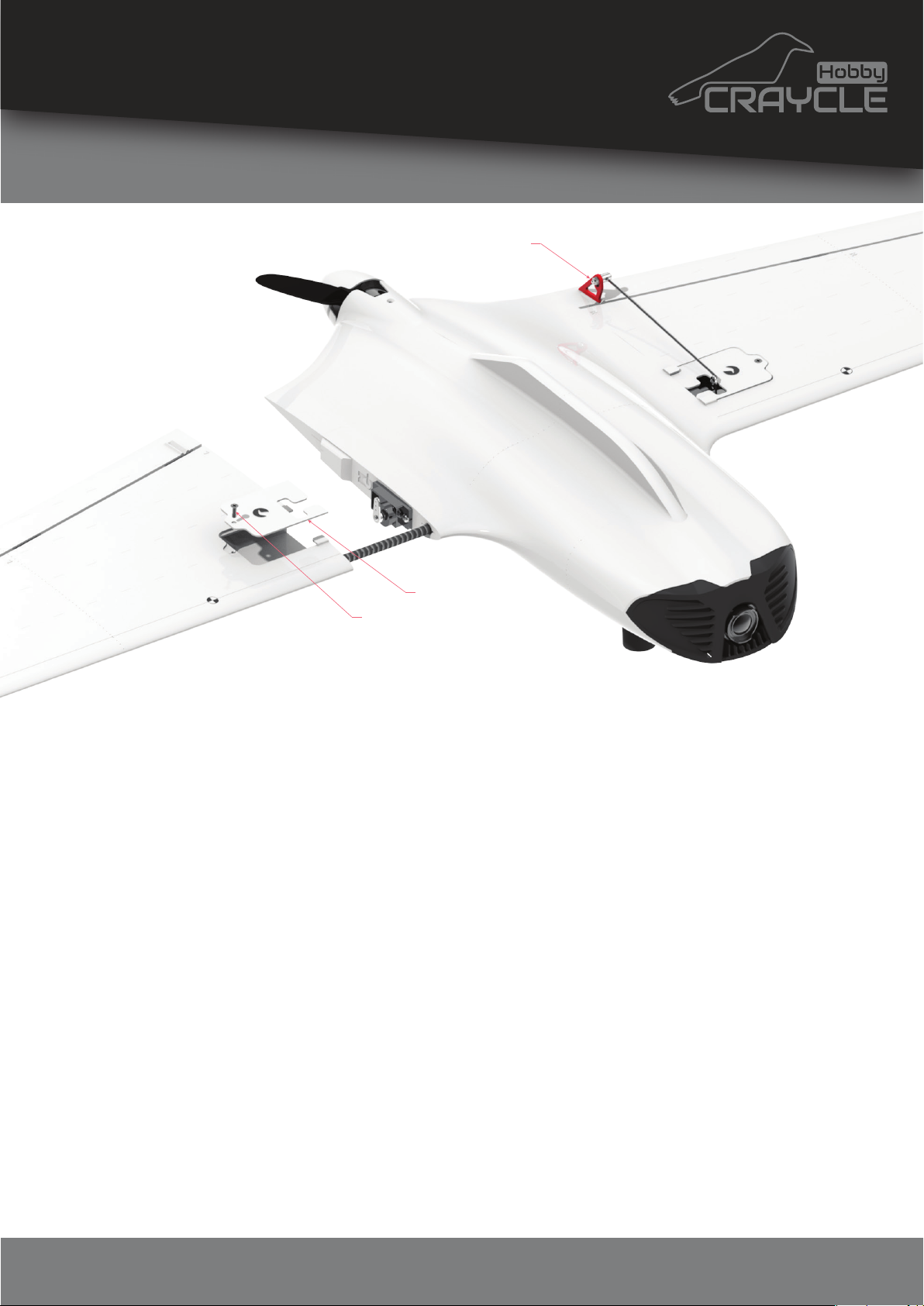

Glue the “horn” parts and assemble your pushrods. Then you
can assemble the “servohatch” to the wing.
Now you can glue the “vertical” parts to the fuselage!

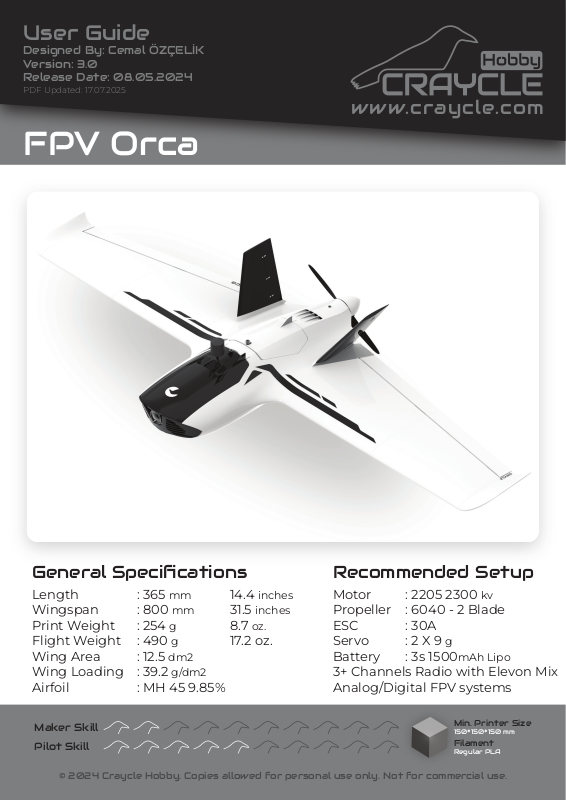

We developed this model as a compact freestyle FPV model to
experience the best FPV flight with a small plane. With Orca
V3, the model became nose longer, lighter and user-friendly in
electronic setup. So this model can also be used as a
long-range autonomus plane with the Craycle E-brackets for
FC and GPS components and the brand new FPV Hatch.
We update our models according to user demands and share
them free of charge to previous owners. If you see something
that is gonna be improve your user experience on this model,
please join the Next Model Survey on craycle.com.
Is there a missing information in this guide? Please let us
know. Please avoid pirated files and be honest in paying for
our efforts.
Enoy the free upgrade with Orca V3! Please check the update
notes on craycle.com.
We have prepared printer profile on Cura Slicer for you. If you
have a Marlin XYZ type printer, you can print directly with
provided gcodes as well. If you can’t use the gcodes don't
worry, just follow the instructions...
1) Go to the Cura Profile Article to download Cura V4.13.1 and
import craycle.curaprofile.
Article: https://craycle.com/craycle-cura-profile/
2) Change this settings according to your printer:
- Material Settings.
Nozzle Temperature
Buildplate Temperature
Flow (wall flow is important!)
- Travel Settings.
Retraction distance
Retraction speed
We make internal supports by creating gaps in the model parts.
So, the "Slice Gap Closing" value should be 0 mm or closed.
Turn off all gap-filling features in the slicer.

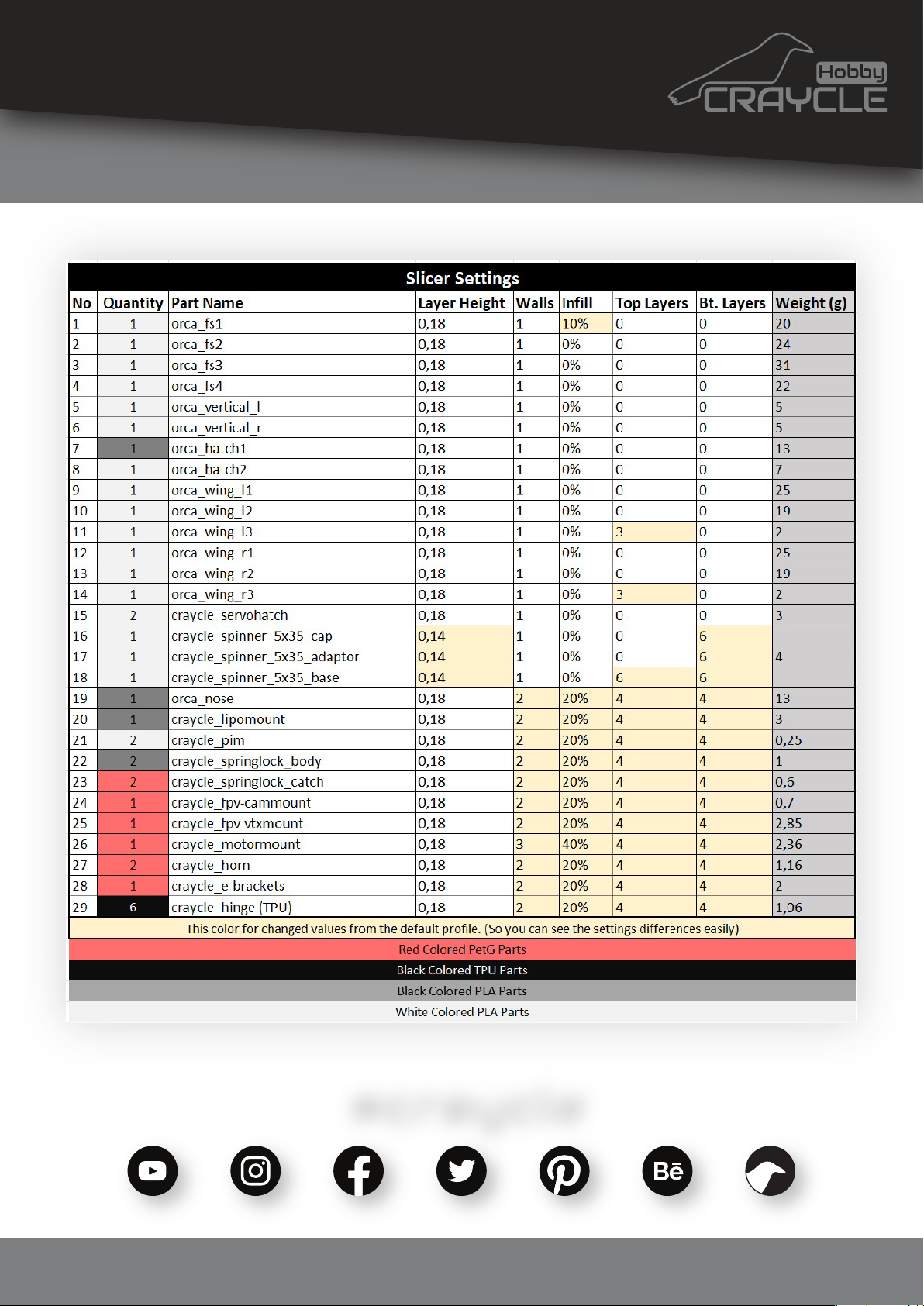

You should print the biggest wing part of the model to test
your printer. Make sure the wing weight is equal to the settings
table! Then you are ready for the rest of the model parts.
This process will both verify your extruder flow and verify your
printer settings correctly. If you have mechanical problems on
your printer, you will also see that mesuring the model weight.

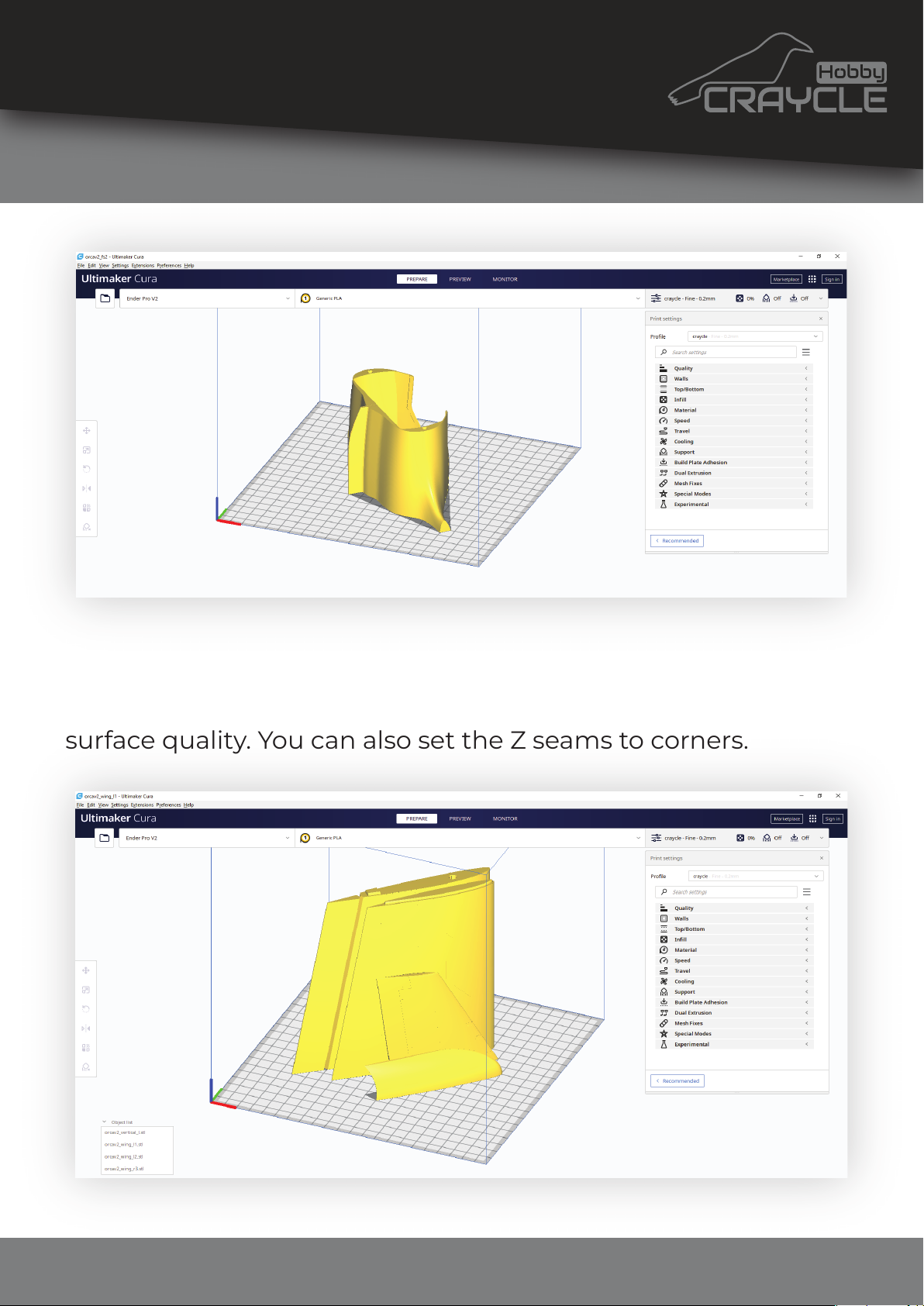

We pre-routed the model parts for you but still make sure the
model parts are oriented at 45 degrees to the bed. This way X
and Y axis works coordinated and you can get maximum
surface quality. You can also set the Z seams to corners.
