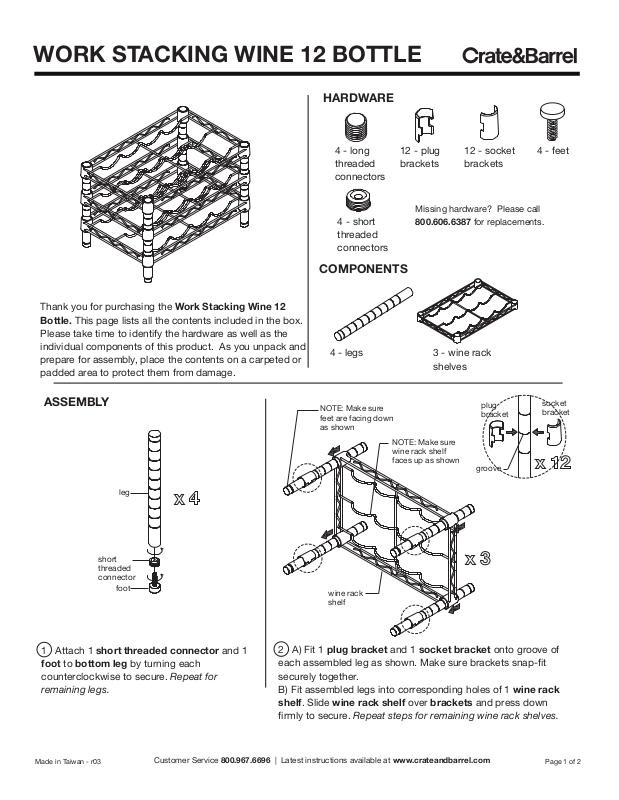

WORK STACKING WINE 12 BOTTLE
HARDWARE
Thank you for purchasing the Work Stacking Wine 12
Bottle. This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack and
prepare for assembly, place the contents on a carpeted or
padded area to protect them from damage.
ASSEMBLY
4 - long
threaded
12 - plug
brackets
connectors
Missing hardware? Please call
4 - short
800.606.6387 for replacements.
threaded
connectors
COMPONENTS
4 - legs 3 - wine rack
shelves
NOTE: Make sure
feet are facing down
as shown
NOTE: Make sure
wine rack shelf
faces up as shown
12 - socket
brackets
plug
bracket
groove
4 - feet
socket
bracket
leg
short
threaded
connector
foot
1 Attach 1 short threaded connector and 1
foot to bottom leg by turning each
counterclockwise to secure. Repeat for
remaining legs.
2 A) Fit 1 plug bracket and 1 socket bracket onto groove of
each assembled leg as shown. Make sure brackets snap-fit
securely together.
B) Fit assembled legs into corresponding holes of 1 wine rack
wine rack
shelf
shelf. Slide wine rack shelf over brackets and press down
firmly to secure. Repeat steps for remaining wine rack shelves.
Made in Taiwan - r03 Page 1 of 2
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
WORK STACKING WINE 12 BOTTLE
CLEANING AND CARE
Clean surfaces with a dry soft cloth.
Do not use abrasive cleaners.
3 Place assembled unit upright.
Assembly is now complete.
STACKING OPTION ASSEMBLY
end cap
A
B
leg
(not included)
long
threaded
connector
assembled
wine rack
A) If stacking with another Work
Stacking Wine 12 Bottle, remove
pre-installed end caps as shown.
Made in Taiwan - r03
B) Attach 4 legs to assembled unit with 4 long
threaded connectors and repeat assembly
instructions for wine rack shelves.
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 2 of 2
