WOOD GRAIN 3 SHELF BOOKCASE
HARDWARE
Thank you for purchasing the Wood Grain 3 Shelf BookÂcase. This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack and
prepare for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
4 - wood
dowels
16- cams
16 - cam
screws
4 - brackets
Missing hardware?
Please call 800.606.6387 for replacements.
4 - large
screws
4 - shelf
pins
TOOLS REQUIRED
phillips head screwdriver
(We recommend the use of hand tools instead power tools)
NOTE: Make sure arrows
on each cam point toward
nearest edge with holes
4 - adhesive
cam covers
1 - fixed shelf
1 - adjustable
shelf
1 - crossbar
2 - side panels
(1 left, 1 right)
Made in China - r03 Page 1 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
1 - bottom panel
1 - top panel
1- back panel
crossbar
A
NOTE: Do not over
tighten the cam screws
top panel
B
1 A) Insert 2 wood dowels, 2 cam screws and 2 cams into
crossbar as shown. Secure, but do not over tighten, cam
screws, using a phillips head screwdriver. Make sure arrow
on each cam point toward nearest edge with holes.
B) Insert 2 wood dowels and 4 cam screws into top panel
as shown.
WOOD GRAIN 3 SHELF BOOKCASE
right side
panel
left side
panel
2 Insert 5 cam screws and 2 cams into left and right
side panels as shown, using a screwdriver.
crossbar
bottom panel
A
fixed shelf
B
3 A) Insert 6 cams into bottom panel as shown.
B) Insert 4 cams into each fixed shelf as shown.
NOTE: Make sure grooves
of fixed shelves, bottom
panel assembly and left
side panel positioned as
shown
bottom panel
assembly
fixed shelf
bottom
panel
right side
panel
4 Fit cam screws into corresponding holes of bottom
panel as shown. Using a phillips head screwdriver, turn
cams clockwise until each cam securely engages each
cam screw.
5 Fit cam screws of right side panel into corresponding
holes of fixed shelf and bottom panel assembly. Make
sure grooves of fixed shelf, bottom panel assembly and
right side panel are positioned as shown. Secure all
cams.
Made in China - r03 Page 2 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
WOOD GRAIN 3 SHELF BOOKCASE
left side
panel
back panel
6 With the assistance of another adult, fit cam screws of
left side panel into corresponding holes of assembled unit
as shown. Secure all cams.
top
panel
7 Slide back panel into corresponding groves of assembled
unit as shown.
shelf
pin
8 Fit cam screws of top panel into corresponding holes of
left and right side panels as shown. Secure all cams.
9 With the assistance of another adult, position unit
upright. Insert 4 shelf pins into assembled unit at desired
shelf heights.
Made in China - r03 Page 3 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
WOOD GRAIN 3 SHELF BOOKCASE
adhesive
cam cover
B
A
adjustable
shelf

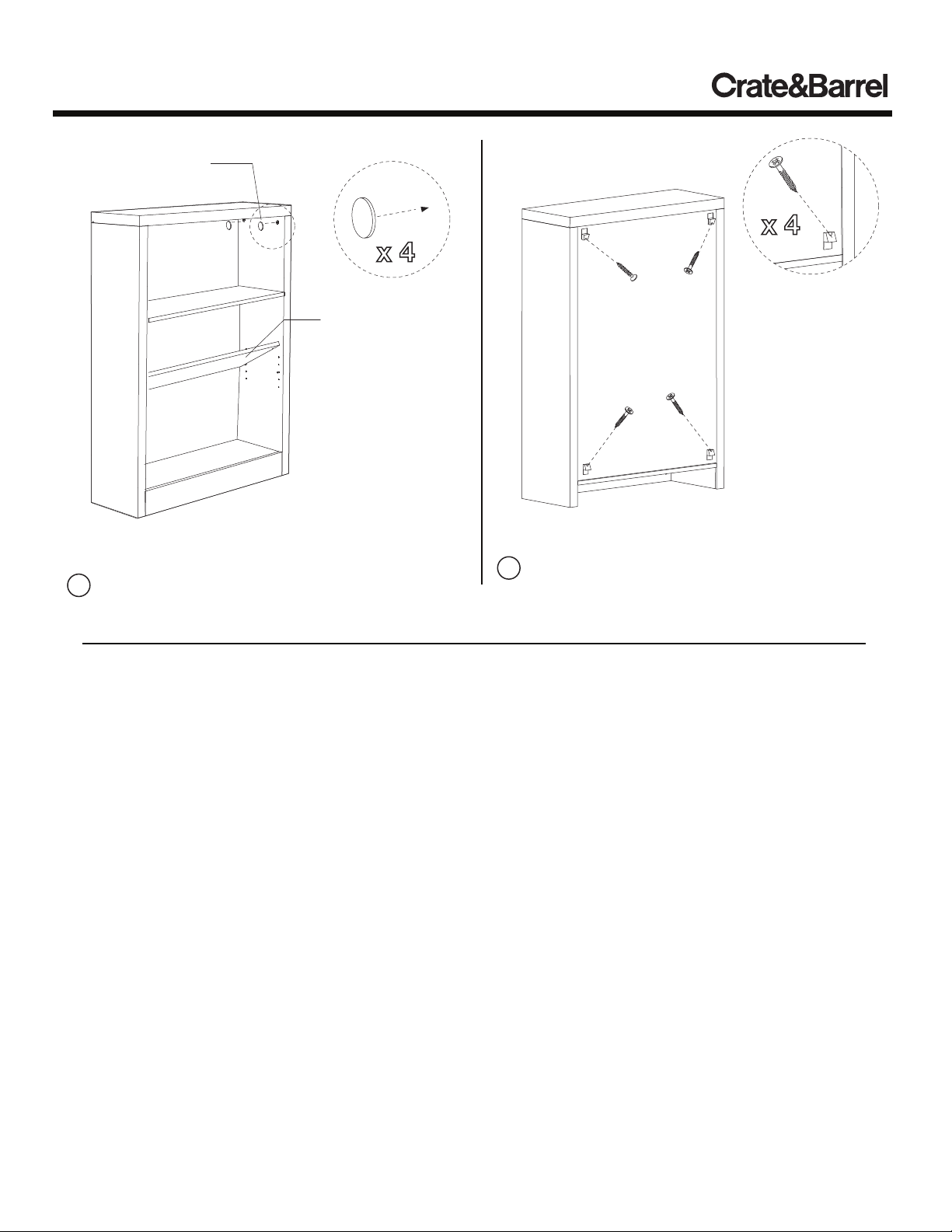

10 A) Place adjustable shelf onto shelf pins as shown.
Make sure each shelf is securely supported by shelf pins.
B) Fit 4 adhesive cam covers into exposed cams as shown.
NOTE: Do not over
tighten the screws
11 Attach 4 brackets to back of assembled unit with 4
large screws as shown. Secure, but do not over tighten,
screws using a phillips head screwdriver.
Assembly is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth.
Do not use abrasive cleaners. Do not use
furniture wax or polish as the wood is finished
with a protective clear lacquer.
Made in China - r03 Page 4 of 4
