WINDHAM TWO-DOOR CABINET
HARDWARE
Thank you for purchasing the Windham Two-Door
Cabinet. This page lists all the contents included in the
box. Please take time to identify the hardware as well
as the individual components of this product. As you
unpack and prepare for assembly, place the contents
on a carpeted or padded area to protect them from
damage.
Note: 2 people are required to safely assemble this product.

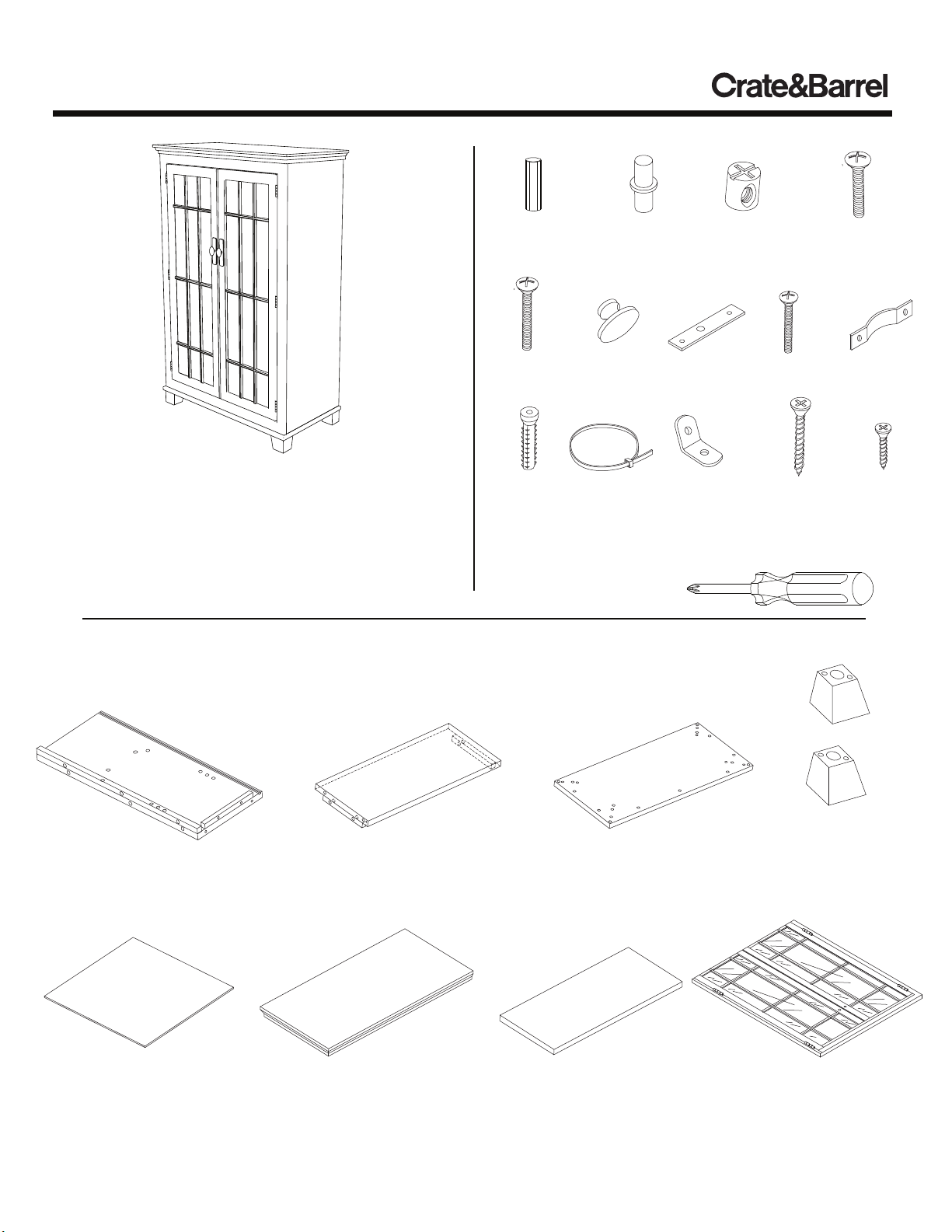

COMPONENTS
31 - wood
dowels
15 - large
8 - shelf
pins
2 - pulls 2 - plates 2 - small
bolts
2 - plastic
anchors
Missing hardware? Please call 800.606.6387 for replacements.
2 - wall
straps
7 - barrel
nuts
2 - wall
brackets
bolts
2 - large
screws
20 - medium
bolts
2 - anti-tip
brackets
4 - small
screws
TOOLS REQUIRED
Phillips head screwdriver
2 - side panels
(1 left, 1 right)
1 - back panel
A
B
1 - fixed shelf 1 - bottom panel
1 - top panel 2 - adjustable shelves
A
B
A
B
4 - legs
(2 leg A, 2 leg B)
1 - front frame
Made in China - r05 Page 1 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
Page 2
WINDHAM TWO-DOOR CABINET
right side
panel
fixed
shelf
left side
panel
1 Attach right and left side panels onto fixed shelf
with 2 wood dowels and 2 medium bolt per side
panel as shown. Secure, but do not over tighten, with
a phillips head screwdriver.
VIEW FROM
BELOW
A
B
front
frame
2 With the assistance of another adult, carefully place front frame
face down onto a clean, padded surface. Please be cautious of doors
opening when placing front frame downwards.
A) Insert 6 wood dowels into assembled unit as shown.
B) Fit front frame onto assembled unit, and secure with 8 medium
bolts as shown.
Make sure threaded holes
are horizontally aligned
C
B
A
VIEW FROM
BELOW
3 A) Insert 7 barrel nuts into assembled unit as
shown. With a screwdriver, align each nut so that the
threaded holes are horizontal as shown.
B) Insert 6 wood dowels into assembled unit as
shown.
C) Fit bottom panel onto assembled unit and secure
with 7 large bolts as shown.
Make sure each
leg A/B is attached to
corresponding label
on bottom panel
A
A
B
VIEW FROM
BELOW
4 Insert 8 wood dowels into assembled unit as
shown. Fit 2 leg A and 2 leg B onto assembled unit as
shown, and secure with 2 large bolts per leg. Make
sure each leg (A, B) is attached to corresponding label
on bottom panel.
B
A
Made in China - r05 Page 2 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
Page 3
WINDHAM TWO-DOOR CABINET
A
B
5 With the assistance of another adult, carefully
position unit upright. Slide back panel into grooves of
assembled unit as shown.
A
C
B
A
6 A) Insert 7 wood dowels into assembled unit as shown.
B) Fit top panel onto assembled unit and secure with 8
medium bolts as shown.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth.
Do not use abrasive cleaners. Do not use furniture
wax or polish as the wood is finished with a
protective clear lacquer.
7 A) Insert 4 shelf pins into assembled unit at desired
shelf heights.
B) Insert adjustable shelf into assembled unit. Make
sure shelf is securely supported by shelf pins.
C) Attach pull and plate onto door of assembled unit
as shown with 1 small bolt per door. Repeat step for
remaining door. Assembly is now complete.
Made in China - r05 Page 3 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
Page 4
WINDHAM TWO-DOOR CABINET
wall
D
strap
large
screw
A
small
screw
F
anti-tip
bracket
plastic
anchor
C
wall
bracket
8 Safety Mounting Instructions
For added safety and stability, it is recommended that the
wall mounting hardware be installed. For safe mounting, it
is essential to use wall anchors appropriate to your wall type
(i.e. plaster, drywall, concrete, etc.). Mount to wood studs
whenever possible.
A) Attach 2 anti-tip brackets to top of cabinet as shown,
using 2 small screw per bracket.
B) Determine the final location of cabinet. Mark position on
the wall, approximately 2" below the bracket mounted to the
back of the cabinet.
C) Drill a hole in the wall stud. If the wall stud is not
available, drill a hole in the wall that is slightly smaller in
diameter than the anchor. Gently tap the plastic anchor
until the flange of the anchor is flush with the wall.
D) Attach the wall bracket to the wall by inserting 1 large
screw through the wall bracket and into the wall anchor in
the wall.
E) Place the unit so the anit-tip bracket on the back edge is
allowed with the wall bracket.
F) Lace one end of the wall strap through both brackets,
and into the other end of the strap.
G) Pull the strap tightly until secure. Repeat steps for
remaining brackets and wall strap.
NOTE:
If you are unsure about your wall type or what
mounting method you should use, consult a
qualified professional or your local hardware
store.
Made in China - r05 Page 4 of 4
