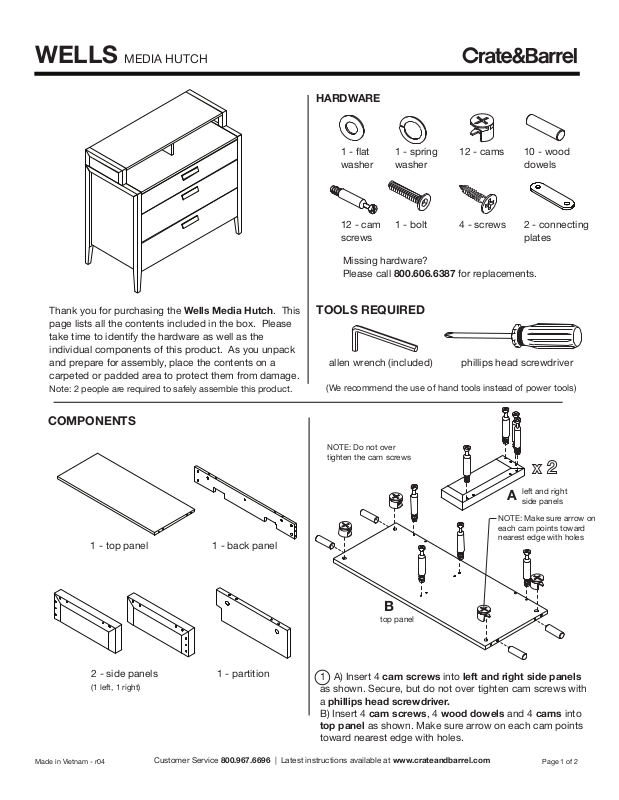

Crate & Barrel Wells Media Hutch Assembly Instruction

WELLS MEDIA HUTCH

HARDWARE

Thank you for purchasing the Wells Media Hutch. This
page lists all the contents included in the box. Please
take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.

Note: 2 people are required to safely assemble this product.

COMPONENTS

1 - flat
washer

12 - cam
screws

Missing hardware?
Please call 800.606.6387 for replacements.

1 - spring
washer

1 - bolt

12 - cams

4 - screws 2 - connecting

10 - wood
dowels

plates

TOOLS REQUIRED

allen wrench (included)

(We recommend the use of hand tools instead of power tools)

phillips head screwdriver

(1 left, 1 right)

NOTE: Do not over
tighten the cam screws

left and right

A

side panels

NOTE: Make sure arrow on
each cam points toward

1 - back panel1 - top panel

nearest edge with holes

B

top panel

1 - partition2 - side panels

1 A) Insert 4 cam screws into left and right side panels
as shown. Secure, but do not over tighten cam screws with
a phillips head screwdriver.
B) Insert 4 cam screws, 4 wood dowels and 4 cams into
top panel as shown. Make sure arrow on each cam points
toward nearest edge with holes.

Made in Vietnam - r04 Page 1 of 2

Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com

WELLS MEDIA HUTCH

partition

A

back panel

B

2 A) Fit 2 wood dowels and 2 cams into partition as
shown.
B) Fit 4 wood dowels and 6 cams into back panel as
shown.

NOTE: Do not over
tighten the bolts

B

partition

C

A

back panel

3 A) Fit dowels of back panel into corresponding holes of
top panel. Using a screwdriver, turn each cam clockwise
until it securely engages each cam screw.
B) Fit dowels of partition into corresponding holes of top
panel as shown. Secure cams.
C) Secure partition to back panel with 1 bolt, 1 spring

washer and 1 flat washer as shown, using an allen
wrench. Do not over tighten the bolts.

top panel

right side
panel

left side
panel

4 Fit dowels of assembled unit into corresponding holes
of left and right side panel as shown. Secure all cams.

hutch

dresser
(sold separately)

connecting
plate

5 With the assistance of another adult, carefully place
hutch on top of dresser (sold separately) as shown.
Secure hutch to dresser with 2 connecting plates and 4
screws as shown, using a screwdriver.
Assembly is now complete.

CLEANING AND CARE

Made in Vietnam - r04 Page 2 of 2

Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com

Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners. Do not
use furniture wax or polish as the wood is finished with a protective clear lacquer.
