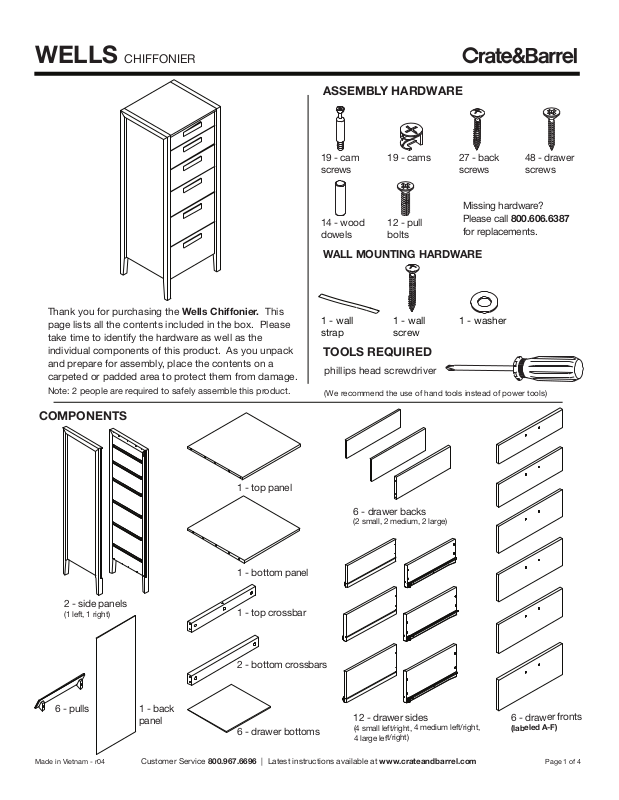

WELLS CHIFFONIER
ASSEMBLY HARDWARE
Thank you for purchasing the Wells Chiffonier. This
page lists all the contents included in the box. Please
take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
19 - cam
screws
14 - wood
dowels
19 - cams
12 - pull
bolts
27 - back
screws
Missing hardware?
Please call 800.606.6387
for replacements.
48 - drawer
screws
WALL MOUNTING HARDWARE
1 - wall
strap
1 - wall
screw
1 - washer
TOOLS REQUIRED
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
1 - top panel
6 - drawer backs
(2 small, 2 medium, 2 large)
1 - bottom panel
2 - side panels
(1 left, 1 right)
6 - pulls
Made in Vietnam - r04 Page 1 of 4
1 - back
panel
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
1 - top crossbar
2 - bottom crossbars
6 - drawer bottoms
12 - drawer sides
(4 small left/right, 4 medium left/right,
4 large left/right)
6 - drawer fronts
(labeled A-F)
WELLS CHIFFONIER
A
top panel
NOTE: Make sure arrow
on each cam points
toward nearest edge
with holes
A
NOTE: Do not over
tighten the cam screw
top crossbar
B
B
bottom panel
1 A) Insert 6 cams, 1 cam screw and 4 wood dowels
into top panel as shown. Make sure arrow on each cam
points toward nearest edge with holes. Secure, but do not
over tighten, cam screws with a phillips head screwdriver.
B) Insert 6 cams and 4 wood dowels into bottom panel
as shown.
top panel
top crossbar
bottom crossbar
2 A) Insert 3 cams and 2 wood dowels into top
crossbar.
B) Insert 2 cams and 2 wood dowels into 2 bottom
crossbars.
left and right
side panels
3 Insert cam screw of top panel into corresponding hole
of top crossbar as shown. Using a screwdriver, turn cam
4 Insert 9 cam screws into left and right side panels as
shown, using a screwdriver.
clockwise until it securely engages the cam screw.
Made in Vietnam - r04 Page 2 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
WELLS CHIFFONIER
top crossbar
top panel
right side
panel
bottom crossbars
left side
panel
bottom panel
NOTE: Make sure
wheels of glides
face forward as
shown
5 Fit dowels of top panel, bottom panel, top crossbar
and bottom crossbars into corresponding holes of left
side panel as shown. Secure all cams.
Repeat steps for right side panel.
NOTE: Do not over tighten the screws
back panel
6 Attach back panel to assembly with 27 back screws,
using a screwdriver. Do not over tighten the screws. With
assistance of another adult, position unit upright.
A
drawer front A/B
small right
drawer side
NOTE: Make sure wheels of drawer side
are assembled towards the back as shown
drawer front C/D drawer front E/F
B C
7 A) Attach small left and right drawer sides to drawer
fronts (A/B) with 2 drawer screws as shown, using a
screwdriver.
B) Attach medium left and right drawer sides to drawer
fronts (C/ D) with 2 drawer screws.
C) Attach large left and right drawer sides to drawer
fronts (E/F) with 2 drawer screws.
small left
drawer side
drawer bottom
8 Fit drawer bottom into corresponding grooves of small
drawer sides and drawer front.
Repeat step 8 for remaining small (A/B), medium (C/D)
and large (E/F) drawer assemblies.
Made in Vietnam - r04 Page 3 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
WELLS CHIFFONIER
small drawer
A
back
B
pull
A
B
C
D
E
NOTE: Do not over tighten the bolts
9 A) Attach small drawer back to corresponding small
drawer assembly with 4 drawer screws as shown.
B) Attach 1 pull to drawer front A with 2 pull bolts, using
a screwdriver. Do not over tighten the bolts.
10 Fit drawer glides of small (A/B), medium (C/D) and
large (E/F) drawer assemblies into corresponding drawer
glides of assembly as shown. Press drawer front firmly to
Repeat step 9 for remaining small (A/B), medium (C/D)
and large (E/F) drawer assemblies.
secure.
Assembly is now complete.
WALL MOUNTING INSTRUCTIONS
For added safety and stability, it is recommended that the wall
mounting hardware be installed. For safe mounting, it is essential
to use wall anchors appropriate to your wall type (i.e. plaster,
drywall, concrete, etc.). Mount to wood studs whenever possible.
A. Insert screw (included) and washer through end wall strap and
into the top back of unit as shown.
B. Insert wall screw (not included) through end of wall strap and
into wall as shown.
F
NOTE: Insert screws 3/4"-1"
from the edge of the strap
wall
washer
wall
strap
screw
WALL
3/4”-1”
Mounting assembly is now complete.
NOTE: If you are unsure about your wall type or what mounting
method you should use, consult a qualified professional or your
local hardware store.
wall
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as
the wood is finished with a protective clear lacquer.
Made in Vietnam - r04 Page 4 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
screw
(NOTE: Wall screw
not included. Please
consult your local
hardware store.)
