VINTNER HUTCH
ASSEMBLY HARDWARE
Thank you for purchasing the Vintner Hutch. This page
lists all the contents included in the box. Please take
time to identify the hardware as well as the individual
components of this product. As you unpack and prepare
for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.

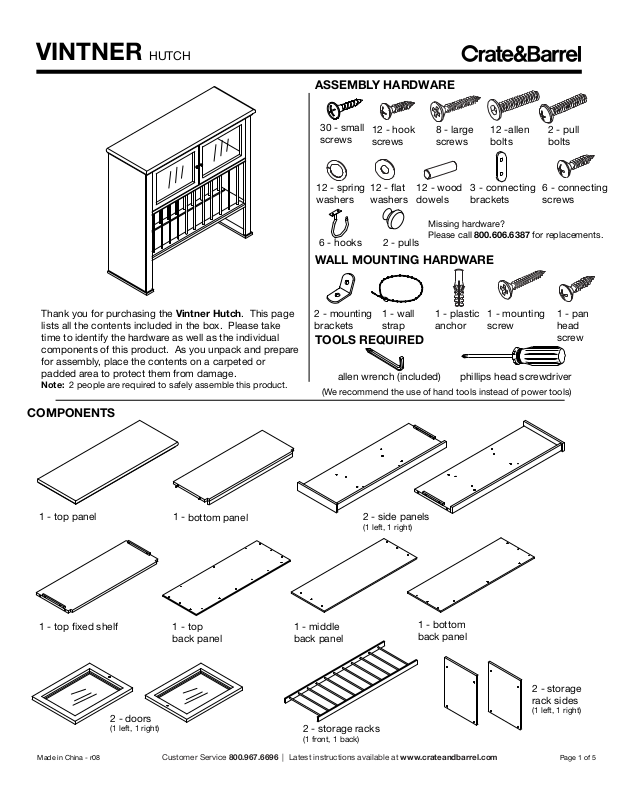

COMPONENTS
30 - small
screws
12 - spring
washers
6 - hooks
12 - hook
screws
12 - flat
washers
2 - pulls
8 - large
screws
12 - wood
dowels
Missing hardware?
Please call 800.606.6387 for replacements.
12 -allen
bolts
3 - connecting
brackets
2 - pull
bolts
6 - connecting
screws
WALL MOUNTING HARDWARE
2 - mounting
brackets
1 - wall
strap
1 - plastic
anchor
1 - mounting
screw
TOOLS REQUIRED
phillips head screwdriverallen wrench (included)
(We recommend the use of hand tools instead of power tools)
1 - pan
head
screw
1 - top panel
1 - top fixed shelf
Made in China - r08
2 - doors
(1 left, 1 right)
1 - bottom panel
1 - top
back panel
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
1 - middle
back panel
2 - storage racks
(1 front, 1 back)
2 - side panels
(1 left, 1 right)
1 - bottom
back panel
2 - storage
rack sides
(1 left, 1 right)
Page 1 of 5
VINTNER HUTCH
top panel
left and right
side panels
NOTE: Do not over
tighten the screws
bottom fixed
panel
1 Insert 4 wood dowels into left/right side panels
and top panel as shown.
bottom fixed
shelf
top fixed
shelf
left side
panel
NOTE: Do not over
tighten the bolts
2 Attach 6 hooks with 2 hook screws per hook to
bottom fixed panel as shown. Secure, but do not over
tighten, screws using a phillips head screwdriver.
right side
panel
3 Fit dowels of left side panel into corresponding holes
of top and bottom fixed shelves as shown. Secure with
4 allen bolts, 4 spring washers and 4 flat washers using
an allen wrench. Do not over tighten the bolts.
Made in China - r08
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
4 Fit dowels of right side panel into corresponding holes
of assembled unit. Secure with 4 allen bolts, 4 spring
wahsers and 4 flat washers.
Page 2 of 5
VINTNER HUTCH
B
pull
A
right door
AA
A
left door
B
5 A) With the assistance of another adult, carefully
position unit upright. Attach left and right doors to
assembled unit by fitting hinge of doors into corresponding
hinge of left and right side panels as shown.
B) Attach 1 pull to each door with 1 phillips bolt, using a
screwdriver.
top panel
6 Fit dowels of top panel into corresponding holes of
assembled unit. Secure with 4 allen bolts, 4 spring
washers and 4 flat washers using an allen wrench.
top
back panel
middle
back panel
bottom
back panel
7 Attach bottom/middle/top back panels to back of
assembled unit as shown. Secure back panels with 30
small screws using a screwdriver.
NOTE: Make sure curved
edges of right and left
storage shelf face each
other during assembly
right storage
rack shelf
storage rack
front/back
left storage
rack shelf
8 Attach left and right storage rack sides to 2 storage
rack front and back with 8 large screws as shown using a
screwdriver.
Made in China - r08
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 3 of 5
VINTNER HUTCH

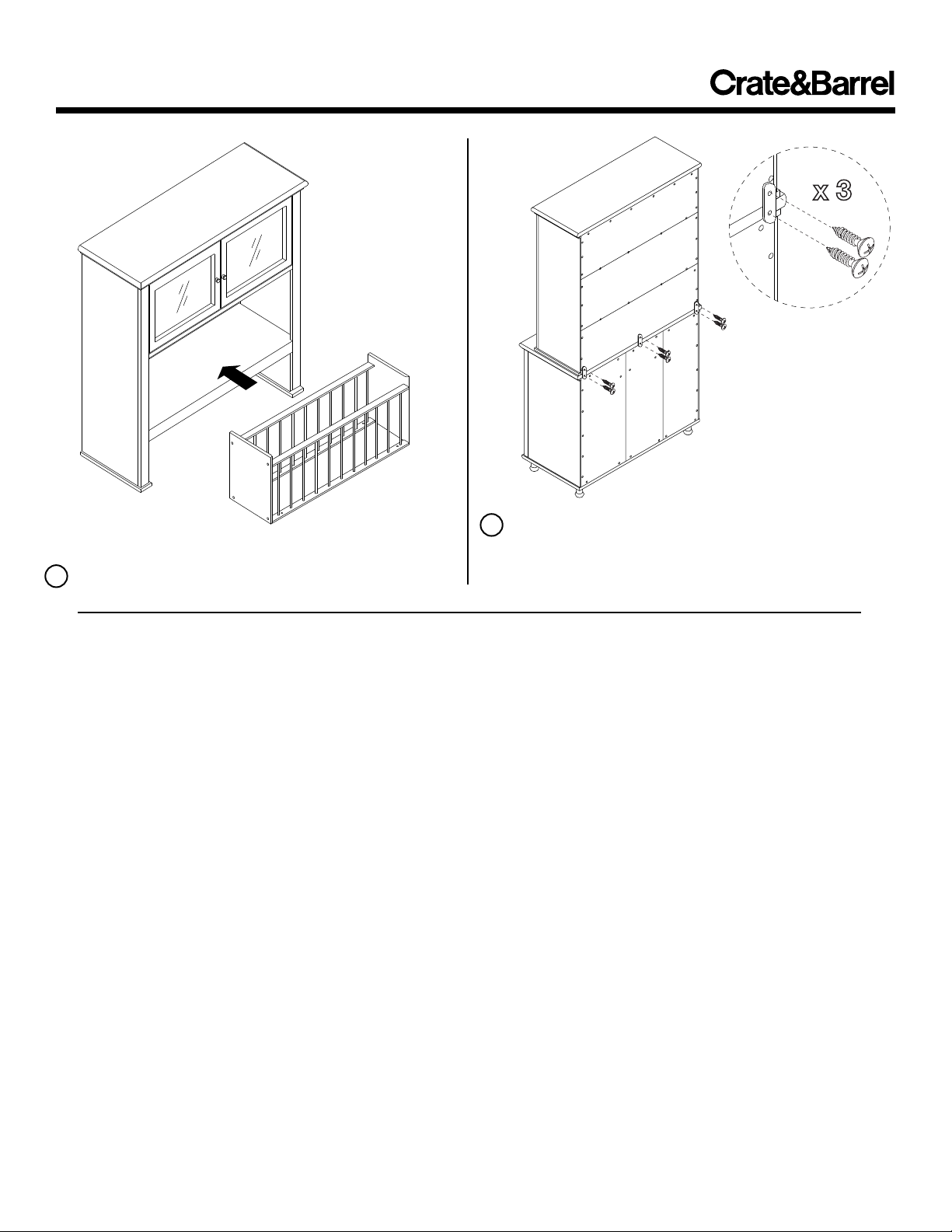

9 Fit shelf assembly into unit.
Make sure curved
edges of storage rack
assembly are in front
as shown
storage rack
assembly
10 With the assistance of another adult, place hutch onto
buffet as shown. Attach 3 connecting brackets to buffet
(sold separately) and hutch assembly with 2 connecting
screws per bracket as shown, using a screwdriver.
Assembly is now complete
Made in China - r08
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 4 of 5
VINTNER HUTCH
WALL MOUNTING ASSEMBLY
WALL
hutch
C
plastic
anchor
mounting
bracket
A
pan head
screw
mounting
bracket
buffet
(sold separately)
D
mounting
screw
NOTE: If you are unsure about your wall
type or what mounting method you
should use, consult a qualified
professional or your local hardware store.
For added safety and stability, it is recommended that the wall mounting hardware be
installed. For safe mounting, it is essential to use wall anchors appropriate to your wall type
(i.e. plaster, drywall, concrete, etc.). Mount to wood studs whenever possible.

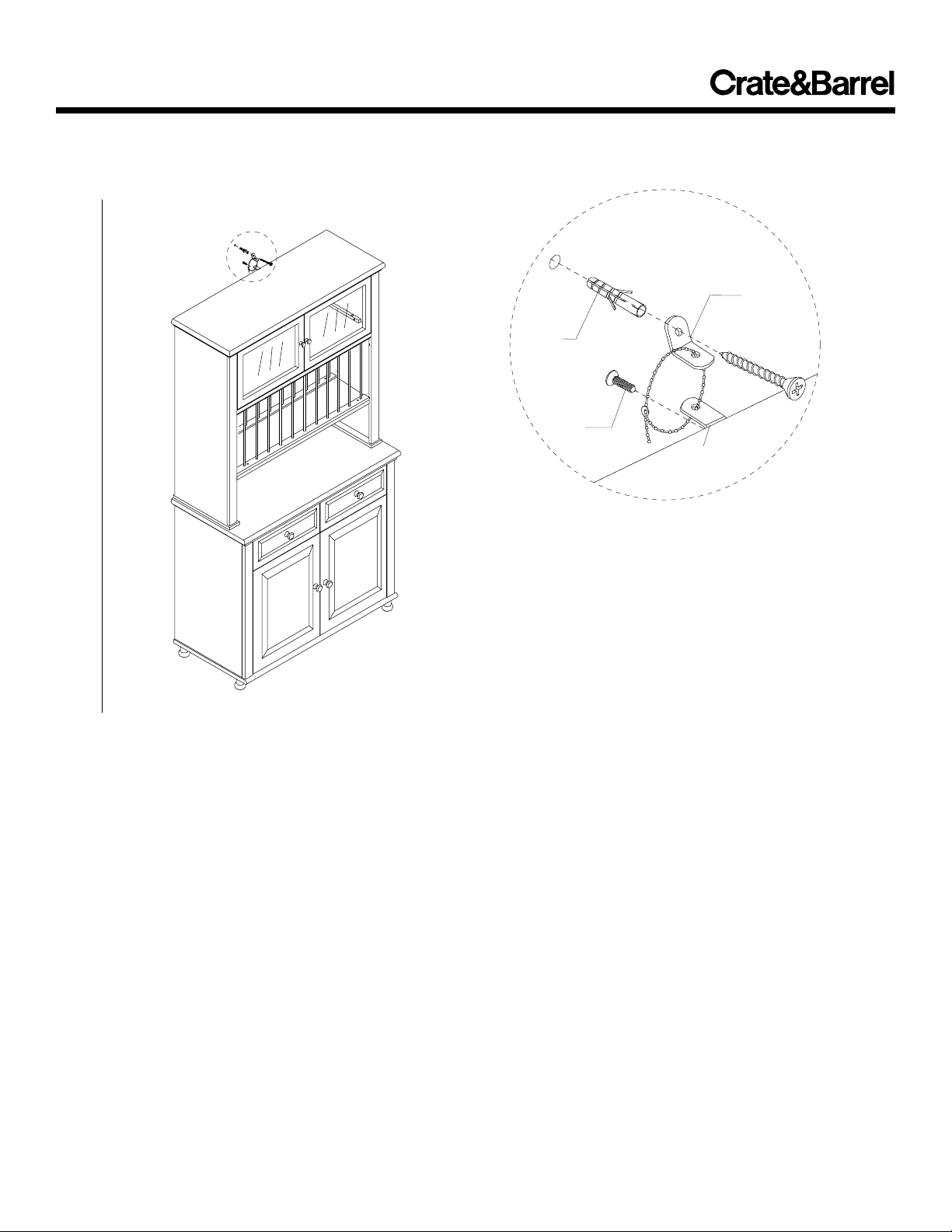

A) Attach 1 mounting bracket to top of unit as shown, using 1 pan head screw.
B) Determine the final location of unit. Mark position on the wall, approximately 2" below the
bracket mounted to the back of the hutch.
C) Drill a hole in the wall stud. If the wall stud is not available, drill a hole in the wall that is
slightly smaller in diameter than the anchor. Gently tap the plastic anchor until the flange of
the anchor is flush with the wall.
D) Attach the mounting bracket to the wall by inserting 1 mounting screw through the wall
fitting and into each plastic anchor in the wall.
E) Place the unit so the wall fitting on the back edge is aligned with the wall fitting on wall.
F) Lace one end of the wall strap through both fittings, and into the other end of the strap.
G) Pull the strap tightly until secure. Repeat steps for remaining fitting and wall strap.
Wall mounting assembly is now complete.
Made in China - r08
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 5 of 5
