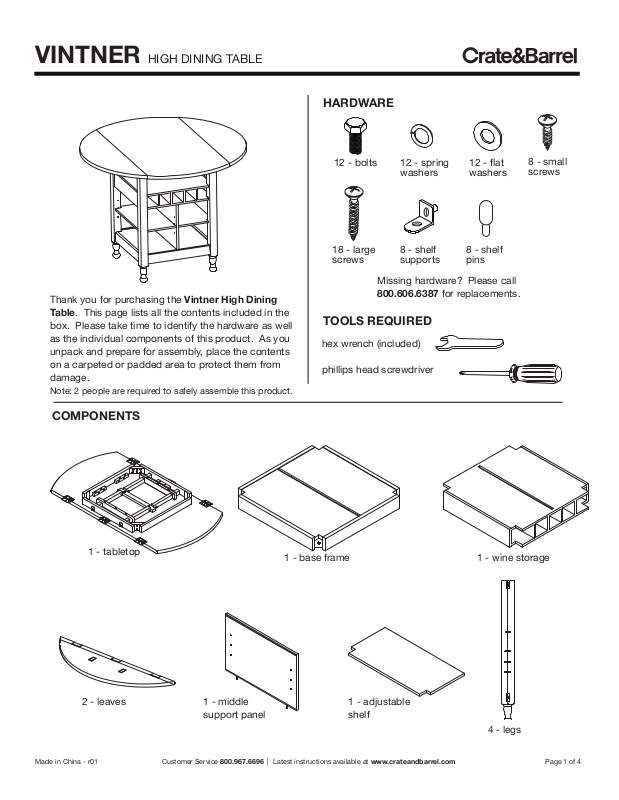

VINTNER HIGH DINING TABLE
HARDWARE
Thank you for purchasing the Vintner High Dining
Table. This page lists all the contents included in the
box. Please take time to identify the hardware as well
as the individual components of this product. As you
unpack and prepare for assembly, place the contents
on a carpeted or padded area to protect them from
damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
12 - bolts 12 - spring
washers
18 - large
screws
8 - shelf
supports
Missing hardware? Please call
800.606.6387 for replacements.
TOOLS REQUIRED
hex wrench (included)
phillips head screwdriver
12 - flat
washers
8 - shelf
pins
8 - small
screws
1 - tabletop
2 - leaves 1 - adjustable
Made in China - r01 Page 1 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
1 - middle
support panel
1 - base frame
1 - wine storage
shelf
4 - legs
VINTNER HIGH DINING TABLE
bolt
spring washer
flat washer
1 Attach 4 legs to base frame as
shown with 1 bolt, 1 spring washer, and
1 flat washer per leg. Using a hex
wrench, turn bolts clockwise to secure.
A
A
B
B
NOTE: Each shelf pin
can be inserted into
either hole on each leg.
2 With the assistance of another adult, carefully place
assembled unit upright. Fit wood dowels of middle
support panel into holes of base frame as shown.
Made in China - r01 Page 2 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
3 A) Insert 8 shelf supports into legs of assembled unit
as shown. Press support firmly to secure.
B) Insert 8 shelf pins into middle support panel and legs
of assembled unit as shown. Press pin firmly to secure.
VINTNER HIGH DINING TABLE
Make sure middle
support panel fits
securely into groove
of wine storage
4 With the assistance of another adult, carefully fit
wine storage onto assembled unit as shown. Make
sure middle support panel fits securely into groove of
wine storage.
leaf supports
(pre-installed)
5 Carefully place tabletop face down. Attach 2 leaves
onto tabletop as shown with 18 large screws. Secure, but
do not over tighten, screws with a phillips head
screwdriver.
6 Extend 4 pre-installed leaf supports from the
tabletop as shown.
7 With the assistance of another adult, carefully place
tabletop assembly onto assembled unit as shown.
Secure tabletop assembly with 1 bolt, 1 spring
washer, and 1 flat washer per corner.
Made in China - r01 Page 3 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
VINTNER HIGH DINING TABLE
8 Place 2 adjustable shelves onto shelf pin as
shown. Make sure shelf is securely supported by each
shelf pin.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth.
Do not use abrasive cleaners. Do not use furniture
wax or polish as the wood is finished with a
protective clear lacquer. It is recommended to use
coasters to protect surface from heat and water.
9 Using a phillips head screwdriver, insert 1 small screw
through each shelf support to secure wine storage to
assembled unit.
Assembly is now complete.
