Thank you for purchasing the Trestle Sideboard. This
page lists all the contents included in the box. Please
take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
14 - spring
washers
2 - large
screws
2 - barrel
screws
6 - small
flat washers
4 - pull
bolts
2 - barrel
nuts
8 - large
flat washers
6 - small
bolts
2 - set
screws
20 - small
screws
8 - large
bolts
4 - hinges
16 - hinge
screws
8 - shelf
supports
Missing hardware? Please call 800.606.6387 for replacements.
TOOLS REQUIRED
phillips head screwdriverflat head screwdriver
(We recommend the use of hand tools instead of power tools)
1 - top
assembly
2 - side panels
(1 left, 1 right)
1 - partition2 - shelves1 - crossbar
Made in Vietnam - r06Page 1 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
1 - bottom
panel
1 - back panel
2 - door fronts
(1 left, 1 right)
2 - pulls
TRESTLE SIDEBOARD
NOTE: Do not over tighten
the barrel screws
left side
panel
NOTE: Make sure hole
of barrel screw faces
end of panel
A
B
right side
panel
crossbar
1 A) Insert 2 barrel screws into left and right side panels.
Secure, but do not over tighten, barrel screws with a flat head screwdriver. Make sure to align hole of each barrel
screw so it faces the ends of each panel as shown.
B) Insert 2 barrel nuts into crossbar as shown. Using a
screwdriver, align hole of each barrel nut with the nearest
edge with holes.
NOTE: Make sure
hole of barrel nut
aligns with nearest
edge with holes
top
assembly
2 Remove drawers from top assembly as shown and set
aside.
NOTE: Do not over
tighten the screws
partition
bottom
panel
3 Fit pre-assembled dowels of partition into
corresponding holes of bottom panel as shown. Secure
bottom panel to partition with 2 large screws using a
phillips head screwdriver. Do not over tighten the screws.
NOTE: Do not over
tighten the bolts
top
assembly
4 With the assistance of another adult, attach top
assembly to assembled unit as shown with 2 small flat
washers, 2 spring washers and 2 small bolts. Secure, but
do not over tighten, the bolts.
Made in Vietnam - r06Page 2 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
TRESTLE SIDEBOARD
A
left side
panel
A
B
B
5 A) Fit dowels of assembled unit into corresponding holes
of left side panel. Secure top assembly with 4 large flat washers, 4 spring washers and 4 large bolts as shown,
using a screwdriver.
B) Secure left side panel to bottom panel with 2 small flat washers, 2 spring washers and 2 small bolts as shown.
NOTE: Make sure set
screw is securely engaged
with barrel screw
crossbar
6 Fit barrel screws of left side panel into corresponding
hole in crossbar as shown. Insert 1 set screw into barrel nut and secure by turning clockwise with a screwdriver.
Make sure set screw securely engages barrel screw.
B
A
A
B
C
7 A) Fit dowels of assembled unit into corresponding holes of
right side panel. Secure top assembly with 4 large flat
washers, 4 spring washers and 4 large bolts as shown. B) Secure right side panel to bottom panel with 2 small flat
washers, 2 spring washers and 2 small bolts as shown.
C) Insert 1 set screw into barrel nut as shown. Secure set
screw.
C
right side
panel
left and right
door fronts
8 Attach 2 hinges to left and right door fronts with 2
hinge screws per hinge as shown.
Made in Vietman - r06Page 3 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
TRESTLE SIDEBOARD
Refer to Hinge Adjustment
diagram for adjusting the
alignment of the door
hinges
left door
front
A
A
B
pull
9 A) Attach left and right door fronts to assembled unit as
shown. Secure each hinge with 2 hinge screws.
B) Attach 2 pulls to left and right door fronts as shown.
Secure each pull with 2 pull bolts.
B
right door
front
shelf
support
10 Insert 8 shelf supports at desired shelf heights as
shown.
drawer
A
B
shelf
11 A) Fit drawers into assembled unit as shown.
B) Place 2 shelves onto shelf supports as shown. Make
sure shelves are securely supported by each shelf support.
Shelves can be installed as shown to hold wine bottles, or
can be flipped 180º for use as a standard shelf.
back panel
12 Attach back panel to assembled unit with 20 small screws as shown.
Assembly is now complete.
Made in Vietnam - r06Page 4 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
TRESTLE SIDEBOARD
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.

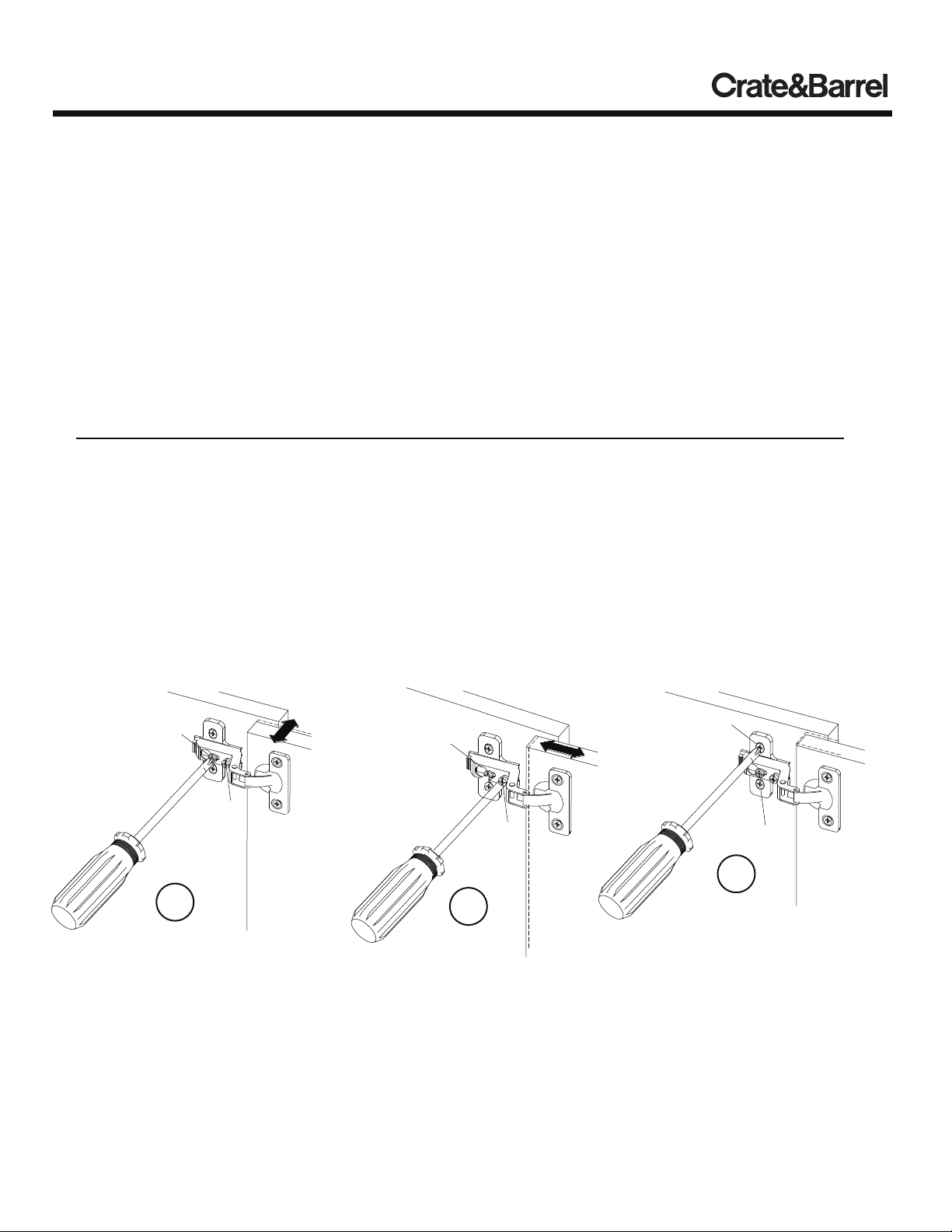

HINGE ADJUSTMENT
If the doors do not appear square or aligned,
loosen or tighten the appropriate screws on
each case hinge as illustrated.
1) Side to side adjustment:
Loosen screw A, adjust gap
with screw B and re-tighten
screw A.
A
B
1
2) Depth adjustment:
Loosen screw A, push hinge arm
forwards or backwards, re-tighten
screw A and secure screw B with
a 1/4 turn clockwise.
A
B
2
3) Height adjustment:
Loosen screw C, adjust
door height and retighten screw C.
C
C
3
Made in Vietnam - r06Page 5 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
