Thank you for purchasing the Summit Hutch. This
page lists all the contents included in the box. Please
take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
ASSEMBLY HARDWARE
20 - small
screws
8 - shelf
pins
4 - large
screws
4 - cam
screws
4 - bolts
4 - cams2 - connecting
WALL MOUNTING HARDWARE
4 - plastic
anchors
4 - wall
brackets
4 - medium
screws
TOOLS REQUIRED
phillips head screwdriver
Missing hardware? Please call
800.606.6387 for replacements.
4 - flat
washers
brackets
4 - large
screws
4 - spring
washers
2 - wall
straps
COMPONENTS
2 - side
panels
(1 left, 1 right)
1 - top
panel
1 - bottom
panel
2 - adjustable
shelves
Made in China - r04Page 1 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
1 - back
panel
2 - doors
(1 left, 1 right)
SUMMIT HUTCH
Make sure arrows
on each cam point
towards nearest edge
with holes
B
left/right
side panel
1 A) Insert 4 cams into bottom panel as shown.
Make sure arrows on each cam point towards nearest
edge with holes.
B) Insert 2 cam screws into left/right side panels as
shown. Secure cam screws with a phillips head
screwdriver.
A
bottom panel
right side
panel
left side
panel
bottom
panel
2 Fit pre-attached dowels of bottom panel into
corresponding holes of left/right side panels as
shown. Using a screwdriver, turn cams clockwise until
they securely engages each cam screw.
top
panel
back
NOTE: Make
sure grooves of
top/bottom panel
are in front.
3 Fit pre-attached dowels of assembled unit into
corresponding holes of top panel. Attach top panel
with 4 bolts, 4 spring washers, and 4 flat washers
as shown. Secure bolts with a screwdriver.
Made in China - r04 Page 2 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
4 With the assistance of another adult, carefully
position assembled unit as shown. Attach back panel
with 20 small screws as shown. Secure screws with a
screwdriver.
panel
SUMMIT HUTCH
A

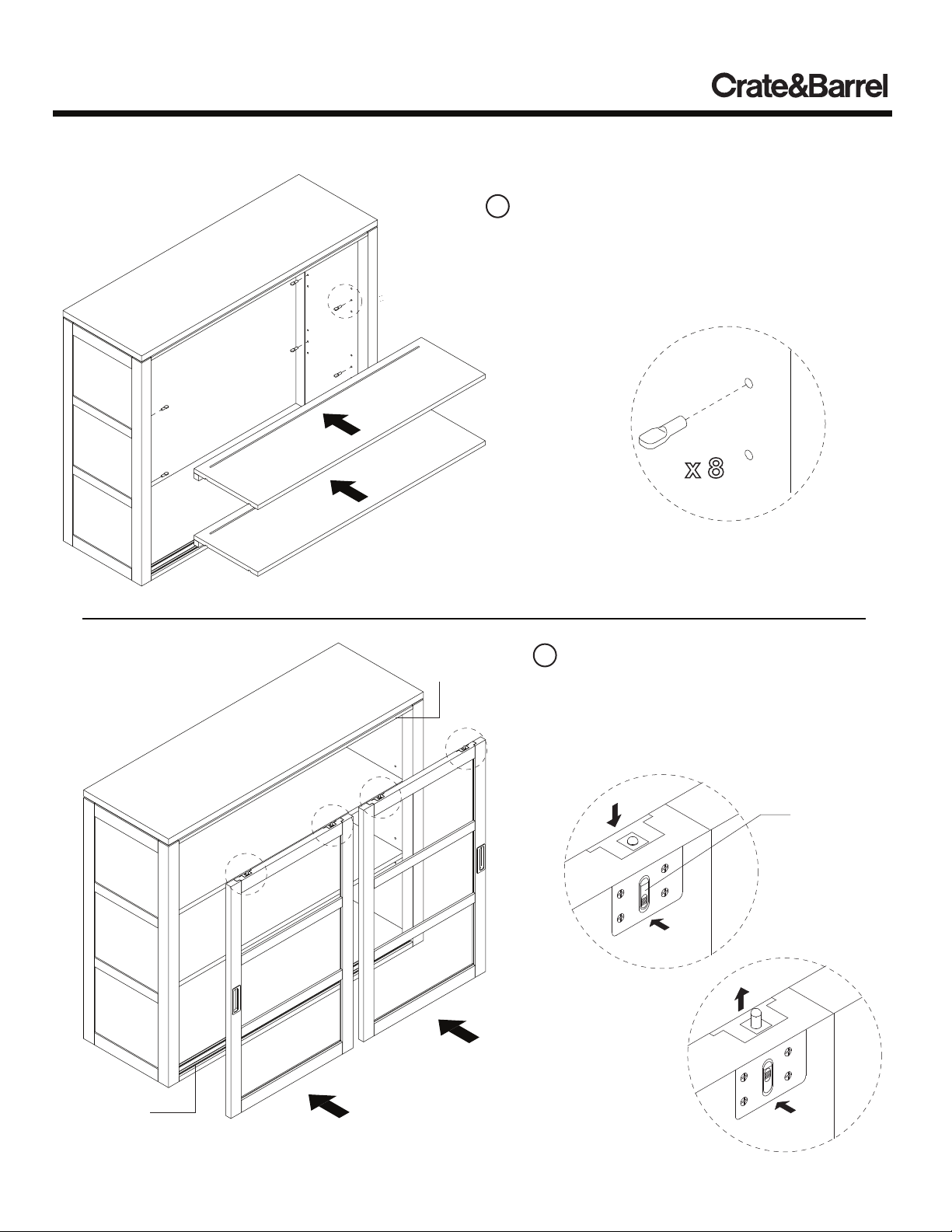

5 A) Insert 8 shelf pins at desired shelf heights as
shown.
B) Place adjustable shelves into assembled unit as
shown. Make sure each shelf is securely supported by
shelf pins.
grooves on
top panel
B
adjustable
shelves
A
6 Fit the bottom rollers of the right door into
back groove. Depress levers located at the
top of the door, tilt the door into the groove in
the top panel. Release the levers to secure
door. Repeat steps for left door, fitting it into
the front groove.
LEVERS LOCATED
BEHIND DOOR
FRAMES
right door
grooves on
bottom panel
Made in China - r04Page 3 of 5
left door
Customer Service 800.967.6696 | www.crateandbarrel.com
SUMMIT HUTCH
hutch
buffet
(sold separately)

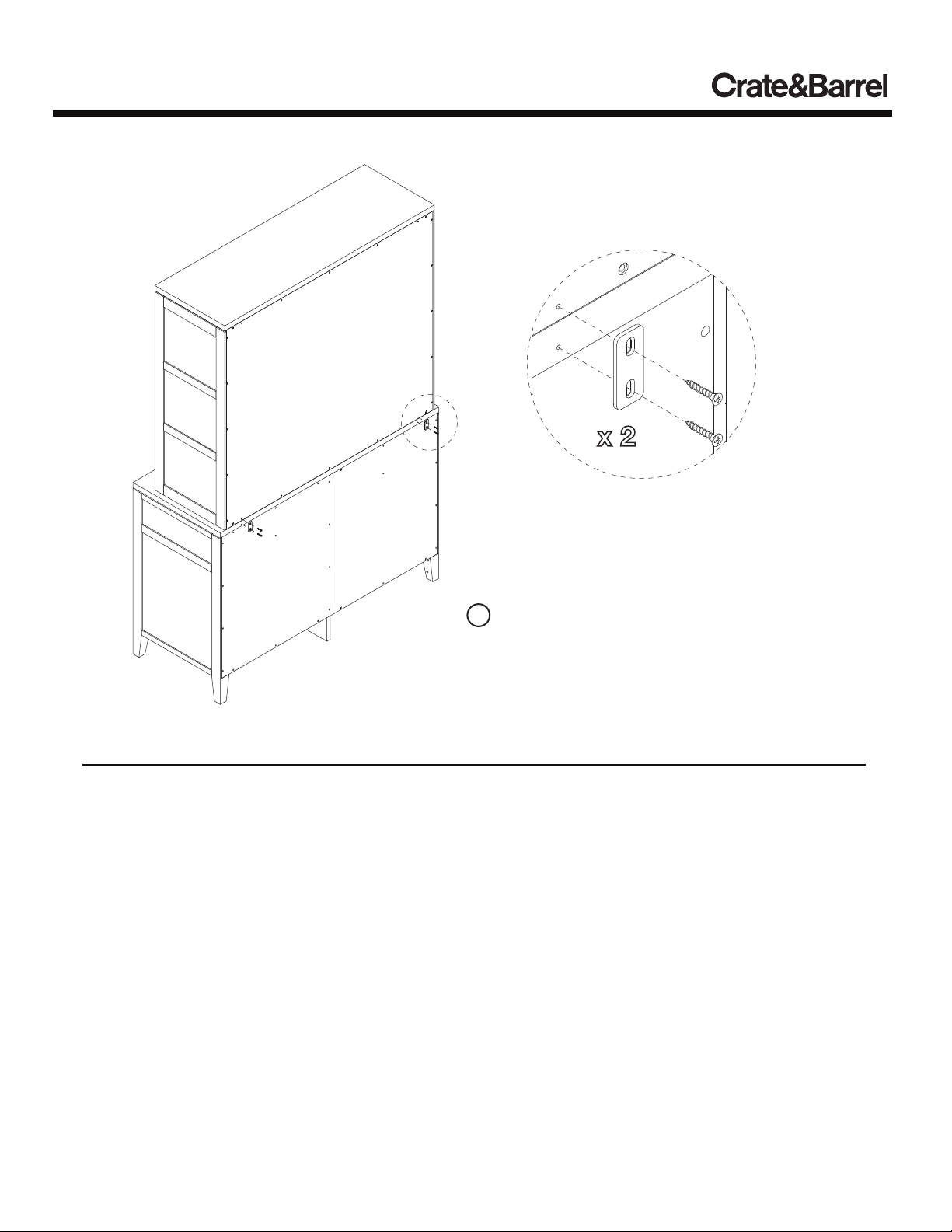

7 With the assistance of another adult, carefully place
hutch onto buffet as shown. Attach 2 connecting brackets to back of hutch and buffet (sold separately)
with 2 large screws per bracket as shown. Secure
screws with a screwdriver.
Assembly is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
Made in China - r04Page 4 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
SUMMIT HUTCH
Safety Mounting Instructions
C
plastic
anchor

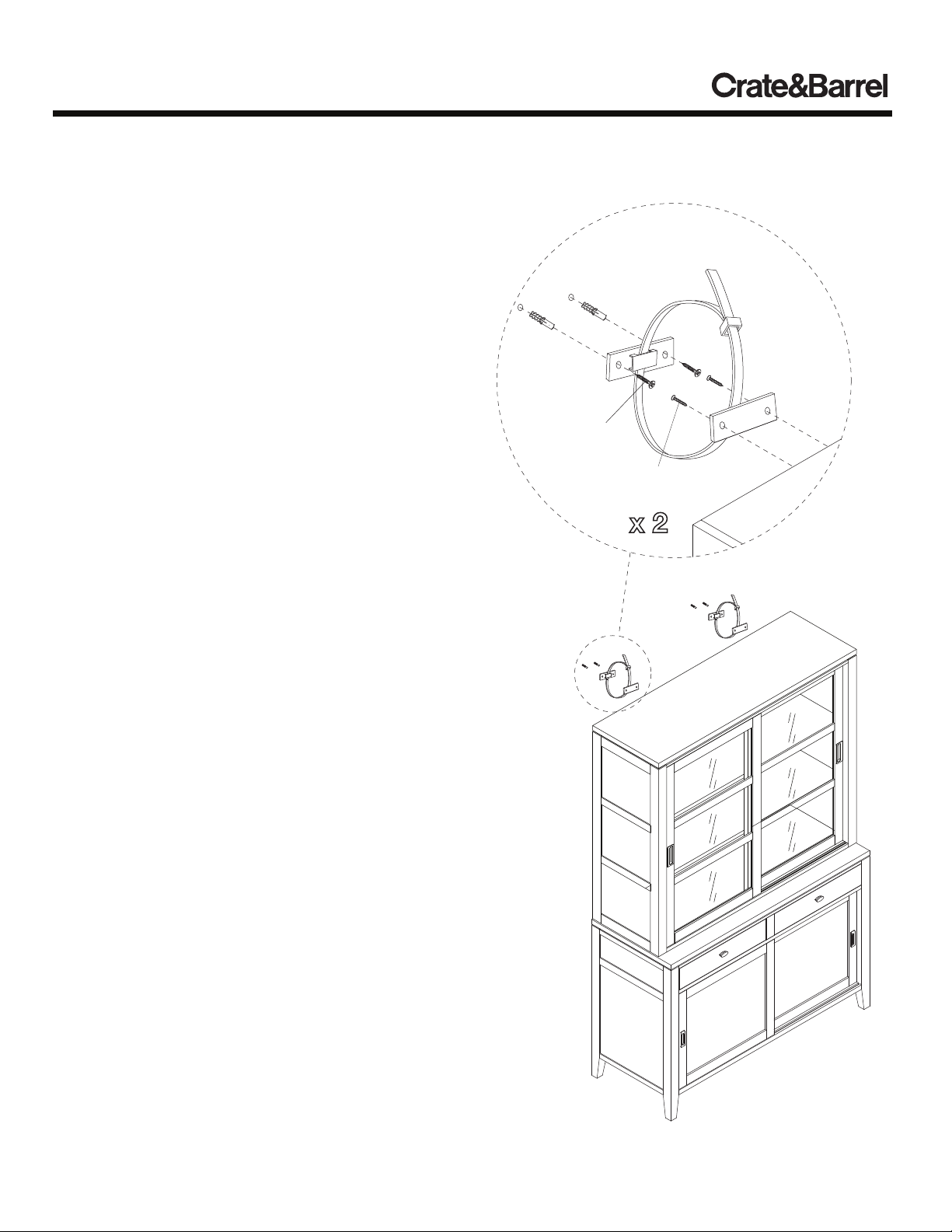

For added safety and stability, it is recommended
that the wall mounting hardware be installed. For
safe mounting, it is essential to use wall anchors
appropriate to your wall type (i.e. plaster, drywall,
concrete, etc.). Mount to wood studs whenever
possible.
A) Attach wall bracket to top of bookcase using 2
medium screws as shown.
B) Determine the final location of bookcase. Mark
position on the wall, approximately 2" below the
wall bracket mounted to the back of the cabinet.
C) Drill a hole in the wall stud. If the wall stud is
not available, drill a hole in the wall that is slightly
smaller in diameter than the anchor. Gently tap the
plastic anchor until the flange of the anchor is
flush with the wall.
D) Attach wall bracket to the wall by inserting 2
large screws, and into the plastic anchor in the
wall.
E) Place the unit so the wall brackets on the back
edge are aligned with the wall brackets on the wall.
F) Lace one end of the wall strap through both
brackets, and into the other end of the strap.
G) Pull the strap tightly until secure.
H) Repeat steps A-G for remaining wall brackets
and wall straps.
wall
bracket
D
large
screw
A
medium
screw
F
wall
strap
wall
bracket
NOTE:
If you are unsure about your wall type or what
mounting method you should use, consult a
qualified professional or your local hardware
store.
Made in China - r04Page 5 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
