Customer Service 800-967-6696 | http://www.crateandbarrel.com
SPRINGDALE SPIRITS CABINET
Thank you for purchasing the Spirits Cabinet. This
page lists all the contents included in the box. Please
take time to identify the hardware as well as the
individual components to this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from
damage.
COMPONENTS
1 - middle partition
1 - top panel
1 - back panel
1 - bottom panel
2 - side panels
(1 left, 1 right)
Made in China 2004
5 - glass racks
2 - fixed shelves
HARDWARE
18 - cams 18 - cam
screws
3 - metal
knobs
2 - brackets 1 - pan head
1 - wall
strap
3 - machine
screws
1 - bracket
screw
Missing hardware? Please call
800.606.6387 for replacements.
55 - small
screws
2 - lid
supports
screw
TOOLS REQUIRED
Phillips head screwdriver
4 - dividers
1 - drop lid
1 - adjustable shelf
4 - shelf
pins
10 - large
screws
1 - wall
anchor
2 - doors
(1 right, 1 left)
1 - crossbar
Page 1 of 4
Customer Service 800-967-6696 | http://www.crateandbarrel.com
SPRINGDALE SPIRITS CABINET
Cross Bar
A
Make sure arrow
points towards
edge with dowel
B
x 2
1 A) Insert 2 cams into the crossbar, 4 cams into each
fixed shelf, and 4 cams into the bottom panel. (Make sure
arrow on each cam points towards the edge with the
dowels).
B) Fasten 7 cam screws to 1 side panel with a phillips
head screwdriver. Repeat for the other side panel.
3 Fasten 5 glass racks to the underside of the top
panel using 2 large screws per rack.
Made in China 2004
Fixed
Shelf
Fixed
Shelf
x 10
Bottom
Panel
Cam in
unlocked
position
Cam in
locked
position
B
A
2 A) Fit side panels onto dowels and cam screws
of the bottom panel, 2 fixed shelves, and crossbar.
B) Secure assembly by turning each cam 90º with a
phillips head screwdriver.
x 14
C
B
x 4
A
x 4
4 Place assembled unit upright.
A) Insert cams into 2 holes at top of each side panel. Make
sure arrows face up towards dowels.
B) Fasten 4 cam screws to the top panel with a
screwdriver.
C) Fit top panel onto assembled unit, and secure all cams
by turning 90º with a screwdriver.
Page 2 of 4
Customer Service 800-967-6696 | http://www.crateandbarrel.com
SPRINGDALE SPIRITS CABINET
x 2
A
B
A

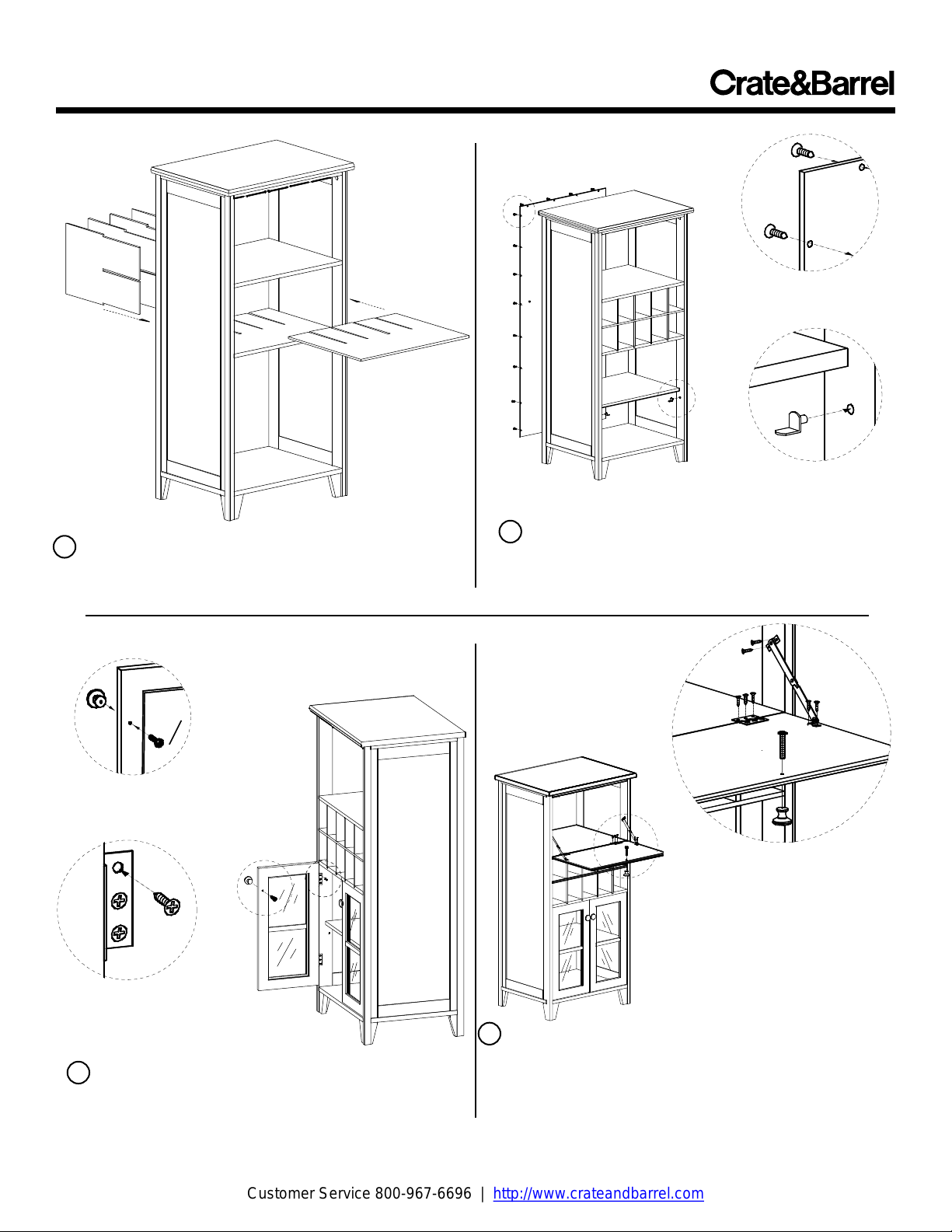

5 A) Slide 4 dividers into corresponding slots on the
fixed shelves.
B) Slide the middle partition into corresponding slots of
the divider.
A
B
x 4
7 A) Attach 1 metal knob to each door with 1
machine screw.
B) Attach 2 door frames to case by fastening 3
small screws through each hinge.
Made in China 2004
B
A
A
H
6 A) Attach the back panel with 29 small screws along
the perimeter and center of the case assembly.
B) Insert 4 shelf pins into the side panels at the desired
level and install the adjustable shelf.
x 29
B
x 4
C
x 2
B
x 2
A
8 A) Attach metal knob to drop lid frame with 1 machine
screw.
B) Attach drop lid to case by fastening 3 small screws
through each hinge and into the case.
C) Complete assembly by fastening 2 lid supports to inside
of case and to inside of drop lid frame with 4 small screws.
Page 3 of 4
Customer Service 800-967-6696 | http://www.crateandbarrel.com
SPRINGDALE SPIRITS CABINET
NOTE:
If you are unsure about your wall type or what
mounting method you should use, consult a
qualified professional or your local hardware
store.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use abrasive
cleaners. Do not use furniture wax or polish as the wood is finished with
a protective clear lacquer.
Made in China 2004
9 Safety Mounting Instructions
For added safety and stability, it is recommended
that the wall mounting hardware be installed. For
safe mounting, it is essential to use wall anchors
appropriate to your wall type (i.e. plaster, drywall,
concrete, etc.). Mount to wood studs whenever
possible.
A) Attach bracket to top center of cabinet using 1
bracket screw.
B) Determine the final location of cabinet. Mark
position on the wall, approximately 2" below the
bracket mounted to the back of the cabinet.
C) Drill a hole in the wall stud. If the wall stud is not
available, drill a hole in the wall that is slightly smaller
in width than the anchor. Gently tap the wall anchor
until the flange of the anchor is flush with the wall.
D) Attach the other bracket to the wall by inserting 1
pan head screw through the bracket and into the
wall anchor in the wall.
E) Place the furniture so the bracket on the back
edge is in line with the bracket on the wall.
F) Lace one end of the wall strap through both
brackets, bringing the ends together.
G) Make sure the strap is secure.
Page 4 of 4
