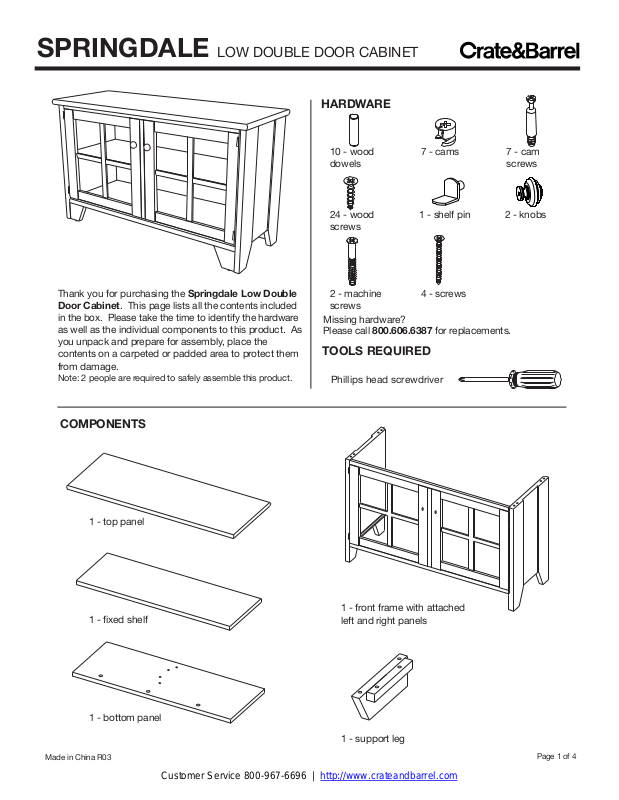

SPRINGDALE LOW DOUBLE DOOR CABINET
Thank you for purchasing the Springdale Low Double
Door Cabinet. This page
in the box. Please take the time to identify the hardware
as well as the individual components
you unpack and prepare for assembly, place the
contents on a carpeted or padded area to protect them
from damage.
Note: 2 people are required to safely assemble this product.
lists all the contents included
to this product. As
COMPONENTS
1 - top panel
1 - fixed shelf
1 - bottom panel
Made in China R03
HARDWARE
10 - wood
dowels
24 - wood
screws
2 - machine
screws
Missing hardware?
Please call 800.606.6387 for replacements.
7 - cams 7 - cam
1 - shelf pin 2 - knobs
4 - screws
TOOLS REQUIRED
Phillips head screwdriver
1 - front frame with attached
left and right panels
1 - support leg
screws
Page 1 of 4
Customer Service 800-967-6696 | http://www.crateandbarrel.com
SPRINGDALE
LOW DOUBLE DOOR CABINET
A
B
A
1
A) Insert 3 cams and 2 wood dowels into bottom panel,
as illustrated above. Make sure the arrows on each cam
points towards the nearest edge with holes.
B) Attach support panel by aligning wood dowels on
bottom panel. Secure support panel with 2 screws. Fully
tighten each screw with a phillips head screwdriver.
Cam in
unlocked
position
Cam in
locked
position
A
B
A) With assistance of another adult, carefully slide
3
bottom panel into grooves of side panels and fit onto
cam screws and dowels of front frame.
B) Secure bottom panel to assembly by turning each
cam clockwise with a phillips head screwdriver.
Made in China R03 Page 2 of 4
A
B
2
With the assistance of another adult, gently lay front
frame on padded surface.
A) Insert 2 wood dowels and 3 cam screws to front
frame, as illustrated above. Tighten each cam screw
with a phillips head screwdriver.
B) Insert 1 shelf pin into front frame, as illustrated
above. Press firmly to secure.
B
A) Insert 4 cams into right and left side panels, as
4
illustrated above.
B) Attach 4 cam screws and 4 wood dowels into top
panel.
A
Customer Service 800-967-6696 | http://www.crateandbarrel.com
SPRINGDALE
LOW DOUBLE DOOR CABINET
5
Fit top panel onto assembly. Secure by turning each
cam on the side panels clockwise with a phillips
head screwdriver.
x24
7
Place back panel onto assembled unit as shown.
Attach with 24 wood screws and secure with a
phillips head screwdriver.
Made in China R03 Page 3 of 4
6
With assistance of another adult, carefully slide fixed
shelf through grooves, as illustrated above. Make
sure front of fixed shelf is supported by shelf pin.
8
With assistance of another adult, stand unit upright.
Attach 2 knobs with 2 machine screws to 2 front
doors, as illustrated above. Tighten screws using a
phillips head screwdriver. .
Customer Service 800-967-6696 | http://www.crateandbarrel.com
SPRINGDALE
LOW DOUBLE DOOR CABINET
Place unit in its final location. If the floor is uneven or
9
the door doesn't appear square in the case frame,
adjust levellers on the underside of the legs up or
down to compensate.
Assembly is now complete.
Made in China R03 Page 4 of 4
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as
the wood is finished with a protective clear lacquer.
