Crate & Barrel Spotlight Credenza Assembly Instruction

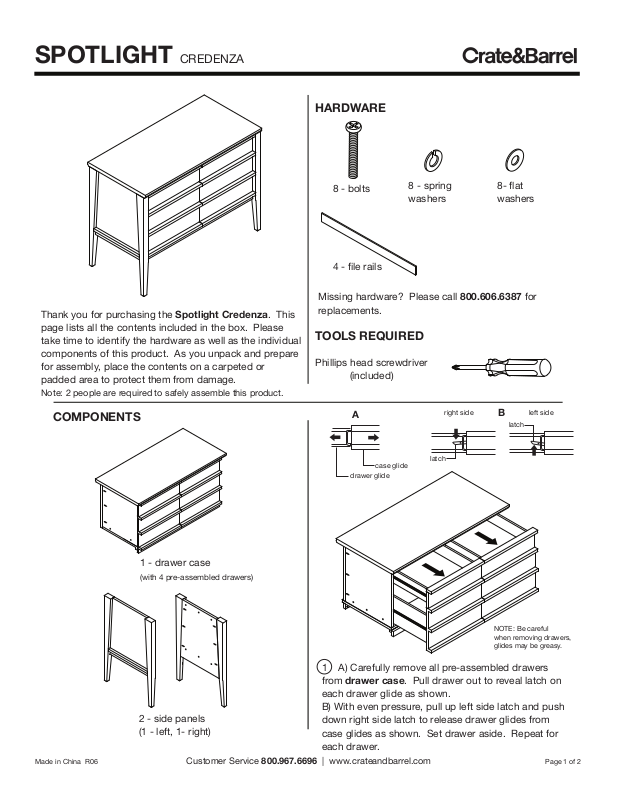

SPOTLIGHT CREDENZA
HARDWARE
Thank you for purchasing the Spotlight Credenza. This
page lists all the contents included in the box. Please
take time to identify the hardware as well as the individual
components of this product. As you unpack and prepare
for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
8 - bolts
8 - spring
washers
8- flat
washers
4 - file rails
Missing hardware? Please call 800.606.6387 for
replacements.
TOOLS REQUIRED
Phillips head screwdriver
(included)
A
case glide
drawer glide
right side
latch
B
latch
left side
1 - drawer case
(with 4 pre-assembled drawers)
NOTE: Be careful
when removing drawers,
glides may be greasy.
1 A) Carefully remove all pre-assembled drawers
from drawer case. Pull drawer out to reveal latch on
each drawer glide as shown.
B) With even pressure, pull up left side latch and push
2 - side panels
(1 - left, 1- right)
down right side latch to release drawer glides from
case glides as shown. Set drawer aside. Repeat for
each drawer.
Made in China R06 Page 1 of 2
Customer Service 800.967.6696 | www.crateandbarrel.com
SPOTLIGHT CREDENZA
2 With the assistance of another adult, carefully
place drawer case top down onto a padded surface.
Attach left and right side panels onto drawer case
with 4 spring washers, 4 flat washers, and 4 bolts
per panel. Fully tighten bolts with a Phillips head
screwdriver.
B
B
A
3 With the assistance of another adult, carefully turn the
credenza right side up. A) Insert 4 drawer assemblies back
into the case, fitting rail of drawer glide into rail of case
glides. Gently push back each drawer until glides are fully
engaged.
B) Insert 2 file rails per drawer as shown. Fit rails into 2
inner slots for letter size hanging folders. Fit file rails into
2 outer slots for legal size folders.
Assembly is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
Made in China R06 Page 2 of 2
Customer Service 800.967.6696 | www.crateandbarrel.com
