QUBE 4-SECTION
HARDWARE
Thank you for purchasing the Qube 4-Section. This
page lists all the contents included in the box. Please
take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
20 - cams 20 - cam
screws
2 - brackets
2 - magnets
12 - small
screws
4 - medium
screws
4 - door
hinges
Missing hardware?
Please call 800.606.6387 for replacements.
TOOLS REQUIRED
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
NOTE: Do not over
tighten the cam screws
8 - large
screws
1 - top panel
2 - shelves
(1 left, 1 right)
2 - side panels
(1 left, 1 right)
top
panel
1 - partition
bottom
1 - bottom panel
2 - back panels
panel
1 Insert 6 cam screws into top and bottom panels as
shown. Secure, but do not over tighten, cam screws using
4 - feet
Made in China - r04 Page 1 of 4
Customer Service 800.967.6696 | Latest instructions avaliable at www.crateandbarrel.com
2 - doors
a phillips head screwdriver.
QUBE 4-SECTION
NOTE: Make sure arrows on each cam
point toward nearest edge with holes
A
left shelf
left and right
B
side panels
right shelf
A
C
partition
2 A) Insert 4 cams into 2 left and right shelves as
shown. Make sure arrows on each cam point toward
nearest edge with holes.
B) Insert 4 cams and 2 cam screws into left and right
side panels as shown.
C) Insert 4 cams and 4 cam screws into partition as
shown.
magnet
right shelf
A
top
B
panel
3 A) Attach 1 magnet to right shelf with 2 medium
screws as shown, using a phillips head screwdriver. Do
not over tighten the screws.
B) Attach 1 magnet to top panel with 2 medium screws
as shown, using a screwdriver.
NOTE: Make sure
magnet faces out
as shown
partition
left side
panel
right side
panel
4 With the assitance of another adult, fit cam screws
of left side panel, partition and right side panel into
corresponding holes of shelves as shown. Using a
phillips head screwdriver, turn cams counter-clockwise
until each cam securely engages each cam screw.
back
panel
back
panel
5 Slide 2 back panels into corresponding grooves of
assembled unit as shown.
Made in China - r04 Page 2 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
QUBE 4-SECTION
bracket
A
B
door hinge
door

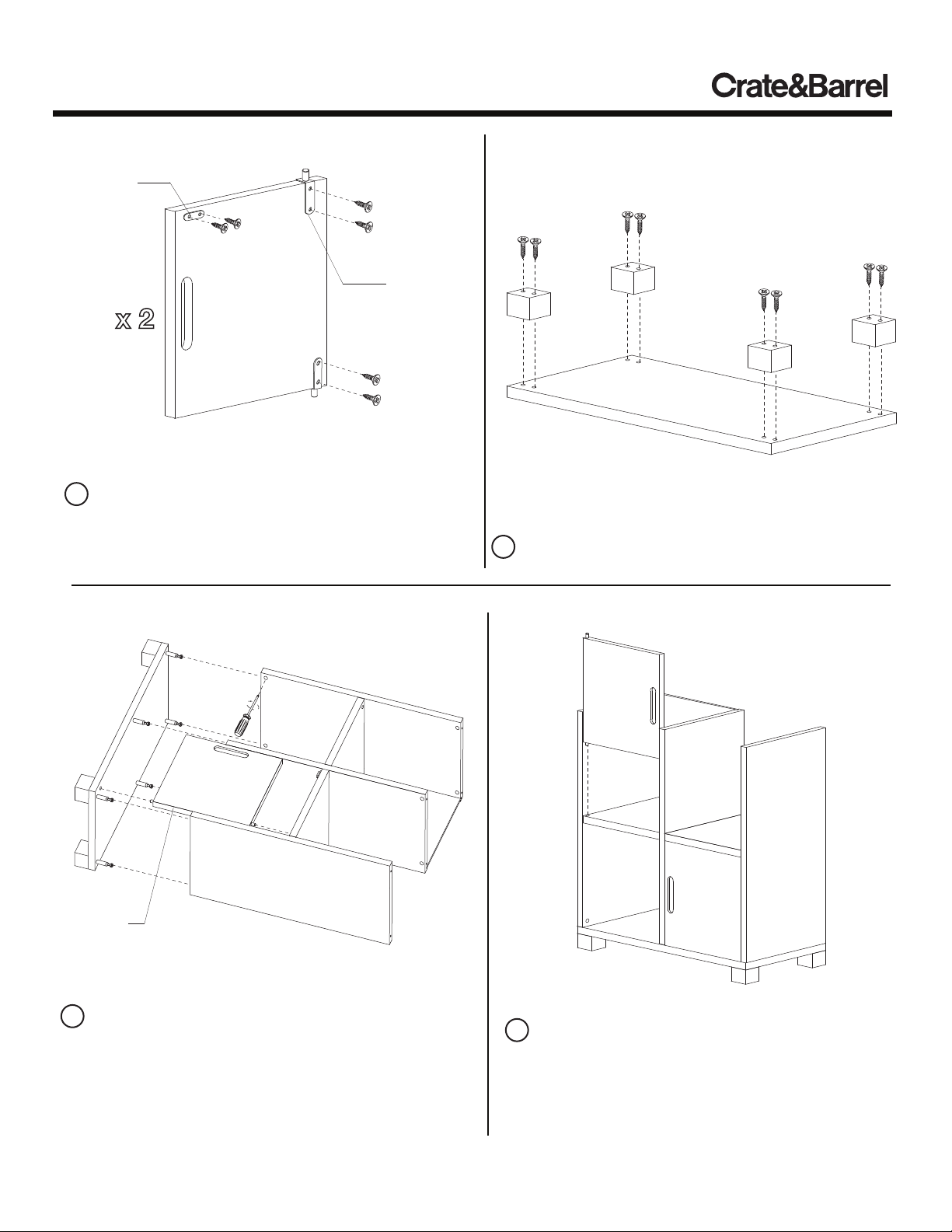

6 A) Attach 2 door hinges to door with 2 small screws
per hinge as shown, using a screwdriver.
B) Attach 1 bracket to door with 2 small screws as
shown. Repeat for remaining door.
foot
bottom
panel
7 Attach 4 feet to bottom panel with 2 large screws per
foot as shown, using a screwdriver.
bottom
panel
B
A
door front
8 A) Fit pegs of door hinge into corresponding hole of
assembled unit and bottom panel.
B) With the assistance of another adult, fit cam screws of
bottom panel into corresponding holes of assembled unit.
Secure all cams.
door front
9 Fit peg of door hinge into corresponding hole of
assembled unit as shown.
Made in China - r04
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 3 of 4
QUBE 4-SECTION
top panel
10 Fit cam screws of top panel into corresponding
holes of assembled unit as shown. Secure all cams.
Assembly is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as
the wood is finished with a protective clear lacquer.
Made in China - r04 Page 4 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
