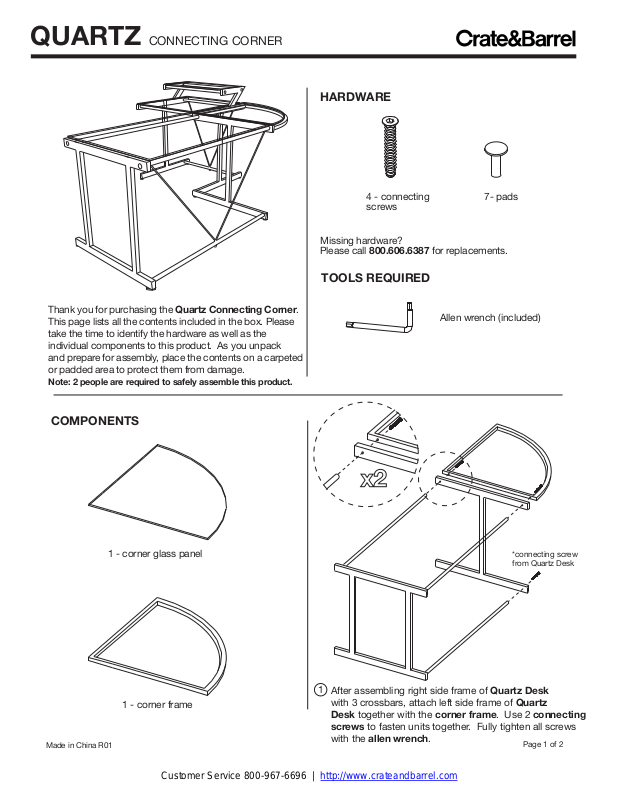

QUARTZ CONNECTING CORNER

Thank you for purchasing the Quartz Connecting Corner.
This page lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components to this product. As you unpack
and prepare for assembly, place the contents on a carpeted
or padded area to protect them from damage.

Note: 2 people are required to safely assemble this product.

COMPONENTS

1 - corner glass panel

1 - corner frame

Made in China R01

HARDWARE

7- pads4 - connecting

screws

Missing hardware?
Please call 800.606.6387 for replacements.

TOOLS REQUIRED

Allen wrench (included)

x2

*connecting screw
from Quartz Desk

1

After assembling right side frame of Quartz Desk
with 3 crossbars, attach left side frame of Quartz

Desk together with the corner frame. Use 2 connecting
screws to fasten units together. Fully tighten all screws

with the allen wrench.

Page 1 of 2

Customer Service 800-967-6696 | http://www.crateandbarrel.com

QUARTZ CONNECTING CORNER

After assembling left side frame of Quartz Side

2

Desk with 5 crossbars, attach right side frame of Quartz
Side Desk together with the corner frame. Use 2
connecting screws to secure the units.

With assistance of another adult, carefully lay

4

corner glass panel onto corner frame. Assembly
is now complete.

Made in China R01 Page 2 of 2

*connecting screws
from Quartz Side
Desk with Monitor

*

*

Attach 7 pads to top of corner frame as shown,

3

firmly pressing into holes to secure.

CLEANING AND CARE

Clean surfaces with a dry or damp soft cloth. Use glass
cleaner on corner as necessary. Do not
use abrasive cleaners.
