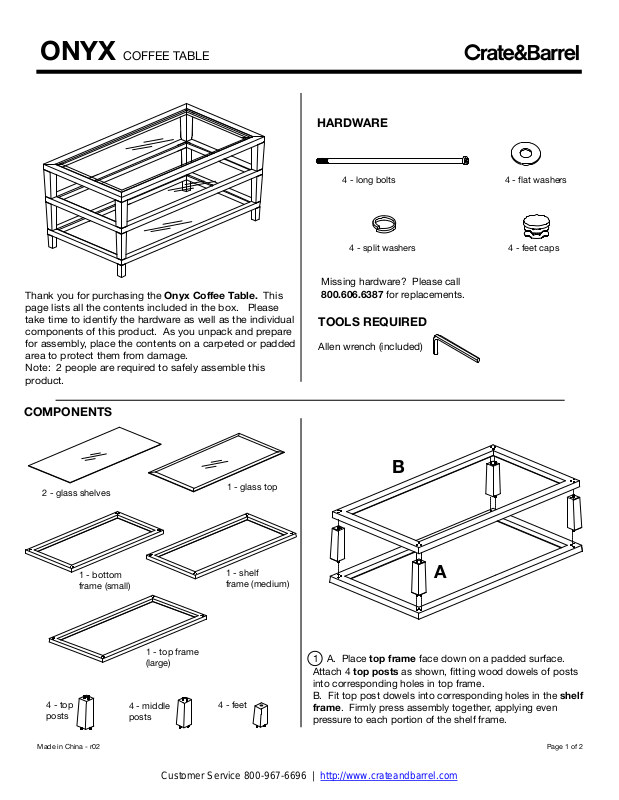

ONYX COFFEE TABLE

Thank you for purchasing the Onyx Coffee Table. This
page lists all the contents included in the box. Please
take time to identify the hardware as well as the individual
components of this product. As you unpack and prepare
for assembly, place the contents on a carpeted or padded
area to protect them from damage.
Note: 2 people are required to safely assemble this
product.

COMPONENTS

2 - glass shelves

1 - bottom
frame (small)

4 - top
posts

Made in China - r02

1 - top frame
(large)

4 - middle
posts

1 - glass top

1 - shelf
frame (medium)

4 - feet

HARDWARE

4 - long bolts

Missing hardware? Please call

800.606.6387 for replacements.

4 - flat washers

4 - feet caps4 - split washers

TOOLS REQUIRED

Allen wrench (included)

B

A

1 A. Place top frame face down on a padded surface.
Attach 4 top posts as shown, fitting wood dowels of posts
into corresponding holes in top frame.
B. Fit top post dowels into corresponding holes in the shelf
frame. Firmly press assembly together, applying even
pressure to each portion of the shelf frame.

Page 1 of 2

Customer Service 800-967-6696 | http://www.crateandbarrel.com

ONYX COFFEE TABLE

2 Fit dowels of middle posts into corresponding holes
in shelf frame.

B

A

4 A. Secure each leg assembly with 1 flat washer, 1
split washer and 1 long bolt per leg. Fully tighten each

leg assembly with the allen wrench.
B. Firmly press 1 foot cap into each leg hole, gently
tapping with a hammer if necessary.

Made in China - r02

B

A

3 A. Fit bottom frame onto dowels of middle posts.
Firmly press assembly together, applying even pressure
to each portion of the bottom frame.
B. Attach 4 feet as shown, fitting wood dowels of feet
into corresponding holes in bottom frame.

5 With the assistance of another adult, turn table
assembly upright. Carefully insert 1 glass top and 2
glass shelves onto recessed ledges of each frame.
Assembly is now complete.

CLEANING AND CARE

Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
