Crate & Barrel Octave Twin or Full Bed Assembly Instruction

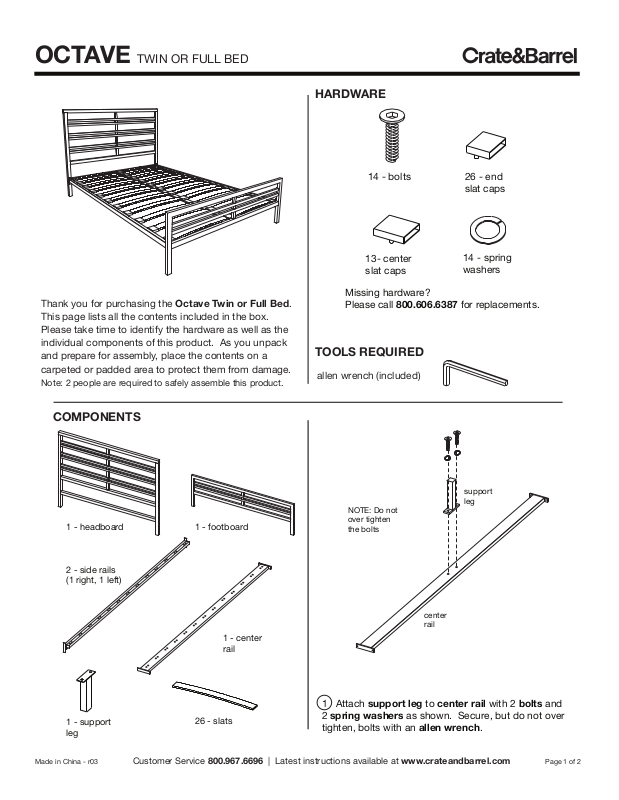

OCTAVE TWIN OR FULL BED
HARDWARE
14 - bolts 26 - end
slat caps
Thank you for purchasing the Octave Twin or Full Bed.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
1 - headboard 1 - footboard
13- center
slat caps
Missing hardware?
Please call 800.606.6387 for replacements.
TOOLS REQUIRED
allen wrench (included)
NOTE: Do not
over tighten
the bolts
14 - spring
washers
support
leg
2 - side rails
(1 right, 1 left)
center
rail
1 - center
rail
1 Attach support leg to center rail with 2 bolts and
1 - support
leg
Made in China - r03 Page 1 of 2
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
26 - slats
2 spring washers as shown. Secure, but do not over
tighten, bolts with an allen wrench.
OCTAVE TWIN OR FULL BED
headboard
left side
rail
A
2 A) With assistance of another adult,
attach left and right side rails to
headboard and footboard with 4 bolts
and 4 spring washers per rail as shown.
Secure bolts with an allen wrench.
B) Attach center rail to headboard and
foot rail with 4 bolts and 4 spring
washers as shown.
B
center
rail
headboard
headboard
left side
rail
center
rail
right side
rail
footboard
A
end slat
cap
B
center slat
cap
NOTE: Make sure the
slats bow upwards.
end slat
cap
5 Insert each slat assembly into corresponding holes of
side rails and center rail of assembled unit as shown. Press
each slat cap firmly to secure.
Assembly is now complete.
3 A) Insert 26 slats into 26 end slat caps as shown.
B) Insert 13 slat assemblies into 13 center slat caps as
shown. Make sure each slat bows upwards during
assembly.
Made in China - r03 Page 2 of 2
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners.
slat
assembly
