Thank you for purchasing the Notch Bookcase. This
page lists all the contents included in the box. Please
take time to identify the hardware as well as the individual
components of this product. As you unpack and prepare
for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
28 - cam
screws
2 - flat
washers
2 - bolts2 - screws2 - spring
Missing hardware?
Please call 800.606.6387 for replacements.
28 - cam
covers
28 - cams
WALL MOUNTING HARDWARE
4 - small
screws
4 - large
screws
2 - wall
straps
4 - wall
brackets
TOOLS REQUIRED
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
washers
4 - plastic
anchors
1 - top panel
panel
1 - interior
panel
2 - large
shelves
Made in Vietnam - r07Page 1 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
2 - small
shelves
1 - front
panel
1 - side panel1 - bottom
1 - back
panel
NOTCH BOOKCASE
NOTE: Do not over
tighten cam screws
back panel
front panel
NOTE: Make sure arrows
on each cam points toward
nearest edge with holes
1 Insert 4 cam screws and 4 cams into back and front panels as shown. Secure, but do not over tighten, cam
screws using a phillips head screwdriver. Make sure
arrows on each cam points toward the nearest edge with
holes.
small shelf
A
large shelf
B
2 A. Insert 5 cams into each small shelf as shown.
B. Insert 4 cams into each large shelf as shown.
A
top panel
B
bottom panel
4 A. Insert 6 cam screws into interior panel as shown.
3 A. Insert 6 cam screws into top panel as shown.
B. Insert 4 cam screws into bottom panel as shown.
Made in Vietnam - r07Page 2 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
B. Insert 4 cam screws and 2 cams into side panel as
shown.
A
A
B
B
interior
panel
side
panel
NOTCH BOOKCASE
interior
panel
small shelf
back panel

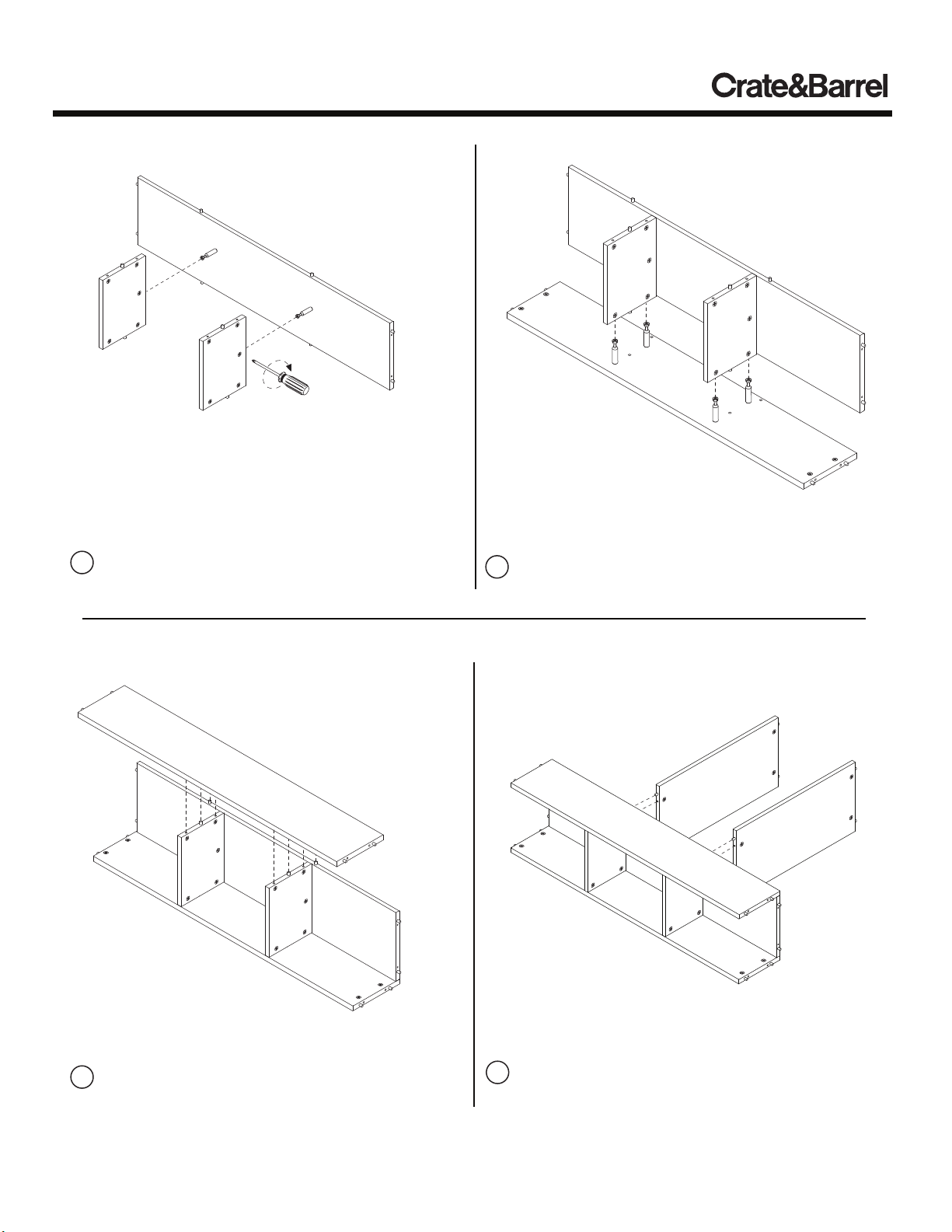

5 Fit cam screws of interior panel into corresponding
holes of small shelves. With a screwdriver, turn each
cam clockwise until it securely engages each cam screw.
front panel
6 Fit pre-assembled dowels of assembled unit into
corresponding holes of back panel as shown. Secure all
cams.
large shelf
7 Fit dowels of assembled unit into corresponding
holes of front panel as shown. Secure all cams.
Made in Vietnam - r07Page 3 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
8 Fit dowels of large shelves into corresponding
holes of assembled unit as shown. Secure all cams.
NOTCH BOOKCASE
side
panel
9 Fit dowels of assembled unit into corresponding holes
of side panel as shown. Secure all cams.
NOTE: Do not over
tighten screws and
bolts
B
B
bottom panel
A
10 A. Fit dowels of assembled unit into corresponding
holes of bottom panel as shown. Secure bottom panel
with 2 screws using a screwdriver. Do not over tighten
the screws.
B. Secure bottom panel to side panel with 2 flat washers, 2 spring washers and 2 bolts as shown,
using a screwdriver. Do not over tighten the bolts.
top panel
A
B
11 A. Fit dowels of assembled unit into corresponding
holes of top panel. Secure all cams. With the assistance
of another adult, position unit upright.
B. Cover all exposed cams with cam covers.
Assembly is now complete.
CLEANING & CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as
the unit is finished with a protective clear lacquer.
Made in Vietnam - r07Page 4 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
NOTCH
BOOKCASE
WALL
Safety Mounting Assembly
WALL
ORIENTATION 2ORIENTATION 1
For added safety and stability, it is recommended that the wall
mounting hardware be installed. For safe mounting, it is essential
to use wall anchors appropriate to your wall type (i.e. plaster,
drywall, concrete, etc.). Mount to wood studs whenever possible.
A) Determine desired bookcase orientation, and attach wall bracket to the appropriate pilot holes located on the underside of
top panel. Secure wall bracket with 2 small screws as shown.
B) Determine the final location of unit. Mark position on the wall,
approximately 2" below the wall bracket mounted to the back of
the unit.
C) Drill a hole in the wall stud. If the wall stud is not available, drill
a hole in the wall that is slightly smaller in diameter than the
anchor. Gently tap the plastic anchor until the flange of the
anchor is flush with the wall.
D) Attach wall bracket to the wall by inserting 2 large screws,
and into the plastic anchor in the wall.
E) Place the unit so the wall brackets on the back are aligned with
the wall brackets on the wall.
F) Lace one end of the wall strap through both brackets, and into
the other end of the strap.
G) Pull the strap tightly until secure.
Repeat steps A-G for remaining wall bracket and wall strap.
Wall mounting assembly is now complete.
NOTE: Secure wall
brackets to underside
of top panel as shown
F
C
D
NOTE: If you are unsure about
your wall type or what mounting
method you should use, consult
a qualified professional or your
local hardware store.
A
Made in Vietnam - r07Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 5 of 5
