MADISON LARGE BUFFET
HARDWARE

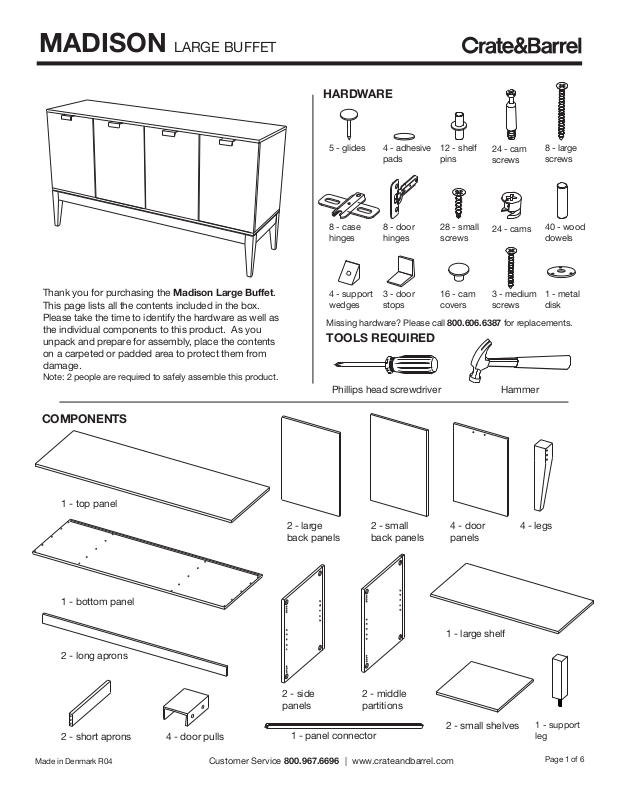

Thank you for purchasing the Madison Large Buffet.
This page
Please take the time
the individual components
lists all the contents included in the box.
to identify the hardware as well as
to this product. As you
unpack and prepare for assembly, place the contents
on a carpeted or padded area to protect them from
damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
5 - glides
8 - case
hinges
4 - support
wedges
Missing hardware? Please call 800.606.6387 for replacements.
4 - adhesive
pads
8 - door
hinges
3 - door
stops
12 - shelf
pins
28 - small
screws
16 - cam
covers
24 - cam
screws
24 - cams
3 - medium
screws
8 - large
screws
40 - wood
dowels
1 - metal
disk
TOOLS REQUIRED
Phillips head screwdriver
Hammer
1 - top panel
1 - bottom panel
2 - long aprons
2 - short aprons
Made in Denmark R04
4 - door pulls
Customer Service 800.967.6696 | www.crateandbarrel.com
2 - large
back panels
2 - side
panels
1 - panel connector
2 - small
back panels
2 - middle
partitions
panels
1 - large shelf
2 - small shelves
4 - legs4 - door
1 - support
leg
Page 1 of 6
MADISON LARGE BUFFET
NOTE:
Do not over tighten
the cam screws
B
A
C
1
A. Insert 1 cam screw per leg and tighten with a
phillips head screwdriver.
B. Insert 2 wood dowels into the ends of each long
apron.
C. Insert 2 cams into the face of each long apron.
Make sure the arrow on each cam points to the
closest short end of the the apron.
A
B
2
A. Fit 1 leg on the end of each long apron, aligning
dowels and cam screws with corresponding holes.
B. Secure legs by turning each cam clockwise with a
phillips head screwdriver until each cam securely
engages each cam screw.
3
Repeat assembly method in Steps 1 and 2 for the
attachment of the 2 short aprons, using 4 wood
dowels, 2 cam screws, and 2 cams per apron.
Secure all cams with a phillips head screwdriver.
A
4
A) Align pre-drilled holes on apron with pre-drilled
holes on bottom panel. Insert 8 large screws
through front, back and side aprons into bottom
panel as shown. Secure each screw with a phillips
head screwdriver.
B) Using a hammer, gently tap in 1 glide onto the
bottom of each leg.
B
Made in Denmark R04
Customer Service 800.967.6696 | www.crateandbarrel.com
Page 2 of 6
MADISON LARGE BUFFET
C
B
A
B
A
A) Attach metal disk to leg assembly with 3 medium
5
screws as shown. Secure with Phillips head
screwdriver.
B) Attach support leg into assembly as shown. Turn
leg clockwise to secure.
C) Gently tap 1 glide into bottom of the support
leg with a hammer.
Side
Panel
B
Top
Panel
A
A) Position assembled unit upright. Insert 8 cam
6
screws to the bottom panel as illustrated. Secure
with a phillips head screwdriver.
B) Attach 8 cam screws and 3 door stops to the
underside of top panel. Set top panel aside.
A
Side
Panel
A) Insert 4 cams into 2 side panels and 2 middle
7
partitions. Make sure arrows on each cam point
towards the short end of each panel.
B) Attach 2 case hinges to 2 side panels and 2
middle partitions with 2 small screws per hinge.
Secure all screws with a phillips head screwdriver.
Made in Denmark R04
A
Middle
Partition
B
Make sure
case hinges
face inwards
Middle
Partition
8
A) Insert 6 wood dowels into 2 side panels and 2
middle partitions. Press firmly to secure.
B) Fit 2 side panels and 2 middle partitions onto
cam screws and bottom panel. Make sure case
hinges on side panels and middle partitions face
inwards as shown. Using a phillips head screwdriver,
secure bottom 8 cams.
Customer Service 800.967.6696 | www.crateandbarrel.com
B
Page 3 of 6
MADISON LARGE BUFFET
B
Large
Back
Panel
A) Slide 2 large and 2 small back panels into
9
grooves at rear of side panels and middle partitions as
shown.
B) Slide panel connector between 2 large back
panels.
Smallr
Back
Panel
A
Smallr
Back
Panel
Large
Back
Panel
A
Carefully position top panel over assembled unit.
10
Align cam screws and wood dowels with
corresponding holes in the top, middle and side
panels. Make sure the door stops face the front of
the assembled unit.
11
Position 4 support wedges onto the back edges of
the assembled unit as shown. Secure each support
wedge with 1 small screw.
Made in Denmark R04
B
A) Attach 2 door hinges to 4 door panels with 2
12
small screws per hinge. Secure all screws with a
phillips head screwdriver.
B) Adhere 1 adhesive pad to top corner of each door
panel opposite of case hinge, as illustrated above.
Customer Service 800.967.6696 | www.crateandbarrel.com
A
Page 4 of 6
MADISON LARGE BUFFET
A
B
13
A) Attach 4 door panels to assembled unit. Fit each
door hinge into corresponding case hinge and secure
by tightening preinstalled screws in case hinge with a
screwdriver. Hinges are adjustable to help align the
doors. Refer to page 6 for adjustment instructions.
B) Insert shelf pins into side panels and middle
partitions at desired shelf height (adjustable).
B
A
14
A) Fit 1 large shelf and 2 small shelves into case and
onto shelf pins. Make sure each shelf is firmly
supported by the shelf pins.
B) Attach 4 door pulls to 4 door panels with 2 small
screws per door. Secure screws with a Phillips head
screwdriver.
15
Conceal all exposed cams with cam covers, as
illustrated above. Press firmly to secure. Assembly is
now complete.
Made in Denmark R04
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
Customer Service 800.967.6696 | www.crateandbarrel.com
Page 5 of 6
MADISON LARGE BUFFET
A
B
HINGE ADJUSTMENT
If the doors do not appear square or aligned,
loosen or tighten the appropriate screws on
each case hinge as illustrated.
A
1
1) Side to side adjustment:
Loosen screw A, adjust gap
with screw B and re-tighten
screw A.
B
2
2) Depth adjustment:
Loosen screw A, push hinge arm
forwards or backwards, re-tighten
screw A and secure screw B with
a 1/4 turn clockwise.
C
Made in Denmark R04
C
3
Customer Service 800.967.6696 | www.crateandbarrel.com
3) Height adjustment:
Loosen screw C, adjust
door height and retighten screw C.
Page 6 of 6
MADISON LARGE HUTCH
ASSEMBLY HARDWARE
Thank you for purchasing the Madison Large Hutch.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
34 - wood
dowels
12 - small
screws
4 - hinge
plates
8 - cam
screws
8 - large
screws
4 - mending
plates
8 - cams
2 - pulls
16 - shelf
pins
1 - felt
WALL MOUNTING HARDWARE
1 - cabinet
screw
2 - flat
washers
1 - wall
anchor strap
16 - connecting
bolts
4 - bumpers
Missing hardware?
Please call 800.606.6387
for replacements.
8 - cam
covers
4 - hinges
1 - top
panel
1 - bottom
panel
1 - bottom
back panel
3 - partitions
2 - large adjustable
shelves
2 - side panels
(1 left, 1 right)
TOOLS REQUIRED
Made in Denmark - r03 Page 1 of 6
2 - small adjustable
shelves
phillips head screwdriver
Customer Service 800.967.6696 | www.crateandbarrel.com
2 - door fronts
2 - large back
panels
allen wrench
2 - small back
panels
MADISON LARGE HUTCH
A
B
left and right
side panels
1 A) Insert 4 cam screws and 3 wood dowels into left and
right side panels as shown. Secure cam screws with a
phillips head screwdriver.
B) Position each hinge plate over corresponding holes in side
panels. Secure hinges with pre-attached bolts, using a
screwdriver.
NOTE: Make sure
arrows on each cam
point towards nearest
edge with holes
A
bottom back
panel
B
bottom
panel
2 A) Insert 4 cams and 4 wood dowels into bottom back
panel as shown. Make sure arrows on each cam point towards
nearest edge with holes.
B) Insert 4 cams and 6 wood dowels into bottom panel as
shown.
right side
panel
bottom
panel
left side
panel
bottom
back panel
3 Fit dowels of bottom panel and bottom back
panel into corresponding holes of right and left side
panel as shown. With a screwdriver, turn cams
clockwise until it securely engages each cam screw.
partition
4 Insert 6 wood dowels into 3 partitions as shown.
Made in Denmark - r03 Page 2 of 6
Customer Service 800.967.6696 | www.crateandbarrel.com
MADISON LARGE HUTCH
B
partition
BACK VIEW OF
ASSEMBLED UNIT
5 A) Adhere felt along bottom edge of assembled unit as
shown.
B) Fit dowels of partitions into corresponding holes of assembled
unit as shown.
small
back
panel
large
back
panel
large
back
panel
small
back
panel
A
felt
6 Secure bottom panel to assembled unit with 6
connecting bolts as shown, using an allen wrench.
top
panel
BACK VIEW OF
ASSEMBLED UNIT
7 Slide 2 small back panels and 2 large back panels
through grooves of assembled unit as shown.
Made in Denmark - r03 Page 3 of 6
Customer Service 800.967.6696 | www.crateandbarrel.com
8 Fit dowels of assembled unit into corresponding
holes of top panel as shown.
MADISON LARGE HUTCH
9 Secure top panel to assembled unit with 10
connecting bolts as shown.
small
adjustable
shelf
large
adjustable
shelf
large
adjustable
shelf
A
A
B
small
adjustable
shelf
10 A) Insert 16 shelf pins at desired shelf heights as shown.
B) Place 2 small adjustable shelves and 2 large adjustable
shelves into assembled unit. Make sure each shelf is securely
supported by shelf pins.
door
front
A
C
B
11 A) Attach 2 hinges to each door front with 2 small
screws per hinge as shown. Secure screws with a
screwdriver.
B) Attach 1 pull to each door front with 2 small screws as
shown. Secure screws with a screwdriver.
C) Adhere 2 bumpers to each door front as shown.
door
front
NOTE: Please refer
to diagram for
hinge adjustment.
12 Attach hinges of 2 door fronts to hinge plates of
assembled unit as shown. Refer to diagram on page 5 for
hinge adjustment.
Made in Denmark - r03 Page 4 of 6
Customer Service 800.967.6696 | www.crateandbarrel.com
MADISON LARGE HUTCH
13 With the assistance of another adult,
carefully place hutch on top of buffet as shown.
Attach 4 connecting brackets to back of
hutch/buffet assembly with 2 large screws per
bracket as shown. Secure screws with a
screwdriver.
Assembly is now complete.
hutch
buffet
(sold separately)
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth.
Do not use abrasive cleaners. Do not use
furniture wax or polish as the wood is finished
with a protective clear lacquer.
HINGE ADJUSTMENT
If the doors do not appear square or aligned,
loosen or tighten the appropriate screws on
each case hinge as illustrated.
1) Side to side adjustment:
Loosen screw A, adjust gap
with screw B and re-tighten
screw A.
A
B
2
3) Height adjustment:
Loosen screw C, adjust
door height and retighten screw C.
2) Depth adjustment:
Loosen screw A, push hinge arm
forwards or backwards, re-tighten
screw A and secure screw B with
a 1/4 turn clockwise.
A
B
1
C
C
3
Made in Denamrk - r03 Page 5 of 6
Customer Service 800.967.6696 | www.crateandbarrel.com
MADISON LARGE HUTCH
SIDE VIEW
flat
washer
cabinet
screw
NOTE: Insert screws 3/4"-1"
from the edge of the strap
wall
strap
wall screw
appropriate
to wall type
flat
washer
wall
wall anchor
appropriate
to wall type
WALL MOUNTING ASSEMBLY
For added safety and stability, it is recommended
that the wall mounting hardware be installed. For
safe mounting, it is essential to use wall anchors
made for your wall type (i.e. plaster, drywall,
concrete, etc.). Mount to wood studs whenever
possible.
The included hardware is used for attaching wall
strap to unit only. You will need to purchase the
appropriate screw and anchor for your wall type.
NOTE: If you are unsure about your wall type or
what mounting method you should use, consult
a qualified professional or your local hardware
store.
Made in China - r06 Page 6 of 6
Customer Service 800.967.6696 | www.crateandbarrel.com
A. Drill a hole in the wall slightly smaller
than the diameter of the wall anchor (not
included). Lightly tap with a hammer until
the face is flush with the wall.
B. Insert 1 wall screw (not included) and 1
flat washer through wall strap and into
the wall anchor.
C. Insert 1 cabinet screw and 1 flat
washer through wall anchor strap and into
the top of unit.
Loading...
