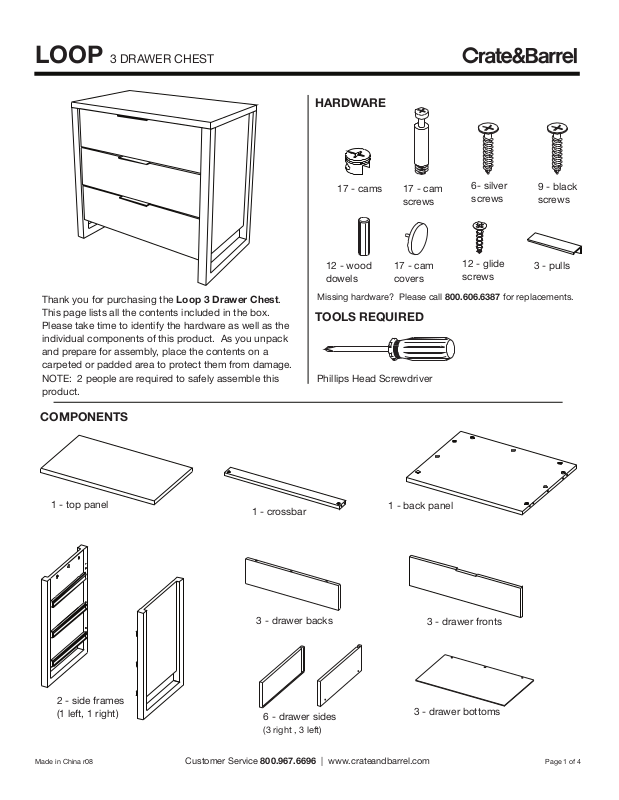

Page 1
LOOP 3 DRAWER CHEST
HARDWARE
Thank you for purchasing the Loop 3 Drawer Chest.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
NOTE: 2 people are required to safely assemble this
product.
COMPONENTS
17 - cams
12 - wood
dowels
Missing hardware? Please call 800.606.6387 for replacements.
17 - cam
screws
17 - cam
covers
6- silver
screws
12 - glide
screws
9 - black
screws
3 - pulls
TOOLS REQUIRED
Phillips Head Screwdriver
1 - top panel
2 - side frames
(1 left, 1 right)
Made in China r08 Page 1 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
1 - crossbar
3 - drawer backs
6 - drawer sides
(3 right , 3 left)
1 - back panel
3 - drawer fronts
3 - drawer bottoms
Page 2
LOOP 3 DRAWER CHEST
Arrow on each
cam points towards
edge with holes
B
C
1 A) Place left side panel face down on a padded surface.
Insert 4 cam screws into the holes as shown. Secure, but do
not over tighten with a phillips head screwdriver.
B) Insert 3 cams into the large holes as shown, making sure
the arrow on each cam points towards the nearest edge with
holes.
C) Insert 2 wood dowels into the top edge of the panel.
Repeat Steps A, B & C for the right side panel.
A
A
Back Panel
Crossbar
B
2 A) Insert 6 wood dowels and 9 cams into back panel as
shown.
B) Insert 2 wood dowels and 2 cams into crossbar as shown.
3 With the assistance of another adult, carefully align
dowels of back panel and crossbar with cam screws of left
side frame and firmly fit into position.
Made in China r08 Page 2 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
4 Secure 4 cams at the base of the back panel and crossbar with a phillips head screwdriver. Turn each cam clockwise until it securely engages each cam screw.
Page 3
LOOP 3 DRAWER CHEST
5 Fit cam screws of right side panel into corresponding
holes in the back panel and crossbar. Secure each cam with
a phillips head screwdriver.
6 Insert 9 cam screws into the underside of the top panel
as shown.
7 Fit top panel onto dowels of the assembly and secure
each cam with a phillips head screwdriver.
Made in China r08 Page 3 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
8 Slide left and right drawer sides up into slots on back of
the drawer front. Make sure glide hardware is on the outside
of the drawer sides and the vertical slots are at the back of
the assembly as shown.
Page 4
LOOP 3 DRAWER CHEST
These holes at back
9 Slide drawer back into vertical slots at rear of drawer
sides.
10 Slide drawer bottom into slot at base of drawer sides
and drawer front. Make sure pilot holes are at the back of the
drawer bottom as shown.
B
C
B
A
A
11 A) Secure underside of drawer bottom to drawer back
with 3 black screws. Secure, but do not over tighten with
the phillips head screwdriver.
B) Fit drawer pull into position as shown and secure with 2
silver screws.
Repeat Steps 8 - 11 for remaining 2 drawers.
Made in China r08 Page 4 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
12 A) Fully extend drawer glides from assembled unit as
shown.
B) Position drawer assembly and rest the drawer assembly
on top of the tabs as shown. Attach each glide to drawer with
2 glide screws as shown. Secure with a screwdriver. Repeat
steps for each drawer.
C) Conceal all exposed cams with cam covers.
Assembly is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
