Crate & Barrel Loop 54 Media Stand Assembly Instruction

LOOP MEDIA STAND
HARDWARE
Thank you for purchasing the Loop Media Stand. This page lists all the contents included in the box. Please take time to identify the hardware as well as the individual components of this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
24 - cams
8 - shelf pins
24 - cam screws
24 - wood dowels
TOOLS REQUIRED
Phillips head screwdriver
24 - cam covers
Missing hardware? Please call 800.606.6387 for replacements.
2 - side panels (1 left, 1 right)
1 - top panel
Made in China - r09 Page 1 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
2 - doors (1 left, 1 right)
1 - back panel 1 - bottom panel
1 - middle panel
2 - adjustable shelves
1 - support leg
LOOP MEDIA STAND
Make sure arrows on each cam points toward nearest edge with holes
right side panel
A
middle panel
left side panel
1 Insert 4 cam screws, 2 cams, and 2 wood dowels into each side panel as shown. Make sure arrows on each cam points toward nearest edge with holes. Secure cam screws with a phillips head screwdriver.
back
A
panel
bottom
B
panel
2 A) Insert 4 cams and 4 wood dowels into middle panel as shown. B) Insert 2 cam screws and 4 wood dowels into bottom panel as shown.
middle panel
B
top panel
bottom panel
3 A) Insert 8 cams, 4 cam screws and 12 wood dowels into back panel as shown. B) Insert 10 cams screws into top panel as shown.
4 Place bottom panel onto a clean, padded surface, and fit middle panel onto cam screws of bottom panel as shown. With a screwdriver, turn each cam clock­wise until it securely engages each cam screw.
Made in China - r09 Page 2 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
LOOP MEDIA STAND
B
back panel
A
A
A
bottom
B

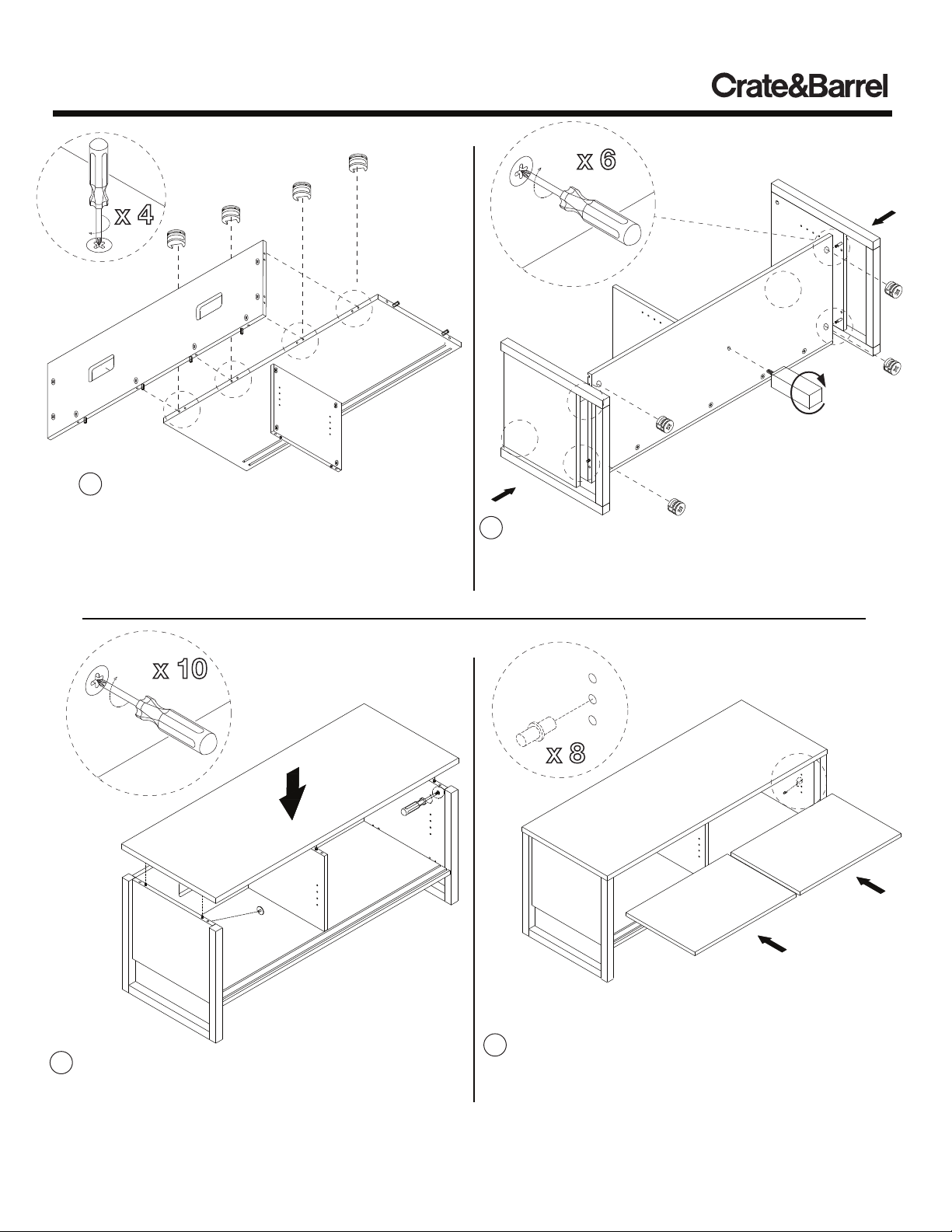

5 A) Insert 4 cams into bottom panel assembly as shown. Make sure arrows on each cam points towards nearest edge with holes. B) Fit dowels of back panel into corresponding holes of bottom panel assembly as shown. Turn each cam clockwise to secure with a phillips head screwdriver. Make sure each cam securely engages each cam screw.
panel assembly
A
A
B
bottom panel
6 A) Position unit face up as shown. Insert 4 cams into bottom panel as shown. Fit left and right side panels onto assembled unit as shown. Secure all cams. B) Attach support leg to assembled unit as shown. Turn leg clockwise to secure.
A
A
B
B
8 A) Insert 8 shelf pins into assembled unit at desired
7 A) With the assistance of another adult, carefully position unit upright. Carefully fit top panel onto assembled unit as shown. Secure all cams. B) Conceal all exposed cams with cam covers.
Made in China - r09 Page 3 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
shelf heights. Press firmly to secure. B) Place 2 adjustable shelves into assembled unit as shown. Make sure shelves are securely supported by each shelf pin.
LOOP MEDIA STAND
back groove of bottom panel
left side door
front groove of bottom panel
NOTE: Press the pins on top of the doors down to install doors. Press the buttons on the back to release the pins and lock the doors into place.
right side door

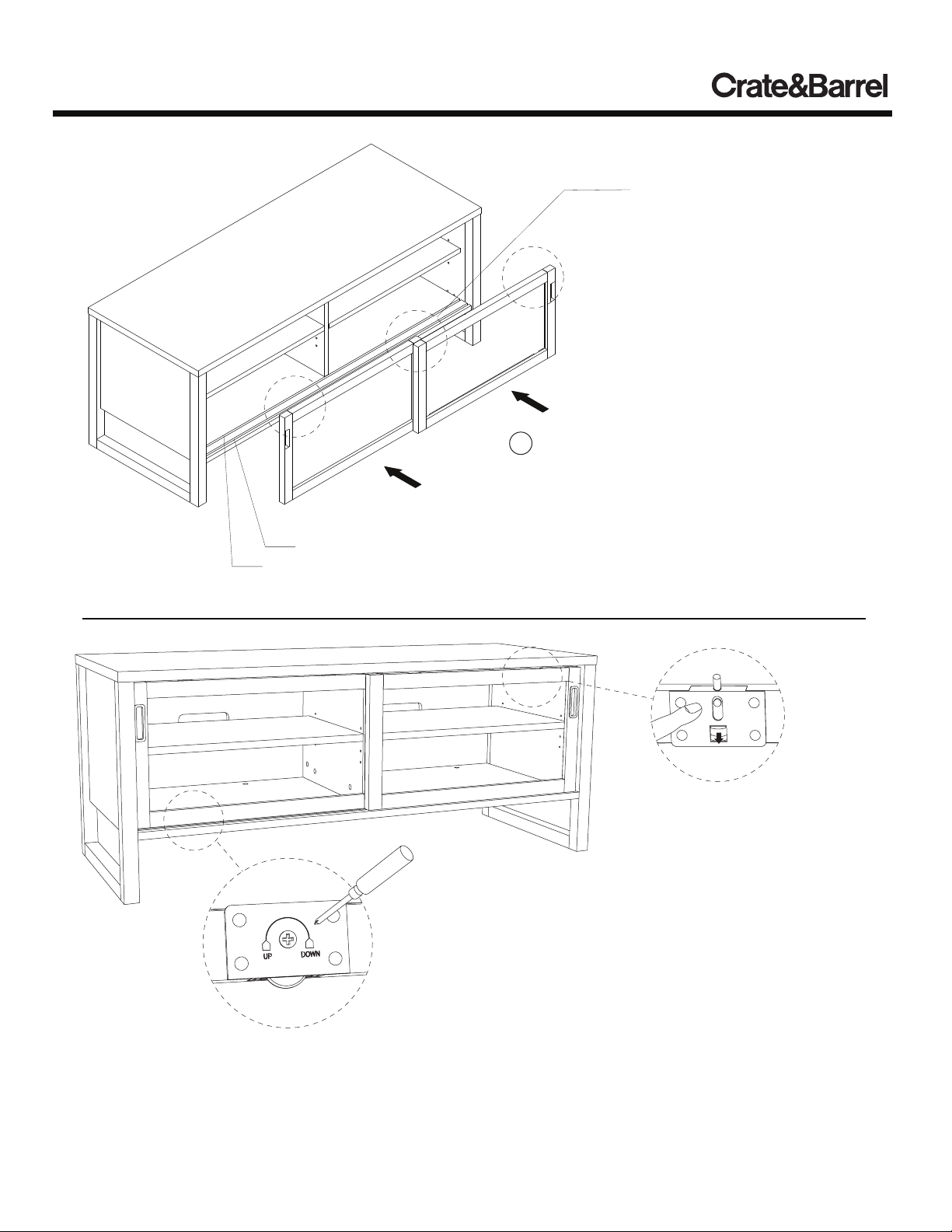

9 Attach left door to assembled unit as shown. Carefully insert wheels of left door into back groove of bottom panel. Press down the two levers and line up with the back groove of top panel. Use the buttons to release levers to secure door. Repeat steps for right door, inserting door into the front grooves instead of the back. Assembly is now complete.
B
Once the top rollers are engaged, adjust the wheel height to secure and level the doors
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners. Do not use furniture wax or polish as the wood is finished with a protective clear lacquer.
B
A
A
Push this button down to remove door
A. If the doors are not operating smoothly, push the buttons down on the back doors to remove them from the unit as shown. Ensure that the buttons are locked in the down position and install the doors again making sure that the wheels on the bottom are aligned with the correct track on the bottom panel. Now pivot the door into place ensuring that the pins are inserted correctly into the tracks in the top panel.
B. To level the door, adjust the wheel height as shown above.
Made in China - r09 Page 4 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
