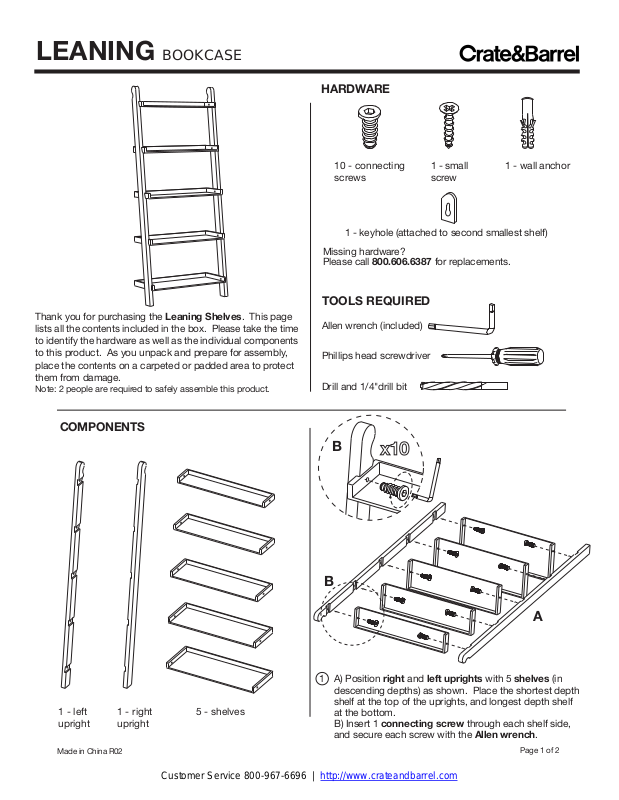

Crate & Barrel Leaning Bookcase Assembly Instruction
Customer Service 800-967-6696 | http://www.crateandbarrel.com
LEANING BOOKCASE
Thank you for purchasing the Leaning Shelves. This page
lists all the contents included in the box. Please take the time
to identify the hardware as well as the individual components
to this product. As you unpack and prepare for assembly,
place the contents on a carpeted or padded area to protect
them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
1 - left
upright
1 - right
upright
5 - shelves
Made in China R02
HARDWARE
10 - connecting
screws
1 - keyhole (attached to second smallest shelf)
Missing hardware?
Please call 800.606.6387 for replacements.
1 - small
screw
TOOLS REQUIRED
Allen wrench (included)
Phillips head screwdriver
Drill and 1/4"drill bit
B
x10
B
1
A) Position right and left uprights with 5 shelves (in
descending depths) as shown. Place the shortest depth
shelf at the top of the uprights, and longest depth shelf
at the bottom.
B) Insert 1 connecting screw through each shelf side,
and secure each screw with the Allen wrench.
1 - wall anchor
A
Page 1 of 2
Customer Service 800-967-6696 | http://www.crateandbarrel.com
LEANING BOOKCASE
IMPORTANT NOTE:
The wall mounting
hardware included with
this product is intended
for drywall installation
only. Be sure to use
hardware appropriate
for your wall type.
Whenever possible,
attach mounting
hardware into a wall
stud.
If you are unsure about
your wall type or what
mounting method you
should use, consult a
qualified professional or
your local hardware
store.
54”
2
Drill a 1/4" hole into the wall, 54" from the floor.
With assistance of another adult, position assembled
4
unit upright. Carefully align keyhole on back side of
the second shelf with protruding screw in the wall
and fit securely into place.
Assembly is now complete.
Made in China R02
A
B
leave 1/4" out
A) Insert wall anchor into the hole.
3
B) Fasten 1 small screw into the wall anchor
using a Phillips head screwdriver. Leave screw
protruding 1/4" out of the wall, as illustrated above.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth.
Do not use abrasive cleaners.
B
Page 2 of 2
