KINGSTON 65” MEDIA STAND

HARDWARE

Thank you for purchasing the Kingston 65” Media
Stand. This page lists all the contents included in the

box. Please take time to identify the hardware as well as
the individual components of this product. As you
unpack and prepare for assembly, place the contents on
a carpeted or padded area to protect them from damage.

Note: 2 people are required to safely assemble this product.

COMPONENTS
BOX 1

7 - cam
screws

20 - spring
washers

3 - pulls

7 - cams

20 - flat
washers

16 - shelf
pins

TOOLS REQUIRED

phillips head screwdriver

COMPONENTS
BOX 1

6 - small
bolts

20 - small
screws

Missing hardware? Please call

800.606.6387 for replacements.

20 - large
bolts

4 - large
screws

1 - center
support

1 - front
frame

1 - bottom
panel

Made in China - r02 Page 1 of 3

Customer Service 800.967.6696 | www.crateandbarrel.com

1 - top
panel

1 - back
panel

2 - side panels

(1 left, 1 right)

2 - small
adjustable shelves

2 - partitions

(1 left, 1 right)

2 - large
adjustable shelves

KINGSTON 65” MEDIA STAND

right
partition

left
partition

bottom
panel

1 Fit pre-assembled dowels of left/right partitions
into corresponding holes of bottom panel as shown.
Secure bottom panel with 4 large screws as shown,
using a phillips head screwdriver.

A

B

left side
panel

2 A) Insert 2 cam screws into left/right side panels as shown.
Secure cam screws with a screwdriver.
B) Insert 4 cams into bottom panel as shown. Make sure arrows
on each cam points toward nearest edge with holes.
C) Fit dowels of bottom panel into corresponding holes of
left/right side panels as shown. With a screwdriver, turn cams
clockwise until it securely engages each cam screw.

C

NOTE: Make sure arrows
on each cam points toward
nearest edge with holes.

right side
panel

C

B

center
support

B

C

B

A

B

A

A

front
frame

3 A) Insert 3 cam screws into front frame as shown.
B) Insert 3 cams into bottom panel of assembled unit as shown.
C) With the assistance of another adult, fit dowels of assembled
unit into corresponding holes of front frame as shown. Secure
all cams. Secure front frame with 4 large bolts, 4 spring
washers, and 4 flat washers as shown, using a screwdriver.

Made in China - r03 Page 2 of 3

A

top
panel

4 A) With the assistance of another adult, position assembly as
shown. Fit dowels of assembled unit into corresponding holes
of top panel as shown. Secure top panel with 12 large bolts,
12 spring washers, and 12 flat washers as shown.
B) Attach 2 center supports to assembled unit as shown with 2
large bolts, 2 spring washers, and 2 flat washers per support

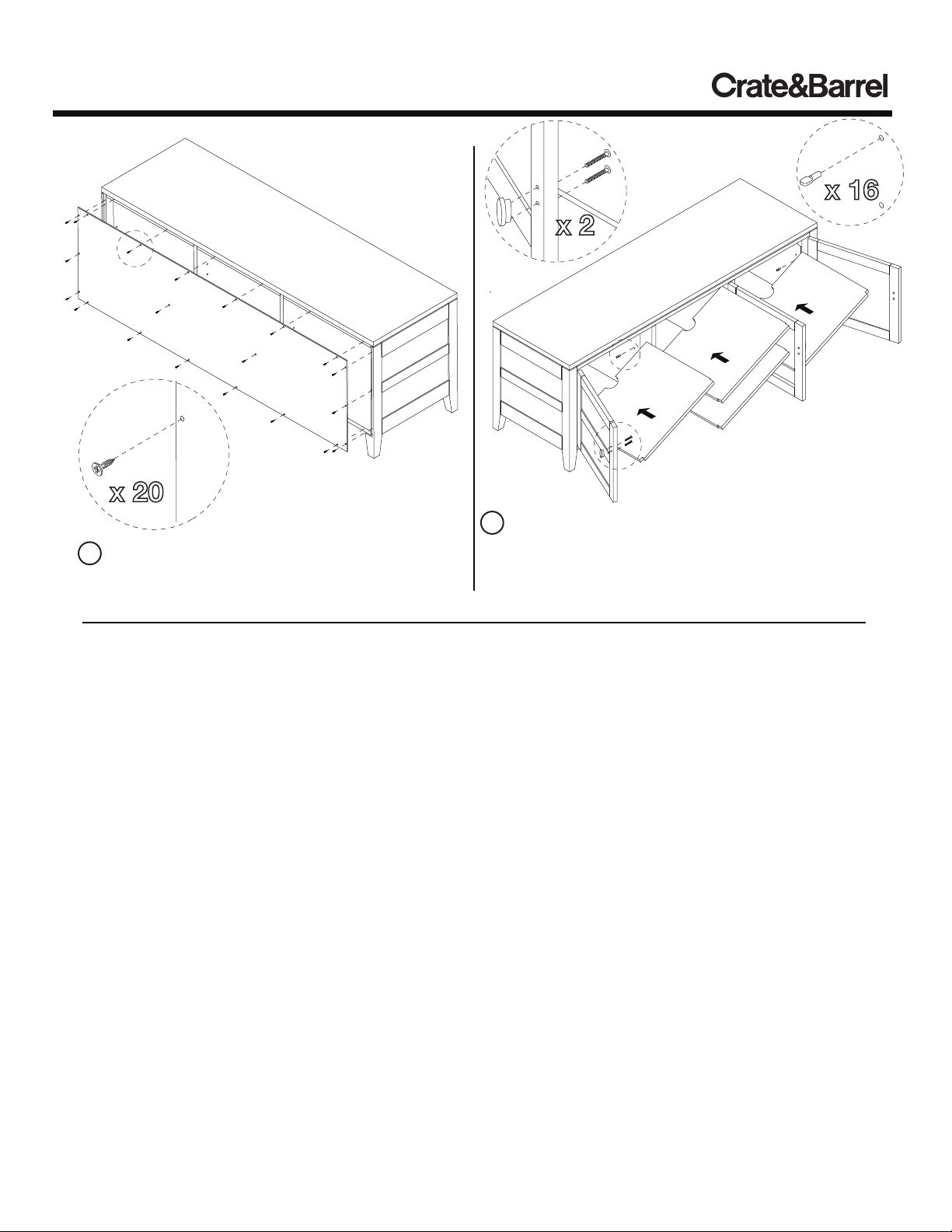

as shown.
