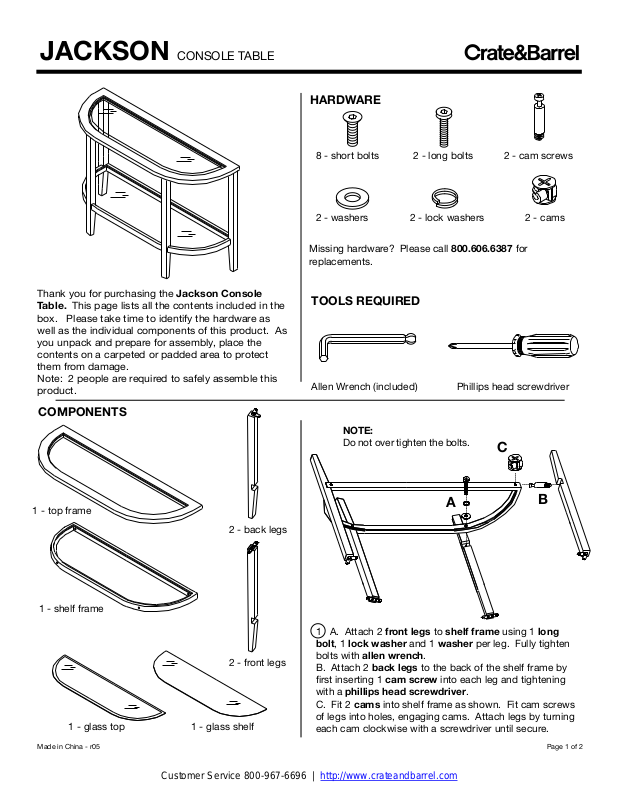

JACKSON CONSOLE TABLE

Thank you for purchasing the Jackson Console
Table. This page lists all the contents included in the

box. Please take time to identify the hardware as
well as the individual components of this product. As
you unpack and prepare for assembly, place the
contents on a carpeted or padded area to protect
them from damage.
Note: 2 people are required to safely assemble this
product.

COMPONENTS

1 - top frame

2 - back legs

1 - shelf frame

2 - front legs

1 - glass top

Made in China - r05

1 - glass shelf

HARDWARE

8 - short bolts 2 - long bolts

2 - washers 2 - lock washers 2 - cams

Missing hardware? Please call 800.606.6387 for
replacements.

2 - cam screws

TOOLS REQUIRED

Allen Wrench (included)  Phillips head screwdriver

NOTE:

Do not over tighten the bolts.

A

1 A. Attach 2 front legs to shelf frame using 1 long
bolt, 1 lock washer and 1 washer per leg. Fully tighten

bolts with allen wrench.
B. Attach 2 back legs to the back of the shelf frame by
first inserting 1 cam screw into each leg and tightening
with a phillips head screwdriver.
C. Fit 2 cams into shelf frame as shown. Fit cam screws
of legs into holes, engaging cams. Attach legs by turning
each cam clockwise with a screwdriver until secure.

C

B

Page 1 of 2

Customer Service 800-967-6696 | http://www.crateandbarrel.com

JACKSON CONSOLE TABLE

2 Place top frame upside down on a padded surface.
Position shelf frame assembly as shown, aligning holes in
legs with holes in top frame. Attach with 2 short bolts
per leg, fully tightening each with the allen wrench.

Made in China - r05

CLEANING AND CARE

Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.

3 With the assistance of another adult, lift assembly into
an upright position. Carefully insert shelf glass into the
shelf frame, followed by the top glass into the top frame.
Assembly is now complete.
