HAVANA BUFFET

Thank you for purchasing the Havana Buffet. This
page

lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.

Note: 2 people are required to safely assemble this product.

to this product. As you unpack

COMPONENTS

1 - front panel 1 - top panel 1 - drawer

1 - top shelf

2 - side panels

Made in Indonesia R03 Page 1 of 3

1 - bottom shelf

HARDWARE

6 - pan
head bolts

8 - small
wood screws

Missing hardware?
Please call 800.606.6387 for replacements.

20 - flat
head bolts

8 - small
washers

8 - large
wood screws

26 - large
washers

TOOLS REQUIRED

Interchangeable Phillips/flat head screwdriver (included)

2 - drawer handles

1 - back panel

Customer Service 800-967-6696 | http://www.crateandbarrel.com

HAVANA

BUFFET

1

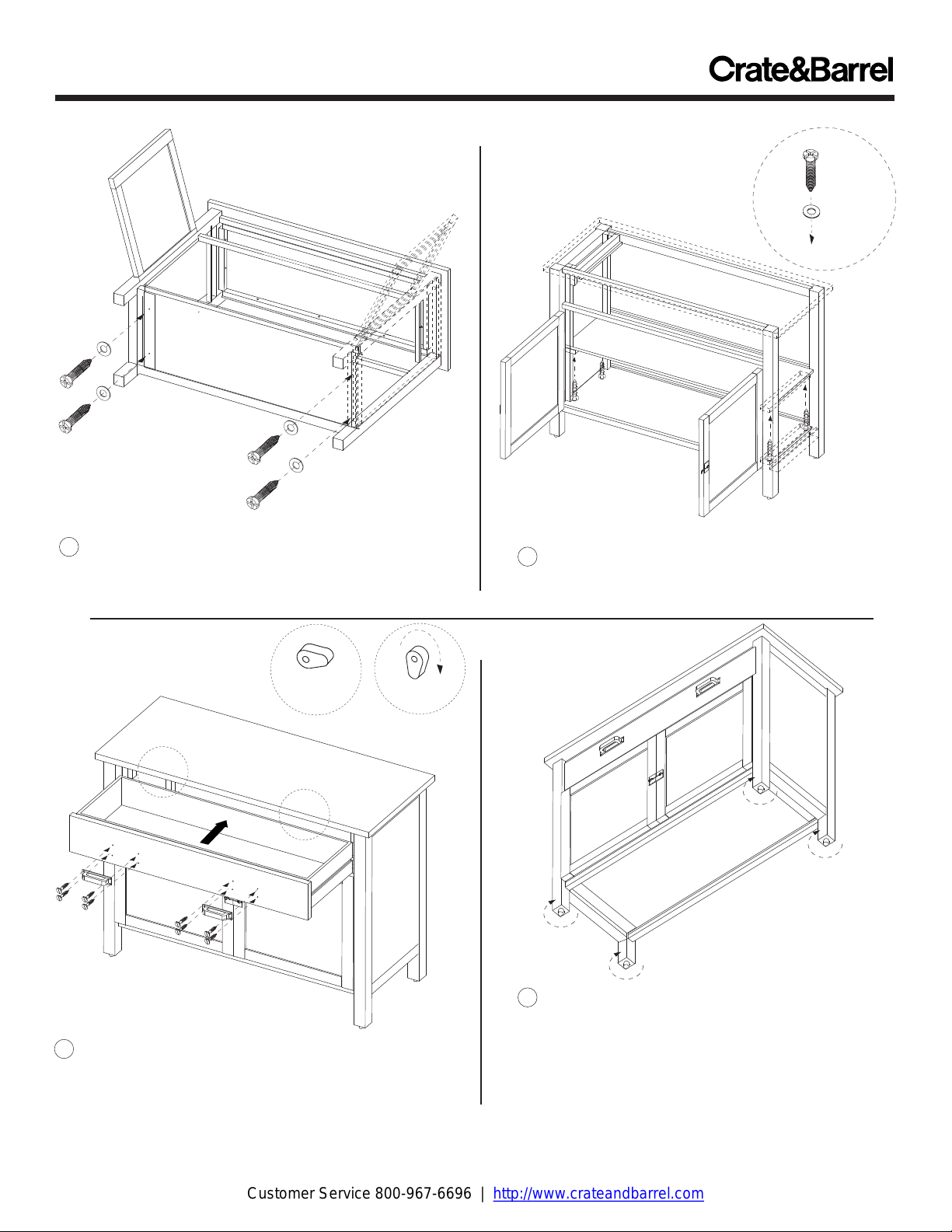

With assistance of another adult, carefully lay back panel
onto padded surface. Align holes in side panels with
corresponding holes in back panel and insert 8 flat head

bolts and 8 large washers. Do not fully tighten the bolts.

x 6

Attach top panel with 6 pan head bolts and 6 large

3

washers as illustrated. Do not fully tighten bolts.

Made in Indonesia R03

x 8

Fit front panel onto assembled unit and insert 8 flat

2

head bolts and 8 large washers through the side
frames into the front panel. Do not fully tighten the
bolts.

x 4

Insert 4 flat head bolts and 4 large washers as shown.

4

At this point, fully tighten all bolts installed in Steps 1-4
with a phillips head screwdriver.
