FARROW 65” MEDIA CONSOLE
Thank you for purchasing the Farrow 65” Media Console. This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
ASSEMBLY HARDWARE
30 - spring
washers
20 - small
screws
22 - small
flat washers
10 - large
screws
Missing hardware? Please call
800.606.6387 for replacements.
8 - large
flat washers
22 - small
bolts
WALL MOUNTING HARDWARE
4 - small
screws
4 - large
screws
2 - wall
straps
4 - wall
brackets
TOOLS REQUIRED
allen wrench (included)
phillips head screwdriver
(We recommened the use of hand tools instead power tools)
12 - shelf
pins
8 - large
bolts
4 - plastic
anchors
COMPONENTS
1 - top panel 1 - front frame
2 - side panels
(1 left, 1 right)
1 - bottom
panel
2 - partitions
(1 left, 1 right)
1 - back panel
3 - door fronts
4 - legs
Made in Vietnam - r02 Page 1 of 4
1 - support
leg
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
1 - small
adjustable shelf
2 - large
adjustable shelves
FARROW 65” MEDIA CONSOLE
legs
A
A
NOTE: Do not over
tighten the bolts
B
suport
leg
bottom
panel
1 A) Place bottom panel onto a clean, padded surface.
Attach 4 legs to bottom panel with 2 large bolts, 2
spring washers and 2 large flat washers per leg as
shown. Secure, but do not over tighten, bolts using an
allen wrench.
B) Attach 1 support leg to bottom panel with 2 small
bolts, 2 spring washers and 2 small flat washers as
shown, using a phillips head screwdriver.
NOTE: Make sure crossbars
of side panels and partitions
are positioned as shown
left
B
partition
left side
panel
A
B
right
partition
A
right side
panel
2 A) With assistance of another adult, position bottom
panel as shown. Attach left and right side panels to
bottom panel with 3 large screws per side as shown.
Secure, but do not over tighten, screws using a phillips
head screwdriver.
B) Attach left and right partitions to bottom panel with 2
large screws as shown.
NOTE: Make sure crossbar
of top panel is positioned
towards the front of assembly
as shown.
top
panel
3 Fit pre-assembled dowels of left/right side panels
and partitions into corresponding holes of top panel.
Attach top panel to left/right side panels and partition
with 8 small bolts, 8 spring washers and 8 small flat
washers as shown, using a screwdriver.
front frame
4 With the assistance of another adult, position
assembled unit upright. Attach front frame to assembled
unit with 12 small bolts, 12 spring washers and 12
small flat washers as shown, using a screwdriver.
Made in Vietnam - r02 Page 2 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
FARROW 65” MEDIA CONSOLE
5 Attach back panel to assembled unit with 20 small
screws as shown, using a screwdriver.
A
A
B
small
large
adjustable
shelf
6 A) Insert 12 shelf pins at desired shelf heights.
B) Place 1 small and 2 large adjustable shelves into
assembly as shown. Make sure that each shelf securely
supported by each shelf pin.
adjustable
shelf
large
adjustable
shelf
LOCKED
POSITION
UNLOCKED
POSITION
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth.
Do not use abrasive cleaners. Do not use
furniture wax or polish as the wood is finished
with a protective clear lacquer.
door front
7 Push pins on top and bottom of door front down so that they are
in the unlocked position. Fit 2 door fronts into back groove of
assembled unit. Push pins up to secure. Repeat for remaining door
front using the front groove of unit.
Assembly is now complete.
Made in Vietnam - r02 Page 3 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
FARROW 65” MEDIA CONSOLE
SAFETY MOUNTING INSTRUCTIONS:
For added safety and stability, it is recommended that
the wall mounting hardware be installed. For safe
mounting, it is essential to use wall anchors
appropriate to your wall type (i.e. plaster, drywall,
concrete, etc.). Mount to wood studs whenever
possible.
A) Attach 2 wall brackets to back of unit using 4
small screws as shown.
B) Determine the final location of unit. Mark position
on the wall, approximately 2" below each wall bracket
mounted to the back of the unit.
C) Drill a hole in the wall stud. If the wall stud is not
available, drill a hole in the wall that is slightly smaller
in diameter than the anchor. Gently tap the plastic
anchor until the flange of the anchor is flush with the
wall.
D) Attach wall brackets to the wall by inserting 2
large screws through each bracket and into each
plastic anchor in the wall.
E) Place the unit so the wall brackets on the back
edge are aligned with the wall brackets on the wall.
F) Lace one end of the wall strap through each
bracket, and into the other end of the strap.
G) Pull the strap tightly until secure.
Wall mounting assembly is now complete.
WALL
C
plastic
anchor
D
large
screw
wall
bracket
A
F
wall
strap
wall
bracket
small
screw
NOTE:
If you are unsure about your wall type or what
mounting method you should use, consult a
qualified professional or your local hardware
store.
Made in Vietnam - r02 Page 4 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
FARROW MEDIA GAMING TOWER
Thank you for purchasing the Farrow Media Gaming
Tower. This page lists all the contents included in the
box. Please take time to identify the hardware as well as
the individual components of this product. As you
unpack and prepare for assembly, place the contents on
a carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
ASSEMBLY HARDWARE
8 - cams
8 - hinge
screws
8 - large
flat washers
22 - small
screws
8 - small
flat washers
4 - large
screws
Missing hardware? Please call
800.606.6387 for replacements.
16 - spring
washers
8 - small
bolts
8 - large
bolts
WALL MOUNTING HARDWARE
4 - small
screws
4 - large
screws
2 - wall
straps
4 - wall
brackets
TOOLS REQUIRED
allen wrench (included)
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
8 - shelf
pins
4 - plastic
anchors
8 - cam
covers
8 - cam
screws
COMPONENTS
2 - left and right
side panels
(1 left, 1 right)
1 - top panel
1 - top fixed shelf
1 - bottom
fixed shelf
1 - back panel
1 - bottom
panel
4 - legs
1 - door front
Made in Vietnam - r02 Page 1 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
1 - top
adjustable shelf
1 - bottom
adjustable shelf
1 - front frame
FARROW MEDIA GAMING TOWER
NOTE: Make sure arrows
on each cam point toward
nearest edge with holes
top panel
A
left and right
B
side panels

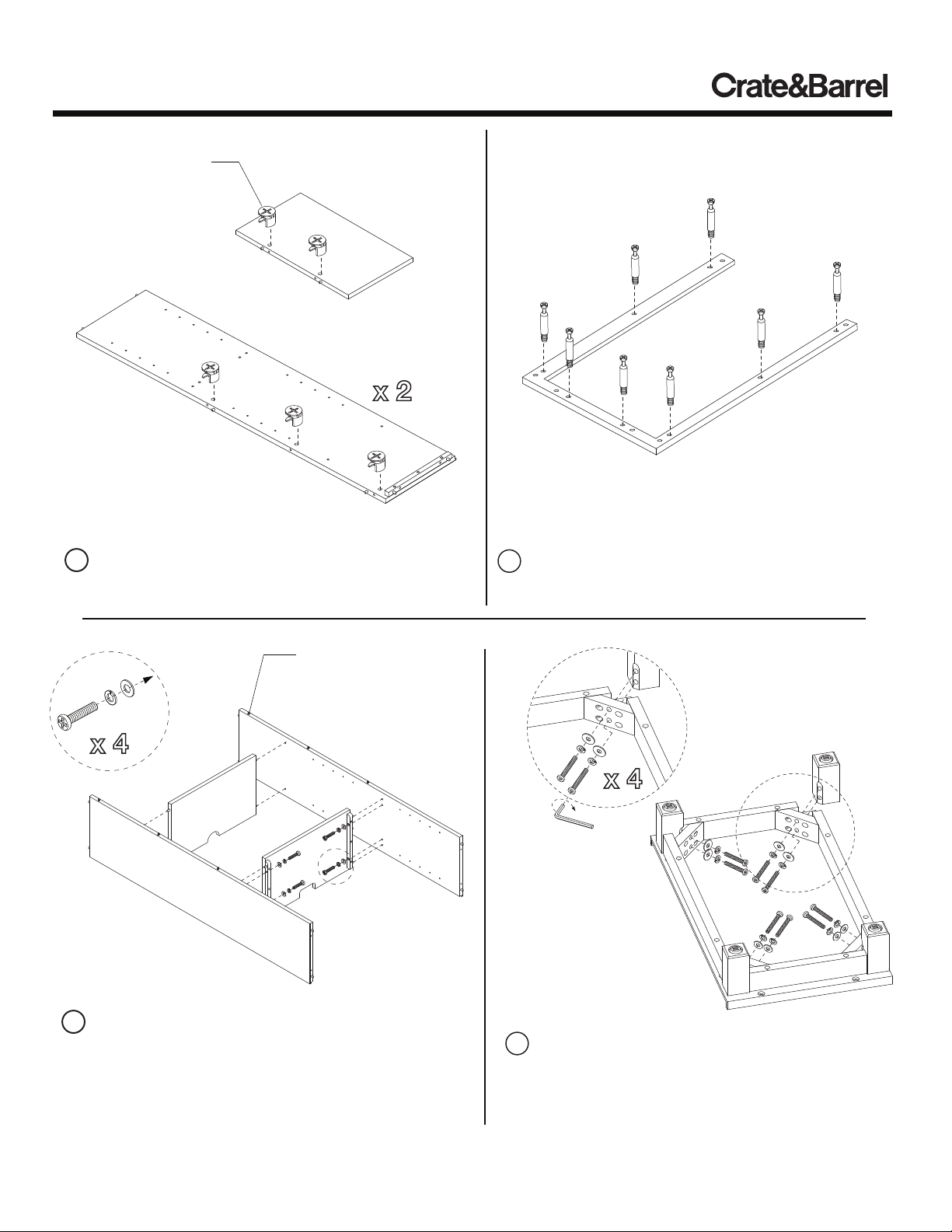

1 A) Insert 2 cams into top panel as shown. Make sure
arrows on each cam point toward nearest edge with holes.
B) Insert 3 cams into left and right side panels as shown.
NOTE: Do not over
tighten cam screws
front frame
2 Insert 8 cam screws into front frame as shown.
Secure, but do not over tighten, cam screws using a
phillips head screwdriver.
NOTE: Make sure pilot holes
of left and right side panels
are positioned towards the
front during assembly as shown
top fixed
panel
right side
panel
A
B
bottom fixed
panel
left side
panel
3 A) Fit pre-assembled dowels of top and bottom fixed
panels into corresponding holes of left and right side
panels.
B) Secure bottom fixed panel to left and right side
panels with 4 small bolts, 4 spring washers and 4 small
flat washers, using a phillips head screwdriver. Do not
over tighten the bolts.
NOTE: Do not over
tighten the bolts
leg
bottom
panel
4 Place bottom panel onto a clean, padded surface.
Attach 4 legs to bottom panel with 2 large bolts, 2
spring washers and 2 large flat washers per leg as
shown. Secure, but do not over tighten, bolts using an
allen wrench.
Made in Vietnam - r02 Page 2 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
FARROW MEDIA GAMING TOWER
top
panel
NOTE: Do not over
tighten the screws
A
A
B
B
bottom
panel
5 A) Fit pre-installed dowels of left and right side panels
into corresponding holes of top panel. Secure top panel
with 4 small bolts, 4 spring washers and 4 small flat
washers using a phillips head screwdriver. Do not over
tighten the screws.
B) Fit pre-installed dowels of left and right side panels into
corresponding holes of bottom panel. Secure bottom
panel with 4 large screws as shown.
front
frame
6 Fit pre-installed dowels of assembled unit into
corresponding holes of front frame. Using a phillips
head screwdriver, turn cams clockwise until each cam
securely engages each cam screw.
back panel
door front
7 With the assistance of another adult, position unit
upright. Attach back panel to assembled unit with 22
small screws as shown.
Made in Vietnam - r02 Page 3 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
8 Attach 2 hinges to door front with 2 small screws
per hinge as shown. Secure, but do not over tighten,
screws with a phillips head screwdriver.
FARROW MEDIA GAMING TOWER
Refer to Hinge Adjustment
diagram for adjusting the
alignment of the
door hinges.
door
9 Attach hinges of door to left side panel as shown.
Secure each hinge with 2 small screws, using a
screwdriver.
A
top
adjustable
B
shelf
bottom
adjustable
B
shelf
10 A) Insert 8 shelf pins at desired shelf heights.
B) Place top and bottom adjustable shelves into assembly as shown. Make sure that each shelf is securely
supported by each shelf pin.
Assembly is now complete.
A
HINGE ADJUSTMENT
If the doors do not appear square or aligned, loosen or tighten the appropriate screws on each case hinge as illustrated.
1
A
B
Side to side adjustment:
Loosen screw A, adjust gap with
screw B and re-tighten screw A
2
A
B
Depth adjustment:
Loosen screw A, push hinge arm
forwards or backwards, re-tighten
screw A and secure screw B with
a 1/4 turn clockwise
3
C
C
Height adjustment:
Loosen screw C, adjust door
height and re-tighten screw C
Made in Vietnam - r02 Page 4 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
FARROW MEDIA GAMING TOWER
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth.
Do not use abrasive cleaners. Do not use
furniture wax or polish as the wood is finished
with a protective clear lacquer.
SAFETY MOUNTING INSTRUCTIONS:
For added safety and stability, it is recommended that the wall
mounting hardware be installed. For safe mounting, it is essential to
use wall anchors appropriate to your wall type (i.e. plaster, drywall,
concrete, etc.). Mount to wood studs whenever possible.
A) Attach 2 wall brackets to back of unit using 4 small screws as
shown.
B) Determine the final location of unit. Mark position on the wall,
approximately 2" below each wall bracket mounted to the back of the
unit.
C) Drill a hole in the wall stud. If the wall stud is not available, drill a
hole in the wall that is slightly smaller in diameter than the anchor.
Gently tap the plastic anchor until the flange of the anchor is flush
with the wall.
D) Attach wall brackets to the wall by inserting 2 large screws
through each bracket and each plastic anchor in the wall.
E) Place the unit so the wall brackets on the back edge are aligned
with the wall brackets on the wall.
F) Lace one end of the wall straps through each bracket, and into
the other end of the strap.
G) Pull the strap tightly until secure.
Wall mounting assembly is now complete.
NOTE:
If you are unsure about your wall type
or what mounting method you should
use, consult a qualified professional
or your local hardware store.
WALL
F
wall
strap
plastic
C
anchor
wall
bracket
large
D
screw
small
A
screw
Made in Vietnam - r02 Page 5 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
wall
bracket
Loading...
