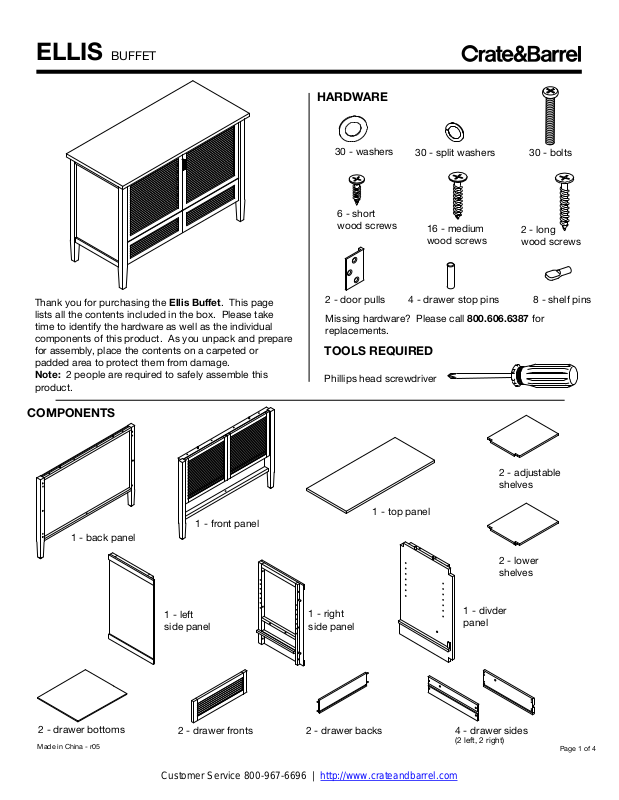

ELLIS BUFFET
Thank you for purchasing the Ellis Buffet. This page
lists all the contents included in the box. Please take
time to identify the hardware as well as the individual
components of this product. As you unpack and prepare
for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this
product.
COMPONENTS
1 - back panel
1 - front panel
1 - left
side panel
2 - drawer bottoms
Made in China - r05
2 - drawer fronts 2 - drawer backs
HARDWARE
30 - washers
6 - short
wood screws
2 - door pulls 4 - drawer stop pins
Missing hardware? Please call 800.606.6387 for
replacements.
30 - split washers 30 - bolts
16 - medium
wood screws
TOOLS REQUIRED
Phillips head screwdriver
2 - adjustable
shelves
1 - top panel
2 - lower
shelves
1 - right
side panel
1 - divder
panel
4 - drawer sides
(2 left, 2 right)
2 - long
wood screws
8 - shelf pins
Page 1 of 4
Customer Service 800-967-6696 | http://www.crateandbarrel.com
ELLIS BUFFET
NOTE:
Do not overtighten
the bolts.
x 8
1 With the assistance of another adult, position 2 side
panels and 1 divider panel as shown. Attach 2 lower
shelves to the panels with 8 bolts, 8 split washers and 8
washers. Fully tighten each bolt with a phillips head
screwdriver.
B
x 2
A
x 6
3 A. Position back panel as shown. With the assistance of
another adult, open doors and place case assembly on back
panel, aligning corresponding holes. Attach side panels with
6 bolts, 6 split washers and 6 washers.
B. Attach 2 door pulls with 3 short wood screws per pull
and secure with phillips head screwdriver.
Made in China - r05
x 6
A
B
B
2 A. Position front panel on floor face down as shown.
Align corresponding holes in side panels and divider panel
with front panel. Fasten side panels with 3 bolts, 3 split
washers and 3 washers per panel with a screwdriver.
B. Fasten 1 long wood screw into divider panel from below
with a phillips head screwdriver.
B
B
A
x 8
4 A. Place the top panel upside down. With the assistance
of another adult, align holes in the case assembly with
corresponding holes in the top panel as shown. Secure with
8 bolts, 8 split washers and 8 washers.
B. Attach divider to case assembly with 1 long wood screw.
Secure with a phillips head screwdriver.
Page 2 of 4
Customer Service 800-967-6696 | http://www.crateandbarrel.com
ELLIS BUFFET
x 8
5 A. Insert 8 shelf pins into holes corresponding to your
desired shelf height.
B. Fit 2 adjustable shelves into the case by angling each
into position. Make sure each shelf is firmly seated on the
shelf pins.
x 4
B
A
7 A. Fit drawers into case, aligning grooves in drawer sides
with rails on case interior.
B. Insert 2 drawer stop pins into holes at the rear of each
drawer assembly as shown.
Assembly is now complete.
Made in China - r05
Make sure this hole
is at the back of
the side panel
A
B
C
x 2
6 A. Attach 2 drawer sides to drawer back with 2 medium
wood screws on either side. Do not over tighten screws.
B. Fit drawer bottom into slot at bottom of drawer sides
and back.
C. Fit drawer front onto front of assembly and secure with 2
medium wood screws on each side. Repeat Steps A-C for
the remaining drawer.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
Page 3 of 4
Customer Service 800-967-6696 | http://www.crateandbarrel.com
ELLIS BUFFET
ADJUSTING THE LEVELERS
If the doors do not appear square or aligned, first try adjusting the levelers on the bottom of each leg.
ADJUSTING THE HINGES
If the doors still do not appear aligned after adjusting the levelers, loosen or tighten the appropriate screws on each
case hinge as illustrated.
A Adjusts door forward or backward B Adjusts door right or left
C Adjusts door up or down
Made in China - r05
C
A
B
Page 4 of 4
