ELEMENTS MEDIA STAND
MEDIA STAND HARDWARE
Thank you for purchasing the Elements Media Stand.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
1 - top
panel
30 - large
wood
dowels
6 - feet
DRAWER HARDWARE
8 - small
wood
dowels
2 - drawer
glide plates
1 - bottom
frame
18 - large
cam screws
18 - large
cams
12 - large
screws
22 - bolts
Missing hardware?
Please call 800.606.6387 for replacements.
16 - small
cam screws
2 - drawer
glides
16 - small
cams
2 - side
panels
(1 left, 1 right)
4 - medium
screws
16 - small
screws
3 - back
panels
2 - pulls
4 - supports
3 - partitions2 - shelves 2 - drawer
supports
2 - drawer
backs
2 - drawer
bottoms
2 - drawer
fronts
2 - drawer
right sides
1 - bottom
panel
2 - drawer
left sides
TOOLS REQUIRED
phillips head screwdriver
Made in China - r08 Page 1 of 6
Customer Service 800.967.6696 | www.crateandbarrel.com
hammer
allen wrench (included)
ELEMENTS MEDIA STAND
A
partition
NOTE: Make sure
arrows on each cam
points towards nearest
edge with holes.
B
shelf
1 A) Insert 4 large wood dowels into 3 partitions as
shown.
B) Insert 4 large cams and 4 large wood dowels into
2 shelves as shown. Make sure arrows on each cam
points towards nearest edge with holes.
top
shelf
bottom
shelf
2 Fit dowels of partition into corresponding holes of
top and bottom shelves as shown.
left and right
side panels
3 Insert 2 large wood dowels, 4 large cam screws
and 2 large cams into left and right side panels as
shown. Secure cam screws with a phillips head
screwdriver.
left side
panel
right side
panel
4 Fit dowels of assembled unit into corresponding
holes of left and right side panels. With a
screwdriver, turn each cam clockwise until it securely
engages each cam screw.
Made in China - r08 Page 2 of 6
Customer Service 800.967.6696 | www.crateandbarrel.com
ELEMENTS MEDIA STAND
back
panel
back
panel
5 Insert 2 large wood dowels and 2 large cams into
3 back panels as shown.
top
panel
6 Attach 3 back panels to assembled unit with 4
bolts per panel as shown. Secure bolts with an allen
wrench.
B
top panel
A
partiton
8 A) With the assistance of another adult, carefully
7 Insert 10 large cam screws into top panel as
shown.
Made in China - r08 Page 3 of 6
Customer Service 800.967.6696 | www.crateandbarrel.com
position unit upright as shown. Fit dowels of partition
into corresponding holes of assembled unit.
B) Fit dowels of assembled unit into corresponding
holes of top panel. Secure 10 cams.
ELEMENTS MEDIA STAND
drawer
glide
9 A) Attach 2 drawer glides to bottom panel with 3
small screws per glide. Secure screws with a
screwdriver.
B) Attach 4 supports to bottom panel with 1 small
screw per support as shown.
support
bottom
panel
bottom
panel
10 With the assistance of another adult, position unit
upside down onto a clean, padded surface as shown.
Attach bottom panel to assembled unit with 10 bolts.
Secure bolts with an allen wrench.
B
A
11 A) Attach bottom frame to assembled unit with 12
large screws as shown. Secure screws with a
screwdriver.
B) Gently tap 6 feet into bottom of assembled unit
with a hammer as shown.
bottom
frame
left and right
A
drawer sides
drawer
back
B
drawer
back
D
C
12 A) Insert 2 small cam screws into left and right drawer
sides as shown.
B) Insert 4 small cams into drawer back as shown.
C) Insert 2 small wood dowels into drawer back as shown.
D) Fit cam screws of left and right drawer side into
corresponding holes of drawer back as shown. Secure 4 cams.
Made in China - r08 Page 4 of 6
Customer Service 800.967.6696 | www.crateandbarrel.com
ELEMENTS MEDIA STAND
A
drawer
support
B
drawer
bottom
A
drawer front
panel
B
pull
13 A) Fit dowels of drawer assembly into corresponding
holes of drawer support as shown.
B) Slide drawer bottom into grooves of drawer assembly
as shown.
A
B
drawer front
assembly
14 A) Insert 4 small cam screws and 2 small wood dowels to
drawer front. Secure cam screws with a screwdriver.
B) Attach pull to drawer fronts with 2 medium screws. Secure
screws with a screwdriver.
drawer
glide
plate
15 A) Insert 4 small cams into left and right drawer
sides of drawer assembly as shown.
B) Fit dowels of drawer front assembly into corresponding
holes of drawer assembly. Secure 4 cams.
Made in China - r08 Page 5 of 6
Customer Service 800.967.6696 | www.crateandbarrel.com
16 Position drawer assembly upside down onto a clean,
padded surface as shown. Attach drawer glide plate to
drawer assembly with 3 small screws as shown.
Secure screws with a screwdriver.
Repeat steps 12-16 for remaining drawer assembly.
ELEMENTS MEDIA STAND
drawer
assemblies
17 With the assistance of another adult, carefully
position unit upright. Insert 2 drawer assemblies
into assembled unit as shown. Fit drawer glides of
assembled unit into corresponding drawer glides of
drawer assembly.
Assembly is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
Made in China - r08 Page 6 of 6
Customer Service 800.967.6696 | www.crateandbarrel.com

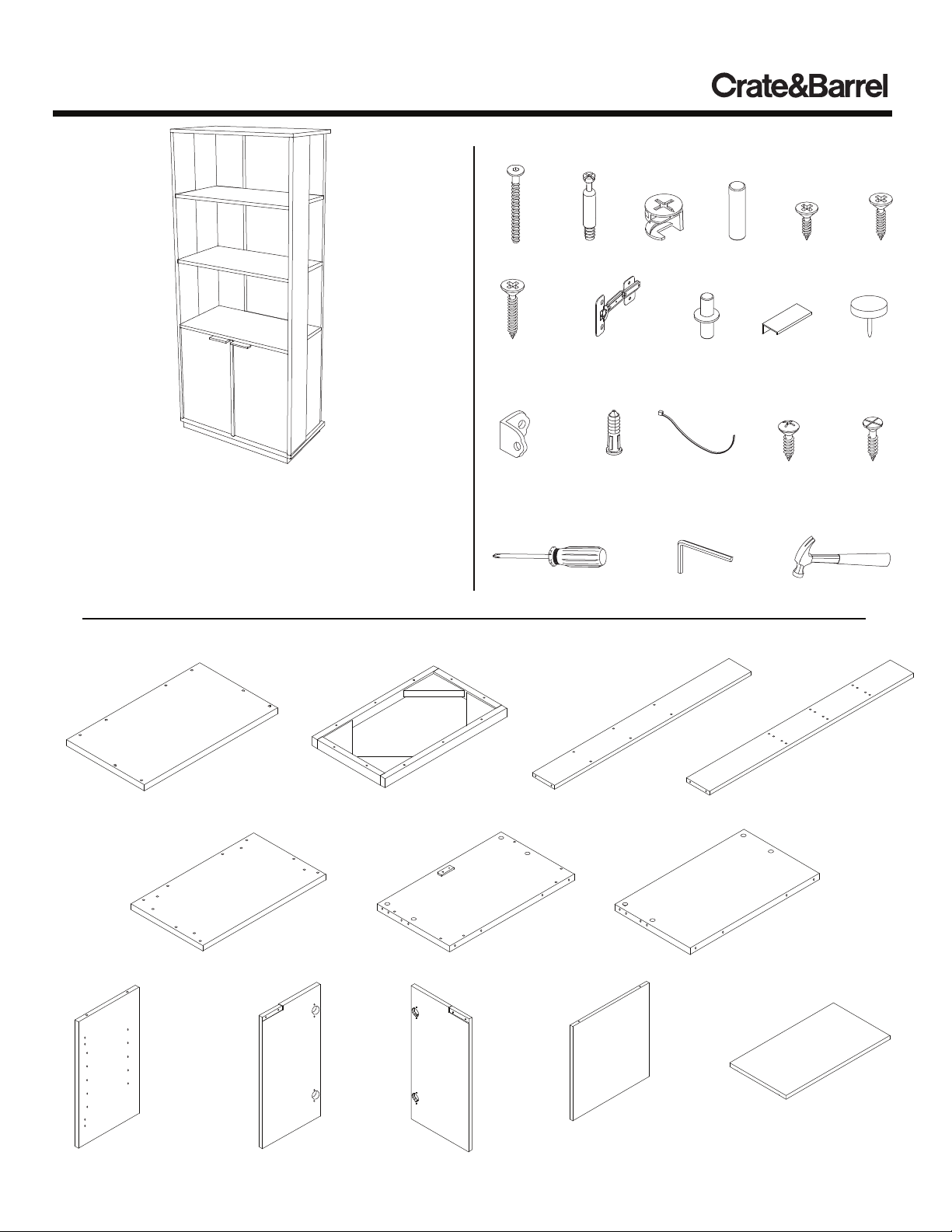

ELEMENTS MEDIA TOWER
Thank you for purchasing the Elements Media Tower.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
ASSEMBLY HARDWARE
28 - bolts
10 - large
screws
12 - cam
screws
12 - cams
MOUNTING HARDWARE
2 - wall
brackets
1 - plastic
anchor
TOOLS REQUIRED
phillips head
screwdriver
Missing hardware? Please call
800.606.6387 for replacements.
24 - wood
dowels
4 - shelf
pins
1 - wall
strap
allen wrench
(included)
16 - small
screws
2 - pulls4 - hinges
1 - wall
screw
4 - medium
screws
4 - feet
1 - cabinet
screw
hammer
COMPONENTS
2 - cabinet
side
panels
(1 left, 1 right)
1 - top
panel
1 - bottom
panel
1 - left
door
1 - bottom
frame
1 - bottom
fixed shelf
1 - right
door
2 - side
panels
(1 left, 1 right)
1 - cabinet
back panel
2 - back
panels
2 - fixed shelves
(1 top, 1 middle)
1 - adjustable
shelf
Made in China - r05 Page 1 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
ELEMENTS MEDIA TOWER
A
top and middle
fixed shelves
bottom fixed
B
shelf
NOTE: Make sure
arrows on each cam
points towards nearest
edge with holes.

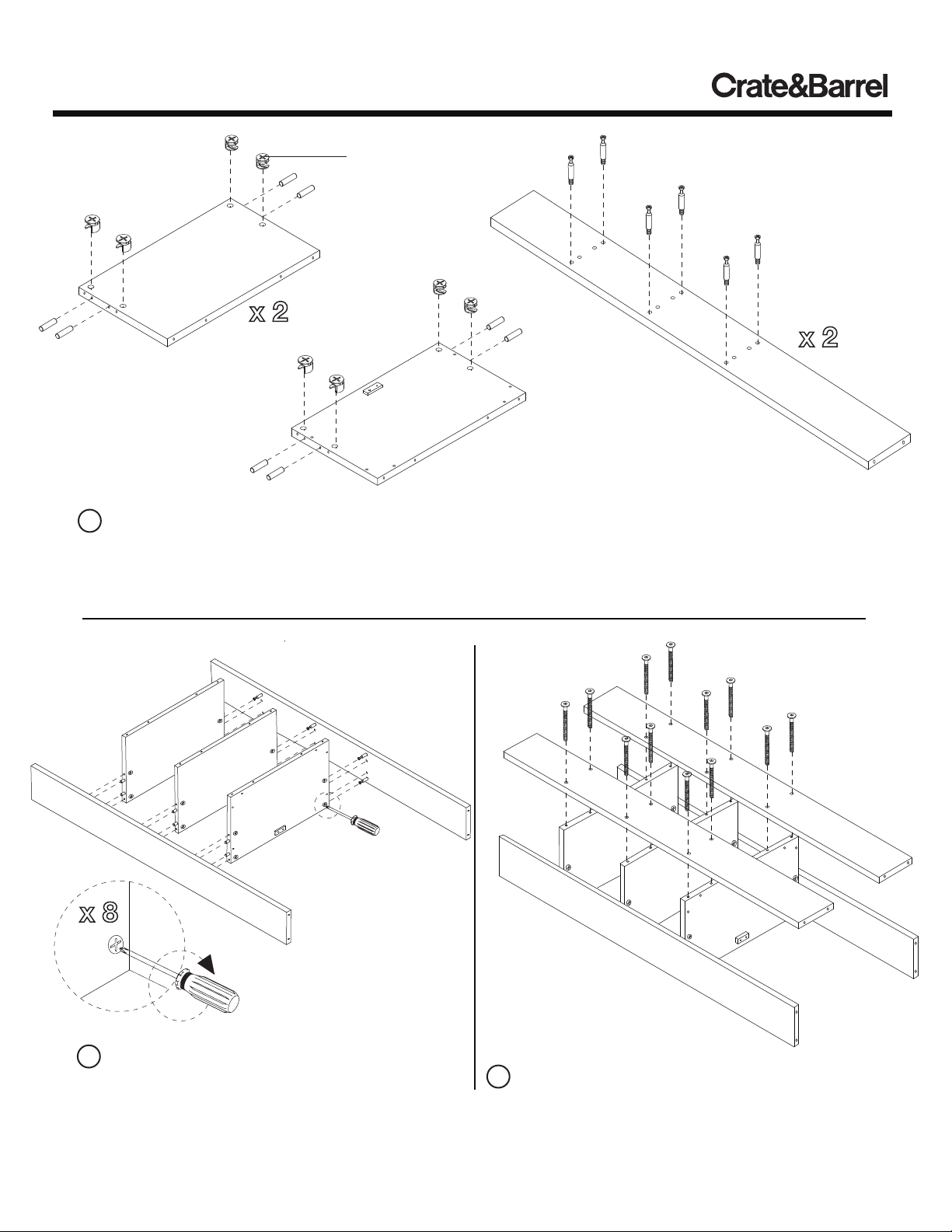

1 A) Insert 4 wood dowels and 4 cams into top and
middle shelves as shown. Make sure arrows on each
cam points towards nearest edge with holes.
B) Insert 4 wood dowels and 4 cams into bottom
fixed shelf as shown.
left and right
C
side panels
C) Insert 6 cam screws into left and right side
panels as shown. Secure cam screws with a phillips
head screwdriver.
top
fixed
shelf
middle
fixed
shelf
bottom
fixed
shelf
right side
panel
left side
panel
back
panel
2 Fit dowels of fixed shelves into corresponding
holes of left and right side panels. With a
screwdriver, turn cams clockwise until it securely
3 Attach 2 back panels to unit with 6 bolts per panel
as shown. Secure bolts with an allen wrench.
engages each cam screw.
Made in China - r05 Page 2 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
ELEMENTS MEDIA TOWER
top
panel
left and right
cabinet side panels
4 Attach top panel to assembled unit with 8 bolts as
shown. Secure bolts with an allen wrench.
cabinet back
panel
5 Insert 4 wood dowels into left and right cabinet
side panels as shown.
cabinet
assembly
7 With the assistance of another adult, carefully
6 Insert 4 wood dowels into cabinet back panel as
shown.
Made in China - r05 Page 3 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
position unit face up as shown. Fit dowels of cabinet
assembly into corresponding holes of assembled unit
as shown.
ELEMENTS MEDIA TOWER
B
B
A
bottom
panel
8 Attach bottom panel to assembled unit with 8
bolts as shown. Secure bolts with an allen wrench.
left and right
doors
A
small
B
medium
screw
screw
A
bottom
frame
9 A) Attach bottom frame to assembled unit with 10 large
screws as shown. Secure screws with a screwdriver.
B) Gently tap 4 feet to corners of bottom frame with a
hammer as shown.
A
A
B
B
adjustable
C
shelf
11 With the assistance of another adult, carefully position unit
10 A) Attach 2 hinges to left and right doors with 2
small screws per hinge as shown. Secure screws with
a screwdriver.
B) Attach 1 pull to left and right doors with 2 medium
screws as shown. Secure screws with a screwdriver.
Made in China - r05 Page 4 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
upright as shown. Attach hinges of left and right door to
assembled unit with 2 small screws per hinge as shown.
Secure screws with a screwdriver.
B) Insert 4 shelf pins at desired shelf height as shown.
C) Place adjustable shelf into assembled unit as shown.
Make sure shelf is securely supported by shelf pins.
Assembly is now complete.
ELEMENTS MEDIA TOWER
WALL
wall
D
screw
wall
bracket
A
cabinet
screw
F
wall
strap
C
plastic
anchor
NOTE: If you are unsure about
your wall type or what mounting
method you should use, consult a
qualified professional or your
local hardware store.

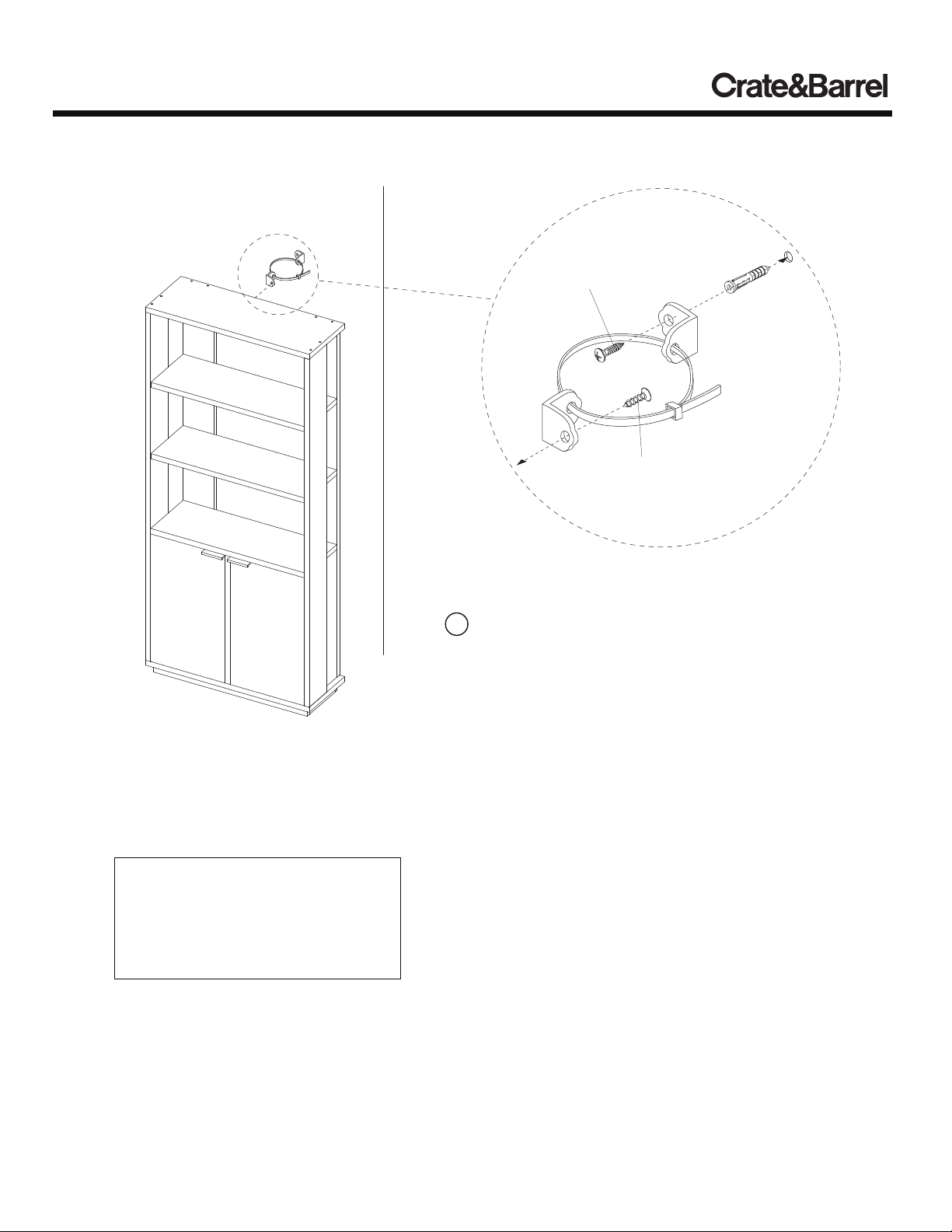

12 Safety Mounting Instructions
For added safety and stability, it is recommended that the
wall mounting hardware be installed. For safe mounting,
it is essential to use wall anchors appropriate to your wall
type (i.e. plaster, drywall, concrete, etc.). Mount to wood
studs whenever possible.
A) Attach wall bracket to top center of media tower
using 1 cabinet screw. Secure screw with a screwdriver.
B) Determine the final location of cabinet. Mark position
on the wall, approximately 2" below the wall bracket
mounted to the back of the cabinet.
C) Drill a hole in the wall stud. If the wall stud is not
available, drill a hole in the wall that is slightly smaller in
diameter than the anchor. Gently tap the plastic anchor
until the flange of the anchor is flush with the wall.
D) Attach remaining wall bracket to the wall by inserting
1 wall screw through the wall bracket and into the wall
anchor in the wall. Secure screw with a phillips head
screwdriver.
E) Place the unit so the wall bracket on the back edge is
aligned with the wall bracket.
F) Lace one end of the wall strap through both brackets,
and into the other end of the strap.
G) Pull the strap tightly until secure.
Made in China - r06 Page 5 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
Loading...
