ELEMENTS MEDIA CART
HARDWARE
Thank you for purchasing the Elements Media
Cart. This page lists all the contents included in
the box. Please take time to identify the
hardware as well as the individual components of
this product. As you unpack and prepare for
assembly, place the contents on a carpeted or
padded area to protect
them from damage.
Note: 2 people are required to safely assemble
this product.
COMPONENTS
1 - top panel
(holes only on
1 side)
48 - wood
dowels
2 - casters
Missing hardware? Please call 800.606.6387 for replacements.
24 - cams
2 - casters
with brakes
24 - cam
screws
24 - cam
covers
16 - screws
4 - wire
supports
TOOLS REQUIRED
Allen Wrench (included)
Phillips Head Screwdriver
Narrow Upright
1 - center panel
1 - bottom panel
(holes for casters
on underside)
8 - narrow
uprights
Made in China - r08
4 - wide
uprights
1 Insert 4 wood dowels into holes in the edges of each
2 - center
supports
Customer Service 800.967.6696 | www.crateandbarrel.com
narrow upright. Insert 4 wood dowels into the outer holes
on each wide upright edge.
Wide Upright
Page 1 of 4
ELEMENTS MEDIA CART
Wide Upright
Top panel
(upside down)
2 Insert 6 cams into each wide upright as shown. Make
sure that the arrow on each cam points towards the closest
edge.
A
B
4 A. Fit 2 wide uprights and into position, aligning
dowels and cam screws with corresponding holes in top
panel. Make sure the cams on the wide uprights face
inward.
B. At this point decide the location of the center support.
Center support can be installed centered or left or right of
center. Insert 1 wire support into holes corresponding
with the desired location of the center support.
3 Attach 6 cam screws to the underside of the top panel
with a phillips head screwdriver. Do not over tighten
screws.
5 Fit 4 narrow uprights into position, aligning dowels with
corresponding holes in top panel.
Made in China - r08
Customer Service 800.967.6696 | www.crateandbarrel.com
Page 2 of 4

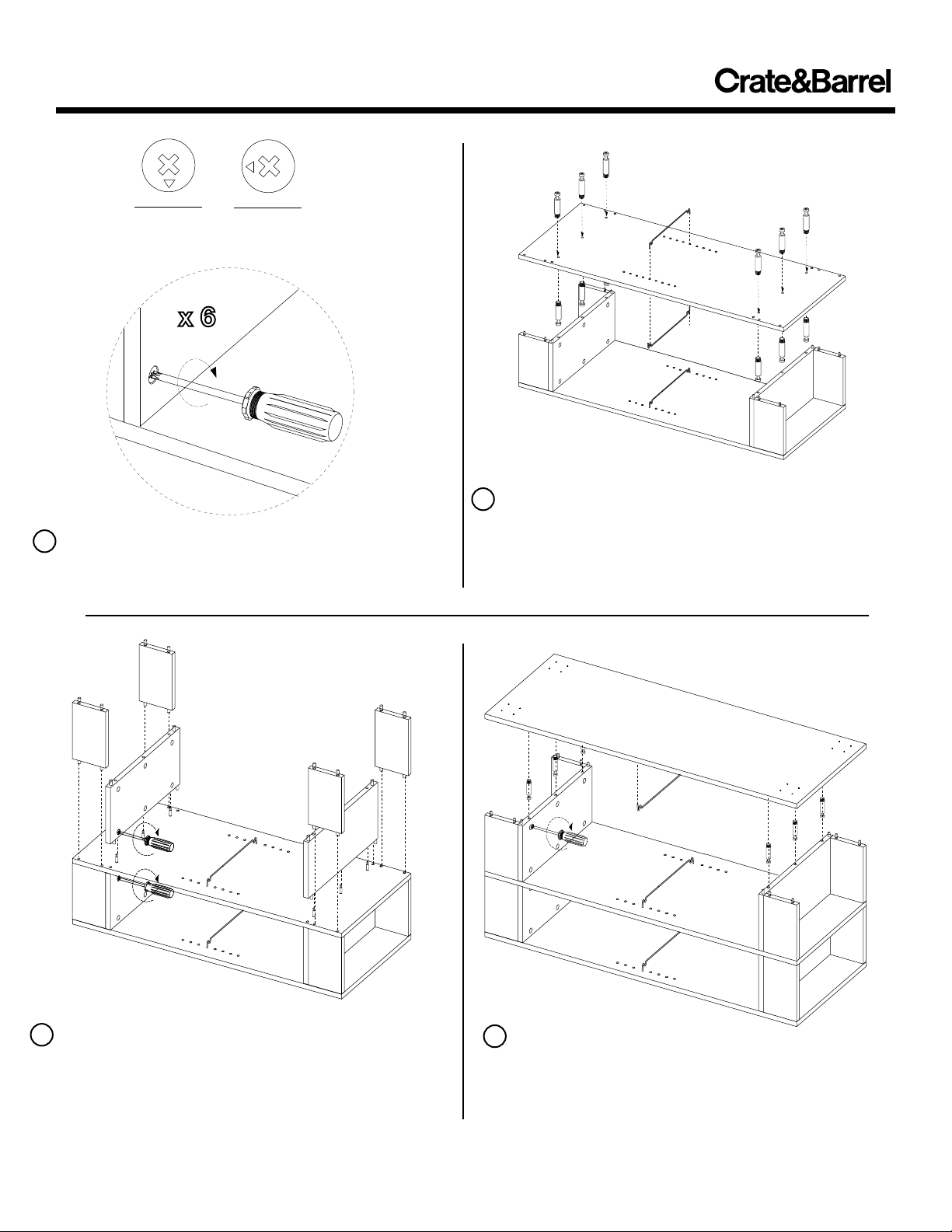

ELEMENTS MEDIA CART
Cam in
unlocked
position
6 Secure both wide uprights to top panel by locking all 6
lower cams with a phillips head screwdriver. Turn all
cams clockwise as illustrated until cam firmly engages
the cam screw.
Cam in
locked
position
A
B
Center panel
(upside down)
7 A. Insert 12 cam screws into the top and bottom of the
center panel as indicated.
B. Insert 2 wire supports at desired location on top and
bottom of center panel. Make sure wire supports are
aligned with one another.
8 Fit 2 wide uprights and 4 narrow uprights into position.
Secure cams on each wide upright above and below the
center panel with a screwdriver.
B
A
9 A. Attach 6 cam screws and 1 wire support to top
side of bottom panel.
B. Align cam screws with corresponding holes and dowels
in the assembly and fit bottom panel into position. Fully
tighten 6 cams with a screwdriver to secure the assembly.
Made in China - r08
Customer Service 800.967.6696 | www.crateandbarrel.com
Page 3 of 4

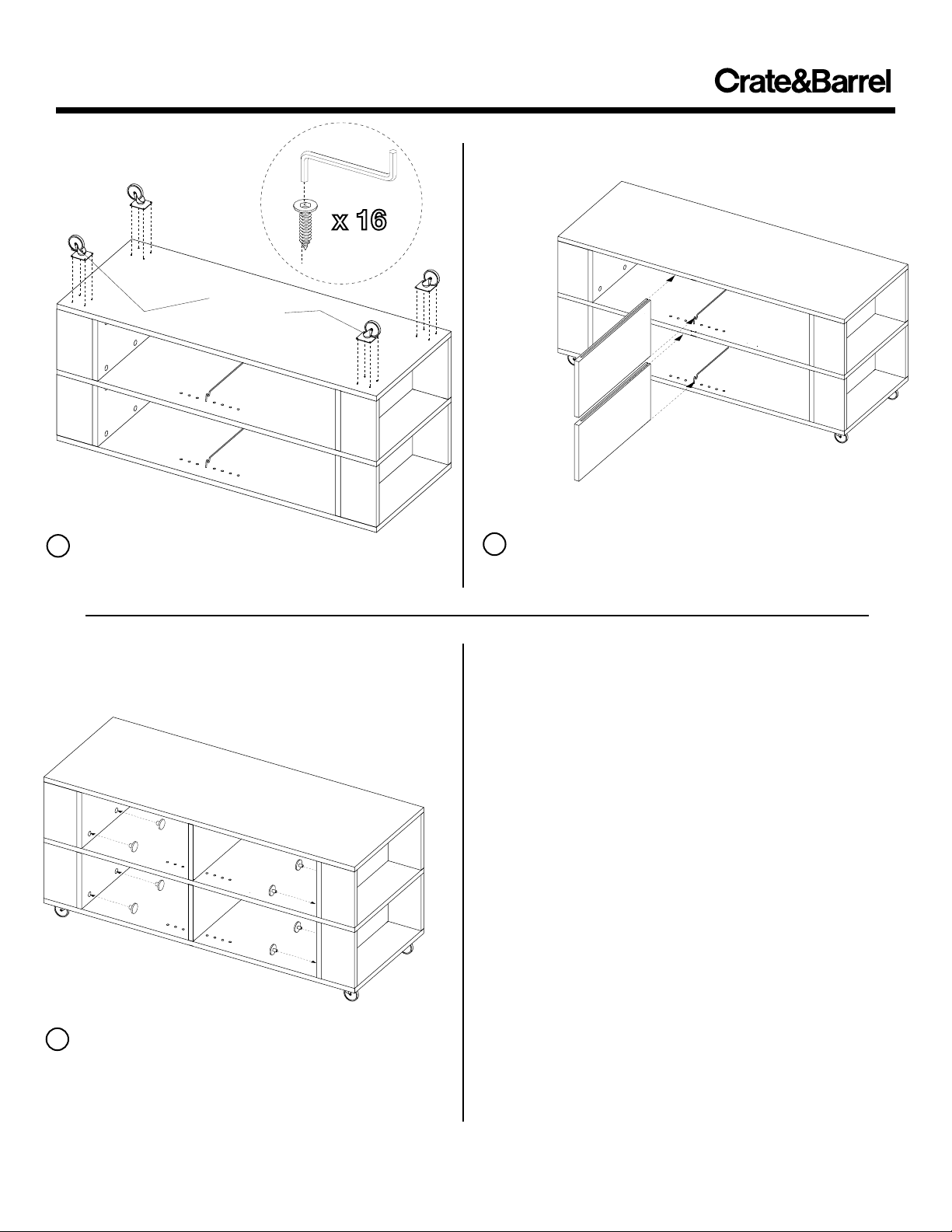

ELEMENTS MEDIA CART
Casters
with brakes
10 Attach the casters to the assembly with 4 screws
per caster. Put the 2 casters with brakes along the long
edge for easy accessibility. Secure each screw with the
allen wrench, but do not over tighten.
11 With the assistance of another adult, turn the
assembly into an upright position. Align slots of each
center support with installed wire supports. Slide each
center support onto each corresponding wire support.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
12 Cover all exposed cams by inserting a cam cover into
each cam.
Assembly is now complete.
Made in China - r08
Customer Service 800.967.6696 | www.crateandbarrel.com
Page 4 of 4
