CONTOUR AUDIO TOWER
ASSEMBLY INSTRUCTIONS FOR
THE CONTOUR AUDIO BASE
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
HARDWARE
4 - cam
screws
4 - adjustable
feet
4 - barrel
nuts

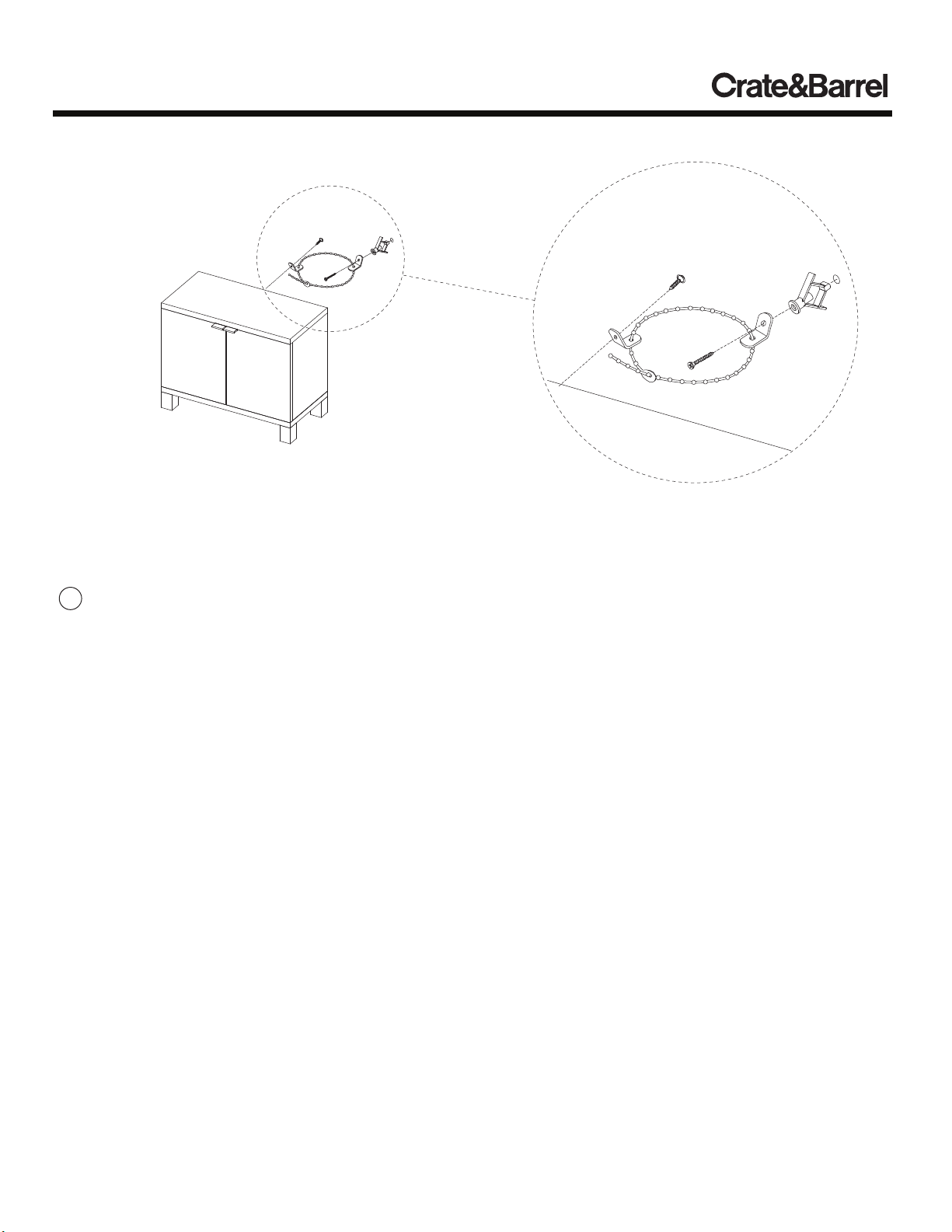

1 - wall
strap
Missing hardware?
Please call 800.606.6387 for replacements.
12 - wood
dowels
8 - flat
washers
4 - pull
screws
1 - short
screw
4 - long
bolts
8 - spring
washers
2 - pulls
1 - long
screw
4 - short
bolts
4 - shelf
pins
4 - door
hinges
1 - plastic
anchor
4 - cams
14 - wood
screws
8 - hinge
screws
2 - brackets
COMPONENTS
1 - top
panel
1 - bottom
panel
TOOLS REQUIRED
(1 left, 1 right)
2 - doors
(1 left, 1 right)
phillips head screwdriver
1 - back
panel
1 - shelf2 - side panels
4 - legs
allen wrench (included)
Made in China - r06 Page 1 of 8
Customer Service 800.967.6696 | www.crateandbarrel.com
CONTOUR AUDIO TOWER
A B
side
panels
Make sure hole
of each barrel
nut is vertical
Make sure arrow on
each cam points
towards nearest
edge with holes
top
panel
1 A) Insert 2 barrel nuts, 2 cams, and 4 wood
dowels into left and right side panels as shown.
Make sure threaded hole of each barrel nut is vertically
aligned with holes of side panel. Make sure arrows on
each cam points towards the nearest edge with holes.
B) Insert 4 cam screws into top panel as shown.
Secure cam screws, but do not over tighten with a
phillips head screwdriver.
A
C
B
2 Fit dowels of side panels into holes of bottom
panel. Secure bottom panel with 4 short bolts, 4
spring washers, and 4 flat washers as shown.
Secure bolts with an allen wrench.
Made in China - r06 Page 2 of 8
Customer Service 800.967.6696 | www.crateandbarrel.com
3 A) Insert 4 wood dowels into bottom panel as
shown.
B) Attach 4 legs onto assembled unit as shown.
Secure each leg with 1 long bolt, 1 spring washer,
and 1 flat washer, using an allen wrench.
C) Insert 1 adjustable foot into each leg as shown.
CONTOUR AUDIO TOWER
A
B
4 Fit dowels of assembled unit and cam screws of
top panel as shown. With a screwdriver, turn each
cam clockwise until it securely engages each cam
screw.
A
B
A
B
C
5 A) Attach 2 door hinges to each door as shown
with 2 hinge screws per hinge. Secure screws with a
screwdriver.
B) Attach 1 pull onto each door as shown with 2 pull
screws per pull. Secure screws with a screwdriver.
6 A) Attach hinges of left and right door to assembled
unit as shown. With a screwdriver, turn each preassembled screw clockwise to secure. If needed, adjust
doors by slightly loosening or tightening the screw.
B) Insert 4 shelf pins to assembled unit as shown.
C) Carefully place shelf to assembled unit as shown.
Make sure shelf is securely supported onto each shelf pin.
Made in China - r06 Page 3 of 8
Customer Service 800.967.6696 | www.crateandbarrel.com
7 Attach back panel onto assembled unit as shown
with 14 wood screws. Secure screws with a
screwdriver.
