COLE NIGHTSTAND
HARDWARE
Thank you for purchasing the Cole Nightstand. This
page lists all the contents included in the box. Please
take time to identify the hardware as well as the individual
components of this product. As you unpack and prepare
for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
8 - wood
dowels
24 - large
screws
Missing hardware? Please call 800.606.6387 for replacements.
8 - cam
screws
4 - leg
plates
8 - cams
8 - cam
covers
2 - small
screws
TOOLS REQUIRED
phillips head screwdriver
2 - side panels
(1 left, 1 right)
1 - drawer back 1 - drawer front 1 - drawer bottom 4 - legs
Made in China - r07 Page 1 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
1 - top panel 1 - bottom panel 1 - back panel
2 - drawer sides
(1 left, 1 right)
COLE NIGHTSTAND
A
top
panel
NOTE: Make sure
arrows on each cam
side
B
panel
1 A) Insert 4 cam screws into top panel as shown.
Secure cam screws with a phillips head screwdriver.
B) Insert 4 cams and 4 wood dowels into left and right
side panels as shown. Make sure arrows on each cam
points toward nearest edge with holes.
point towards nearest
edge with holes
right side
panel
left side
panel
top
panel
2 Fit dowels of left and right side panels into
corresponding holes of top panel as shown. With a
screwdriver, turn each cam clockwise until it securely
engages each cam screw.
back
panel
bottom
panel
3 Slide back panel into grooves of assembled unit as
4 Insert 4 cam screws into bottom panel as shown.
shown.
Made in China - r07 Page 2 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
COLE NIGHTSTAND
A
bottom
panel
leg
plate
B
5 A) With the assistance of another adult, fit dowels of
assembled unit into corresponding holes of bottom panel
as shown. Secure 4 cams.
B) At this point, cover all exposed cams with cam covers.
B
leg
assembly
leg

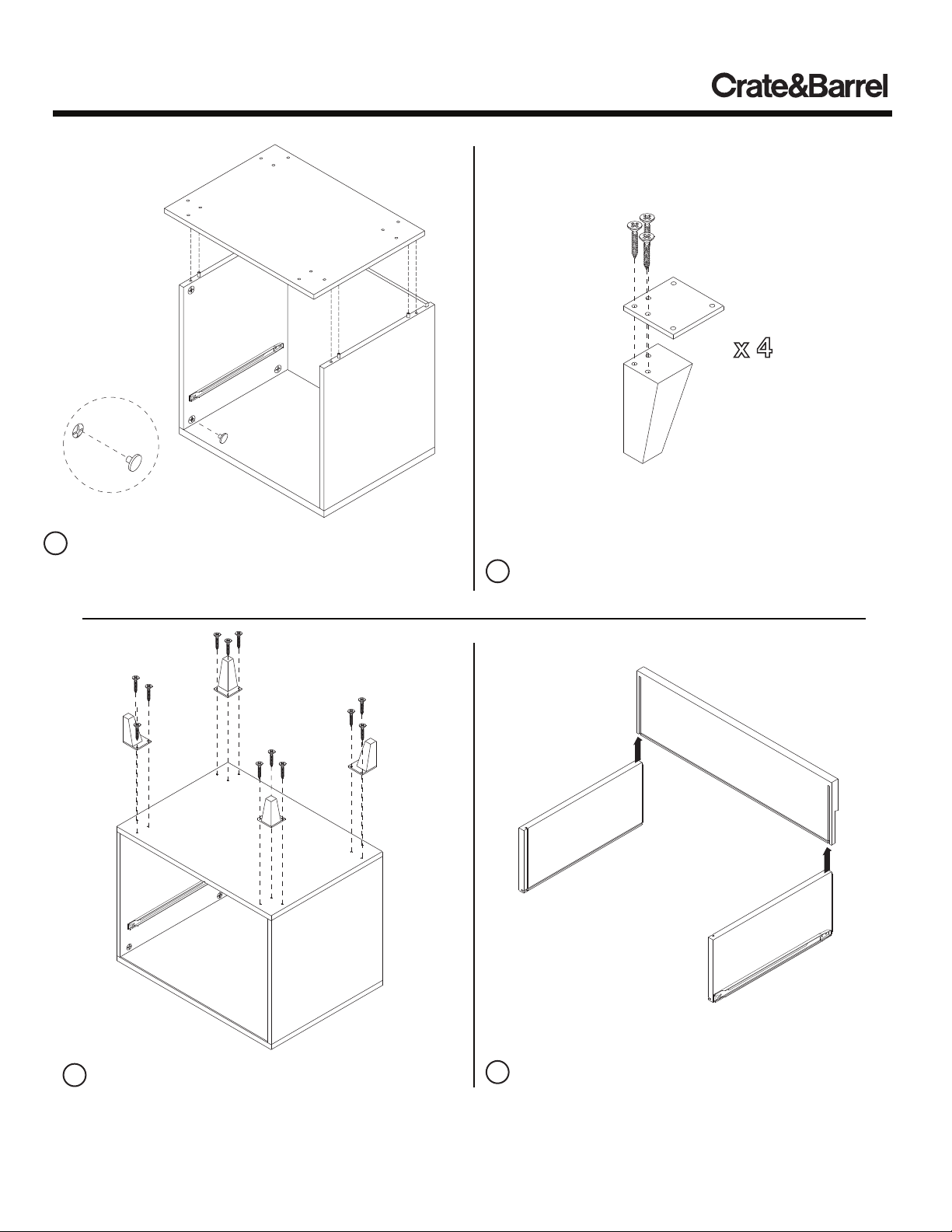

6 Attach leg plate to leg with 3 large screws per leg
as shown. Secure screws with a screwdriver.
drawer
front
right drawer
side
left drawer
side
7 Attach 4 leg assemblies onto bottom of assembled
unit with 3 large screws per leg assembly as shown.
Secure, but do not overtighten screws with a screwdriver.
Made in China - r07 Page 3 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
8 Slide left and right drawer sides into
corresponding grooves of drawer front as shown.
COLE NIGHTSTAND
Make sure groove on the
drawer front is aligned with
groove on the
side panels
drawer
bottom
drawer
back
9 Slide drawer bottom into corresponding grooves
of drawer assembly as shown.
drawer
assembly
10 Slide drawer back into corresponding grooves of
drawer assembly as shown.
drawer
assembly
12 With the assistance of another adult, position unit
upright as shown. Fit drawer glide wheels over wheels on
the cabinet glides and push in while lifting slightly.
Assembly is now complete.
11 Place drawer assembly upside down onto a clean,
padded surface as shown. Secure drawer bottom of
drawer assembly with 2 small screws as shown,
using a screwdriver.
Made in China - r07 Page 4 of 4
Customer Service 800.967.6696 | www.crateandbarrel.com
