COLE BENCH
HARDWARE
Thank you for purchasing the Cole Bench. This page
lists all the contents included in the box. Please take
time to identify the hardware as well as the individual
components of this product. As you unpack and prepare
for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
30 - wood
dowels
24 - medium
screws
Missing hardware? Please call 800.606.6387 for replacements.
32 - cam
screws
4 - leg
plates
32 - cams
32 - cam
covers
4 - large
screws
TOOLS REQUIRED
phillips head screwdriver
2 - partitions 1 - cushion
1 - bottom panel
4 - legs
Made in China - r01 Page 1 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
1 - gallery
rail
1 - top panel
1 - back panel
2 - side panels
(1 left, 1 right)
COLE BENCH
NOTE: Make sure
gallery
A
rail
top
B
panel
1 A) Insert 2 wood dowels and 2 cams into gallery rail as
shown. Make sure arrows on each cam points toward nearest
edge with holes.
B) Insert 4 wood dowels, 4 cams, and 7 cam screws into
top panel as shown. Secure cam screws with a phillips
head screwdriver.
arrows on each cam
points toward nearest
edge with holes
top
panel
gallery
rail
2 Fit dowels of gallery rail into corresponding holes
of top panel as shown.
back
top
panel
3 Secure gallery rail to top panel with 4 large
screws as shown. Secure screws with a screwdriver.
Made in China - r05 Page 2 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
4 Insert 8 wood dowels and 10 cams into back panel as
shown.
panel
COLE BENCH
left and right
partitions
5 Insert 6 wood dowels and 6 cams into left and right
partitions as shown.
back
right side
partition
left side
partition
panel
6 Fit dowels of left and right partitions into
corresponding holes of back panel as shown. With a
screwdriver, turn 4 cams clockwise until they securely
engage each cam screw.
back panel
assembly
left and right
top panel
assembly
7 Fit dowels of top panel assembly into corresponding
holes of back panel assembly. Secure 7 cams.
Made in China - r05 Page 3 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
side panels
8 Insert 2 wood dowels, 2 cams, and 5 cam screws into
left and right side panels as shown.
COLE BENCH
right side
panel
bottom
panel
left side
panel
9 Fit dowels of assembled unit into corresponding
holes of left and right side panels as shown. Secure
10 cams.
bottom
panel
A
B
B
10 Insert 11 cam screws into bottom panel as
shown.
leg
plate
leg
11 A) Fit dowels of assembled unit into corresponding holes of bottom panel as shown. Secure 10
cams.
B) At this point, cover all exposed cams with cam
covers.
Made in China - r05 Page 4 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com

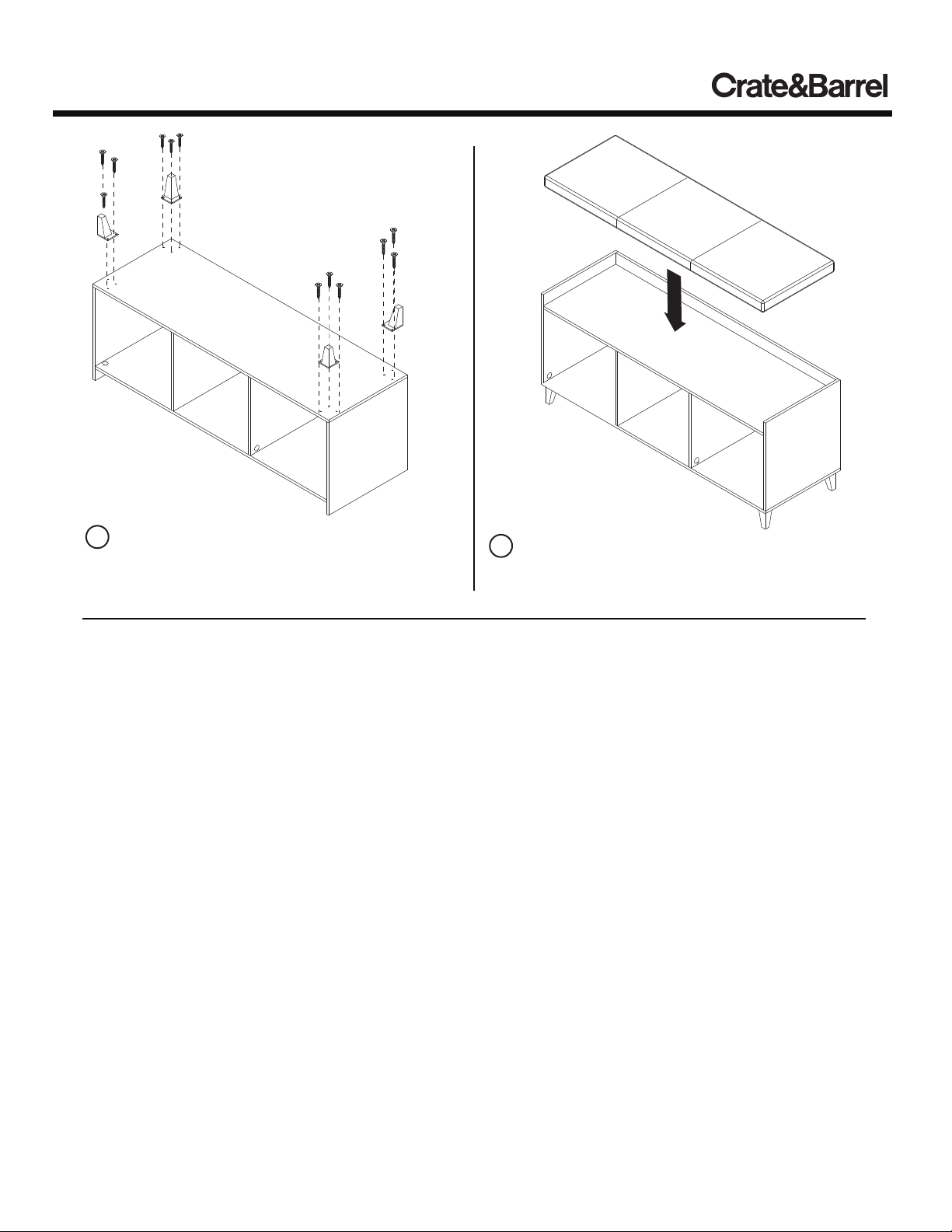

12 Attach 4 leg plates to 4 legs with 3 medium screws
per leg. Secure leg screws with a screwdriver.
COLE BENCH
cushion
13 Attach 4 leg assemblies to bottom of assembled
unit with 3 medium screws per leg assembly as
shown. Secure, but do not over tighten, screws with a
screwdriver.
CLEANING AND CARE
Bench: Clean surfaces with a dry or damp soft cloth.
Do not use abrasive cleaners. Do not use furniture wax
or polish as the wood is finished with a protective
clear lacquer.
Cushion: Do not leave spills unattended.
Spot clean as necessary using a damp, soft cloth.
14 With the assistance of another adult, carefully position
unit upright as shown. Place cushion onto assembled unit
as shown.
Assembly is now complete.
Made in China - r05 Page 5 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
