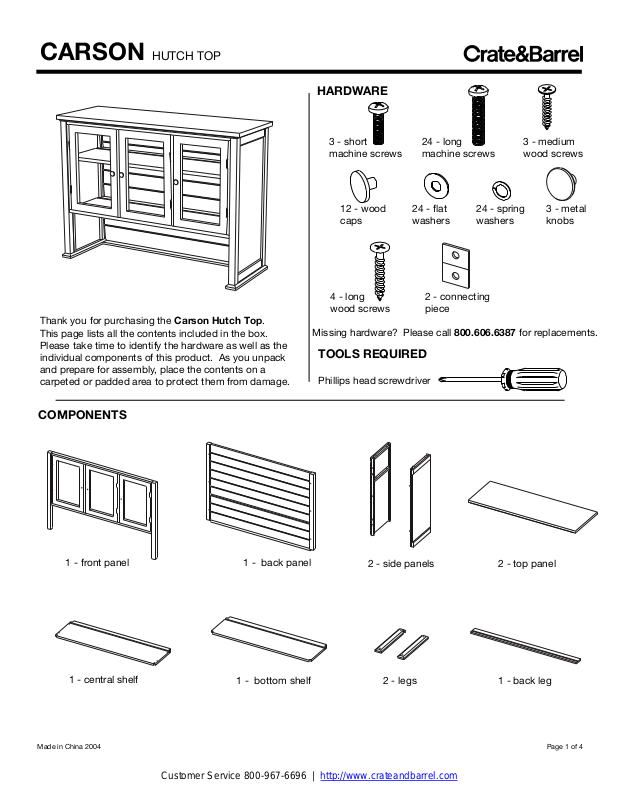

CARSON HUTCH TOP

Thank you for purchasing the Carson Hutch Top.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.

COMPONENTS

1 - front panel

1 - back panel

1 - central shelf

1 - bottom shelf

Made in China 2004

HARDWARE

3 - short
machine screws

12 - wood
caps

4 - long
wood screws

Missing hardware? Please call 800.606.6387 for replacements.

24 - long
machine screws

24 - flat
washers

2 - connecting
piece

24 - spring
washers

3 - medium
wood screws

3 - metal
knobs

TOOLS REQUIRED

Phillips head screwdriver

2 - side panels 2 - top panel

2 - legs 1 - back leg

Page 1 of 4

Customer Service 800-967-6696 | http://www.crateandbarrel.com

CARSON HUTCH TOP

x 4 x 6

Make sure the groove
on the central shelf
faces the back.

1 Attach the central shelf to the 2 side panels using 4 long
machine screws, 4 spring washers and 4 small flat washers.
Securely tighten all screws.

Make sure the groove
on the bottom shelf
faces the back.

3 Fit the bottom shelf to the assembly.

Made in China 2004

2 Attach the assembly to the back panel using 6 long
machine screws, 6 spring washers and 6 small flat washers.
Securely tighten all screws.

x 6

4 Carefully attach the front panel to the assembly using 6 long
machine screws, 6 spring washers and 6 small flat washers.

Securely tighten all screws.

Page 2 of 4
