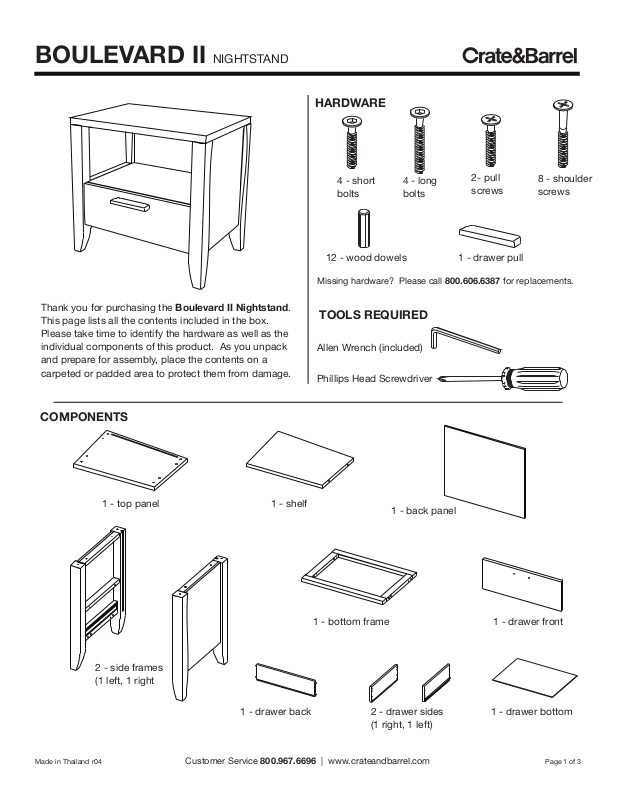

BOULEVARD II NIGHTSTAND
HARDWARE
Thank you for purchasing the Boulevard II Nightstand.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
COMPONENTS
4 - short
bolts
12 - wood dowels 1 - drawer pull
Missing hardware? Please call 800.606.6387 for replacements.
4 - long
bolts
2- pull
screws
8 - shoulder
screws
TOOLS REQUIRED
Allen Wrench (included)
Phillips Head Screwdriver
1 - top panel 1 - shelf
1 - bottom frame 1 - drawer front
2 - side frames
(1 left, 1 right
1 - drawer back 2 - drawer sides
Made in Thailand r04 Page 1 of 3
Customer Service 800.967.6696 | www.crateandbarrel.com
1 - back panel
1 - drawer bottom
(1 right, 1 left)
BOULEVARD II NIGHTSTAND
NOTE:
Do not over tighten
the bolts
1 A) Place left side panel face down on a padded surface.
Insert 4 wood dowels into the bottom frame as shown.
B) Fit dowels of bottom frame into corresponding holes in left
side panel. Insert 2 long bolts through bottom frame and
secure with the allen wrench. Do not over tighten bolts.
2 Slide back panel into slot at rear of side panel.
3 Insert 4 wood dowels into shelf as shown, and fit into
corresponding holes in the side frame.
Made in Thailand r04 Page 2 of 3
Customer Service 800.967.6696 | www.crateandbarrel.com
4 Carefully align dowels in shelf and bottom frame with
corresponding holes in right side frame and fit into position.
Attach bottom frame with 2 long bolts and secure with the
allen wrench.
BOULEVARD II NIGHTSTAND
A
B
4 Place top panel upside down on a padded
surface. Insert 4 wood dowels into the holes as
shown. Turn case assembly upside down and fit
onto wood dowels. Secure top with 4 short bolts.
6 A) Attach right drawer side with 4 shoulder
screws.
B) Attach drawer pull with 2 pull screws. Secure
screws with a phillips head screwdriver.
5 A) Attach the drawer left side panel to the drawer front
and drawer back with 4 shoulder screws. Secure with a
Phillips head screwdriver, but do not over tighten.
B) Slide drawer bottom panel into the groove at
the base of the assembly.
7 Fit drawer glide hardware into corresponding large
glide hardware on the case interior. Applying even
pressure to each side of the drawer front, firmly push
drawer into case glides. If the drawer fronts are not
aligned, minor vertical adjustments can be made by
loosening the drawer glide screw as shown.
Assembly is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as
the wood is finished with a protective clear lacquer.
Made in Thailand r04 Page 3 of 3
Customer Service 800.967.6696 | www.crateandbarrel.com
