BELMONT HIGH DINING TABLE
HARDWARE

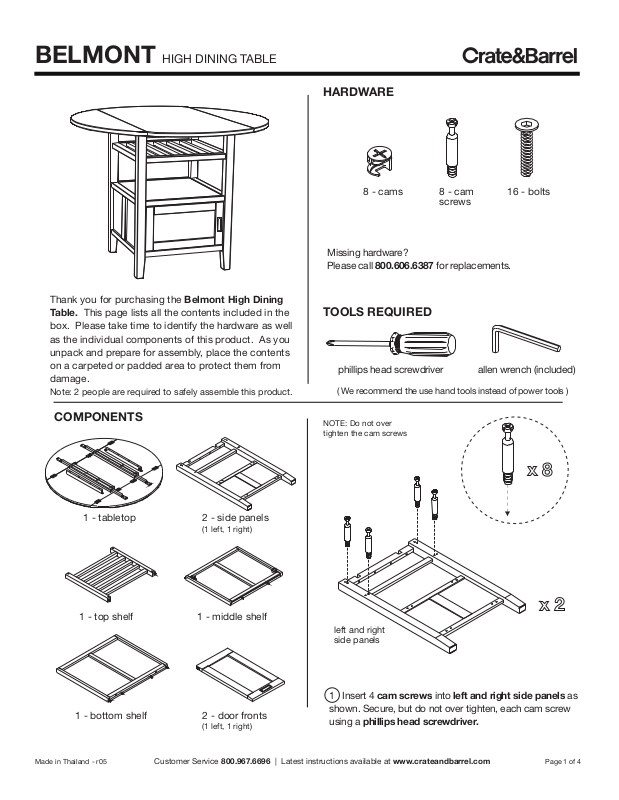

Thank you for purchasing the Belmont High Dining
Table. This page lists all the contents included in the
box. Please take time to identify the hardware as well
as the individual components of this product. As you
unpack and prepare for assembly, place the contents
on a carpeted or padded area to protect them from
damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
8 - cams
Missing hardware?
Please call 800.606.6387 for replacements.
8 - cam
screws
16 - bolts
TOOLS REQUIRED
phillips head screwdriver
( We recommend the use hand tools instead of power tools )
NOTE: Do not over
tighten the cam screws
allen wrench (included)
1 - tabletop
1 - top shelf
1 - bottom shelf 2 - door fronts
Made in Thailand - r05 Page 1 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
2 - side panels
(1 left, 1 right)
1 - middle shelf
(1 left, 1 right)
left and right
side panels
1 Insert 4 cam screws into left and right side panels as
shown. Secure, but do not over tighten, each cam screw
using a phillips head screwdriver.
BELMONT HIGH DINING TABLE
NOTE: Make sure each cam
points toward the nearest
edge with holes
top shelf
NOTE: Do not over
tighten the bolts
bottom shelf
tabletop
2 A) Insert 4 cams into top shelf as shown. Make sure
arrows on each cam points toward the nearest edge with
holes.
B) With the assistance of another adult, place tabletop onto a
clean, padded surface and insert 4 cams into each apron of
tabletop as shown.
middle shelf
left side
panel
3 Fit pre-assembled dowels of bottom shelf into corresponding holes of left side panel as shown. Secure
bottom shelf with 2 bolts using an allen wrench. Do not
over tighten the bolts.
top shelf
4 Fit pre-assembled dowels of middle shelf into
corresponding holes of assembled unit and secure with 2
bolts as shown.
5 Fit pre-assembled dowels of top shelf into corresponding holes of assembled unit. Secure top shelf by turning
each cam clockwise until it securely engages each cam
screw, using a phillips head screwdriver.
Made in Thailand - r05 Page 2 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
BELMONT HIGH DINING TABLE
NOTE: Do not hold
assembled unit
at top shelf
tabletop
6 With the assistance of another adult, place tabletop onto a
clean, padded surface. Holding assembled unit from bottom
shelf and left side panel, place assembled unit onto tabletop
as shown. Fit cam screws of assembled unit into corresponding holes of tabletop. Secure all cams.
right side
panel
B
B
A
7 A) Fit cam screws of right side panel into corresponding
holes of assembled unit shown. Secure all cams.
B) Secure right side panel to assembled unit with 4 bolts as
shown.
B
8 Secure left and right side panels to tabletop with 4 bolts
per side as shown.
left door
front
NOTE: Do not use
tabletop leaves to
position unit upright
9 With the assistance of another adult, hold base
assembly and position unit upright as shown. Do not use
tabletop leaves to position unit upright. Push pins of right
door front in as shown and position into unit. Release
pins to secure. Repeat for left door front.
Assembly is now complete.
pin
right door
front
Made in Thailand - r05 Page 3 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
BELMONT HIGH DINING TABLE
DROP-LEAF EXTENSION
90º
NOTE: Be careful
not to pinch your
fingers when lifting
and lowering the
tabletops
NOTE: Make sure each leaf is
securely supported by bars on
underside of tabletop
90º
Locate extension leaves on each side of table
assembly. Carefully lift 1 extension leaf 90º as
shown. NOTE: Make sure to grab the leaf
near the bottom with both hands. Hold
extension leaf near the edges with both
hands. Reach under and push slide bars in.
Gently lower extension leaf down. Repeat
steps for remaining extension leaf.
Leaf extension is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
Made in Thailand - r05 Page 4 of 4
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
