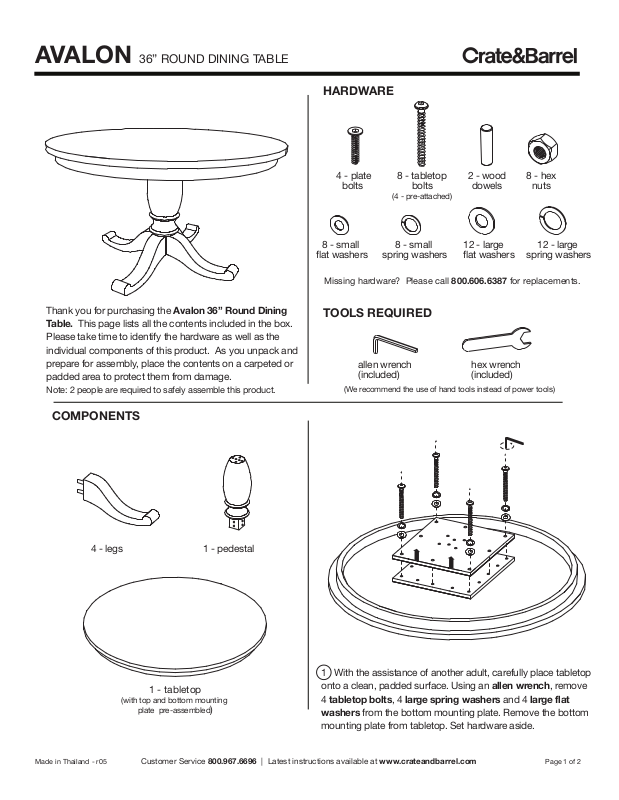

AVALON 36” ROUND DINING TABLE
HARDWARE
Thank you for purchasing the Avalon 36” Round Dining
Table. This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack and
prepare for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
4 - plate
bolts
8 - small
flat washers
Missing hardware? Please call 800.606.6387 for replacements.
8 - tabletop
bolts
(4 - pre-attached)
8 - small
spring washers
2 - wood
dowels
12 - large
flat washers
8 - hex
nuts
12 - large
spring washers
TOOLS REQUIRED
allen wrench
(included)
(We recommend the use of hand tools instead of power tools)
hex wrench
(included)
1 - pedestal4 - legs
1 With the assistance of another adult, carefully place tabletop
1 - tabletop
(with top and bottom mounting
plate pre-assembled)
Made in Thailand - r05 Page 1 of 2
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
onto a clean, padded surface. Using an allen wrench, remove
4 tabletop bolts, 4 large spring washers and 4 large flat
washers from the bottom mounting plate. Remove the bottom
mounting plate from tabletop. Set hardware aside.
AVALON 36” ROUND DINING TABLE
NOTE: Do not
over tighten
the bolts
A
B
wood dowel
plate bolt
large spring
washer
large flat
washer
B
bottom
mounting
plate
pedestal
2 A) Insert 2 wood dowels into pedestal as shown.
B) Fit dowels of pedestal into corresponding holes of
bottom mounting plate as shown. Attach bottom
mounting plate with 4 plate bolts, 4 large spring
washers and 4 large flat washers as shown. Secure,
but do not over tighten, bolts with an allen wrench.
hex nut
spring washer
flat washer
leg
3 With the assistance of another adult, position unit
upside down onto a clean, padded surface as shown. Fit
threaded bolt of each leg into corresponding holes of
pedestal. Secure each leg with 2 hex nuts, 2 small
spring washers and 2 small flat washers, using a hex
wrench.
tabletop
bolt
large spring washer
large flat washer
tabletop
leg assembly
4 With the assistance of another adult, position tabletop
face down as shown. Attach leg assembly to tabletop
with 8 tabletop bolts (4 previously pre-installed), 8 large
spring washers (4 previously pre-installed), and 8 large
flat washers (4 previously pre-installed), using an allen
wrench. Carefully position unit upright. Assembly is now
complete.
CLEANING & CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish on
the base as the bse unit is finished with a protective clear
lacquer. It is recommended to use coasters to protect
surface from heat and water.
Made in Thailand - r05 Page 2 of 2
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
