ASPECT LEANING BOOKSHELF
Thank you for purchasing the Aspect Bookcase.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as
the individual components of this product. As you
unpack and prepare for assembly, place the
contents on a carpeted or padded area to protect
them from damage.
COMPONENTS
2 - side rails
(1 left, 1 right)
1 - top shelf
1 - 4th shelf
1 - 2nd shelf
1 - bottom shelf
1 - 3rd shelf
Made in China
HARDWARE
1 - small screw
1 - wall anchor
1 - medium screw
1 - toggle bolt
1 - bracket
20 - large screws
TOOLS REQUIRED
Phillips head screwdriver
Flat head screwdriver
Electric drill & 5/8" drill bit
(for drywall installation) &
3/16" drill bit (for masonry)
Hammer
Back
Front
LEFT RAIL
Bottom
(flange is
closest
to end)

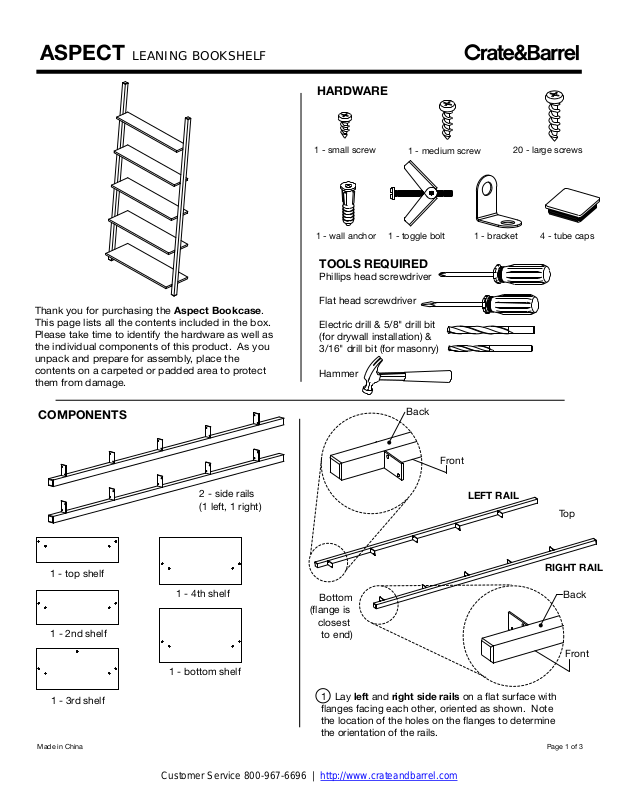

1 Lay left and right side rails on a flat surface with
flanges facing each other, oriented as shown. Note
the location of the holes on the flanges to determine
the orientation of the rails.
4 - tube caps
Top
RIGHT RAIL
Back
Front
Page 1 of 3
Page 2
Customer Service 800-967-6696 | http://www.crateandbarrel.com
ASPECT LEANING BOOKSHELF
x 4
2 Insert tube caps into ends of both side rails.
4 Attach 2nd, 3rd, 4th and bottom shelves using same
method of assembly as Step 3. Securely fasten all screws
but do not overtighten.
Made in China
x 2
Top Shelf
(underside)
BOTTOM
3 Verify bottom flanges face each other. Using a phillips
head screwdriver, attach top shelf with 4 large screws by
passing screws through flange and into shelf's pre-drilled
holes. Secure all screws but do not over-tighten.
Face of bracket should
be flush with shelf edge
Make sure longer leg of
bracket is attached to shelf
5 Using 1 medium screw, attach the long leg of bracket
to the bottom of the 3rd shelf. Make sure the face of short
leg is flush with shelf edge.
Page 2 of 3
Page 3
Customer Service 800-967-6696 | http://www.crateandbarrel.com
ASPECT LEANING BOOKSHELF
6 With the assistance of another adult, position
assembled unit against wall in desired location. Verify
back edges of shelves all touch the wall as illustrated.
Bracket attached to the 3rd shelf should also be
touching the wall. Mark location of the bracket
mounting hole on the wall. Move shelf out of workspace.
NOTE:
If you are unsure about your wall type or what
mounting method you should use, consult a qualified
professional.
Mounting to drywall:
Step A: Drill a 5/8"diameter hole at the mark. Locate toggle
bolt. Toggle bolt consists of a screw and the toggle wings.
Unscrew these two parts, put screw through bracket hole
and reattach toggle wings with a few turns of the screw.
Step B: Move shelf back to final location. Fold toggle
wings and insert into hole. Toggle wings will unfold inside
hole. Tighten toggle screw while pulling firmly toward you.
As screw tightens, verify that back edges of shelves are
against the wall. If not, re-adjust and continue tightening
screw until secure. Discard anchor and small screw as they
are not necessary.
Drywall mounting, Step A
Made in China
Drywall mounting, Step B
Mounting to masonry wall:
Drill a 3/16" diameter hole at the mark. Insert wall anchor
into hole and pound flush with a hammer. Move shelf back
to final location by aligning the bracket hole and anchor.
Verify that back edges of shelves are against the wall and
attach using 1 small screw.
Discard toggle bolt as it is not necessary.
Masonry wall mounting
CLEANING AND CARE
Clean wood surfaces with a damp cloth. Do not use
furniture wax or polish as the wood is finished with a
protective clear lacquer.
Page 3 of 3
