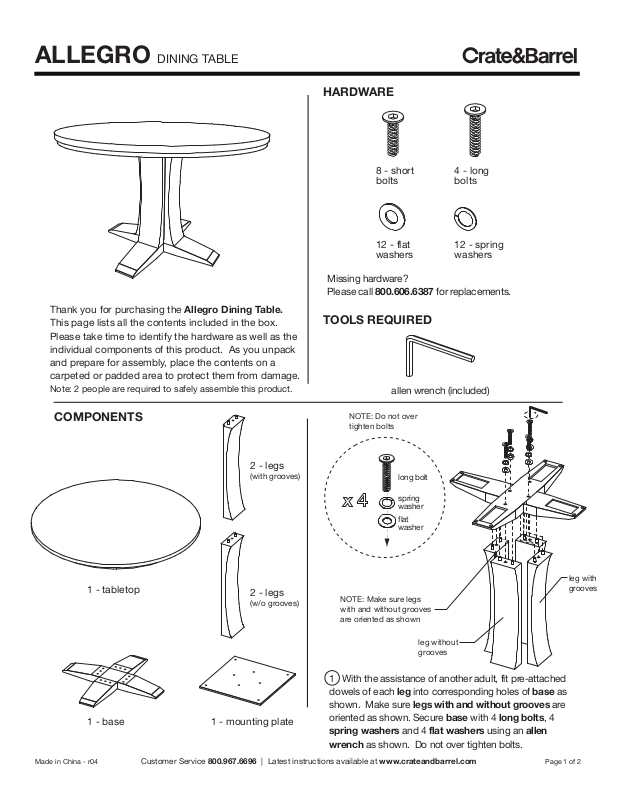

ALLEGRO DINING TABLE
HARDWARE
Thank you for purchasing the Allegro Dining Table.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
8 - short
bolts
12 - flat
washers
4 - long
bolts
12 - spring
washers
Missing hardware?
Please call 800.606.6387 for replacements.
TOOLS REQUIRED
allen wrench (included)
NOTE: Do not over
tighten bolts
2 - legs
1 - tabletop
(with grooves)
2 - legs
(w/o grooves)
NOTE: Make sure legs
with and without grooves
are oriented as shown
long bolt
spring
washer
flat
washer
leg with
grooves
leg without
grooves
1 With the assistance of another adult, fit pre-attached
dowels of each leg into corresponding holes of base as
shown. Make sure legs with and without grooves are
1 - base 1 - mounting plate
oriented as shown. Secure base with 4 long bolts, 4
spring washers and 4 flat washers using an allen
wrench as shown. Do not over tighten bolts.
Made in China - r04 Page 1 of 2
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
ALLEGRO DINING TABLE
2 With the assistance of another adult, carefully turn
assembled unit over and attach mounting plate with 4
short bolts, 4 spring washers and 4 flat washers using
an allen wrench as shown.
short bolt
spring
washer
flat
washer
short bolt
spring
washer
flat
washer
4 With the assistance of another adult, place tabletop
face down onto a clean, padded surface as shown. Turn
assembled unit over and attach to tabletop with
4 short bolts, 4 spring washers and 4 flat washers using
an allen wrench. Position unit upright.
Assembly is now complete.
CLEANING & CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as
the unit is finished with a protective clear lacquer. It is
recommended to use coasters to protect surface from
heat and water.
Made in China - r04 Page 2 of 2
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
