ABBOTT SIX DRAWER DRESSER
ASSEMBLY HARDWARE
Thank you for purchasing the Abbott Six Drawer
Dresser. This page lists the contents included in the
box. Please take time to identify the hardware as well
as the individual components of this product. As you
unpack and prepare for assembly, place the contents
on a carpeted or padded area to protect them from
damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
BOX 1
16 - wood
dowels
48 - large
screws
20 - cam
screws
20 - cams
4 - allen
screws
Missing hardware?
Please call 800.606.6387
for replacements.
WALL MOUNTING HARDWARE
1 - wall strap
1 - wall screw
1 - washer
TOOLS REQUIRED
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
allen wrench
(included)
1 - support leg
44 - small
screws
1 - top
panel
1 - bottom panel 1 - top
2 - side panels
(1 left, 1 right)
crossbar
1 - bottom
crossbar
1 - partition
2 - back panels
COMPONENTS
BOX 2
6 - drawer backs6 - drawer fronts 12 - drawer sides
Made in Vietnam - r05 Page 1 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
(6 left, 6 right)
6 - drawer
bottoms
ABBOTT SIX DRAWER DRESSER
NOTE: Do not over tighten
the cam screws
A
top panel
B
bottom frame
partition
A
NOTE: Make sure arrows
on each cam point toward
nearest edge with holes
1 A) Insert 10 cam screws into top panel as shown. Secure,
but do not over tighten, cam screws using a phillips head
screwdriver.
B) Insert 4 wood dowels and 6 cams into bottom panel as
shown. Make sure arrows on each cam point toward nearest
edge with holes.
A
top crossbar
B
bottom crossbar
B
left and right
side panels
2 A) Insert 4 wood dowels and 2 cams into partition as
shown.
B) Insert 2 wood dowels, 5 cam screws and 3 cams into
left and right side panels as shown.
NOTE: Do not over
tighten the screws
partition
bottom panel
3 A) Insert 2 wood dowels and 4 cams into top crossbar
as shown.
B) Insert 2 wood dowels and 2 cams into bottom crossbar
as shown.
Made in Vietnam - r05 Page 2 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
4 Fit dowels of partition into corresponding holes of
bottom panel as shown. Secure partition to bottom
frame with 2 allen screws, using an allen wrench. Do
not over tighten the screws.
ABBOTT SIX DRAWER DRESSER
top crossbar
bottom
crossbar
right side
panel

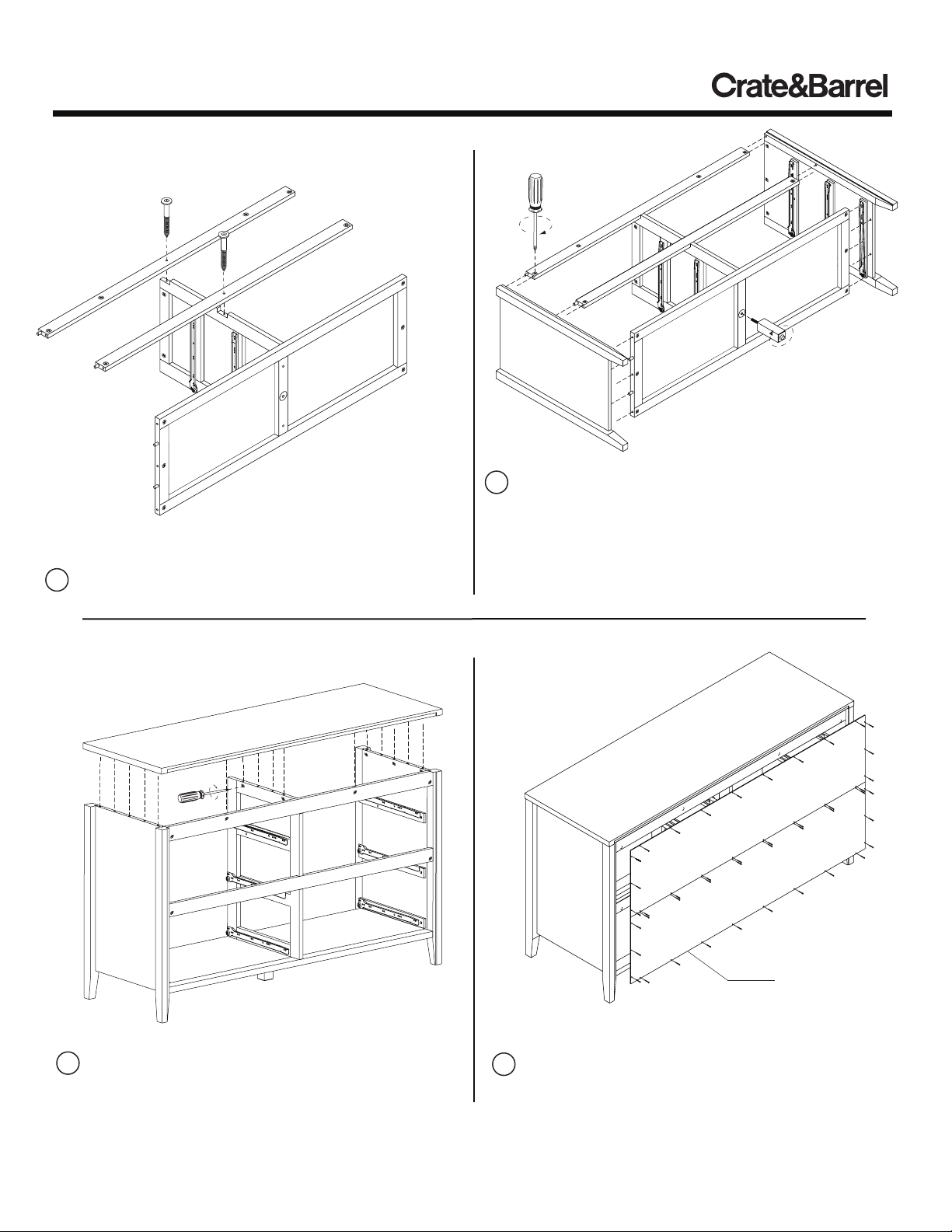

5 Attach top and bottom crossbars to partition with 1
allen screw per crossbar as shown.
top
panel
A
left side
panel
B
support leg
6 A) Fit dowels of assembled unit into corresponding holes
of left and right side panels. Using a phillips head screwdriver, turn each cam clockwise until it securely engages
each cam screw.
B) Attach support leg to bottom panel of assembly as
shown. Turn leg clockwise to secure.
back panel
7 With the assistance of another adult, place assembled
unit upright as shown. Fit dowels of assembled unit into
8 Attach 2 back panels to assembled unit with 44
small screws as shown.
corresponding holes of top panel. Secure all cams.
Made in Vietnam - r05 Page 3 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
ABBOTT SIX DRAWER DRESSER
drawer front
right drawer
side
left drawer
side
drawer bottom

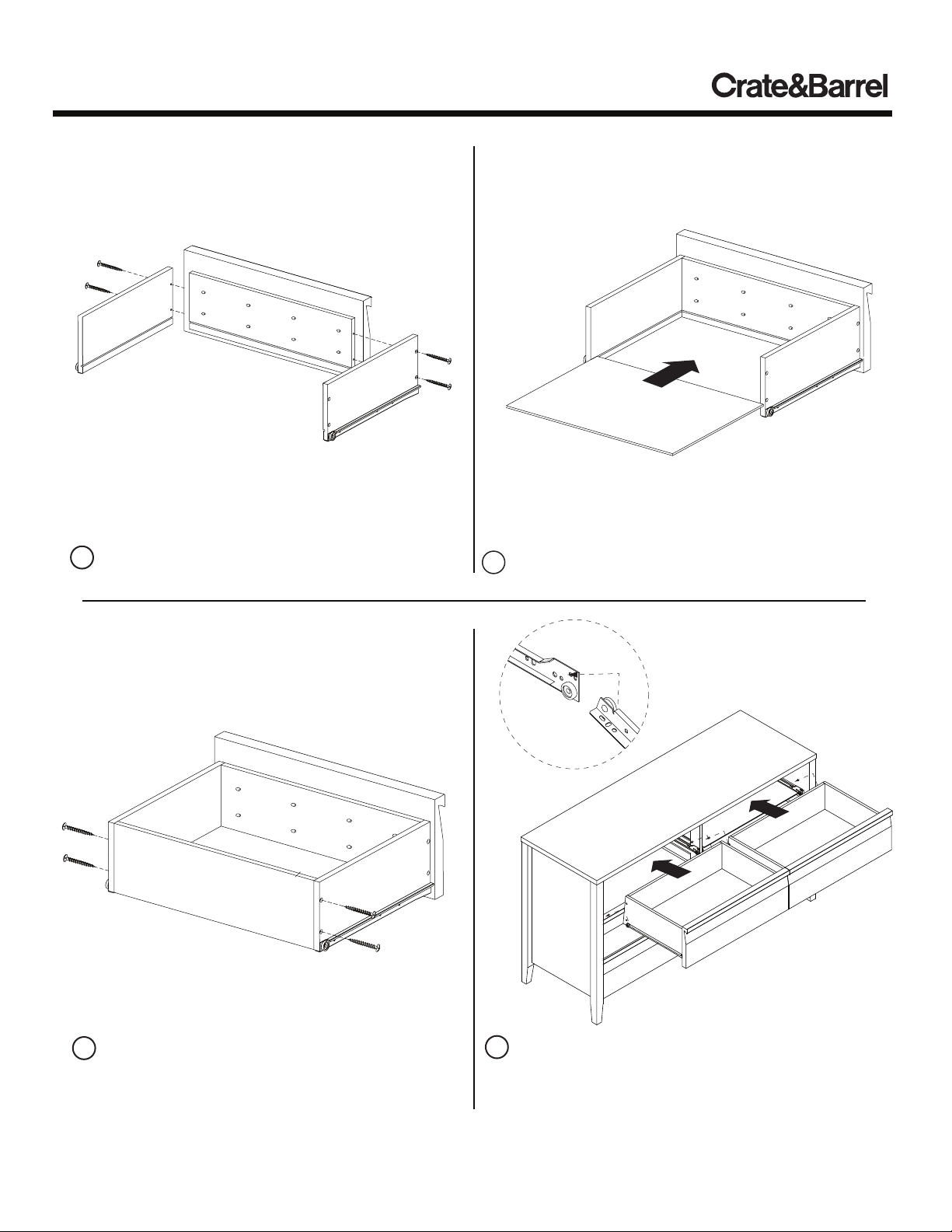

9 Attach left and right drawer sides to drawer front
with 4 large screws as shown, using a screwdriver.
drawer back
10 Fit drawer bottom to into corresponding grooves
of drawer sides/front as shown.
11 Attach drawer back to drawer sides with 4 large
screws as shown. Repeat steps 9-11 for remaining
drawer assemblies.
Made in Vietnam - r05 Page 4 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
12 Fit drawer glides of drawer assemblies into corresponding glides of dresser as shown.
Assembly is now complete.
ABBOTT SIX DRAWER DRESSER
OPTIONAL SAFETY MOUNTING INSTRUCTIONS
For added safety and stability, it is recommended that the wall
mounting hardware be installed. For safe mounting, it is essential
to use wall anchors appropriate to your wall type (i.e. plaster,
drywall, concrete, etc.). Mount to wood studs whenever possible.

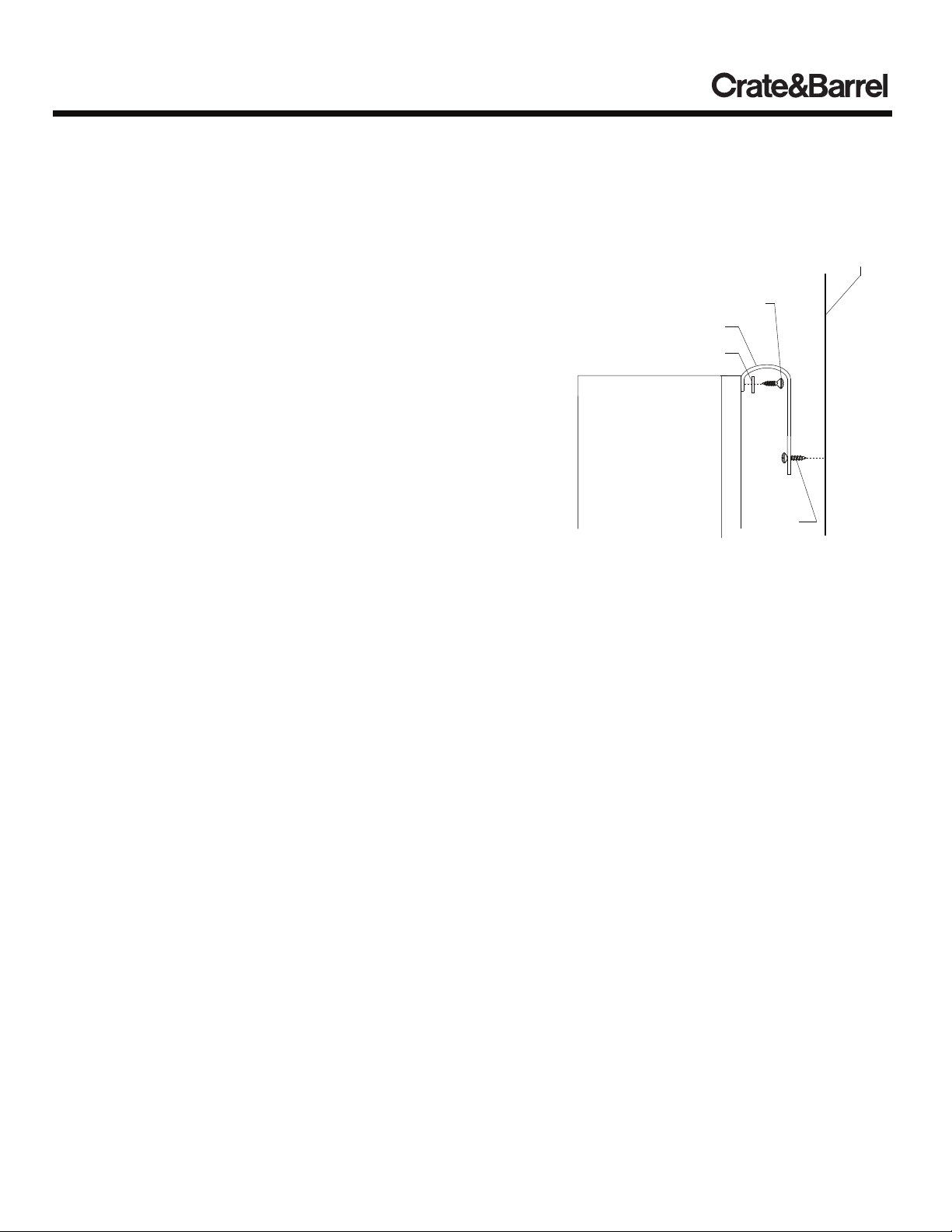

A. Insert wall screw (not included) through end of wall strap and
into wall as shown.
B. Insert wall screw (included) and washer through end of wall
strap and into the top back of unit as shown.
Mounting assembly is now complete.
NOTE: If you are unsure about your wall type or what mounting
method you should use, consult a qualified professional or your
local hardware store.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use abrasive
cleaners. Do not use furniture wax or polish as the wood is finished
with a protective clear lacquer.
NOTE: Insert screws 3/4"-1"
from the edge of the strap
wall
screw
wall
strap
washer
wall
screw
(NOTE: Additional
screw not included.
Please consult your
local hardware store.)
WALL
Made in Vietnam - r05 Page 5 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
