ABBOTT 65” MEDIA STAND
ASSEMBLY HARDWARE
Thank you for purchasing the Abbott 65” Media Stand.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
18 - bolts 8 - shelf pins16 - wood
16 - small
screws
dowels
4 - door
hinges
52 - large
screws
4 - panel
hinges
WALL MOUNTING HARDWARE
1 - wall strap 1 - small wall screw
Missing hardware? Please call 800.606.6387 for replacements.
TOOLS REQUIRED
phillips head screwdriver
(We recommend the use of hand tools instead power tools)
1 - top panel
2 - side panels
(1 left, 1 right)
2 - drawer bottoms 4 - drawer sides
Made in China - r03 Page 1 of 6
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
2 - partitions
(1 left, 1 right)
2 - door fronts
(1 left, 1 right)
(2 left, 2 right)
1 - bottom panel
2 - adjustable
shelves
2 - drawer backs 2 - drawer fronts
1 - back panel
2 - support
legs
ABBOTT 65” MEDIA STAND
bottom panel
A
left partition
left partition
right partition
bottom panel
NOTE: Do not over
tighten the screws
B
NOTE: Make sure pre-installed
door stops of left and right partitions
are assembled towards the front
of assembly as shown
right partition
1 A) Insert 4 wood dowels into bottom panel as
shown.
B) Fit dowels of bottom panel into corresponding holes
of left and right partitions as shown.
2 Secure bottom panel with 8 large screws as shown,
using a phillips head screwdriver. Do not over tighten
the screws.
left side panel
bottom
panel
left and right
side panels
NOTE: Do not over
tighten the bolts
right side panel
3 Insert 2 wood dowels into left and right side
panels as shown.
4 Position assembly as shown. Fit dowels of left and
right side panels into corresponding holes of bottom
panel. Secure each side panel with 3 bolts as shown,
using a screwdriver. Do not over tighten the bolts.
Made in China - r03 Page 2 of 6
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
ABBOTT 65” MEDIA STAND
support leg
top panel

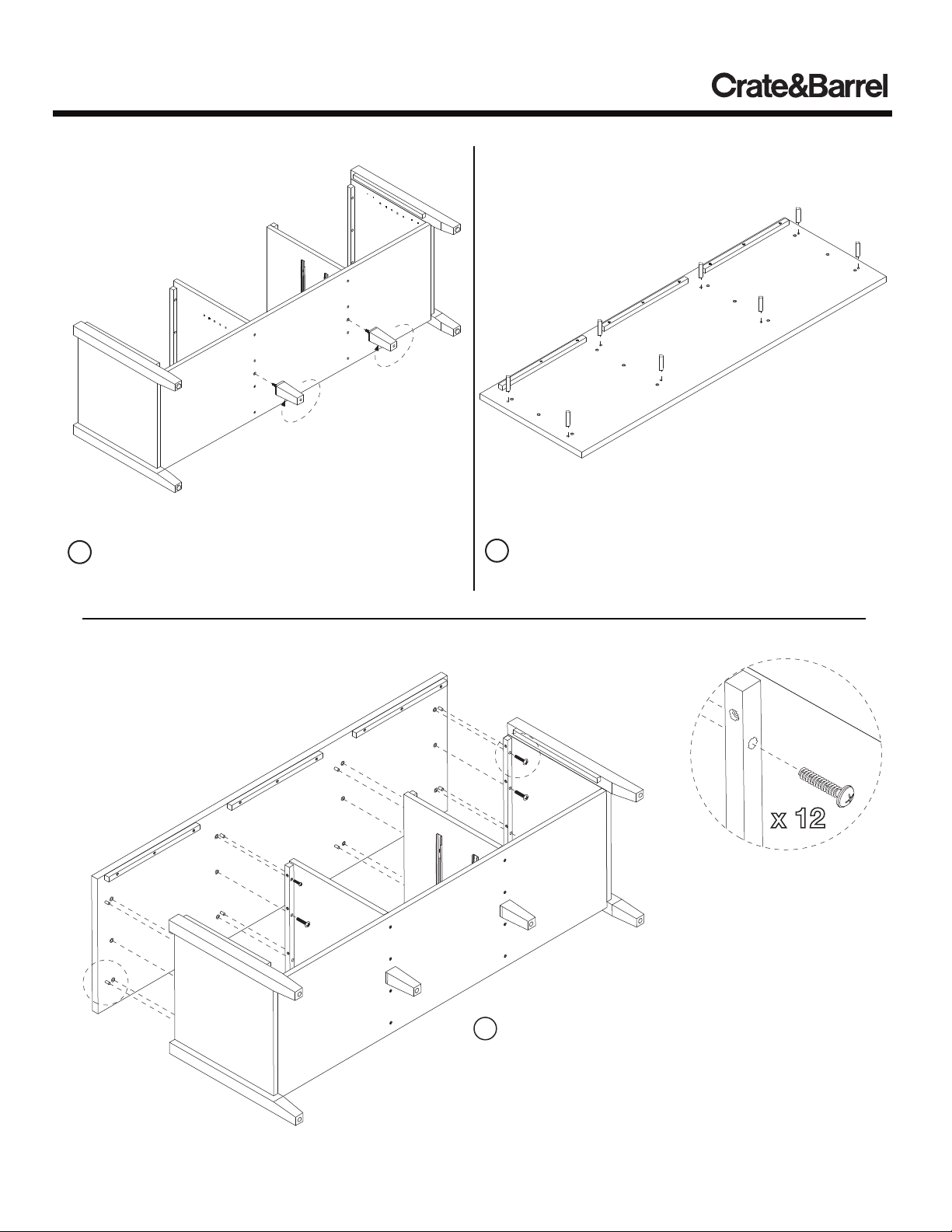

5 Position assembly as shown. Attach 2 support legs
to bottom panel of assembly as shown. Turn each leg
clockwise to secure.
top panel
A
6 Insert 8 wood dowels into top panel as shown.
left side
panel
B
B
7 A) Fit dowels of top panel into corresponding holes
of side panels and partitions as shown.
B) Attach each side panel and partition to top panel
right side
panel
Made in China - r03 Page 3 of 6
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
with 3 bolts as shown.
ABBOTT
65” MEDIA STAND
back
panel

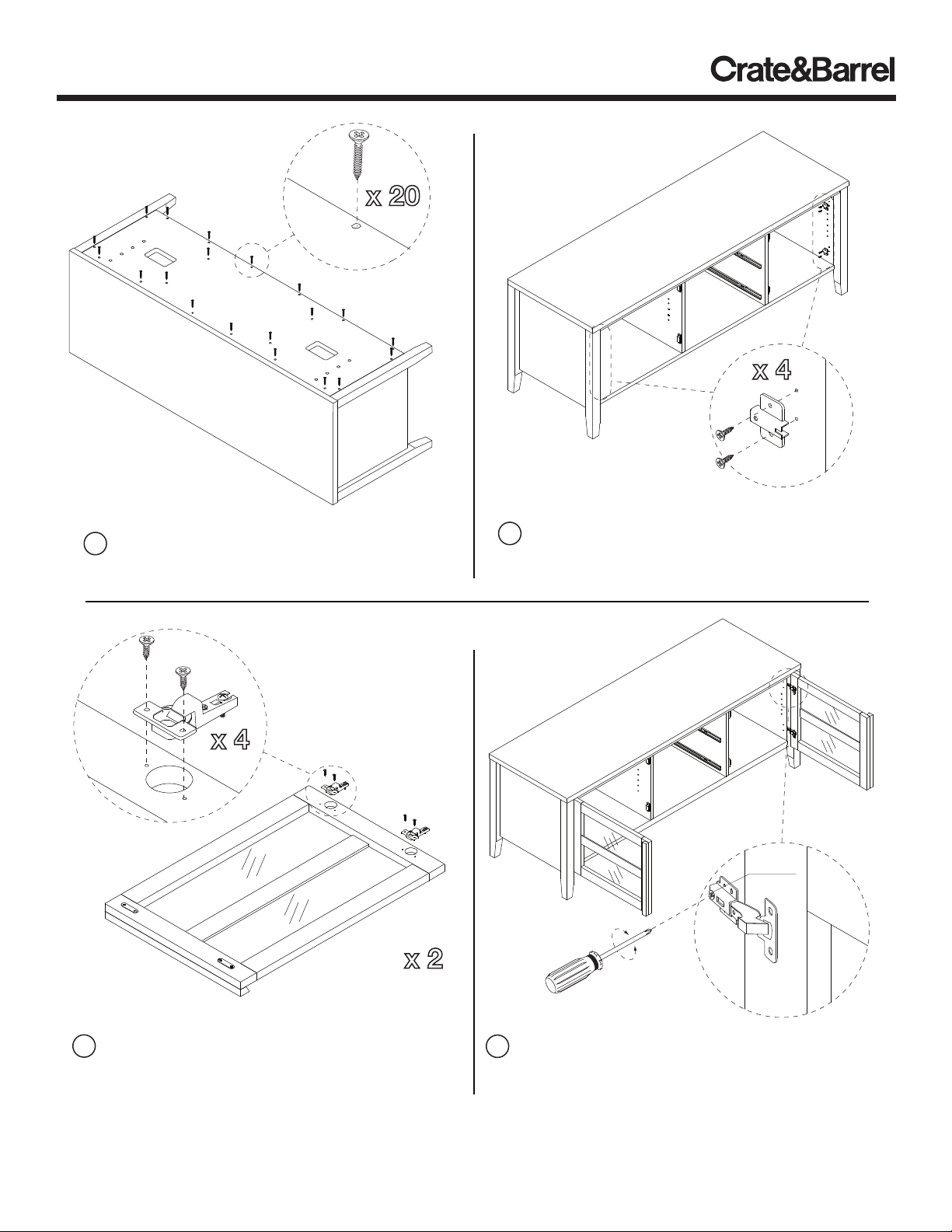

8 Attach back panel with 20 large screws as shown,
using a screwdriver.
left and right
door fronts
9 With assistance of another adult, position unit
upright. Attach 2 panel hinges to left and right side
panels with 2 small screws.
NOTE: If doors are not
aligned, refer to the Hinge
Adjustment diagram at the
end of these instructions
left door
front
pre-installed
screw
right door
front
10 Insert 2 door hinges into left and right door fronts
and secure each with 2 small screws.
11 Attach 2 door hinges of left and right doors to
corresponding 2 panel hinges of left and right side
panels as shown. Secure hinges with pre-installed
screw using a screwdriver.
Made in China - r03 Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 4 of 6
ABBOTT
65” MEDIA STAND
A
A
adjustable
B
shelf

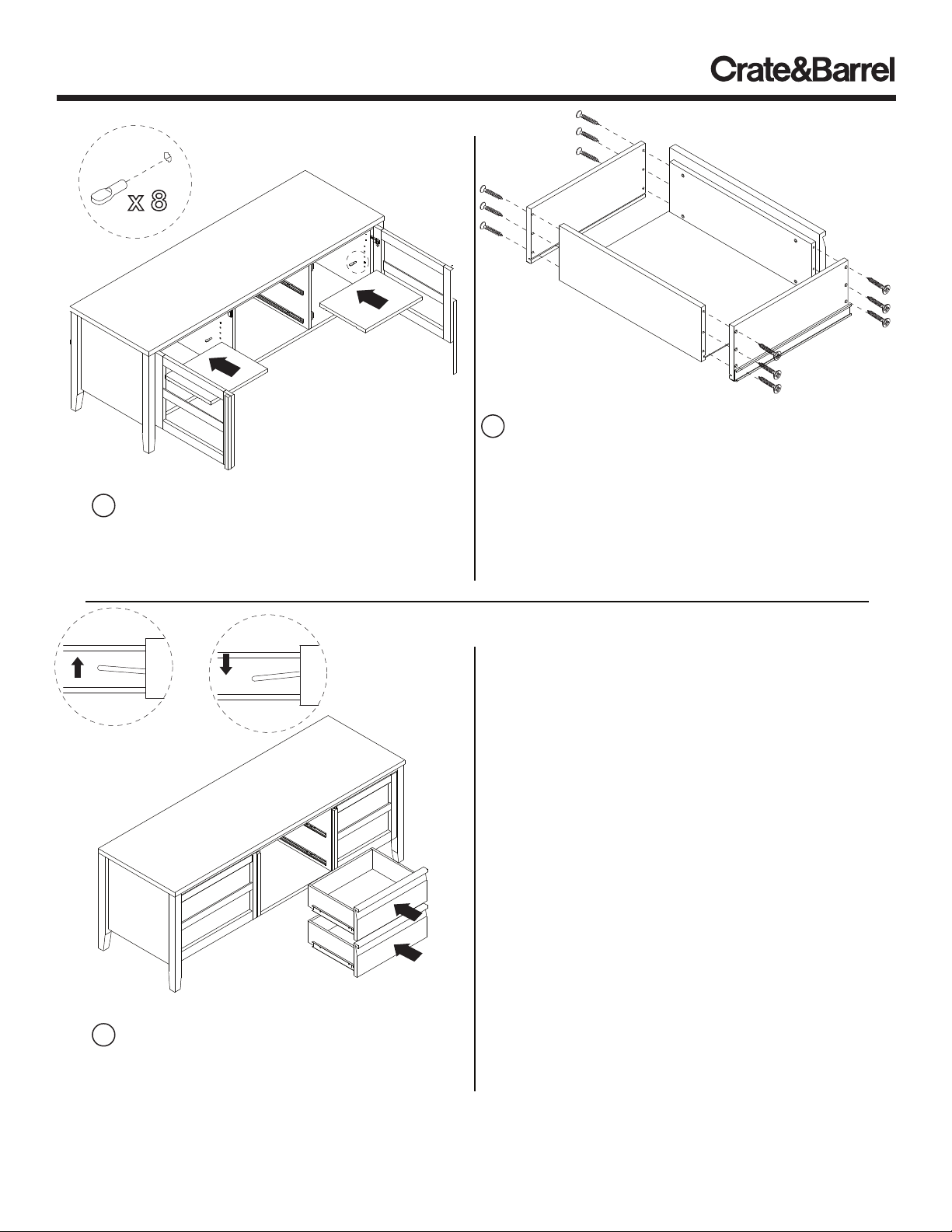

12 A) Insert 8 shelf pins at desired shelf heights.
B) Place 2 adjustable shelves onto shelf pins.
Make sure shelves are securely supported by each
shelf pin.
right drawer
side
A
drawer
bottom
drawer back
13 A) Attach right drawer side to drawer front with 3
large screws, using a screwdriver.
B) Attach drawer back to right drawer side with 3
large screws.
C) Slide drawer bottom into grooves of drawer
front/back.
D) Attach left drawer side to drawer front/back with 6
large screws.
Repeat steps for remaining drawer assembly.
drawer front
B
left drawer
side
left drawer
glide
14 Fit drawer glides of drawer assemblies into
corresponding glides of dresser as shown.
Assembly is now complete.
right drawer
glide
drawer
assembly
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as
the wood is finished with a protective clear lacquer.
Made in China - r03 Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 5 of 6
ABBOTT
65” MEDIA STAND
OPTIONAL SAFETY MOUNTING INSTRUCTIONS
For added safety and stability, it is recommended that the wall
mounting hardware be installed. For safe mounting, it is essential
to use wall anchors appropriate to your wall type (i.e. plaster,
drywall, concrete, etc.). Mount to wood studs whenever possible.
A. Insert large wall screw (not included) through end of wall strap
and into wall as shown.
B. Insert small wall screw through end wall strap and into the top
back of unit as shown.
Mounting assembly is now complete.
NOTE: If you are unsure about your wall type or what mounting
method you should use, consult a qualified professional or your
local hardware store.
HINGE ADJUSTMENT
NOTE: Insert screws 3/4"-1"
from the edge of the strap
WALL
small wall
screw
wall
strap
3/4”-1”
large
wall screw
(not included)
(NOTE: Additional
screw not included.
Please consult your
local hardware store.)
If the doors do not appear square or aligned,
loosen or tighten the appropriate screws on
each case hinge as illustrated.
1)
Side to side adjustment:
Loosen screw A, adjust gap
with screw B and re-tighten
screw A. A.
2) Depth adjustment:
Loosen screw A, push hinge arm
forwards or backwards, re-tighten
screw
A
B
1
A
3) Height adjustment:
Loosen screw C, adjust
door height and retighten screw C.
C
C
2
3
Made in China - r03 Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 6 of 6
