ABBOTT 52” MEDIA STAND
ASSEMBLY HARDWARE
Thank you for purchasing the Abbott 52” Media Stand.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
16 - small
screws
4 - door
hinges
18 - large
screws
4 - side panel
hinges
15 - bolts 12 - wood
dowels
Missing hardware?
Please call 800.606.6387 for
replacements.
WALL MOUNTING HARDWARE
1 - wall strap
1 - small
wall screw
TOOLS REQUIRED
phillips head screwdriver
(We recommend the use of hand tools instead power tools)
8 - shelf
pins
1 - top panel
2 - side panels
(1 left, 1 right)
Made in China - r07 Page 1 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
shelves
1 - bottom
panel
1 - partition2 - adjustable
2 - door fronts
1 - back panel
1 - leg
ABBOTT 52” MEDIA STAND
left and right
side panel
A
top panel
B
bottom panel
1 Insert 2 wood dowels into left and right side panels
as shown.
NOTE: Do not over
tighten the screws
bottom panel
partition
2 A) Insert 6 wood dowels into top panel as shown.
B) Insert 2 wood dowels into bottom panel as shown.
NOTE: Do not over
tighten the bolts
right side
panel
left side
panel
3 Fit dowels of bottom panel into corresponding holes
of partition as shown. Secure partition to bottom panel
with 4 large screws as shown, using a phillips head
screwdriver. Do not over tighten the screws.
Made in China - r07 Page 2 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com

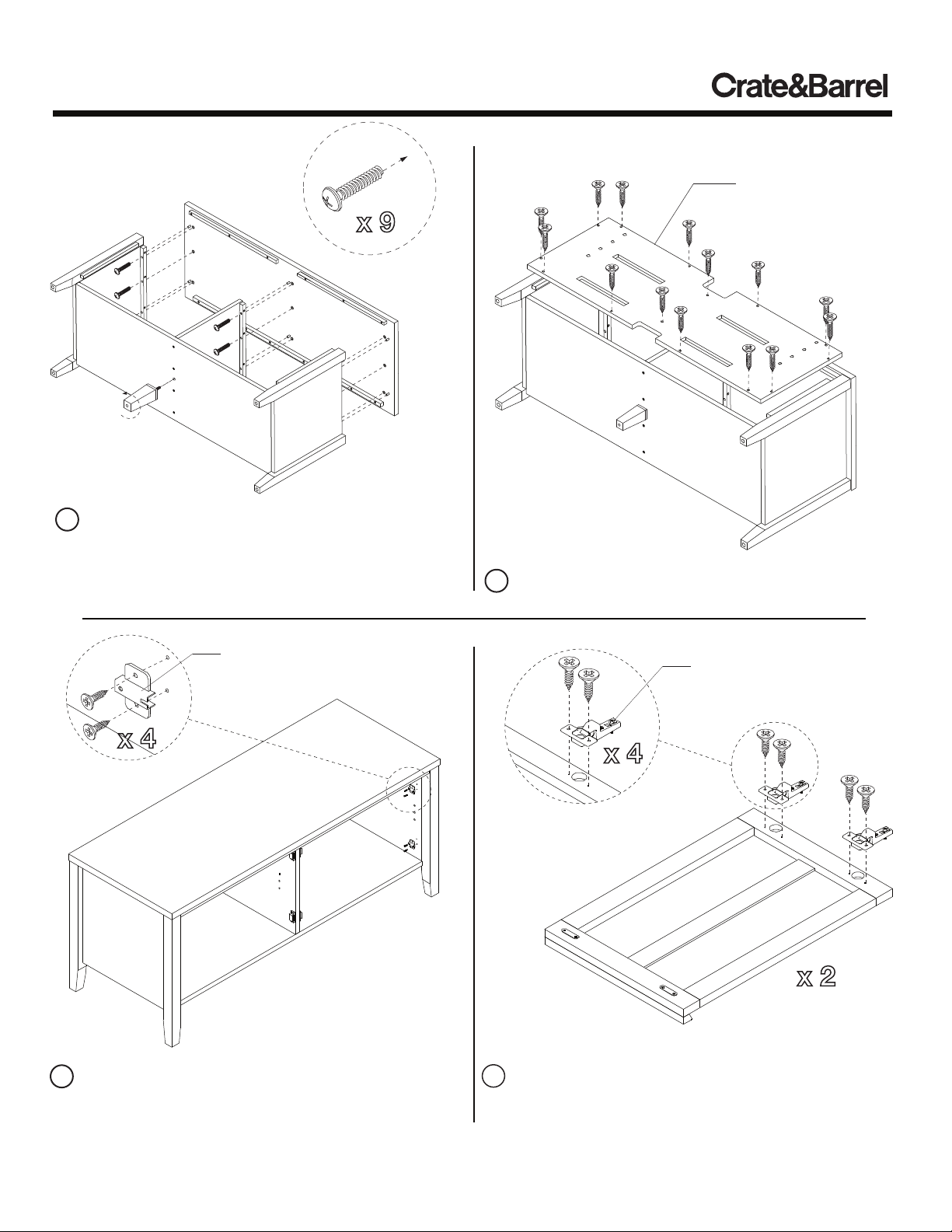

4 Position assembled unit as shown. Fit dowels of left
and right side panels into corresponding holes of
bottom panel as shown. Secure each side with 3 bolts
using a screwdriver. Do not over tighten the bolts.
ABBOTT 52” MEDIA STAND
A
back panel
A
top
panel
B
leg
5 A) Fit dowels of top panel into corresponding holes of
partition and left/right side panels as shown. Secure
with 9 bolts using a phillips head screwdriver.
B) Attach leg to bottom panel of assembly. Turn leg
clockwise to secure.
side panel
hinge
6 Attach back panel to assembled unit with 14 large
screws as shown.
door hinge
left and right
door fronts
7 With the assistance of another adult, position unit
upright. Attach 2 side panel hinges to left and right
side panels with 2 small screws as shown.
Made in China - r07 Page 3 of 5
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
8 Attach 2 door hinges into left and right door fronts
with 2 small screws as shown.
ABBOTT
52” MEDIA STAND
NOTE: If doors are not aligned,
see Hinge Adjustment
Instructions
right door
front
pre-installed
screw
left door
front
9 Attach 2 door hinges of left and right door fronts to
corresponding 2 side panel hinges of left and right side
panels as shown. Secure hinges with pre-installed screw
using a screwdriver.
A
shelf pin
A
adjustable
shelf
B
adjustable
shelf
10 A) Insert 8 shelf pins at desired shelf heights as shown.
B) Place 2 adjustable shelves onto shelf pins. Make sure
shelves are securely supported by each shelf pin.
Assembly is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as
the wood is finished with a protective clear lacquer.
Made in China - r07 Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 4 of 5
ABBOTT
52” MEDIA STAND

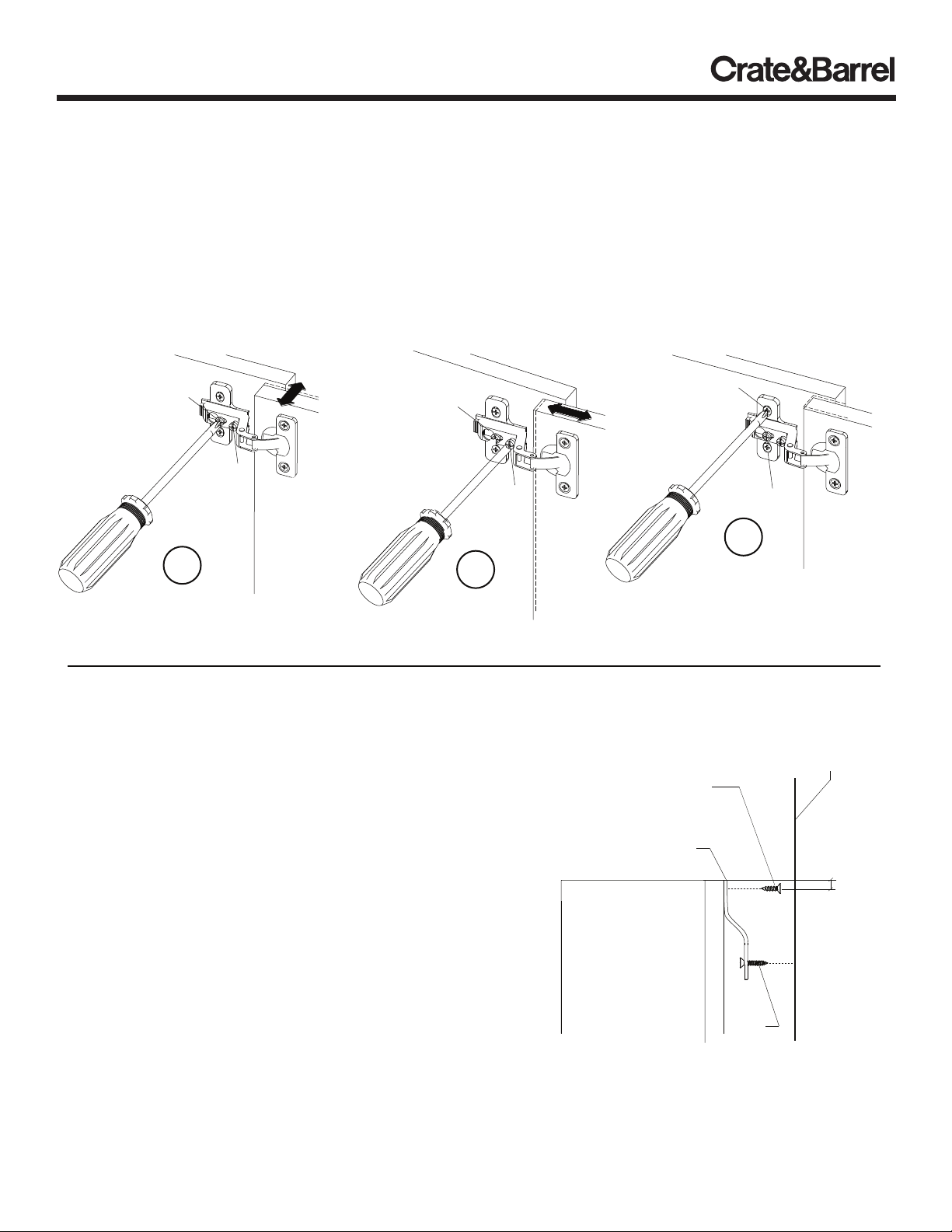

HINGE ADJUSTMENT
If the doors do not appear square or aligned,
loosen or tighten the appropriate screws on
each case hinge as illustrated.
1) Side to side adjustment:
Loosen screw A, adjust gap
with screw B and re-tighten
screw A.
A
B
1
2) Depth adjustment:
Loosen screw A, push hinge arm
forwards or backwards, re-tighten
screw A and secure screw B with
a 1/4 turn clockwise.
A
B
2
3) Height adjustment:
Loosen screw C, adjust
door height and retighten screw C.
C
C
3
OPTIONAL SAFETY MOUNTING
INSTRUCTIONS
For added safety and stability, it is recommended that the wall
mounting hardware be installed. For safe mounting, it is essential
to use wall anchors appropriate to your wall type (i.e. plaster,
drywall, concrete, etc.). Mount to wood studs whenever possible.
A. Insert small wall screw through end wall strap and into the top
back of unit as shown.
B. Insert large wall screw (not included) through end of wall strap
and into wall as shown.
Mounting assembly is now complete.
NOTE: If you are unsure about your wall type or what mounting
method you should use, consult a qualified professional or your
local hardware store.
NOTE: Insert screws 3/4"-1"
from the edge of the strap
WALL
small wall
screw
wall
strap
3/4”-1”
large
wall
screw
(NOTE: Additional
screw not included.
Please consult your
local hardware store.)
Made in China - r07 Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 5 of 5
