Congratulations!
You are now the proud owner of the Crate VTX200SH three-channel guitar amp
head with Stereo Digital Signal Processing (DSP). This rugged amplifier combines outstanding features with serious clean and distorted sounds. Dual DSP controls provide
15 “Must Have” effects and 15 Delay effects which can be combined for a wide variety
of sounds. The Tap/Save button allows you to manually set the tempo of many of the
effects and to save new DSP presets in the amplifier’s non-volatile memory. A separate Reverb control adds even more to the array of effects. Channel switching and
DSP may be controlled by means of a footswitch, which also allows access to two DSP
presets on each of the three channels. Stereo and Mono Effects Loops allow you to
connect additional effects for even greater flexibility. The electronic tuner (with a Mute
switch for silent tuning) lets you get tuned and stay in tune any time the amplifier is on.
Like all Crate products, your VTX200SH amplifier is designed by musicians, and
built using only the best components. Extensive testing confirms that this amplifier is
the absolute best it can be.
In order to get the most out of your new amplifier, we strongly suggest that you read
the information contained in this guide before you begin playing.
And thank you for choosing
CCRRAATTEE
.
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
IMPORTANT SAFETY INSTRUCTIONS
• READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS.
• DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. FOR PROPER OPERATION,
THIS UNIT REQUIRES 3” (75mm) OF WELL VENTILATED SPACE AROUND HEATSINKS AND OTHER AIR FLOW PROVISIONS IN THE CABINET.
• DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS.
• CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS.
• ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH
VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS.
• PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED.
• UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.
• ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERA-
TION AND TO AVOID INJURY.
• WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
• SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.
• OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS
CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PROTECTION IS RECOMMENDED IF UNIT IS
OPERATED AT HIGH VOLUME.
• WARNING: THIS UNIT REQUIRES A SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRIC CODES HAVING THE LINE SUPPLY VOLTAGE,
POWER, AND FREQUENCY IDENTIFIED ON THE REAR OF THE UNIT. THE OUTLET MUST REMAIN ACCESSIBLE TO DISCONNECT THE UNIT IF A
FAULT SHOULD ARISE WHILE IN USE. THIS UNIT SHOULD BE UNPLUGGED WHEN NOT IN USE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
"IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL"
“ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES.”
"REFERREZ-VOUS AU MANUAL D'UTILISATION"
EXPLANATION OF GRAPHICAL SYMBOLS:
EXPLICACION DE SIMBOLOS GRAFICOS:
EXPLICATION DES SYMBÔLES GRAPHIQUES:
"DANGEROUS VOLTAGE"
“VOLTAJE PELIGROSO”
"DANGER HAUTE TENSION"
=
=
PRECAUCION
RIESGO DE CORRIENTAZO
NO ABRA
PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS
ELECTRICAS, NO PERMITA QUE ESTE APARATO QUEDE EXPUESTO A LA
LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO.
NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO
REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS.
ATTENTION
RISQUE D'ELECTROCUTION
NE PAS OUVRIR
ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ
AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR
REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE
PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE
REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE.
4
The Front Panel:
MUTEMUTEMUTE
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
WAHWAH
PHASEPHAS E
WAHWAH
OCTOCT
-
E
C
H
O
S
I
N
G
L
E
F
L
A
N
G
E
C
H
O
R
U
S
S
P
E
C
I
A
L
P
I
N
G
P
O
N
G
P
H
A
S
E
R
13
31
4
22
22
31
13
44
1
31
4
2
22
3
13
44
TAP / SAVE
GAIN
LEVEL
3
HIGH
POWER
MID
LOW
1 2 4 63 5 7 8 10 129 11 13 14
1:
POWER: Use this switch to turn the amplifier on (top of the switch depressed) and off (bottom) of the switch
depressed. The switch illuminates when the power is on.
2:
REVERB: Use this control to adjust the amount of the digital reverb effect. In its fully counter clock-
wise position the signal is “dry” (without any reverb). As you rotate the control clockwise the amount
of reverb increases. The Reverb setting may be saved as a channel preset - see page 8.
3: Tap/Save LED: This LED flashes in time with the tempo set by the Tap/Save button (#4) and
serves as a status indicator for certain DSP activities (see page 8).
4: Tap/Save: Use this pushbutton to set the tempo of many of the effects by tapping the button
repeatedly in time with the desired tempo. The Tap/Save button is also used to save DSP presets
and to restore the factory default DSP settings. Additional information about the Tap/Save button is
on pages 7 and 8.
5. DELAY: Use this control to select one of the fifteen digital delay effects. Complete information
about the DSP effects is on page 7.
6. EFFECTS: Use this control to select one of the fifteen digital effects. Complete information about
the DSP effects is on page 7.
7: TUNER: The electronic tuner is active whenever the amplifier is turned on, providing constant,
“real time” tuning. The bottom row of LEDs indicate which note (string) is being tuned. The top row
of LEDs provides directional queues to facilitate quick and precise tuning of your instrument. The
indicated note (string) is properly tuned when only the center LED is illuminated.
8: MUTE: This switch, when depressed, mutes the output signal at the speaker jacks and the effects
loops, allowing you to silently tune or switch instruments. The adjacent LED illuminates when the
Mute function is active.
CHANNEL 3 - Featuring a high gain FlexWave circuit for extreme distortion and sustain:
9: CHANNEL 3 SELECT: This switch, when depressed, selects Channel 3 as the active channel. The
adjacent LED illuminates when Channel 3 is active.
10: HIGH: Use this control to adjust the high frequency level of Channel 3.
11: LEVEL: Use this control to adjust the output level of Channel 3.
12: MID: Use this control to adjust the midrange frequency level of Channel 3.
13: GAIN: Use this control to adjust the amount of distortion produced by Channel 3.
14: LOW: Use this control to adjust the low frequency level of Channel 3.
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
5
CHANNEL 2 - Featuring a medium gain FlexWave circuit for moderate distortion and crunch:
15: CHANNEL 2 SELECT: This switch, when depressed, selects Channel 2 as the active channel. The
adjacent LED illuminates when Channel 2 is active.
16: HIGH: Use this control to adjust the high frequency level of Channel 2.
17: LEVEL: Use this control to adjust the output level of Channel 2.
18: MID: Use this control to adjust the midrange frequency level of Channel 2.
19: GAIN: Use this control to adjust the amount of distortion produced by Channel 2.
20: LOW: Use this control to adjust the low frequency level of Channel 2.
CHANNEL 1 - Featuring a low gain FlexWave circuit for clean sounds or sounds with mild distortion:
21: CHANNEL 1 SELECT: This switch, when depressed, selects Channel 1 as the active channel. The
adjacent LED illuminates when Channel 1 is active.
22: HIGH: Use this control to adjust the high frequency level of Channel 1.
23: LEVEL: Use this control to adjust the output level of Channel 1.
24: MID: Use this control to adjust the midrange frequency level of Channel 1.
25: GAIN: Use this control to adjust the amount of distortion produced by Channel 1.
26: LOW: Use this control to adjust the low frequency level of Channel 1.
27: INPUT: Use this jack to connect your guitar to the amplifier by means of a shielded instrument
cable.
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
STEREO
HIGH MID LOW
LEVEL
1
GAIN
MID LOW
LEVEL
2
GAIN
HIGH
INPUT
16 18 20 2115 17 19 22 23 24 25 26 27
6
The Rear Panel:

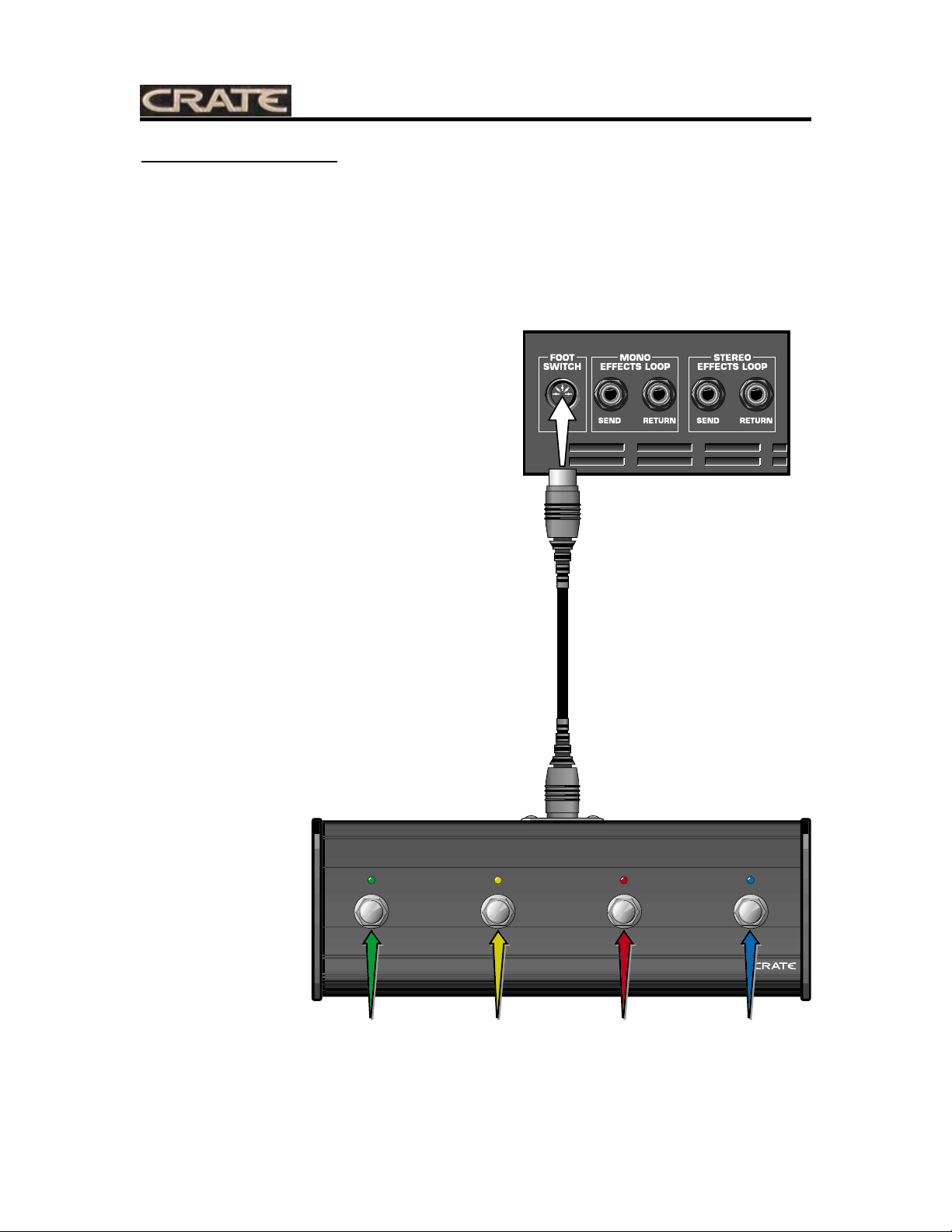

28: FOOTSWITCH: Use this jack to connect the footswitch cable (5-conductor midi cable) to the four-button
footswitch (supplied). This allows you to remotely switch between the channels, set tap tempos, save new presets,
and access a second set of DSP presets. (See page 9 for additional information.)
29: MONO EFFECTS LOOP SEND: When using a mono external effects processor, connect this jack to the input
jack of the effect by means of a shielded signal cable.
30: MONO EFFECTS LOOP RETURN: When using a mono external effects processor, connect this jack to the
output jack of the effect by means of a shielded signal cable.
31: STEREO EFFECTS LOOP SEND: When using a stereo external effects processor, connect this jack to the
input jack of the effect by means of a shielded three conductor signal cable terminated with a stereo (R/T/S) 1/4”
connector.
32: STEREO EFFECTS LOOP RETURN: When using a stereo external effects processor, connect this jack to the
output jack of the effect by means of a shielded three conductor signal cable terminated with a stereo (R/T/S) 1/4”
connector.
33: SPEAKER OUTPUTS: Use these jacks to connect the amplifier to your speaker(s) by means of speaker cables
with mono 1/4” plugs. The VTX200SH has two separate internal power amplifiers: one for the left channel, one for the
right. The two Left Speaker Output jacks are wired in parallel to each other, as are the two Right Speaker Output jacks.
Make certain the total impedance of your speakers does not go below four ohms per channel. Use the chart below to
help determine parallel loads. If in doubt, ask your dealer.
When using the stereo Chorus effect the right channel is dry and the left channel is detuned (wet). Each channel
will provide 70 watts RMS into an eight ohm load and 100 watts RMS into a four ohm load.
34: AC LINE CORD: This grounded power cord is to be plugged into a grounded power outlet, wired to current
electrical codes and compatible with the voltage, power, and frequency requirements stated on the rear panel. Do
not attempt to defeat the safety ground connection.
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
SPEAKER NUMBER OF TOTAL
IMPEDANCE SPEAKERS (PAR) IMPEDANCE
8 ohms 2 4 ohms
16 ohms 4 4 ohms
16 ohms 2 8 ohms
WARNING: The speaker output of this unit can exceed 10 Watts and could be a
shock injury. Connection to speakers should be performed by a skilled person in
compliance with local building codes. Class 2 wiring is required for speaker cables.
Use of external speakers outside the ratings stated at the speaker jack may result
in a shock injury or damage to the unit.
28 29 30 31 32 33 34
7
The DSP Section:
The VTX200SH features DSP controls
for Reverb, Delay and Effects. Complete
information about the Effects and Delay
controls is given below. The Delay control selects the delay or echo effects.
The Effects control selects the “pitch modified” and wah effects. Many of these effects
have their speed controlled by the Tap/Save button. All of these effects have their speed
controlled by the Tap/Save button. Additional information is provided on pages 5 and 10.
WA
H
P
HASE
WAH
OCT
DELAY:
NAME DESCRIPTION Tap/Save BUTTON CONTROLS:
Single 1 single delay w/low level delay time: .05 - 1 sec
Single 2 single delay w/medium level delay time: .05 - 1 sec
Single 3 single delay w/high level delay time: .05 - 1 sec
Single 4 single delay w/maximum level delay time: .05 - 1 sec
Echo 1 echo delay w/low level delay time: .05 - 1 sec
Echo 2 echo delay w/medium level delay time: .05 - 1 sec
Echo 3 echo delay w/high level delay time: .05 - 1 sec
Echo 4 echo delay w/maximum level delay time: .05 - 1 sec
Ping Pong 1 stereo panning delay w/low level delay time: .05 - 1 sec
Ping Pong 2 stereo panning delay w/medium level delay time: .05 - 1 sec
Ping Pong 3 stereo panning delay w/high level delay time: .05 - 1 sec
Ping Pong 4 stereo panning delay w/maximum level delay time: .05 - 1 sec
Special 1 low echo delay w/effect on echo only delay time: .05 - 1 sec
Special 2 medium echo delay w/effect on echo only delay time: .05 - 1 sec
Special 3 high echo delay w/effect on echo only delay time: .05 - 1 sec
bypass (dry signal - no effect) n/a
EFFECTS:
NAME DESCRIPTION Tap/Save BUTTON CONTROLS:
Chorus 1 stereo chorus w/low depth speed: 1 cycle/tap - period: .05 - 1 second
Chorus 2 stereo chorus w/medium low depth speed: 1 cycle/tap - period: .05 - 1 second
Chorus 3 stereo chorus w/medium high depth speed: 1 cycle/tap - period: .05 - 1 second
Chorus 4 stereo chorus w/high depth speed: 1 cycle/tap - period: .05 - 1 second
Flange 1 flanger w/low depth speed: 4 cycles/tap - period: .05 - 1 second
Flange 2 flanger w/medium low depth speed: 4 cycles/tap - period: .05 - 1 second
Flange 3 flanger w/medium high depth speed: 4 cycles/tap - period: .05 - 1 second
Flange 4 flanger w/high depth speed: 4 cycles/tap - period: .05 - 1 second
Phaser 1 phase shift w/low feedback speed: 2 cycles/tap - period: .05 - 1 second
Phaser 2 phase shift w/medium low feedback speed: 2 cycles/tap - period: .05 - 1 second
Phaser 3 phase shift w/medium high feedback speed: 2 cycles/tap - period: .05 - 1 second
Phaser 4 phase shift w/high feedback speed: 2 cycles/tap - period: .05 - 1 second
Oct- adds signal one octave below original n/a
Phase Wah medium phase w/touch sensitive wah n/a
Wah touch sensitive wah wah n/a
bypass (dry signal - no effect) n/a
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
TAP / SAVE
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
P
O
I
N
H
G
4
C
31
E
22
13
44
E
31
L
G
22
N
I
13
S
P
O
N
G
S
P
E
C
I
A
L
E
G
N
A
31
L
F
22
13
44
S
U
3
R
2
O
H
1
C
P
H
4
A
S
E
R
OCT
-
P
HASE
WAH
WAH
SIGNAL PATH FOR SPECIAL DELAY EFFECTS:
DELAY
EFFECTS EFFECTS DELAY
SIGNAL PATH FOR ALL OTHER EFFECTS:
8
Storing
Your Own Presets:
Each channel of the VTX200SH has two factory assigned DSP presets, as shown on
pages 10 and 11. No matter what the settings of the DSP controls, the preset is recalled
when a channel is selected. You may change the DSP settings by rotating the DSP controls - these changes will remain active until a different channel is selected, but will not
be there for later use unless they are saved. To save a new DSP preset to a channel,
first make the desired DSP changes. Then press and hold the Tap/Save button for about
three seconds. The Tap/Save LED will flash through three quick sequences, indicating
the preset was saved. The new preset is stored for that channel and will remain in memory until a new preset is stored for that channel or the factory presets are restored.
We recommend making copies of page 14 of this guide for the purpose of writing down your own presets.
Restoring the Factory Presets:
The factory assigned DSP presets may be restored, erasing any changes you have
made. Turn the amplifier off. Press and hold the Tap/Save button as you turn the amplifier on. The Tap/Save LED will flash through two quick sequences, indicating the factory
presets have been restored.
More
About the Tap/Save Button:
The Tap/Save button is used to set the tempo of an effect by simply tapping it in time
to the desired tempo. The time between the taps sets the timing of the effect.
The Effects and the Delays may each have a different tap speed. The default “target”
for the Tap/Save button is the Delay control. To select the Effects control as the tap button’s target, rotate the Effects control. The Tap/Save tempo function will automatically
revert back to the Delay control 16 seconds after the Effects control is rotated, or when
the tap speed was last changed for the Effects control.
NOTE: In most cases, it is usually more pleasing to the ear to set a slower tap speed for the HI effects and
a faster tap speed for the LO effects.
W
A
H
P
HA
SE
WAH
O
CT
W
A
H
P
HA
SE
WAH
O
CT
W
A
H
P
HAS
E
WAH
O
CT
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
TAP / SAVE
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
P
O
I
N
G
4
P
O
N
G
S
P
E
C
I
A
L
N
A
L
F
22
13
44
S
U
3
R
2
O
H
C
H
C
31
E
22
13
44
E
31
L
G
22
N
I
13
S
E
G
4
31
W
1
A
H
P
H
A
S
E
R
O
CT
-
P
HA
WAH
SE
TAP / S AVE
PRESS SAVE RELEASE
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
O
H
4
C
31
E
22
13
44
E
31
L
G
22
N
I
13
S
P
I
N
G
P
O
N
G
S
S
U
P
E
C
I
A
L
E
G
P
N
H
4
A
A
31
L
S
F
22
E
R
13
44
O
3
CT
-
R
P
HA
2
O
WAH
W
SE
H
1
A
C
H
HOLD 3 SECONDS
TAP / SAVE
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
P
I
N
G
A
L
P
F
O
N
13
G
44
S
S
U
3
P
R
E
O
C
H
I
A
L
G
N
22
2
1
C
O
H
4
C
31
E
22
13
44
E
31
L
G
22
N
I
13
S
E
4
31
W
A
H
P
H
A
S
O
CT
P
HAS
WAH
E
E
R
-
CHANGES ARE
SAVED AS
NEW PRESET
9
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
Using the Footswitch:
The special Crate four-button footswitch supplied with the VTX200SH performs a
variety of functions. The footswitch allows remote channel selection, remote Tap/Save
for each channel, and allows access to an additional DSP preset for each channel of
the amplifier. Use only the supplied Crate four-button momentary footswitch with the
VTX200SH. A standard 5-wire midi cable (supplied) may be used to connect the
footswitch to the amplifier.
When the footswitch is connected
to the amplifier, the first tap of buttons 1 - 3 select the corresponding
channel. Once a channel is selected,
consequent taps of the same button
produce the same results as tapping
the front panel Tap/Save button – you
can use the footswitch to store presets and set the tempo of an effect.
(See page 8.)
The “original” DSP presets are
active for each channel when the #4
footswitch LED is illuminated. These
are referred to as “DSP Bank ‘A’.”
When the #4 button is switched and
the LED is off, a second DSP preset
may be stored and recalled for each
channel - “DSP Bank ‘B’.”
NOTE: DSP Bank “B” presets are only accessible
when the footswitch is
connected to the amplifier.
When the footswitch is not
connected, only DSP Bank
“A” is accessible.
SWITCH #1:
CH. 1 SELECT;
TAP/SAVE FOR CH. 1
FOOTSWITCH
VTX200SH REAR PANEL
5-Conductor
MIDI cable
SWITCH #2:
CH. 2 SELECT;
TAP/SAVE FOR CH. 2
SWITCH #4:
LED on: DSP BANK A
LED off: DSP BANK B
4
2
1
SWITCH #3:
CH. 3 SELECT;
TAP/SAVE FOR CH. 3
3
10
DSP
Factory Presets:
WAH
PHAS
E
WA
H
OCT
WAH
P
H
A
S
E
WA
H
OCT
WAH
P
HA
S
E
W
A
H
OCT
The VTX200SH Factory Presets for the DSP section are as follows:
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
Factory Preset 1: Clean w/Chorus, Delay, Reverb
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
P
O
I
H
C
E
22
13
44
E
31
L
G
22
N
I
S
TAP Tempo MEDIUM TAP Tempo MEDIUM
N
G
4
31
C
I
13
A
L
P
E
CHANNEL: 1
TAP / SAVE
BANK: "A"
2
3
"B"
Factory Preset 2: Rhythm w/Slapback Delay
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
P
O
I
H
C
E
22
13
44
E
31
L
G
22
N
I
S
TAP Tempo FAST TAP Tempo N/A
N
G
4
31
C
I
13
A
L
P
E
CHANNEL: 1
TAP / SAVE
BANK: "A"
2
3
"B"
E
G
P
N
A
L
F
O
N
G
S
P
O
N
G
S
P
22
13
44
S
U
3
R
2
O
H
C
N
A
L
F
22
13
44
S
U
3
R
2
O
H
C
H
4
31
PHASE
WA
WAH
1
E
G
P
H
4
31
P
WA
WAH
1
OCT
H
OCT
H
A
H
A
S
E
R
-
A
S
E
R
-
S
E
Factory Preset 3: Solo w/Flange, Delay, Reverb
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
P
O
I
H
C
E
22
13
44
E
31
L
G
22
N
I
S
TAP Tempo MEDIUM TAP Tempo MEDIUM
N
G
4
31
C
I
13
A
L
P
O
N
G
S
P
E
CHANNEL: 1
TAP / SAVE
BANK: "A"
2
3
"B"
E
G
P
N
A
L
F
22
13
44
S
U
3
R
2
O
H
C
H
4
31
1
A
OCT
P
HAS
W
WAH
A
H
S
E
R
-
E
11
DSP
Factory Presets:
WAH
PHAS
E
WA
H
OCT
WAH
P
H
A
S
E
WA
H
OCT
WAH
P
HA
S
E
W
A
H
OCT
The VTX200SH Factory Presets for the DSP section are as follows:
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
Factory Preset 4: Clean w/Reverb
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
O
H
C
31
E
22
13
44
E
31
L
G
22
N
I
13
S
TAP Tempo N/A TAP Tempo N/A
CHANNEL: 1
TAP / SAVE
BANK: "A"
2
3
"B"
Factory Preset 5: Rhythm w/Reverb
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
O
H
C
31
E
22
13
44
E
31
L
G
22
N
I
13
S
TAP Tempo N/A TAP Tempo N/A
CHANNEL: 1
TAP / SAVE
BANK: "A"
2
3
"B"
P
I
N
G
4
P
O
N
G
S
P
E
C
I
A
L
P
I
N
G
4
P
O
N
G
S
P
E
C
I
A
L
E
G
P
N
A
L
F
22
13
44
S
U
3
R
2
O
H
C
N
A
L
F
22
13
44
S
U
3
R
2
O
H
C
H
4
31
OCT
PHASE
WA
WAH
H
1
E
G
P
H
4
31
OCT
P
H
A
WA
WAH
H
1
A
S
E
R
-
A
S
E
R
-
S
E
Factory Preset 6: Solo w/Reverb
TAP / SAVE
44
E
L
G
CHANNEL: 1
BANK: "A"
2
3
"B"
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
P
O
I
H
C
E
22
13
31
22
N
I
S
N
G
4
31
C
I
13
A
L
P
O
N
G
S
P
E
TAP Tempo N/A TAP Tempo N/A
E
G
P
N
A
L
F
22
13
44
S
U
3
R
2
O
H
C
H
4
31
1
A
OCT
P
HAS
W
WAH
A
H
S
E
R
-
E
12
Suggested Settings:
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
MUTEMUTEMUTE
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
WAHWA
H
PH
A
SEPH
A
SE
W
A
H
W
A
H
OCTOCT
-
E
C
H
O
S
I
N
G
L
E
F
L
A
N
G
E
C
H
O
R
U
S
S
P
E
C
I
A
L
P
I
N
G
P
O
N
G
P
H
A
S
E
R
13
31
4
22
22
31
13
44
1
31
4
2
22
3
13
44
TAP / SAVE
MUTEMUTEMUTE
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
W
A
H
W
A
H
PH
A
S
E
PH
A
S
E
WAHWA
H
O
C
T
O
C
T
-
E
C
H
O
S
I
N
G
L
E
F
L
A
N
G
E
C
H
O
R
U
S
S
P
E
C
I
A
L
P
I
N
G
P
O
N
G
P
H
A
S
E
R
13
31
4
22
22
31
13
44
1
31
4
2
22
3
13
44
TAP / SAVE
MUTEMUTEMUTE
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
W
A
H
W
A
H
PHA
S
EPH
A
S
E
WAHWA
H
O
C
T
O
C
T
-
E
C
H
O
S
I
N
G
L
E
F
L
A
N
G
E
C
H
O
R
U
S
S
P
E
C
I
A
L
P
I
N
G
P
O
N
G
P
H
A
S
E
R
13
31
4
22
22
31
13
44
1
31
4
2
22
3
13
44
TAP / SAVE
MUTEMUTEMUTE
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
W
A
H
W
A
H
PH
A
S
E
PH
A
S
E
WAHWA
H
O
C
T
O
C
T
-
E
C
H
O
S
I
N
G
L
E
F
L
A
N
G
E
C
H
O
R
U
S
S
P
E
C
I
A
L
P
I
N
G
P
O
N
G
P
H
A
S
E
R
13
31
4
22
22
31
13
44
1
31
4
2
22
3
13
44
TAP / SAVE
MUTEMUTEMUTE
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
WAHWA
H
PHA
S
EPH
A
S
E
W
A
H
W
A
H
O
CTOC
T
-
E
C
H
O
S
I
N
G
L
E
F
L
A
N
G
E
C
H
O
R
U
S
S
P
E
C
I
A
L
P
I
N
G
P
O
N
G
P
H
A
S
E
R
13
31
4
22
22
31
13
44
1
31
4
2
22
3
13
44
TAP / SAVE
MUTEMUTEMUTE
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
WAHWA
H
PH
A
S
E
PH
A
S
E
WAHWA
H
O
C
T
O
C
T
-
E
C
H
O
S
I
N
G
L
E
F
L
A
N
G
E
C
H
O
R
U
S
S
P
E
C
I
A
L
P
I
N
G
P
O
N
G
P
H
A
S
E
R
13
31
4
22
22
31
13
44
1
31
4
2
22
3
13
44
TAP / SAVE
GAIN
LEVEL
3
HIGH
MID
LOW
GAIN
LEVEL
3
HIGH
MID
LOW
GAIN
LEVEL
3
HIGH
MID
LOW
GAIN
LEVEL
3
HIGH
MID
LOW
GAIN
LEVEL
3
HIGH
MID
LOW
GAIN
LEVEL
3
HIGH
MID
LOW
"Oceanic"
Clean with
Vibrato, Delay,
& Reverb
Tap Tempo: MEDIUMTap Tempo: MEDIUM
"Super Funk"
Clean with
Wah, Delay,
& Reverb
Tap Tempo: N/ATap Tempo: FAST
"Arena"
Rhythm with
Reverb & Delay,
Tap Tempo: N/ATap Tempo: MEDIUM
"Haze Faze"
Rhythm with
Phase
& Reverb
Tap Tempo: MEDIUMTap Tempo: N/A
"Solo Wah"
Solo with
Wah, Delay
& Reverb
Tap Tempo: N/ATap Tempo: N/A
"Octanator"
Solo with
Octave
& Reverb
TAP TEMPO N/ATap Tempo: N/A
(next page ----->)
(next page ----->)
(next page ----->)
(next page ----->)
13
Suggested Settings:
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
HIGH MID LOW
LEVEL
1
GAIN
MID LOW
LEVEL
2
GAIN
HIGH
HIGH MID LOW
LEVEL
1
GAIN
MID LOW
LEVEL
2
GAIN
HIGH
HIGH MID LOW
LEVEL
1
GAIN
MID LOW
LEVEL
2
GAIN
HIGH
HIGH MID LOW
LEVEL
1
GAIN
MID LOW
LEVEL
2
GAIN
HIGH
HIGH MID LOW
LEVEL
1
GAIN
MID LOW
LEVEL
2
GAIN
HIGH
HIGH MID LOW
LEVEL
1
GAIN
MID LOW
LEVEL
2
GAIN
HIGH
14
DSP
“Fill in the Blanks” (for User Presets):
WAH
PHAS
E
WA
H
OCT
WAH
P
H
A
S
E
WA
H
OCT
WAH
P
HA
S
E
W
A
H
OCT
Copy this page to fill in your own DSP Presets!
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
User Preset:
CHANNEL: 1
User Preset:
CHANNEL: 1
TAP / SAVE
BANK: "A"
2
3
TAP / SAVE
BANK: "A"
2
3
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
P
O
I
H
C
E
22
13
44
E
31
L
G
22
N
I
S
"B"
TAP Tempo _______ TAP Tempo _______
N
G
4
31
C
I
13
A
L
P
O
N
G
S
P
E
E
G
N
4
A
31
L
F
22
13
44
S
U
3
R
2
O
H
1
C
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
P
O
I
H
C
E
22
13
44
E
31
L
G
22
N
I
S
"B"
TAP Tempo _______ TAP Tempo _______
N
G
4
31
C
I
13
A
L
P
O
N
G
S
P
E
E
G
N
4
A
31
L
F
22
13
44
S
U
3
R
2
O
H
1
C
P
H
A
S
E
R
OCT
-
PHASE
WA
WAH
H
P
H
A
S
E
R
OCT
-
P
H
A
WA
WAH
S
E
H
User Preset:
CHANNEL: 1
TAP / SAVE
BANK: "A"
2
3
DELAYDELAYREVERBREVERB EFFECTSEFFECTS
P
O
I
H
C
E
22
13
44
E
31
L
G
22
N
I
S
"B"
TAP Tempo _______ TAP Tempo _______
N
G
4
31
C
I
13
A
L
P
O
N
G
S
P
E
E
G
N
4
A
31
L
F
22
13
44
S
U
3
R
2
O
H
1
C
P
H
A
S
E
R
OCT
-
P
HAS
W
WAH
A
E
H
15
System Block Diagram:
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
TUNER
INPUT
BUFFER
INPUT
FOOTSWITCH
1 2 3 4
MUTE
A BC D EF G
SWITCH
CONTROLLER
CHANNEL 1
WAVE
(LOW
GAIN)
GAIN
CHANNEL 2
WAVE
(MEDIUM
GAIN)
GAIN
CHANNEL 3
WAVE
(HIGH
GAIN)
GAIN
FLEX
LEVEL
MIDHIGH LOW
FLEX
LEVEL
MIDHIGH LOW
FLEX
LEVEL
MIDHIGH LOW
TAP/
SAVE
DSP
A/B
DSP
MONO EFFECTS LOOP
RETURN
SEND
STEREO EFFECTS LOOP
REVERBEFFECTS DELAY
RETURN
SEND
POWER
AMP 2
SPEAKER
OUTPUTS
RIGHT
(CHORUS
DRY)
DAMPING
POWER
AMP 1
SPEAKER
OUTPUTS
LEFT
(CHORUS
WET)
DAMPING
VTX200SH TECHNICAL SPECIFICATIONS:
Output Power Rating 70W per channel @5% THD, 8 ohm load
100W per channel @5% THD, 4 ohm load
Input Impedance 470kΩ
Total System Gain Ch 1 74dB, all controls @10
Ch 2 88dB, all controls @10
Ch 3 103dB, all controls @10
Maximum Input Signal Accepted 5 volts peak-to-peak
Channel 1 Low Control 26dB range @ 70Hz
Mid Control 10dB range @ 900Hz
High Control 20dB range @ 10kHz
Channel 2 Low Control 26dB range @ 70Hz
Mid Control 10dB range @ 900Hz
High Control 20dB range @ 10kHz
Channel 3 Low Control 17dB range @ 100Hz
Mid Control 16dB range @ 1kHz
High Control 12dB range @ 7kHz
Power Requirements 120 VAC, 60Hz, 95VA
100/115VAC, 50/60Hz, 95VA;
230VAC, 50/60Hz, 95VA
Size and Weight 10” H x 30” W x 10.38” D, 37 lbs.
The VTX200SH is covered with a durable Tolex material: wipe it clean with a lint-free cloth.
Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish.
Crate continually develops new products, as well as improves existing ones. For this reason, the specifications
and information in this manual are subject to change without notice.
www.crateamps.com
@2005 SLM Electronics, a division of St. Louis Music, Inc • 1400 Ferguson Avenue • St. Louis, MO 63133
47-773-01 • 070105
VTX200SH
Three-Channel Guitar Amp Head with Stereo DSP
Loading...
