Crate Amplifiers MXB10 User Manual
Owner's Guide
CRATE
for the
CRATE
CRATE
Bass Amplifier
Bass Amplifier
Congratulations!
You are now the proud owner of the compact but powerful Crate MXB10 Bass Amplifier. Small in size
yet big in performance: the 8” Crate Custom speaker makes the most of the amplifier’s 10 watts of musical
output power. A3-band rotary EQ gives you complete control over a wide variety of sounds. In addition, the
front panel headphone and external speaker jacks make this amplifier equally suited for practicing as well as
performing in intimate surroundings.
Like all Crate products, your MXB10 is designed by musicians and built using only the best components.
Extensive testing confirms that this amplifier is the absolute best it can be.
In order to get the most out of your new amplifier, we strongly urge you to read the information contained
in this manual before you begin playing.
And thank you
for choosing
TABLE OF CONTENTS:
Important Safeguards and Precautions . . . . . . . . . . . . . . . . . . . . .3

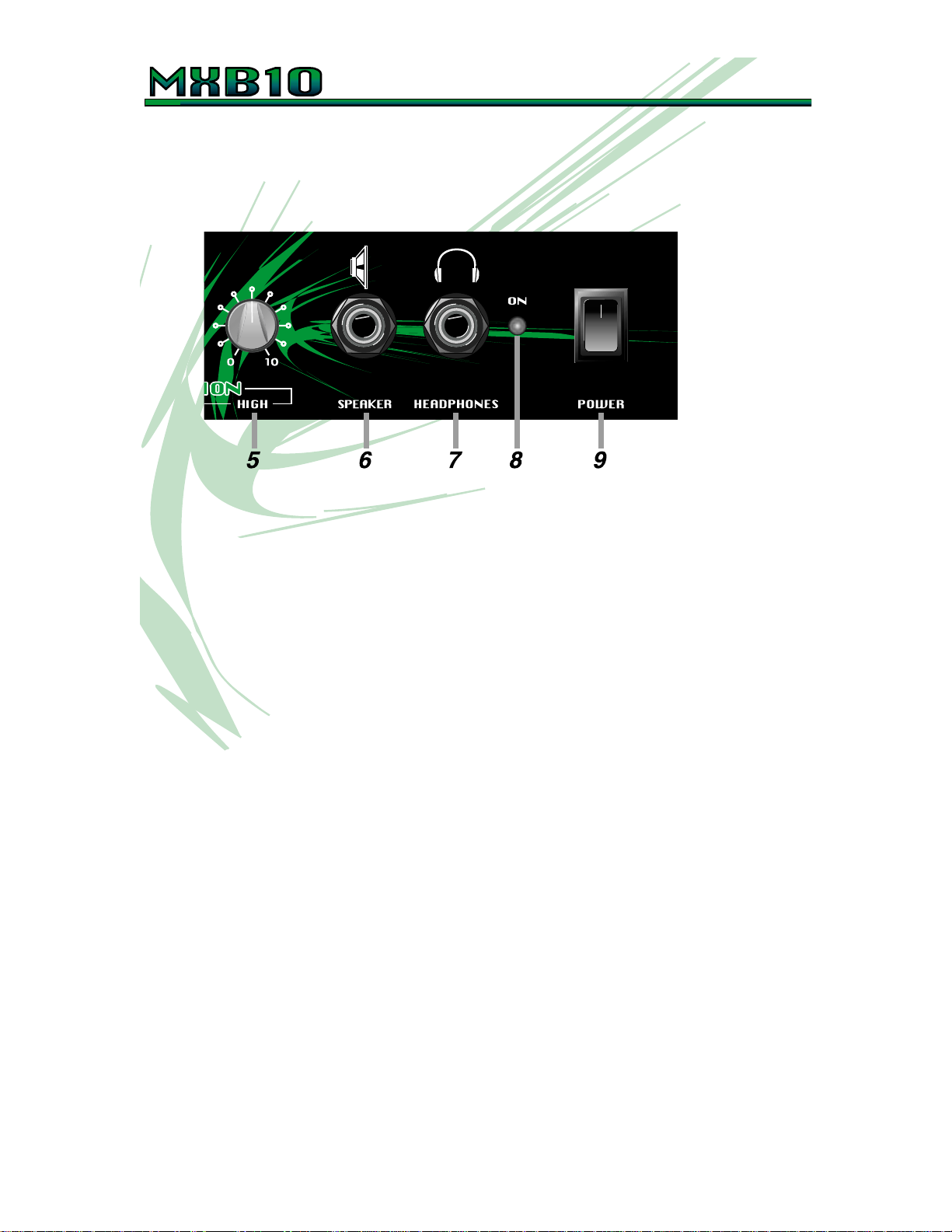

The Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4,5
Suggested Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . .back cover
IMPORTANT SAFETY INSTRUCTIONS
• READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS.
• DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS.
• DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS.
• CLEAN ONLYWITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS.
• ONLYCONNECTPOWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENTELECTRICALCODES AND
COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS.
• PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED.
• UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.
• ONLYUSE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERA-
TION AND TO AVOID INJURY.
• THIS APPARATUS DOES NOT OPERATE NORMALLYAND REQUIRES SERVICE WITH ANY PHYSICAL DAMAGE FROM IMPACT OR
ANY EXPOSURE TO MOISTURE.
• SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.
• OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND
PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PROTECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
"IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL"
“ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES.”
"REFERREZ-VOUS AU MANUAL D'UTILISATION"
EXPLANATION OF GRAPHICAL SYMBOLS:
EXPLICACION DE SIMBOLOS GRAFICOS:
EXPLICATION DES SYMBÔLES GRAPHIQUES:
"DANGEROUS VOLTAGE"
“VOLTAJE PELIGROSO”
"DANGER HAUTE TENSION"
=
=
PRECAUCION
RIESGO DE CORRIENTAZO
NO ABRA
PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS
ELECTRICAS, NO PERMITA QUE ESTE APARATO QUEDE EXPUESTO A LA
LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO.
NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO
REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS.
ATTENTION
RISQUE D'ELECTROCUTION
NE PAS OUVRIR
ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ
AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR
REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE
PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE
REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE.
Bass Amplifier
Important Safeguards and Precautions:
3
All Crate products are designed for continuous safe operation. Abiding by the following
rules can help prevent damage to your amplifier, yourself and others.
• The amplifier is equipped with a three-pronged AC power cord. To
reduce the risk of electrical shock, NEVER remove or otherwise attempt
to defeat the ground pin of the power cord.
• Connect the amplifier ONLY to a properly grounded AC outlet of the
proper voltage for your amp.
• Avoid sudden temperature extremes, rain and moisture. Also, avoid
sudden and intense impact. (If the unit has been subjected to any of the
preceding abuses, have it looked at by an authorized service center.)
• Do not expose the unit to splashing or dripping liquid. Do not place liquid filled objects on the unit.
• NEVER set the amplifier on a support that will not bear its weight.
• Always keep the total speaker impedance at or above the rated load.
• Unplug the amplifier before cleaning it. NEVER spray liquid cleaners
onto the amplifier. Wipe it with a slightly dampened, lint-free cloth to
remove dirt and film.
• DO NOT use the amplifier if it has sustained damage to the chassis,
controls, or power cord. Refer the unit to an authorized service center
for inspection.
• Prolonged exposure to high volume levels may cause permanent hearing loss or damage. Such damage is progressive and irreversible!
