Owner ’s Manual
GT10
Guitar Amplifier
Page 2
GT10
Guitar Amplifier
IMPORTANT SAFETY INSTRUCTIONS
• READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS.
• DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. FOR
PROPER OPERATION, THIS UNITREQUIRES 3” (75mm) OF WELL VENTILATED SPACE AROUND HEATSINKS AND OTHER AIR
FLOW PROVISIONS IN THE CABINET.
• DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS.
• CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS.
• ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND
COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS.
• PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED.
• UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.
• ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERA-
TION AND TO AVOID INJURY.
• THIS APPARATUS DOES NOT OPERATE NORMALLYAND REQUIRES SERVICE WITH ANY PHYSICAL DAMAGE FROM IMPACT OR
ANY EXPOSURE TO MOISTURE.
• SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.
• OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND
PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PROTECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
"IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL"
“ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES.”
"REFERREZ-VOUS AU MANUAL D'UTILISATION"
EXPLANATION OF GRAPHICAL SYMBOLS:
EXPLICACION DE SIMBOLOS GRAFICOS:
EXPLICATION DES SYMBÔLES GRAPHIQUES:
"DANGEROUS VOLTAGE"
“VOLTAJE PELIGROSO”
"DANGER HAUTE TENSION"
=
=
PRECAUCION
RIESGO DE CORRIENTAZO
NO ABRA
PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS
ELECTRICAS, NO PERMITA QUE ESTE APARATO QUEDE EXPUESTO A LA
LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO.
NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO
REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS.
ATTENTION
RISQUE D'ELECTROCUTION
NE PAS OUVRIR
ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ
AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR
REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE
PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE
REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE.
Congratulations and thank you for choosing the Crate GT10 Guitar Amplifier.
This rugged amplifier provides you with serious clean and distorted sounds. The
front panel features an Insert jack for virtually noise-free connection of your favorite
effects and a Headphones jack which lets you practice in private.
In order to get the most out of your new amplifier, we strongly urge you to read this
manual before you begin playing.
N
Block Diagram:
INPUT
OVERDRIVE
Gain
Level
BUFFER PRE AMP
EQUALIZATION
Master
Level
High Mid Low
INSERT
TIP: RETUR
RING: SEND
AC POWER
POWER SUPPLY
POWER AMP
HEADPHONE
B+
B–
POWER LED
POWER SW
SPEAKER
Page 3
GT10
Guitar Amplifier

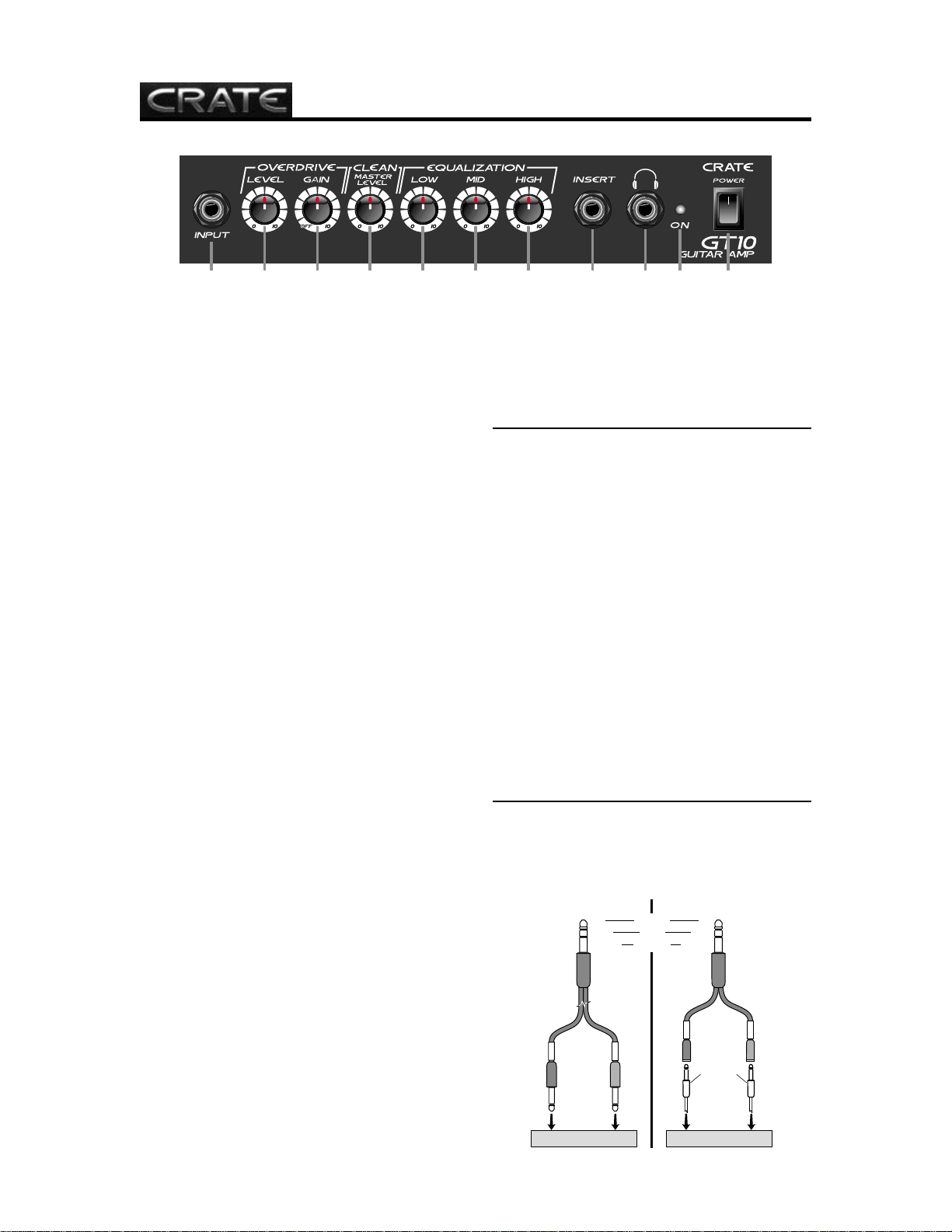

1: INPUT:Connect your guitar to this jack by means of
a shielded instrument cable.
2: OVERDRIVE LEVEL: Use this control to increase
the volume and add “crunch” to your sound. This control
is only active when the Overdrive Gain control (#3) is
turned on. (For more information please see the section
entitled “Getting Your Sound.”)
3: OVERDRIVE GAIN: Use this control in conjunction
with the Overdrive Level control (#2) to add distortion to
your sound. (For more information please see the section entitled “Getting Your Sound.”)
4: CLEAN MASTER LEVEL:Use this control to set the
overall output level of the amp. (For more information
please see the section entitled “Getting Your Sound.”)
5: LOW: Use this control to adjust the output level of the
low frequencies. Rotating this control counter clockwise
reduces the low frequency output; rotating it clockwise
increases it.
6: MID: Use this control to adjust the output level of the
midrange frequencies. Rotating this control counter
clockwise reduces the midrange frequency output; rotating it clockwise increases it.
7: HIGH: Use this control to adjust the output level of the
high frequencies. Rotating this control counter clockwise
reduces the high frequency output; rotating it clockwise
increases it.
8: INSERT: Use this jack to connect an external effects
to the amplifier. Use a stereo 1/4” male Y-cord: ring =
send, tip = return, sleeve = ground. Send goes to the
effect’s input; return comes from its output. (For more
information please see the section entitled “Connecting
to the Insert Jack.”)
9: HEADPHONES: Use this jack to connect a pair of
stereo headphones for private listening. The external
speaker is disconnected when headphones are in use.
10: POWER LED: This LED will illuminate when power
is applied to the amplifier.
11: POWERSWITCH: Use this switch to turn the amplifier on and off.
12: ACLINE IN: (Rear panel, not shown) The grounded power cord should only be plugged into a grounded
power outlet that meets all applicable electrical codes
and is compatible with the voltage, power, and frequency requirements stated on the rear panel. Do not
attempt to defeat the safety ground connection.
Getting Your Sound: The Level, Gain and Master
Level controls (#2, 3 & 4) can be used together to create a wide variety of sounds. The following guidelines
will help you achieve your desired sound.
Clean Sounds: Set the Gain control to “OFF” (the Level
control will be inactive). Use the Master Level control to
set the output level.
“Crunch” Sounds: Set the Level control to 11 o’clock
and the Gain to 9 o’clock. Use the Master Level control
to set the output level. (The Master Level control should
be adjusted to a lower setting as the Level and Gain
controls are increased.)
Rhythm Sounds: Set the Level control around 11
o’clock and the Gain at or near “10”. Use the Master
Levelcontrol to set the output level.
Lead Sounds: Set the Level and Gain controls at or near
“10”. Use the Master Level control to set the output level.
Connecting to the Insert Jack: Use Crate’s STP201,
STP202 or STP203 stereo-to-mono Y-cord or an
adapter such as Crate’s YPP117 and 2 1/4” mono signal cables to connect to the effect as shown:
1 2 3 4 5 6 8 9 10 117
Stereo-to-mono Y-cord:
(STP201, 3'
STP202, 6'
STP203, 9')
TIP
to Insert
RING
jack
SLEEVE
to
effect
"IN"
jack
RING
TIP
to
effect
"OUT"
jack
External Effect External Effect
Y-adapter and 2 cables:
RETURN
SEND
GROUND
TIP
RING
SLEEVE
(YPP117)
TIP
(1/4"-TO-1/4"
MONO CABLES)
to
effect
"OUT"
jack
to Insert
jack
RING
to
effect
"IN"
jack
Page 4
GT10 TECHNICAL SPECIFICATIONS:
Output Power Rating 10W RMS @ 1% THD, 4Ω, 120 VAC
14W @ 10% THD
Speaker Size 6”
Input Impedance 500k ohms
Minimum Noise 1mV
Maximum Noise 10mV
Distortion 9%
Power Requirements 120 VAC, 60Hz, 20VA
100/115VAC, 50/60Hz, 20VA
230VAC, 50/60Hz, 20VA
Size and Weight 14” H x 12-1/2” W x 6” D, 12 lbs.
The GT10 is covered with a durable Tolex material: wipe it clean with a lint-free cloth.
Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish.
Crate continually develops new products, as well as improves existing ones. For this reason, the specifications
and information in this manual are subject to change without notice.
www.crateamps.com
@2002 SLM Electronics, a division of St. Louis Music, Inc • 1400 Ferguson Avenue • St. Louis, MO 63133
18-489-02 • 07/02
