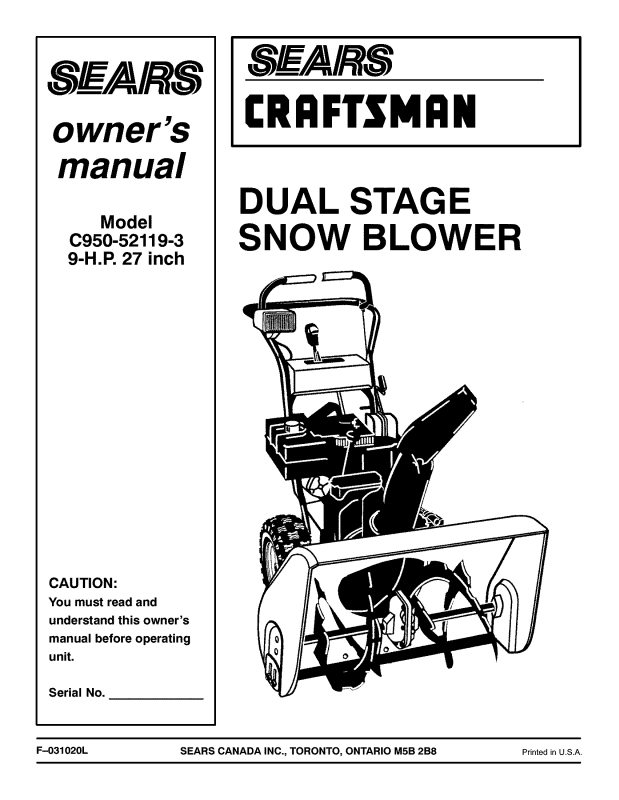

Craftsman C950-52119-3 Owner's Manual

SWA/RS

owner's

manual

Model

S _ARS

CRAFTSMRN

DUAL STAGE

C950-52119-3

9-H.P. 27 inch

SNOW BLOWER

CAUTION:
You must read and

understand this owner's
manual before operating

unit.

Serial No.

F-O31020L SEARS CANADA INC., TORONTO, ONTARIO M5B 2B8 PrintedinU,S,A,

RULES FOR SAFE OPERATION

IMPORTANT

_hL ARNING: Always disconnect the spark plug wire and place it where it cannot make contact with _'_

spark plug to prevent accidental starting during: Preparation, Maintenance, or Storage of your
snow blower.

SAFE OPERATION PRACTICES FOR WALK-BEHIND SNOW BLOWER

DO NOT OPERATE THIS EQUIPMENT BEFORE READING THIS MANUAL

(c) Fill fuel tank outdoors with extreme care. Never fill

fuel tank indoors.

(d) Replace gasoline cap securely and wipe up spilled

Engine Exhaust, some of its constituents, and
certain vehicle components contain or emit

chemicals known to the State of California to
cause cancer and birth defects or other repro-

ductive harm.

Battery posts, terminals and related accesso-
ries contain lead and lead compounds, chemi-

cals known to the State of California to cause
cancer and birth defects or other reproductive

harm. WASH HANDS AFTER HANDLING.

TRAINING

1. Read the operating and service instruction manual care-
fully. Be thoroughly familiar with the controls and the

proper use of the equipment. Know how to stop the unit
and disengage the controls quickly.

2. Never allow children to operate the equipment. Never al-

low adults to operate the equipment without proper in-
struction.

3. Keep the area of operation clear of all persons, particu-

larly small children and pets.

4. Exercise caution to avoid slipping or falling especially

when operating in reverse.

PREPARATION

t. Thoroughly inspect the area where the equipment is to

be used and remove all doormats, sleds, boards, wires,
and other foreign objects.

2. Disengage all clutches before starting the engine.

3. Do not operate the equipment without wearing adequate

winter outer garments. Wear footwear that wilt improve

footing on slippery surfaces.

4. Handle fuel with care; it is highly flammable.

(a) Use an approved fuel container.
(b) Never add fuel to a running engine or hot engine.

F-031020L

fuel.

5,

For all units with electric starting motors use electric
starting extension cords certified CSA!UL. Use only with

a receptacle that has been installed in accordance with
local inspection authorities.

,

Adjust the auger housing height to clear gravel or
crushed rock surface.

7.

Under no circumstances should any adjustments be
made while the engine is running (except when specifi-
cally recommended by manufacturer).

8. Let engine and machine adjust to outdoor temperatures
before starting to clear snow.

9. Always wear safety glasses or eye shields during opera-

tion or while performing an adjustment or repair to protect

eyes from foreign objects that may be thrown from the
machine.

OPERATION

1. Do not put hands or feet near or under rotating parts.
Keep clear of the discharge opening at all times.

2. Exercise extreme caution when operating on or crossing
gravel drives, walks or roads. Stay alert for hidden haz-

ards or traffic.

3. Never discharge snow onto public roads or near moving

traffic.

4. After striking a foreign objecL stop the engine, remove

the wire from the spark plug, thoroughly inspect snow

blower for any damage, and repair the damage before re-
starting and operating the snow blower.

5. Ifthe unit should start to vibrate abnormally, stop the en-
gine and check immediately for the cause. Vibration is
generally a warning of trouble.

6. Stop the engine and remove spark plug wire whenever
you leave the operating position, before unclogging the
auger/Impeller housing or discharge chute and when

making any repairs, adjustments, or inspections.

7. When cleaning, repairing, or inspecting, make certain

the auger/Impeller and all moving parts have stopped

and all controls are disengaged. Disconnect the spark
plug wire and keep the wire away from the spark plug to
prevent accidental starting.

RULES FOR SAFE OPERATION

8. Take all possible precautions when leaving the snow
blower unattended. Disengage the auger/impeller, shift

to neutral, stop engine, and remove key.

9. Do not run the engine indoors, except when starting the
engine and for transporting the snow blower in or out of

the building. Ensure the outside doors are open; exhaust
fumes are dangerous.

10. Do not clear snow across the face of slopes. Exercise ex-

treme caution when changing direction on slopes. Do not

attempt to clear steep slopes.

11. Never operate the snow blower without proper guards,
plates or other safety protective devices in place.

12. Never operate the snow blower near enclosures, auto-
mobiles, window wells, drop-offs, and the like without
proper adjustment of the snow discharge angle. Keep
children and pets away.

13. Do not overload the machine capacity by attempting to
clear snow at too fast a rate.

14. Never operate the machine at high transport speeds on
slippery surfaces. Look behind and use care when back-
ing up.

15. Never direct discharge at bystanders or allow anyone in

front of the unit.

16. Disengage power to the collector/impeller when snow
blower is transported or not in use.

MAINTENANCE AND STORAGE

1. Check shear bolts and other bolts at frequent intervals for
proper tightness to be sure the equipment is in safe work-
ing condition.

2. Never store the machine with fuel in the tank inside a
building where ignition sources are present such as hot

water and space heaters, clothes dryers, and the like. Al-
low the engine to cool before storing in any enclosure.

3. Always refer to operator's guide instructions for impor-

tant details if the snow blower is to be stored for an ex-
tended period.

4. Maintain or replace safety and instruction labels, as nec-
essary.

5. Run the machine 2 minutes with auger clutch lever en-
gaged after blowing snow to prevent freeze-up of the au-
ger/impeller.

WARNING: Do not

use hands to un-
clog discharge

chute.

• Stop engine/motor before removing debris.

• Do not walk in front of running machine.

17. Use only attachments and accessories approved by the
manufacturer of the snow blower (such as wheel
weights, counterweights, cabs, and the like).

18. Never operate the snow blower without good visibility or
light. Always be sure of your footing and keep a firm hold

on the handles.

19. Do not over-reach. Keep proper footing and balance at
all times.

20. Do not attempt to use snow blower on a roof.

WARNING: Avoid

injury from rotating
auger- keep hands,

feet, and clothing

away.

F-031020L 3

• Do not discharge at bystanders.

• Keep people and pets a safe distance from the

machine.

• Before leaving machine, shut off engine/motor

and remove key.

OWNER'S INFORMATION

DATE PURCHASED:

MODEL NO:
SERIAL NO:
STORE WHERE PURCHASED:
ADDRESS:
CITY: PROVINCE:
TELEPHONE :

_Record this information about your unit so that you will

be able to provide it in case of loss or theft.

MAINTENANCE AGREEMENT

The Craftsman Warranty, plus a Maintenance Agree-

ment, provide maximum value for Sears products. Con-

tact your nearest Sears store for details.

Horse Power 9 HP

Gasoline Capacity 4 quarts (4 litre)

Oil Capacity (5W30) 26 oz. (.77 litre)

Spark Plug: (Gap .030 in.) Champion RJ19LM

Tire Pressure *

• See side of the tire for maximuminflation. Do not exceedthe
maximum pressureon the tire wall.

CUSTOMER RESPONSIBILITIES
Read and observe the safety rules.

Follow a regular schedule in maintaining, caring for and
using your snow blower.

Follow the instructionsunder "Customer Responsibilities"
and "Storage" sections of this owner's manual.

WHEELED SNOW BLOWER

LIMITED TWO (2) YEAR WARRANTY ON CRAFTSMAN SNOW BLOWER

For two (2) years from date of purchase, Sears Canada Inc. wilt repair or replace free of charge, at Sears option, parts
which are defective as a result of material or workmanship.

COMMERCIAL OR RENTAL USE:
Warranty on snow blower will be 90 days from date of purchase ifused for commercial or rental purposes.

THIS WARRANTY DOES NOT COVER:

1. Pre_lelivery set-up.

2. Expendable items which become worn during normal use, such as belts, spark plugs, filter, shear pins as well as

damages to the engine resulting from operating the snow blower with insufficient oil.

3. Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps or glass.

4. In home service.

Warranty service is available by returning the Craftsman snow blower to the nearest Sears Service Centre/Department
in Canada. This warranty applies only while this product is in use in Canada.

This warranty is in addition to any statutory warranty and does NOT exclude or limit legal rights you may have but shall
run concurrently with applicable provincial legislation. Furthermore, some provinces do not allow limitations on how long
an implied warranty will last so the above limitations may not apply to you.

SEARS CANADA INC., TORONTO, ONTARIO M5B 2B8

F-031020L 4

TABLE OF CONTENTS

RULES FOR SAFE OPERATION .................... 2

OWNER'S INFORMATION ......................... 4

ASSEMBLY ...................................... 6

TOOLS REQUIRED FOR ASSEMBLY ............. 6

CONTENTS OF SHIPPING CARTON .............. 6

PARTS BAGS CONTENTS: ...................... 6

UNPACKING ................................... 7

UPPER HANDLE AND CRANK ASSEMBLY ........ 8

CHECK THE CABLES ........................... 8

HOW TO SET THE LENGTH OF THE CABLES ..... 8

SPEED SELECT LEVER ......................... 9

SNOW CHUTE ASSEMBLY ..................... 10

HEADLIGHT ASSEMBLY ....................... 10

SERVICE RECOMMENDATIONS .................. 19

CUSTOMER RESPONSIBILITIES .................. 20

SNOW BLOWER .............................. 20

AS REQUIRED ................................ 20

LUBRICATION AT STORAGE ................... 20

LUBRICATION - EVERY 10 HOURS ............. 20

LUBRICATION - EVERY 25 HOURS ............. 21

ENGINE ...................................... 22

ADJUSTMENT/REPAIR .......................... 23

AUGER HOUSING HEIGHT ADJUSTMENT ....... 23

TO ADJUST SCRAPER BAR .................... 23

TO ADJUST SKID HEIGHT ..................... 23

BELT ADJUSTMENT ........................... 24

OPERATION .................................... 11

OPERATING CONTROLS ....................... 11

SNOW BLOWER OPERATION .................. 12

WHEEL LOCK OUT PIN ........................ 13

BEFORE STARTING ENGINE ................... 14

CHECK THE OIL .............................. 14

FILL GAS ..................................... 14

BEFORE STOPPING THE ENGINE .............. 14

TO START ENGINE ............................ 15

OPERATING TIPS ............................. 18

HOW TO REMOVE THE AUGER DRIVE BELT .... 25

HOWTO REMOVE THE TRACTION DRIVE BELT . 26

BELT GUIDE ADJUSTMENT .................... 27

HOW TO CHECK AND ADJUST THE CABLES .... 27

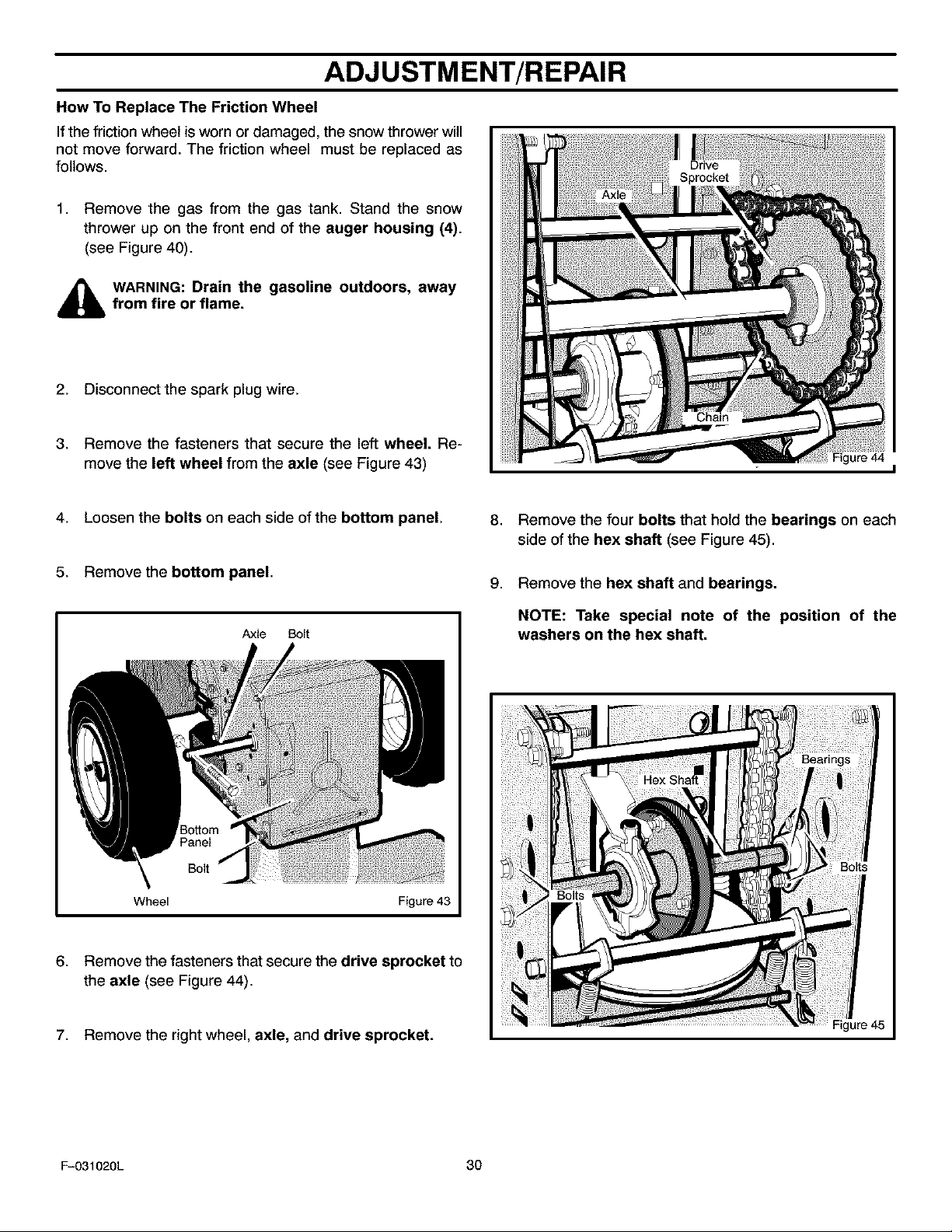

HOW TO ADJUST OR REPLACE

THE FRICTION WHEEL ...................... 29

AUGER SHEAR BOLT REPLACEMENT .......... 32

STORAGE ...................................... 33

TROUBLE SHOOTING CHART .................... 34

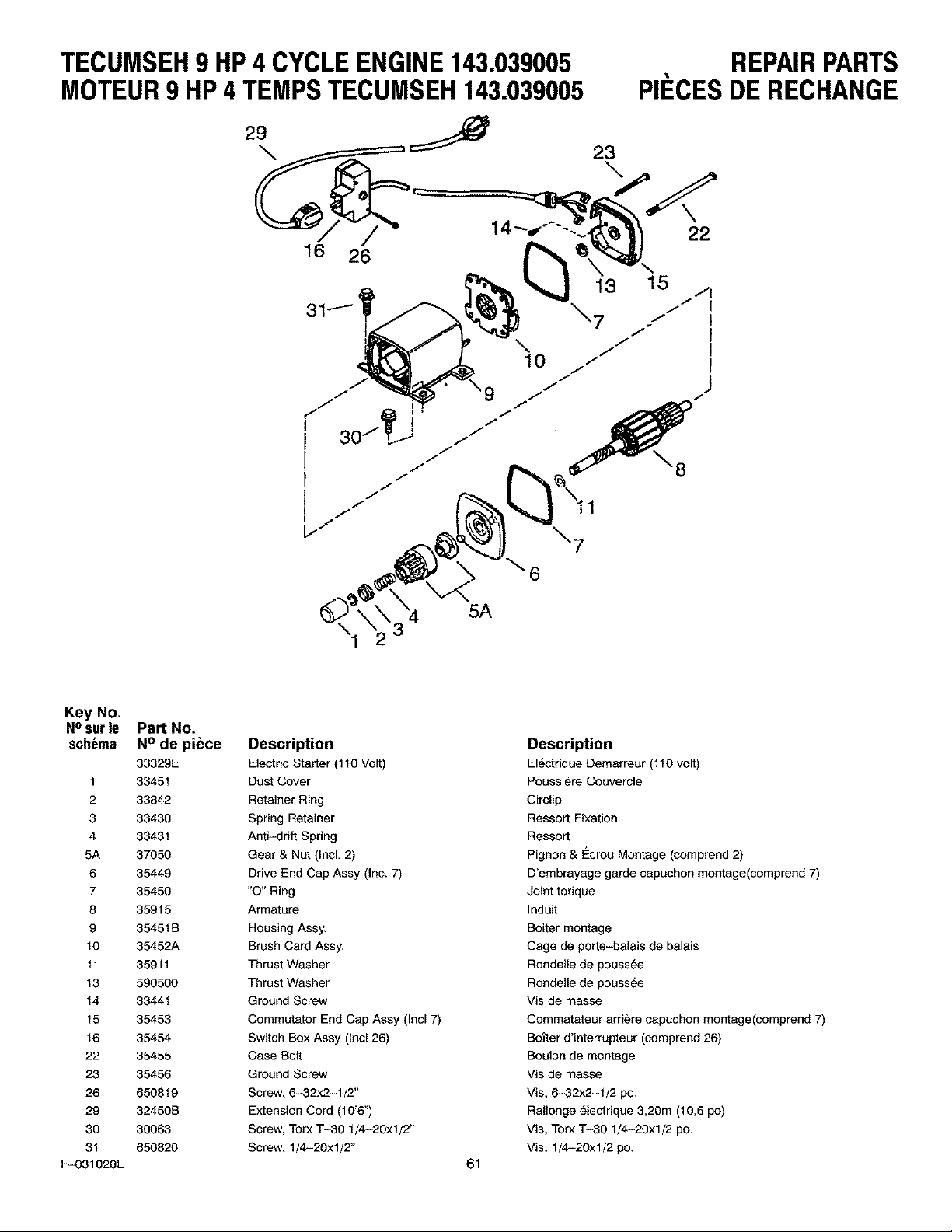

REPAIR PARTS .................................. 35

PARTS ORDERING SERVICE ..................... 62

F-031020L 5

ASSEMBLY

TOOLS REQUIRED FOR ASSEMBLY

1 - Knife
2 - 1/2" wrenches (or adjustable wrenches)

2 - 9/16" wrenches (or adjustable wrenches)
2 - 3/4" wrenches (or adjustable wrenches)

1 - 3/8" wrenche (or adjustable wrench)
1 - Pair pliers or screw driver (to spread cotter pin)

HOW TO MEASURE SCREW SIZE

LENGTH

DIAMETER

PARTS BAGS CONTENTS:

CONTENTS OF SHIPPING CARTON

1- Snow Blower
1- Container of Fuel Stabilizer

1- Snow Chute Assembly
1- Crank Assembly

1- Parts Bag

,_ WARNING: Always wear safety glasses or eye

shields while assembling snow blower.

1- Shifter Knob

* 2-1/4-20 x 1.75

*Non Assembly parts are found in toolbox located on top of belt cover.

F-031 O20L 6

* 2-Spacer

I

* 2 - Wrenches

* 2-1/4-20

Hex nut

ASSEMBLY

Figure 1 shows the snow blower in the shipping position.

Figure 2 shows the snow blower completely assembled.

Reference to right and left hand side of the snow blower is

from the operator's position at the handle.

UNPACKING

1. Locate the two tear tabs at the bottom of the carton.

2. Pull the tear tape no more than twelve inches (30.48cm.)
at a time. Re-grasp tape next to the carton and pull

again. Repeat until all the tape is torn off.

3. After the tape has been completely removed from the
carton, remove the carton from the base. Cut all four cor-

ners and fold the sides toward the center for easy dispos-
al.

4. Remove the plastic bag that covers the unit.

5. Locate and remove the the parts bag.

NOTE: Set the fuel stabilizer aside until adding
gasoline to the fuel tank. We recommend that fuel
stabilizer is added to the fuel each time that gasoline

is added to the fuel tank.

6. For shipping purposes, the height adjust skids are at-

tached to the pallet. Remove the screw that secures

each height adjust skid to the pallet. (See Figure 2).

Auger Drive
Clutch Lever

Headl

Assembly

Screw

Skid

Speed
Selector

Lever

Drive

Cable

Figure 1

Traction Drive

Traction

Drive Cable

Crank

Snow Chute

Deflector

_rHousing

Figure 2

7. Roll the snow blower off the carton by pulling on the lower
handle.

CAUTION: DO NOT back over cables.

8. Remove the packing material from the handle assembly.

9. Cut ties securing the clutch control cables to the lower
handle.

NOTE: If the cables have become disconnected from the
clutch levers, reinstall the cables as shown in Figure 3.

F-031020L 7

Traction Drive Lever

Cable

Figure 3

ASSEMBLY

UPPER HANDLE AND CRANK ASSEMBLY

/

1. Loosen, but do not remove the screws, flatwashers, lock-
washers and hex nuts in the upper holes of the lower han-

dle.

2. Remove the fasteners and the crank assembly eyebolt

from the lower holes of the lower handle.

3. Raise upper handle into operating position. Upper han-
dle should be to the outside of the lower handle.

NOTE: Make sure the cables are not caught between

the upper and lower handle.

4. Install the fasteners and the crank assembly eyebolt that
were removed in step 2. DO NOT tighten until all fasten-
ers are in place.

5. Attach the crank rod to the universal joint assembly with

the hair pin (see Figure 5).

6. Tighten nut on eye bolt. Make sure eye bolt is properly
aligned and the crank can freely rotate.

Eye Bolt

Adap_rBo_

Lockwasher

Locknut Nutt_

Flatwasher

_" Bolt

!

\

Flatwasher

Figure 4

7. Tighten all handle bolts.

NOTE: Make sure crank does not touch carburetor
cove_

CHECK THE CABLES

1. If control cables have become unattached from motor
mount frame, reconnect cables as shown in Figure 6.

2. For cable adjustments, see "How To Check And Adjust

The Cables" in the ADJUSTMENT/REPAIR section.

HOW TO SET
THE LENGTH OF THE CABLES

The cables were adjusted at the factory and no adjustments

should be necessary. However, after the handles are put in

the operating position, the cables can be too tight or too

loose. If an adjustment is necessary, see "How To Check And
Adjust The Cables" in the Service And Adjustment section.

Traction Drive Cable

Figure 5

Auger Drive Cable

F-031020L 8

Figure 6

ASSEMBLY

SPEED SELECT LEVER

1. Cut plastic tie securing speed select lever assembly to

the shifter bracket. (See Figure 7)

2. Remove locknut, washer, spring, and the bolt. (See
Figure 9)

3. Position speed selector lever assembly as shown in
Figure 8.

4. Reinstall bolt, spring, washer and locknut. (See Figure 9)

5. Tighten Iocknut until 1/8 to 3/16 inch of the bolt threads
protrude past the locknut.

Shifter Bracket

Plastic Tie

Figure 7

Shift Lever

6. Thread the plastic knob as far as possible and ensure

that the knob points forward.

7. Tighten the 3/8-16" hexjam nut against the knob secure-
ly.

of the spring. If shifter lever sticks in any of the notches,
loosen locknut 1/2 turn at a time until shifter lever moves

more freely.

9. If adjustment of speed of snow blower is needed, refer to
"Friction Wheel Adjustment" in the ADJUSTMENT/RE-
PAIR section.

Control Panel

NOTE: View is from rightside of unit standing in operator's position.8. Move shifter through all speeds to ensure proper tension

Plastic Knob _8-16 Hex Jam Nut

Control Panel

(pointed
forward)

Figure 8

Shift Lever

Locknut

1_to3/16inchof

Exposed Thread

F-031020L 9

i I Figure 9

ASSEMBLY

SNOW CHUTE ASSEMBLY HEADLIGHT ASSEMBLY

1. Position the snow chute onto the snow chute flange. Al-
ign the three holes in the snow chute with holes in snow
chute flange. (See Figure 10)

2. Place three 5/16-18 carriage bolts from inside of chute
as shown in Figure 10.

3. Place three 5/16-18 flatwashers and three 5/16-18 nuts
on outside of flange.

4. Tighten all carriage bolts securely.

NOTE: DO NOT overtigten carriage bolts.

Chute Extension

\

Snow Chute Deflector

The headlight is mounted on the right side of the upper
handle. It is installed upside_lown for shipping purposes.

1. Remove the nut and lock washer from the carriage bolt.

2. Turn the headlight to the top side of the upper handle. En-
sure external tooth lock washer and saddle washer are

in place as shown in Figure 11.

3. Install the nut and lock washer to secure the headlight to

the handle. The headlight should point toward the snow

clearing path.

External Toot

Lockwasher

Nut/ _ Carriage Bolts

Flatwasher Flange

Figure 10

CHECK THE TIRES

The tires were over inflated for shipment. Check the tire

pressure in the tires. See the sidewall of the tire for the
proper inflation.

NOTE: This snow blower was shipped WITH OIL in the engine. See "Before Starting Engine" in-

I

structions in the Operation section of this manual before starting engine.

Hex Nut

Figure 11

IMPORTANT! BEFORE YOU START

OPERATING

Check the fasteners. Make sure all fasteners are

tight.

On electric start models, the unit was shipped with

the starter cord plugged into the engine. Before

operating, unplug the starter cord from the engine.

F-031020L 10

OPERATION

Get to know your snow blower and itscontrols. Be sure you (or any other operator) have read and understood the Operation
Precautions listed on page 2 of this manual.

Carburetor

Cover

Choke \

Electric Start Button

Primer Button

Ignition Key

Oil Fill Cap/Dipstick

Throttle Control

Lever

Headlight

Assembly

Starter Handle

Auger Drive Clutch Lever

Clutch Lever

Speed

Select

Lever

Drive

Cable

Height

Adjust Skid

Traction Drive

Traction Drive

Cable

Crank

Assembly

Deflector

Auger Housing

ENGINE AND SNOW BLOWER OPERATING CONTROLS

The engine operating controls and their functions are as

follows:
Throttle Control Lever - This snow blower is equipped with

an engine mounted throttle control lever used to start a cold
engine.

Choke Lever- Set choke lever to ON CHOKE position to
start a cold engine.

Electric Start Button- Used to start the engine using the
120 volt electric starter.

Prime Button- Used to inject fuel directly into carburetor
manifold to insure fast starts in cool weather.

Ignition Key- Must be inserted into ignition key slot to start
engine. Pull out to stop. Do not turn ignition key.

Starter Handle- Starts the engine manually.

The snow blower operating controls and their functions

are as follows:
Speed Select Lever- Allows the operator to use one of six

(6) forward and two (2) reverse speeds. To shift, move speed
select lever to desired position.

F-031020L 11

Figure 12

NOTE: Do not move speed select lever while Traction
Drive Clutch is engaged. This may result in severe
damage to drive system.

Auger Drive Clutch Lever- Used to engage and disengage

the auger and impeller. To engage push down, to disengage
release.

Traction Drive Clutch Lever- Used to propel snow blower
forward or reverse. Push down to engage, release to
disengage.

Snow Chute Deflector- Changes the direction the snow is
blown.

Crank- Used to change direction of the snow discharge.
Turn handle clockwise to turn chute to right. Turn handle

counter clockwise to turn chute to left.
Height Adjust Skid- Used to adjust ground clearance of

auger housing (see To Adjust Skid Height in the
Adjustment!Repair section ofthis manual).

Toolbox - Spare shear pins, shear bolt wrenches and
spacers are located in toolbox.

OPERATION

_ The operation of any snow blower can result in foreign objects being thrown into the eyes,which can

result in severe eye damage. Always wear safety glasses or eye shields before beginning snow blower
Operation. We recommend standard safety glasses or Wide Vision Safety Mask for over spectacles.

SNOW BLOWER OPERATION

WARNING: Read Owner's Manual before oper-

The most effective use of the snow blower wilt be established

by experience, taking into consideration the terrain, wind
conditions and building location which will determine the

direction of the discharge chute.

NOTE: Do not blow snow towards a building as hidden
objects could be blown with sufficient force to cause
damage.

1. Start the engine as described in section "To Start Engine"
(see Page NO TAG).

2. Adjust snow chute deflector. Loosen wing nut on the side
of the snow chute and raise chute deflector for more dis-

tance. Tighten wing nut. (see Figure 14).

3. Using crank, position the discharge chute to discharge
snow with the wind.

4. Select proper speed for snow conditions as outlined be-
low and set speed select lever to desired position.

NOTE: Always release traction drive clutch lever
before moving speed select lever.

Never operate the snow blower without all guards, cov-
ers, and shields in place.

Never direct discharge towards windows or allow by-
standers near machine while engine is running.
Stop the engine whenever leaving the operating posi-

tion.

Disconnect spark plug before unclogging the impeller
housing or the discharge chute and before making re-
pairs or adjustments.

When leaving the machine, remove the ignition key.
To reduce the risk of fire, keep the machine clean and

free from spilled gas, oil and debris.

ating machine. This machine can be dangerous

if used carelessly.

ENGINE WILL NOT

START UNLESS

IGNITION KEY IS
INSERTED INTO
IGNITION SLOT IN

CARBURETOR COVER.

DO NOT TURN
IGNITION KEY.

Figure 13

Ground speed is determined by snow conditions. Select

the speed you desire by moving the speed selector into
the appropriate area on the control panel.

1-2 Wet, Heavy, Slushy, Extra Deep
3 Moderate

4-5 Very Light

6 Transport Only
NOTE: When clearing wet, heavy snow, it is

recommended that the ground speed of the unit be
reduced, maintain full throttle and do not attempt to

clear the full width of the unit.

For additional operating instructions see "Operating

Tips" in this section of the manual.

5. Engage auger drive clutch lever (right hand-Figure 15).

IMPORTANT: Be sure front of unit is clear of

bystanders or obstacles before operating.

6. Engage traction drive clutch lever (left hand-Figure 15).
As the snow blower starts to move, maintain a firm hold

on the handles and guide the snow blower along the cut-

ting path. Do not attempt to push the snow blower.

F-031020L 12

Disengaged____._

i

i

Engaged

Tee Knobs

Traction Drive

Clutch Lever

Figure 14

Auger Drive

Clutch Lever

Disengaged

|

/ Engaged

Figure 15

OPERATION

7. To stop forward motion, release traction drive clutch lever
(left hand - Figure 15).

8. To stop the auger, release auger drive clutch lever (right
hand - Figure 15).

9. To move the snow blower backwards, move speed select
lever into first or second reverse and engage traction

drive clutch lever (left hand). To stop, release traction
drive clutch lever.

WHEEL LOCK OUT PIN

1. The right wheel is secured to the axle with a klick pin. This
unit was shipped with this klick pin in the locked position.

(Figure 16).

WARNING: Never run engine indoors or in an

enclosed, poor ventilated area. Engine exhaust
contains CARBON MONOXIDE, an OR-

DERLESS and DEADLY GAS.
Keep hands, feet, hair and loose clothing away from

any moving parts on engine and snow blower.

Temperature of muffler and nearby areas can exceed

150 + F (66 ° C). Avoid these areas.
DO NOT allow children or young teenagers to operate

or be near snow blower while it is operating.

Locked

Position

Figure 16

2. For ease of maneuverability when lighter conditions pre-
vail, remove klick pin from wheel locked position and in-

sert into single wheel drive (unlocked) position
(Figure 17). Make sure that the klick pin is in the single
wheel drive position of the axle only and not through the
locked position.

Single Wheel

Drive Position

(Unlocked)

Figure 17

NOTE: Check tire pressure. See side of tire for maximum
inflation. Do not exceed listed maximum pressure.

WARNING: Do not attempt to remove any item

that may become lodged in auger without tak-

ing the following precautions:

• Release auger and drive clutch levers.

• Move throttle lever to STOP position.

• Remove the ignition key.

• Disconnect the spark plug wire.

• Do not put your hands in the auger or

discharge chute. Use a pry bar.

F-031020L 13

OPERATION

BEFORE STARTING ENGINE

Check the oil
NOTE: The engine was shipped from the factory filled

with oil. Check the level of the oil. Add oil as needed.

1. Make sure the unit is level.

2. Remove the oil fill cap/dipstick. Check the oil.
NOTE: Do not check the level of the oil while the

engine runs.

3. If necessary, add oil until the oil reaches the FULL mark
on the oil fill/cap dipstick (see Figure 18). Do not add too
much oil.

NOTE: For extreme cold operating conditions of 0°F
(-18 ° C) and below, use a synthetic 0W30 motor oil for

easier starting.
NOTE: S.A.E. 5W30 motor oil may be used to make

starting easier in areas where the temperature is 20 ° F.
(-7 ° C) to 0°F (-18 ° C).

NOTE: SEE CHART FOR OIL RECOMMENDATION

TEMPERATURE TYPE OF OIL

20 ° F. to 0°F

(-7 ° C) to (-18 ° C) S.A.E. 5W30

2. Check to make sure that spark plug istightened securely
into engine and spark plug wire isattached to spark plug.
If torque wrench is available, torque plug to 18-23 ft_bs.

WARNING: Gasoline is flammable. Always use

caution when handling or storing gasoline. Do

not add gasoline to the fuel tank while snow

blower is running, hot, or when snow blower is in an en-
closed area. Keep away from open flame, electrical
sparks and DO NOT SMOKE while filling the fuel tank.

Never fill the fuel tank completely; but fill the fuel tank

to within 1/4-1/2 inch (6.5-12.5 mm) from the top to pro-
vide space for the expansion of the fuel. Always fill fuel

tank outdoors and use a funnel or spout to prevent spil-

ling. Make sure to wipe up any spilled fuel before start-
ing the engine.
Store gasoline in a clean, approved container, and keep

the cap in place on the container. Keep gasoline in a

cool well ventilated place; never in the house. Never
buy more than a 30 day supply of gasoline to assure

volatility. Gasoline Is intended to be used as a fuel for

internal combustion engines; therefore, do not use
gasoline for any other purpose. Since many children

like the smell of gasoline, keep it out of their reach be-
cause the fumes are dangerous to inhale, as well as be-

ing explosive.

0OF

(-18 ° C) and below synthetic 0 W30

SAE VISCOSITY GRADES

°F 20 0 20 32 40

°C -30 -20 -10 0 10

, = , , ,

I • • I •

FILL GAS

1. Fill the fuel tank with fresh, clean, unleaded regular, un-
leaded premium, or reformulated automotive gasoline a-

long with a fuel stabilizer (follow instructions on fuel
stabilizer package). DO NOT use leaded gasoline. We

recommend that fuel stabilizer is added to the fuel each

time that gasoline is added to the fuel tank.

NOTE: Winter grade gasoline has higher volatility to
improve starting. Be certain container is clean and

free from rust or other foreign particles. Never use

gasoline that may be stale from long periods of
storage in the container.

CAUTION: DO NOT use gasoline containing any
amount of alcohol as it can cause serious damage to

the engine or significantly reduce the performance.

F-031020L 14

Oil Fill

ff

%

Figure 18

BEFORE STOPPING THE ENGINE

Run the engine for a few minutes to help dry off any moisture
on the engine.

To help avoid possible freeze-up of the starter, proceed as
follows:

Recoil Starter

With the engine running, pull the starter rope with a rapid
continuous full arm stroke three or four times.

NOTE: The normal sound made by pulling the starter
rope will not harm the engine or the starter.

Electric Starter

1. Connect the power cord to the switchbox and then to a
walt outlet.

OPERATION

2. With the engine running, push the starter button and spin
the starter for several seconds.

NOTE: The normal sound made by spinning the
starter will not harm the engine or the starter.

3. Disconnect the power cord from the receptacle first and
then from the switchbox.

TO START ENGINE
Be sure that engine has sufficientoil.

The snow blower engine is equipped with a recoil starter.

Cap/Dipstick

Primer Button

Carburetor
Cover

Starter Handle

Ignition
Key

Throttle Control Lever Figure 19

COLD ENGINE START (RECOIL STARTER)
(SEE FIGURE 19)

(Engine has not been run recently.)

1. Be sure auger drive clutch lever and traction drive clutch

lever are in the disengaged (RELEASED) position.

2. IN TEMPERATURES ABOVE 0°F (-18°C)

Move throttle control to"FAST" position.
IN TEMPERATURES BELOW 0°F (-18°C)

Move throttle control to "1/2 THROTTLE" position. Be-

fore engaging auger drive clutch lever allow engine to

idle for five minutes to allow engine oil to warm. Failure

to allow engine oil to warm can cause damage to engine.

3. Insert key into ignitionslot. Make sure it snaps into place

(Figure 19). Do not turn key.

4. Rotate choke knob to the on position.

5. Push the primer button as follows:

Above 50 ° F (10° C), DO NOT PRIME.
From 50° F (10° C) to 15°F (-10 ° C), PUSH TWO TIMES.

Below 15° F (-10 ° C), PUSH FOUR TIMES.

NOTE: Cover the vent hole when as you push the
primer. Remove your finger from the primer vent
hole between pushes.

6. Pull starter handle (Figure 19) rapidly, and allow to re-

wind slowly while maintaining firm grip on handle.

F-031020L 15

7.

As engine warms up move choke lever to "1/2 choke"
position. When engine does not run smoothly, move
choke lever to the off position.

NOTE: Allow the engine to warm up for several
minutes before blowing snow in temperatures below
O°F (-18 ° C).

,

Run engine at or near top speed.

9.

To stop engine, move throttle control lever to stop posi-
tion. Remove key. Do not turn key.

WARM ENGINE START (RECOIL STARTER)
(Engine still warm from recent running.)

1,

Be sure auger drive clutch lever and traction drive clutch
lever are in the disengaged (RELEASED) position.

2,

IN TEMPERATURES ABOVE 0°F (-18°C)
Move throttle control to"FAST" position.
IN TEMPERATURES BELOW 0°F (-18°C)

Move throttle control to "1/2 THROTTLE" position. Allow
engine to idle at "1/2 Throttle" for five minutes to allow en-
gine oil to warm before engaging auger drive clutch lever.
Failure to allow engine oil to warm can cause damage to

engine.

,

Insert key into ignition slot. Make sure it snaps into place
(Figure 19). Do not turn key.

4.

CHOKE KNOB must be in the off position. Do not use
primer button.

5.

Pull starter handle (Figure 19) rapidly, and allow to re-
wind slowly while maintaining firm grip on handle.

6.

If engine fails to start after a reasonable number of start-
ing attempts, rotate choke knob to the on position and re-

peat instruction number 5.

7,

As engine warms up, move the choke lever to the "1/2
choke" position. When engine does not run smoothly,
move choke lever to the off position.

NOTE: Allow the engine to warm up for several
minutes before blowing snow in temperatures below
O°F (-18 ° C).

,

Run engine at or near top speed.

9.

To stop engine, move throttle control lever to stop posi-
tion. Remove ignition key. Do not turn the ignition key.

To help prevent possible freeze-up of recoil starter and
engine controls, proceed as follows after each snow removal

job.

1. With engine running, pull starter rope hard with a continu-
ous full arm stroke three or four times. Pulling of starter
rope will produce a loud clattering sound. This is not
harmful to the engine or starter.

2. With engine not running, wipe all snow and moisture from
carburetor cover in area of control levers. Also move
control levers backward and forward several times.

IMPORTANT: After each use of the snow blower, stop the
engine, remove the ignition key, remove all accumulated
snow from the snow blower and wipe clean. Store the
snow blower in a protected area.

OPERATION

NOTE: Never cover snow blower while engine and
exhaust area are still warm.

USE OF ELECTRIC STARTER
On models so equipped

WARNING: The electric starter is equipped with

a three-wire power cord and plug designed to
operate on 120 volt AC house hold current. The

power cord must be properly grounded at all times to

avoid the possibility of electric shock which can cause

injury to the operator. Follow all instructions carefully

as set forth below:

Make sure your house has a three-wire grounded sys-

tem. If you are not sure, ask a licensed electrician. If
your house does not have a three-wire grounded sys-
tem, do not use this electric starter under any condi-

tion.

If your house has a three-wire grounded system but a
three hole receptacle is not available to connect the
electric starter, have a three-hole receptacle installed

by a licensed electrician.

Starter Button

Power cord

Figure 21

COLD ENGINE START (ELECTRIC STARTER)
(SEE FIGURE 20 AND FIGURE 21)

(Engine has not been run recently.)

,_ WARNING: To connect a 120 volt power cord,

always connect the power cord first to the
switch box located on the engine and then plug

the other end into a three-hole grounded receptacle.

,_ WARNING: To disconnect the power cord, al-

ways unplug the end connected to the three-

hole grounded receptacle first.

Fill Cap/Dipstick

Primer Button

Carburetor
Cover

Starter Handle

NOTE: When using the 120 volt electric starter, do not
push the primer button.

1,

Be sure auger drive clutch lever and traction drive clutch
lever are in the disengaged (RELEASED) position.

2.

IN TEMPERATURES ABOVE 0°F (-18°C)
Move throttle control to"FAST" position.
IN TEMPERATURES BELOW 0°F (-18°C)
Move throttle control to "1/2 THROTTLE" position. Allow
engine to idle at "1/2 Throttle" for five minutes to allow en-

gine oil to warm before engaging auger drive clutch lever.
Failure to allow engine oil to warm can cause damage to
engine.

3. Insert key into ignition slot. Make sure it snaps into place
(Figure 20). Do not turn key.

4,

CHOKE KNOB must be in the off position.

5.

Connect POWER CORD to SWITCH BOX (Figure 21).

6.

Plug other end of POWER CORD into a three-hole,
GROUNDED 120 VOLT, AC receptacle. (See WARNING
at beginning of these instructions).

NOTE: Cover vent hole when pushing primer.
Remove finger from primer vent hole between
pushes.

Ignition
Key Throttle Control Lever Figure 20

F-031020L 16

7,

Push the primer button as follows:
Above 50 ° F (10° C), DO NOT PRIME.
From 50° F (10° C) to 15°F (-10 ° C), PUSH TWO TIMES.

Below 15° F (-10 ° C), PUSH FOUR TIMES.

8. START ENGINE:

OPERATION

a. Push STARTER BUTTON (Figure 21) to engage

starter motor and crank engine.

b. Rotate CHOKE KNOB to the on position while crank-

ing engine.

NOTE: The electric starter is thermally protected. If
overheated, the electric starter will stop

automatically and can only be restarted when it has
cooled to a safe temperature. A wait of
approximately five to ten minutes is required.

c. When engine starts, release the STARTER BUT-

TON and rotate the CHOKE KNOB gradually to the

off position.

d.

If engine falters, rotate the CHOKE KNOB immedi-
ately to the on position and then gradually to the off
position.

e.

Disconnect the POWER CORD from receptacle first,
and then from the SWITCH BOX.

9. When the engine starts, release the starter button and
move choke lever to "1/2 choke" position. When engine

does not run smoothly, move choke lever to the off posi-

tion.

NOTE: Allow the engine to warm up for several
minutes before blowing snow in temperatures below

0OF.

10. Run engine at or near top speed.

11. To stop engine, move throttle control lever to stop posi-

tion. Remove key. Do not turn key.

If, after following the preceding instructions, your engine fails

to start, have it checked by an Authorized Sears Service

Outlet.

WARM ENGINE START (ELECTRIC STARTER)
(Engine still warm from recent running.) Proceed with the

following instructions.

NOTE: Warm engine may start without choking.

1. Be sure auger drive clutch lever and traction drive clutch
lever are in the disengaged position, "RELEASED".

2.

IN TEMPERATURES ABOVE 0°F (-18°C)
Move throttle control to"FAST" position.
IN TEMPERATURES BELOW 0°F (-18°C)
Move throttle control to "1/2 THROTTLE" position. Allow
engine to idle at "1/2 Throttle" for five minutes to allow en-

gine oil to warm before engaging auger drive clutch lever.
Failure to allow engine oil to warm can cause damage to
engine.

3. Insert key into ignitionslot. Make sure it snaps into place
(Figure 17). Do not turn key.

4. CHOKE KNOB must be in the off position.

5. Connect the POWER CORD to the SWITCH BOX
(Figure 21).

6. Plug other end of POWER CORD into a three hole,
GROUNDED 120VOLT, AC receptacle (See "WARN-

ING" at beginning of these instructions).

7. START ENGINE:
a. Push STARTER BUTTON (Figure 21) to engage

starter motor and crank engine.

b. While cranking, rotate the CHOKE KNOB on the en-

gine to the on position.

NOTE: The electric starter is thermally protected. If
overheated, the electric starter will stop

automatically and can only be restarted when it has
cooled to a safe temperature. A wait of
approximately five to ten minutes is required.

c. When the engine starts, release the STARTER BUT-

TON and rotate the CHOKE KNOB gradually to the

off position.

d. If the engine falters, rotate CHOKE KNOB immedi-

ately to the on position and then gradually to the off
position.

e. Disconnect the POWER CORD from the receptacle

first and then from the SWITCH BOX.

8. Run the engine at or near top speed.

9. To stop the engine, move the throttle control lever to the
"Stop" position. Remove the ignition key. Do not turn key.

If after following the preceding instructions,your engine fails
to start, have the engine checked by an Authorized Sears

Service Outlet.

NOTE: Do not lose the ignition key. Key the ignition key
is a safe place. The engine will not start without the

ignition key.

F-031020L 17

OPERATION

OPERATING TIPS

1. For optimum snow blower efficiency, adjust ground
speed, not the throttle. REMEMBER - if the wheels slip,

forward speed will be reduced. The engine is designed
to deliver optimum performance at full throttle and must

be run at this power setting at all times.

2. Most efficient snowblowing is accomplished when snow
is removed immediately after it falls.

3. For complete snow removal, slightly overlap each swath
previously taken.

4. Snow should be discharged downwind whenever pos-
sible.

5. For normal usage, set the skids one-eighth inch (3 mm)
below the scraper bar. For extremely hard-packed snow

surfaces, the skids may be adjusted upward to insure
cleaning efficiency.

6. On gravel or crushed rock surfaces, the skids should be
set at 1-1/4 inch (32 mm) below the scraper bar (see To

Adjust Skid Height, in the Adjustment/Repair section in

this manual). Rocks and gravel must not be picked up

and thrown by the machine.

7. After the snowblowing job has been completed, allow the
engine to idle for a few minutes, to melt snow and ice ac-
cumulated on the engine.

8. Remove ice and snow accumulation from the entire s-
now blower to prevent obstructions and possible dam-

age when snow blower is subsequently operated.

9. Before starting snow blower, always inspect augers and
impeller for ice accumulation and/or debris, which could
result in snow blower damage.

10. Check oil level before every start, fill to "SAFE" indication
prior to operating snow blower.

To help avoid possible freeze-up of starter, proceed as
follows:

Recoil Starter:
With engine running, pull starter rope with a rapid continuous

full arm stroke three (3) or four (4) times.
NOTE: The unusual sound made by pulling starter rope

will not harm the engine or the starter.
Electric Starter:

1. Connect the "POWER CORD" to the "SWITCH BOX_'and

then to a 120 volt AC receptacle.

2. With engine running, push the "STARTER BUTTON"
and spin the starter for several seconds.

NOTE: The unusual sound made by spinning the

starter rope will not harm the engine or the starter.

3. Disconnect the "POWER CORD" from the receptacle

first and then from the "SWITCH BOX".

F-031020L 18

SERVICE RECOMMENDATIONS

SERVICE RECOMMENDATIONS

FIRST BEFORE EVERY EVERY EVERY BEGINNING

PROCEDURE HOUR USE OFTEN HOURS HOURS HOURS SEASON STORAGE

S Tighten all screws and nuts _/

N Check Traction Clutch

Cable Ad ustment _/

O (See Cabe Ad ustment)

W

Check Auger clutch Cable

B Ad ustment _/
L (See Cabe Ad ustment)

O Adjust Drive Belts _/ _/

W

E LubricateChainsand _ _/

Hex Shaft

R

Lubricate Auger Shaft (See
Shear Bolt Replacement) _/ _/

E

N Oil, Check _/ _/ 4

G

I

N Oil, Change _/ _/
E

2 EACH 5 10 25 EACH BEFORE

The warranty on this snow blower does not cover items that

have been subjected to operator abuse or negligence. To re-
ceive full value from the warranty, operator must maintain

snow blower as instructed in this manual. The following Ser-
vice Recommendations is supplied to assist operator to
properly maintain snow blower. This is a check list only. Ad-

justment referred to will be found in Adjustments/Repairs

section of this manual.

AFTER EACH USE

1. Check for any loose or damaged parts.

2. Tighten any loose fasteners.

3. Check and maintain the auger.

4. After each use, remove all snow and slush off the snow
blower to prevent freezing of auger or controls.

5. Check controls to make sure they are functioning proper-
ly.

6. If any parts are worn or damaged, replace immediately.

F-031020L 19

CUSTOMER RESPONSIBILITIES

Some adjustments will need to be made periodically to
properly maintain your snow blower.

All adjustments in ADJUSTMENTS/REPAIRS section of this
manual should be checked at least once each season.

SNOW BLOWER

The following adjustment should be performed more than

once each season.
Auger and Traction Drive Belts should be adjusted after the

first 2 to 4 hours of use, again about mid-season and twice

each season thereafter (See To Adjust Belts paragraph in the
Adjustment!Repair section).

AS REQUIRED

Auger Gear Box

The auger gear box is lubricated at the factory and should not

require additional lubrication.
If for some reason the lubricant should leak out, or if the auger
gear box has been serviced, add Lubriplate GR132 Grease
or equivalent. Maximum 3-1/4 ounces, (92 grams) should be

used.
Remove filler plug D (Figure 22 and Figure 23), once a year.

If grease is visible, do not add. If grease is not visible, use a
piece of fine wire, like a dipstick to check if there is grease in

the gear box. Mobitux EP1 and Shell Aldania EP1 are

suitable equivalents.

D

Filler

Plug

gure 22

Figure 23

LUBRICATION AT STORAGE
Bearings and bushings

All bearings and bushings are lifetime lubricated and require
no maintenance.

Hex shaft and chains

For storage, the hex shaft should be wiped with a cloth lightly
moistened with motor oil to prevent rusting (see Figure 25).

For storage, the chains should be lubricated with a chain type
lube. (see Figure 25).

NOTE: Any greasing or oiling of the above mentioned
components can cause contamination of the rubber

friction wheel. If the disc drive plate or friction wheel

come in contact with grease or oil damage to rubber

friction wheel will result.

F-031020L 20

If grease or oil comes into contact with the disc drive plate or
friction wheel, make sure to clean plate and wheel thoroughly

with a alcohol base solvent.

LUBRICATION - EVERY 10 HOURS

1. Auger Shaft- Using a hand grease gun, lubricate the
auger shaft zerk fittings (A) every ten (10) operating
hours. Each time a shear bolt is replaced, the auger shaft
MUST be greased (Figure 22). (See To Replace Auger
Shear Bolt in the Repair/Adjustment section).

2. For storage or when replacing shear bolts, remove shear
bolts and lubricate auger shaft zerks. Rotate augers sev-

eral times on the shaft and reinstall the shear bolts.

CUSTOMER RESPONSIBILITIES

LUBRICATION - EVERY 25 HOURS

Chute Rotation Gear

Lubricate the chute rotation gear with automotive type oil.
(see Figure 24).

Chains

1. Position speed selector lever in first (1) forward gear.

2. Stand the snow blower up on the auger housing end.

NOTE: When the crank case if filled with oil, do not
leave the snow blower standing up on the auger

housing for an extended period of time.

3. Remove the bottom panel.

4. Lubricate the chains with a chain type lubricant.

5. Wipe the hexshaft and sprockets with 5W30 motor oil.
NOTE: Clean all excess grease or oil found on the

rubber friction wheel or the disc drive plate.
CAUTION: Do not allow grease or oil to contact the

rubber friction wheel or the disc drive plate.

6. Install the bottom panel.

F-031020L 21

or rubber friction wheel come in
contact with grease or oil

=.will result.

If grease or oil come in contact with

the disc drive plate or friction wheel,
make sure to clean the plate and

wheel thoroughly with a alcohol base
solvent,

;: If the disc drive plate

to rubber friction wheel

\

Figure 25

CUSTOMER RESPONSIBILITIES

ENGINE

Check Crankcase Oil Level before starting engine and after

each 5 hours of continuous use (see Figure 26). Add proper
motor oil as required.

NOTE: Overfilling the engine can affect performance.

Tighten the oil fill cap securely to prevent leakage.

Change Oil every 25 hours of operation or at least once a

year, even if the snow blower is not used for twenty-five
hours. Use a clean, high quality detergent oil. Fill the crank
case to FULL line on dipstick (see Figure 26). Be sure original
container is marked: A.P.I. service "SF" or higher. Do not use
SAE10W4O oil (as it may not provide proper lubrication). See

Chart for oil recommendations.

To Drain Oil - Position snow blower so that the oil drain plug

is lowest point on engine. Remove oil drain plug and oil fill cap
and drain oil into a suitable container (Figure 27).

NOTE: Oil will drain more freely when warm.

Oil level

must be between
full and add mark.

Figure 26

Replace oil drain plug and tighten securely. Refill crank case
with proper motor oil or as indicated in the preceding

paragraphs of this section.

SAE VISCOSITY GRADES

°F 20 0 20 32 40

°C -30 -20 -10 0 10

, = , , ,

I • • I •

Oil Drain Plug

cap/Dipstick

Figure 27

F-031020L 22

ADJUSTMENT/REPAIR

,_ WARNING: Always turn unit off, remove igni-

AUGER HOUSING HEIGHT ADJUSTMENT
TO ADJUST SCRAPER BAR

After considerable use, the metal scraper bar will have a
definite wear pattern. The scraper bar in conjunction with the
skids should always be adjusted to allow one-eighth of an
inch (3 mm) between the scraper bar and the sidewalk or

area to be cleaned.

To adjust the scraper bar, proceed as follows:

1. Position the snow blower on a level surface.

2. Loosen the carriage bolts and nuts securing the scraper

3. Adjust the scraper bar to the proper position. Tighten the

4. For extended operation, the scraper bar may be re-

TO ADJUST SKID HEIGHT

This snow blower is equipped with two height adjust skids,

secured to the outside of the auger housing. These elevate

the front of the snow blower.

When removing snow from a hard surface area such as a
paved driveway or walk, adjust the skids up to bring the front

of the snow blower down.
When removing snow from rock or uneven construction,

raise the front of the snow blower by moving the skids down.

This will help to prevent rocks and other debris from being

picked up and thrown by the augers.

tion key and disconnect the spark plug wire be-
fore making any repairs or adjustments.

bar to the auger housing.

carriage bolts and nuts, insuring that the scraper bar is
parallel with the working surface.

versed. If the scraper bar must be replaced because of
wear, remove the carriage bolts and nuts and install a

new scraper bar.

To adjust skids, proceed as follows:

1. Place a block (equal to height from ground desired) un-
der scraper bar near but not under skid.

2. Loosen skid mounting nuts (Figure 28) and push the skid
down until it touches the ground. Retighten mounting

nuts.

3. Set skid on other side at same height.

NOTE: Make sure that snow blower is set at same height
on both sides.

_lb ARNING: Be certain to maintain proper

debris, if struck by the impeller, may be thrown with
sufficient force to cause personal injury, property dam-

age or damage to the snow blower.

ground clearance for your particular area to be
cleared. Objects such as gravel, rocks or other

Height Adjust Skic

Skid Mounting Nuts

Figure 28

F-031020L 23

ADJUSTMENT/REPAIR

BELT ADJUSTMENT

Traction Drive Belt

The traction drive belt has constant spring pressure and does

not require an adjustment. If the traction drive belt is slipping,
replace the belt. See "How To Replace The Belts" in the

Maintenance section.

Auger Drive Belt

If your snow blower will not discharge snow, check the control
cable adjustment. If it is correct, then check the condition of

the auger drive belt. If it is damaged or loose, replace it (see

Belt Replacement in this section of the manual).

1. Disconnect spark plug wire.

2. Remove screw from belt cover. Remove belt cover

(see Figure 29).

3. Loosen nut on auger idler pulley and move auger idler
pulley towards belt about 1/8 inch (3 mm) (see

Figure 32).

4. Tighten nut.

5. Have someone engage auger drive clutch. Check ten-
sion on belt (opposite idler pulley). Belt should deflect

about 1/2 inch (12.5 mm) with moderate pressure
Figure 30). You may have to move idler pulley more than

once to obtain the correct tension.

Figure 29

l ,_ Auger

E%ve

Pu,ey

J _ "_ 1/2 inch

idler_" V' _j ..._'_\ Deflection

Pulley / _' /&

Engaged _ f \,_

6. Reinstall belt cover.

7. Whenever belts are adjusted or replaced, the cables will
need to be adjusted. (See Cable Adjustment in this sec-

tion of the manual).

8. Attach the spark plug wire.

F-031020L 24

Pulley

Figure 30

ADJUSTMENT/REPAIR

HOW TO REPLACE THE BELTS 9. Adjust the auger drive belt. See "How To Adjust The Au-

ger Drive Belt" in the Maintenance section.

The drive belts are of special construction and must be

replaced with original factory replacement belts available

from your nearest authorized service center.

Some steps require the assistance of a second person.

How To Remove the Auger Drive Belt
Ifthe auger drive belt isdamaged, the snow thrower will not

discharge snow. Replace the damaged belt as follows.

1. Disconnect the spark plug wire.

2. Loosen the bolts on each side ofthe bottom panel (see
Figure 31).

3. Remove the bottom panel.

4. Remove screw from belt cover. Remove the belt cover

(see Figure 29).

5. Loosen the belt guide. Pull the belt guide away from the
auger drive pulley (see Figure 32).

6. Pull the idler pulley away from the auger drive belt.

7. Remove the old auger drive belt from the auger drive
pulley and from the engine pulley. Replace the auger

drive belt with an original factory replacement belt avail-
able from an authorized service center.

8. Install the new auger drive belt onto the auger drive
pulley and onto pulley.

10. Adjust the belt guide. See "How To Adjust The Belt
Guide" in the Maintenance section.

11. Install the belt cover. Tighten screw (See Figure 29).

12. Check the adjustment of the cables. See "How To Check
And Adjust The Cables" in the Maintenance section.

13. Install the bottom panel (see Figure 31).

14. Tighten the bolts on each side of the bottom panel.

15. Connect the spark plug wire.

Bolt

Bottom Panel

\

Auger Housing

Figure 31

E-Ring._,,

Swing Plate Axle Rod

Traction Drive Idler

\\

\

J

Traction Drive

Belt Guide

Auger Drive Pulley

Auger Drive Belt

/

Traction Drive Spring

Traction Drive Belt

Traction Drive Pulley

Engine Pulley

Figure 32

F-031O20L 25

ADJUSTMENT/REPAIR

How To Remove the Traction Drive Belt

If the snow thrower will not move forward, check the traction
drive belt for wear or damage. If the traction drive belt is worn

or damaged, replace the belt as follows.

1. Disconnect the spark plug wire.

2. Remove the auger drive belt. See "How To Remove The
Auger Drive Belt" in the Maintenance section. 13. Install the bottom panel (see Figure 31).

3. Remove the e-ring from one end of the swing plate 14. Tighten the bolts on each side of the bottom panel.
axle rod. Remove the swing plate axle rod to allow the

the swing plate to pivot forward (see Figure 32). 15. Install the belt cover. Tighten screw (see Figure 29).

4. Remove the traction drive spring.

5. Remove the old traction drive belt from the traction
drive pulley and from the engine pulley. Replace the

traction drive belt with an original factory replacement

belt available from an authorized service center.

6. Install the new traction drive belt onto the traction
drive pulley and onto engine pulley.

11. Install and adjust the auger drive belt. See "How To Re-
move The Auger Drive Belt" in the Maintenance section.

12. Adjust the belt guide. See "How To Adjust The Belt
Guide" in the Maintenance section.

16. Check the adjustment of the cables. See "How To Check
And Adjust The Cables" in the Maintenance section.

17. Connect the spark plug wire.

7. Make sure the traction drive idler pulley is properly

aligned with the traction drive belt.

8. Attach the traction drive spring.

9. Install the swing plate axle rod and secure with the e-
ring removed earlier.

10. The bottom of the swing plate must be positioned be-

tween the alignment tabs. Make sure the swing plate

is properly secured (see Figure 33).

NOTE: If the drive will not engage after the traction
drive belt has been replaced, then check to make
sure that the swing plate is positioned between the
alignment tabs.

Alignment Tabs Figure 33

F-031020L 26

ADJUSTMENT/REPAIR

BELT GUIDE ADJUSTMENT

1. Remove spark plug wire.

2. Have someone engage auger drive.

3. Measure the distance between the belt guide and belt.

The distance should be 1/8 inch (3.175 mm) for guide.

See Figure 34.

4. If adjustment is necessary, loosen belt guide mounting
bolt. Move belt guide to the correct position. Tighten

mounting bolt.

5. Reinstall belt cover.

6. Reconnect spark plug wire.

HOW TO CHECK AND ADJUST THE CABLES

The cables are adjusted at the factory and no adjustment

should be necessary. If the cables have become stretched
or are sagging adjustment will be necessary.

Whenever belts are adjusted or replaced, the cables wilt
need to be adjusted.

To check for correct adjustment, unhook "Z" fitting at

clutch lever (see Figure 35).

l _ __O_ 1B_8tl_uld(_. 175 mm)

Auger Idler -_ _

Pulley Engaged __

"Z" Fitting Control lever

Figure 34

forward position
(just contacting
plastic bumper)
when checking
cable length,

must be in full

1. Move clutch lever to the full forward position (just con-

tacting plastic bumper). Holding cable tighL note posi-
tion of fitting to hole in clutch lever.

2. The center of the "Z" fitting should be between the centre
and top of the hole in the clutch lever. Adjust either the

auger drive cable or the traction drive cable as follows.

Auger Drive Cable Adjustment

WARNING: Drain the gasoline outdoors, awayfrom fire or flame.

1. Remove the gas from the gas tank. Stand the snow

thrower up on the front end of the auger housing.

2. Push cable through spring to expose the threaded por-

tion of the cable (see Figure 36).

3. Hold square end of threaded portion with pliers and ad-

just Iocknut in or out until correct adjustment is reached.

Pull cable back through spring and connect cable.

F-031020L 27

Plastic
Bumper

Figure 35

Squa_

Cable
Spring

Locknut

Figure 36

Traction Drive Cable Adjustment

ADJUSTMENT/REPAIR

,_ WARNING: Drain the gasoline outdoors, awayfrom fire or flame.

1. Remove the gas from the gas tank. Stand the snow

thrower up on the front end of the auger housing.

2. Loosen the bolts on each side of the bottom panel (see

Figure 37).

3. Remove the bottom panel.

4. Disconnect the "Z" fitting from the drive lever (see
Figure 35).

5. Slide the cable boot off the cable adjustment bracket

(see Figure 38).

6. Push the bottom of the traction drive cable through the
cable adjustment bracket until the "Z" hook can be re-

moved.

Bolt

Bottom Panel

\

Auger Housing

Figure 37

Traction Drive Cable

Cable Boot

7. Remove the "Z" hook from the cable adjustment
bracket. Move the "Z" hook down to the next adjust-

ment hole.

8. Pull the traction drive cable up through the cable ad-

justment bracket.

9. Put the cable boot over the cable adjustment bracket.

10. Install the "Z" hook to the traction drive lever (see
Figure 35).

11. To check the adjustmenL depress the drive lever and
check the length of the drive spring (see Figure 39). In

correct adjustment, the length of the drive spring is
minimum 3 inches (76 mm.)

maximum 3-3/8 inches (85 mm.).

12. Install the bottom panel (see Figure 37).

13. Tighten the bolts on each side of the bottom panel.

Cable Adjustment Bracket

"Z" Hook

Figure 38

Figure 39

F-031020L 28

THE FRICTION WHEEL

ADJUSTMENT/REPAIR

5. Install the bottom panel (see Figure 40).HOW TO ADJUST OR REPLACE

How To Check The Friction Wheel

If the snow thrower will not move forward, check the traction
drive bell the traction drive cable or the friction wheel. If the

friction wheel is worn or damaged, it must be replaced. See

"How To Replace the Friction Wheel" in this section. If the

friction wheel is not worn or damaged, check as follows.

1. Remove the gas from the gas tank. Stand the snow

thrower up on the front end of the auger housing (see

Figure 40).

_b ARNING: Drain the gasoline outdoors, away

from fire or flame.

2. Disconnect the spark plug wire.

3. Loosen the bolts on each side ofthe bottom panel (see

Figure 40).

4. Remove the bottom panel.

5. Position the shift speed lever in the lowest forward
speed.

6. Tighten the bolts on each side of the bottom panel.

Bolt

Bottom Panel

\

Auger Housing

Figure 40

6. Note the position of the friction wheel (see Figure 41).

The correct distance "A" from the right side of the fric-

tion wheel to the outside of the motorbox is as follows:
Tire Size Distance "A"

12 and 13 inch 4-1/8" (10.5 cm.)
16 inch 4-5/16" (10.95 cm.)
If the friction wheel is not in the correct position, adjust
as follows. Figure 41

How To Adjust The Friction Wheel

Speed Control Rod

1. Position the shift speed lever in the lowest forward
speed.

Trunnion Nut

2. Remove washer and cotter pin that connect the trun-
nion nut to the shifter rod. Remove the trunnion nut

from the shifter rod (see Figure 42).

3. Move the friction wheel to the correct position (see
Figure 41).

Washer

4. Turn the trunnion nut until it is aligned with the mounting

Cotter Pin

hole in the shifter rod (see Figure 42). When aligned, at-

tach the trunnion nut and secure with washer and cot-
ter pin.

F-031020L 29

Figure 42

ADJUSTMENT/REPAIR

How To Replace The Friction Wheel

If the friction wheel is worn or damaged, the snow thrower will
not move forward. The friction wheel must be replaced as

follows.

1. Remove the gas from the gas tank. Stand the snow

thrower up on the front end of the auger housing (4).

(see Figure 40).

_IL ARNING: Drain the gasoline outdoors, away

from fire or flame.

2. Disconnect the spark plug wire.

3. Remove the fasteners that secure the left wheel. Re-
move the left wheel from the axle (see Figure 43)

4. Loosen the bolts on each side of the bottom panel.

5. Remove the bottom panel.

Axle Bolt

Figure 44

,

Remove the four bolts that hold the bearings on each
side of the hex shaft (see Figure 45).

,

Remove the hex shaft and bearings.

NOTE: Take special note of the position of the
washers on the hex shaft.

Bolt

Wheel Figure 43

6. Remove the fasteners that secure the drive sprocket to

the axle (see Figure 44).

7. Remove the right wheel, axle, and drive sprocket.

F-031020L 30

Figure 45

ADJUSTMENT/REPAIR

10. Remove the three fasteners that hold the friction wheel

to the hub (see Figure 46).

11. Remove the friction wheel from the hub. Slip the fric-

tion wheel off the hex shaft.

12. Assemble the new friction wheel onto hub with the fas-

teners removed earlier.

Fasteners

Hex Shaft

Friction

Hub

Wheel

Bearings

Actuator Arms

Bearings

Washer

/

Washer

\

Washer

15. Install the right wheel, axle, and drive sprocket with the
fasteners removed earlier. Install the chain onto the

drive sprocket (see Figure 44).

Figure 47

16. Check the adjustment of the friction wheel. See "How To

Fasteners

Figure 46

13. Install the hex shaft and bearings with the four bolts re-
moved earlier (see Figure 47).

Make sure the washers are properly installed in the
original position. Also, make sure the two washers

are properly aligned with the actuator arms.

14. Make sure the hex shaft turns freely. 21. Connect the spark plug wire.

Adjust The Friction Wheel" in this section.

17. Make sure the friction wheel and the disc drive plate are
free from grease or oil.

18. Install the bottom panel (see Figure 43).

19. Tighten the bolts on each side of the bottom panel.

20. Install the left wheel to the axle with the fasteners re-
moved earlier.

F-031020L 31

ADJUSTMENT/REPAIR

AUGER SHEAR BOLT REPLACEMENT

The augers are secured to the auger shaft with special bolts
that are designed to break if an object becomes lodged in the

auger housing. Use of a harder bolt will reduce the protection
provided by the shear bolt. To replace a broken shear bolt,
proceed as follows:

WARNING: To insure safety and performance

levels, only original replacement shear bolts

should be used.

1. Move throttle to STOP, disengage all controls, discon-
nect the spark plug lead wire, and insure all moving parts

have stopped.

2. Lubricate the auger shaft zerk fittings (see Lubrication
Points in the Maintenance section of this manual).

3. Align the hole in the auger with the hole in the auger shaft.
Install new shear bolt, spacer and Iocknut found in the

toolbox located on the belt cover (See Figure 48). Tight-

en with the shear bolt wrench.

NOTE: For the operator's convience, the shear bolt
wrenches are located in the toolbox.

NOTE: The spacer fits into the larger hole in the auger
tube.

Shear BoLtWrench

L_ Spacer

Locknut

Figure 48

SPARK PLUG ADJUSTMENT (SEE FIGURE 49)

NOTICE: This spark ignition system meets all
requirements of the Canadian Interference-Causing

Equipment Regulations.

1. Clean spark plug and reset gap periodically.

2. Clean area around spark plug base before removal, to
prevent dirt from entering engine.

3. Replace spark plug if electrodes are pitted or burned or
if porcelain is cracked.

4. Clean spark plug by carefully scraping electrodes (do not
sandblast or use wire brush).

5. Be sure spark plug is clean and free of foreign material.
Check electrodes gap with a wire feeler gauge and reset

gap to 0.030" (0.76 mm) if necessary. If a new spark plug
is needed, refer to Engine Repair Parts section of this

manual for proper replacement spark plug.

6. Before installing spark plug, coat threads lightly with
graphite grease to insure easy removal.

F-031020L 32

7. Tighten plug firmly into engine. If torque wrench is avail-
able, torque plug to 18-23 ft-lbs.

,030" (0,76 mm) Gap

Figure 49

STORAGE

OFF SEASON STORAGE

,_ WARNING: Never store engine with fuel in tank 3.

flame, spark or pilot light as on a furnace, water heater,
clothes dryer, etc.

Handle gasoline carefully. It is highly flammable and

careless use could result In serious fire damage to your

person and/or property. 4.
Drain fuel into approved containers outdoors, away 5.

from open flame.

If the snow blower is to be stored for thirty (30) days or more
at the end of the snow season, the following steps are
recommended to prepare your snow blower for storage.

NOTE: Gasoline must be removed or treated to prevent
gum deposits from forming in the tank, filter, hose, and
carburetor during storage.

indoors or in enclosed, poorly ventilated enclo-

sures, where fuel fumes may reach an open

Lubricating the piston/cylinder area. This can be done by

first removing the spark plug and squirting clean engine

oil into the spark plug hole. Then cover the spark plug
hole with a rag to absorb oil spray. Next, rotate the engine
by pulling the starter two or three times. Finally, reinstall

spark plug and attach spark plug wire.

Thoroughly clean the snow blower.

Lubricate all lubrication points (see Lubrication, see Cus-

tomer Responsibilities).

,

Insure that all nuts, bolts, and screws are securely fas-

tened. Inspect all visible moving parts for damage,

breakage, and wear. Replace if necessary.

7,

Touch up all rusted or chipped paint surfaces; sand lightly

before painting.

8.

Cover the bare metal parts of the blower housing auger,
and the impeller with rust preventative.

1. To remove gasoline, run engine until tank is empty and 9.
engine stops. Then drain remaining gasoline from carbu-

retor by pressing upward on bowl drain located on the 10.
bottom of carburetor (see Figure 50).

,_ WARNING: Drain gasoline outdoors, awayfromfire or flame.

If you do not want to remove gasoline use the fuel stabilizer
supplied with unit. Add fuel stabilizer to any gasoline left in the

tank to minimize gum deposits and acids. If the tank is almost

empty, mix stabilizer with fresh gasoline in a separate
container and add some to the tank. ALWAYS FOLLOW

INSTRUCTIONS ON STABILIZER CONTAINER. THEN
RUN ENGINE AT LEAST 10 MINUTES AFTER STABILIZER
IS ADDED TO ALLOW MIXTURE TO REACH
CARBURETOR. STORE SNOW BLOWER IN SAFE
PLACE.

2. You can help keep your engine in good operating condi-

tion by changing oil before storage.

If possible, store your snow blower indoors and cover it

to give protection from dust and dirt.

If the machine must be stored outdoors, block up the
snow blower and insure the entire machine is off the

ground. Cover the snow blower with a heavy tarpaulin.

Carburetor

Bowl Drain

Figure 50

F-031020L 33

TROUBLE SHOOTING CHART

PROBLEM LOOK FOR REMEDY

Difficult starting Defective spark plug. Replace defective spark plug.
Engine runs erratically Blocked fuel line. Clean fuel line.

Empty gas tank. Check fuel supply,
Stale gasoline. Add fresh gasoline.
Water or dirt in fuel system. Remove carburetor bowl to drain fuel tank. Refill

with fresh fuel. CAUTION: Do not remove
carburetor bowl when the engine is hot.

Engine stalls Unit running on CHOKE. Set choke lever to RUN position.
Loss of power Gas cap vent hole is plugged. Remove ice and snow from cap. Be sure vent

Excessive vibration Loose parts or damaged impeller. Stop engine immediately and remove spark plug

Unit fails to propel Drive belt loose or damaged. Replace drive belt. Refer to Drive Belt
itself Replacement in Adjustments/Repairs section of

Incorrectadjustment of traction drive Adjust traction drive cable. Refer to Cable

cable. Adjustment in Adjustments/Repairs section of

Worn or damaged friction disc. Replace friction disc. Refer to Friction Wheel

Unit fails to discharge Auger drive belt loose or damaged. Replace or adjust auger drive belt. Refer to Drive

snow Belt Replacement and Drive Belt Adjustment in

Auger control cable not adjusted Adjust auger control cable. Refer to Cable
correctly. Adjustment in Adjustments/Repairs section of

Broken shear bolt. Replace shear bolt. Refer to Auger Shear Bolt

hole is clear.

wire. Tighten all bolts and make all necessary

repairs. If vibration continues, have the unit

serviced by a competent repairman.

this manual.

this manual.

Replacement in Adjustments/Repairs section of

this manual.

Adjustments/Repairs section of this manual.

this manual.

Replacement in Adjustments/Repairs section of

this manual.

Discharge chute clogged. Stop engine immediately and disconnect spark

plug wire. Refer tothe first Warning in Snow
blower Operation in Operation section of this
manual. Clean discharge chute and inside of

auger housing.

Foreign object lodged in auger. Stop engine immediately and disconnect spark

plug wire. Refer to the third Warning in Snow
blower Operation in Operation section of this
manual. Remove object from auger.

Identifying Your Snow blower

Your new Snow blower has two (2) identifying numbers: (1) unit model number: (2) unit serial number. The two preceding
numbers are required to insure that the proper replacement parts are obtained when required. If you have any questions
concerning parts, service, or technical data, contact your nearest Sears Service Department.
For complete warranty information refer to the warranty in the Owner's Information section of this manual.

F-031020L 34

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

2O

REPAIRPARTS

PIECESDERECHANGE

ENGINE/ MOTEUR

F-O3102OL

25-2

Key No.

N° surle

schema

2
3

5
6
8

10
12
14
16

18

20
22

23

24

25
25-I
25-2
25-3

25-4
25-5

25-2

25-3

/

3

Part No.
N° de pibce

002x97
028x64

710026

1501109

710247
71063
71015

579932
585416

1501201

71060

1501482

910828

1501062E549
310169
25x020

1501049E549
26x263

F=O31020L

22

\

\

24

,/

16

/

8

/

18

12

/

/

14

Ref. Drive Page

Ref. Auger Housing Page

Description

ENGINE
BOLT, CARRIAGE 5/16=18
RETAINER, PUSH
NUT 5/16-18
PULLEY, ENGINE

WASHER
WASHER, HVSPTLK .381D

SCREW, 3/8-24X1 .OO
BELT, V
BELT, V
GUIDE, ROD BELT
WASHER, SPTLK .31X.58X.08
PLATE, ANTI VIBRATION

SCREW, 5/16=24X 1.00
FRAME ASSEMBLY
PLATE, ENGINE MOUNT
SCREW 1/4-20 X .63
SCREW 5/16-18 X .50
FRAME, MOTOR BOX

SCREW
OWNER'S MANUAL

35

Description

MOTEUR
BOULON, PO. 5/16=18

RONDELLE DE RETENUE
ECROU 5/16-18

POULIE MOTRICE DOUBLE
RONDELLE

RONDELLE-FREIN DI .38
VIS, 3/8-24X1 .OO
COURROIE TRAPEZOID. 3L 33.13LG

COURROIE TRAPEZOID. 4L35.6 LG
GUIDE DE COURROIE

RONDELLE-FREIN .31X.58X.08

PLAQUE DE ANTI VIBRATION
VIS 5/16-24X 1.OO

CHASSIS DE MONTAGE, MOTEUR

PLAQUE DE MONTAGE, MOTEUR
VIS 1/4-20 X .63
VIS 5/16-18 X .50

SUPPORT DE MONTAGE, MOTEUR
VIS

MANUEL D'UTIUSATION

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

REPAIRPARTS

PII=CESDERECHANGE

FRAME / BATI

169

160

106

105

\

\

108

\

/

111

Ref. Engine Page "_

167

162

91

122

90

162

145

148

114

167

Ref. Auger
Housing Page

Ref. Drive
Page

/

168

148

F-031020L 36

/ \

103 107

149

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

Key No.

Nosurie Part No.

schema N° de piece Description

90 1501055E701 COVER, BOTTOM

Description

PANNEAU INFERIEUR

REPAIRPARTS

PII=CESDERECHANGE

FRAME / BATI

91 310169 SCREW, 1/4=20X .63

103 1501226 YZ IDLER ASSEMBLY, AUGER

105 711682 PIN, HAIR .38DlAX1.64LG

106 761761 PIN, CLEVIS 3/16" DIA

107 165x159 SPRING, TENSION

108 761675 YZ ASSY., SPRING ATTACH

110 585781 BOLT, 3/8-16X1.25 CARR.

111 711617 WASHER, FLAT

112 1501112 YZ BRACKET ASSEMBLY, IDLER

114 1501065 BUSHING, IDLER BRACKET

116 910828 SCREW 5/1624 X 1.00

118 71060 WASHER, SPLIT

122 780055 SCREW, TAP 5/16-18 X .50

145 165x164 SPRING, IDLER TRACTION DRIVE

VIS 1/4-20X .63

BRAS DE POULIE LIBRE. ENTRAINEMENT DES LAMES

GOUPILLE BETA

GOUPILLE

RESSORT DE TENSION

PATTE DE FIXATION POUR RESSORT

BOULON BLOQUANT 3/8-16X1.25

RONDELLE PLATE

PATTE DE FIXATION, POULIE LIBRE

ENTRETOISE, FIXATION DE POULIE LIBRE

VIS 5/16-24 X 1.00

RONDELLE-FREIN

VIS 5/16-18 X .50

RESSORT DE POULIE LIBRE, SYSTEME DE TRACTION

148 50793 PULLEY, IDLER

149 590 NUT, JAM 3/8-16

160 1501052 COVER, BELT

162 26X306 SCREW, TAP

166 71067 WASHER, FLAT

168 1501200 SPACER, AUGER BRACKET

169 760539 LID, TOOL BOX

F-031020L 37

POULIE LIBRE

CONTRE-ECROU 3/6-16

CARTER DES COURROIES

VIS

RONDELLE PLATE

ENTRETOISE, FIXATION DES LAMES CHASSE-NEIGE

COUVERCLE DE BOITE A OUTILS

CRAFTSMAN27"SNOWBLOWERC950-52119-3 REPAIRPARTS
CRAFTSMAN27"CHASSE-NEIGEC950-52119-3 PII=CESDERECHANGE

DRIVE / BATI DE MONTAGE DU MOTEUR

204

236

Ref. Shift Yoke Page

Q 225 /

Ref. Frame Page

_Ref. Wheel 200

1--_ 229

Page

221 ,_

223

226

\

\,

J

227

/

\

\

\

\ 204

\

\

®

\

\

\

\

\\

Ref. Wheel

Page

213

213

Wheel Page

220

208

F-031020L 38

\

218

\

217

238 215 220

212

213

\

218

\

207

215

210 238

CRAFTSMAN27"SNOWBLOWERC950-52119-3 REPAIRPARTS
CRAFTSMAN27"CHASSE-NEIGEC950-52119-3 PII=CESDERECHANGE

DRIVE / BATI DE MONTAGE DU MOTEUR

Key No.

Nosurle Part No.

schema N° de piece Description Description

200 1501092 YZ LF AXLE, SWING PLATE YZ PANNEAU ARTICULE

201 579851 CHAIN, ROLLER #428 x19.80 CHAINE A GALETS #428 x19.80

203 334163 BEARING AND RETAINER, ASSY ROULEMENT AVEC FIXATION

204 579858 WASHER RONDELLE

206 780055 SCREW, TAP 5/16--18x0,5 VIS, 5/16--18x0,5

207 1501236 ASS"(, HEX SHAFT ARBRE HEXAGONAL

208 579868 CHAIN, ROLLER #420 x18,00 LG CHAINE A GALETS #420 x18,00 LG

210 337029 BEARING, TRUNION CLUTCH R PALIER

212 1501435 WHEEL, FRICTION DISC ROUE DE FRICTION

213 001X38 BOLT BOULON

215 303008 NUT, KEPS HEX 1/4-20 ECROU 6 PANS 1/4-20

217 579859 RING, RETEXT CIRCLIP

218 579858 WASHER RONDELLE

220 334163 BEARING AND RETAINER, ASSY ROULEMENT AVEC FIXATION

221 780055 SCREW, TAP 5/16-18 x ,5 VIS, 5/16-18 x ,5

223 1501115 ASS"(, FRICTION PULLEY POULIE, SYSTEME DE FRICTION

225 1501057 YZ LF PLATE, SWINGING YZ PANNEAU ARTICULE

226 1501158 SPACER, FRICTION PULLEY ENTRETOISE DE POULIE, SYSTEME DE FRICTION

227 15X114 NUT, FLANGE LOCK 3/8-24 ECROU A COLLET 3/8-24

229 11X30 RETAINER, RING CIRCLIP

230 1501107 YZ LF ASSY, SPRING LINK YZ TRINGLE D'ATTACHE DES RESSORTS

232 11X30 RETAINER, RING CIRCLIP

234 165Xl12 SPRING, EXTENSION RESSORT D'EXTENSION

236 1501237 WLD, INTERMED SPROCKET 33T/7 PIGNON INTERMEDIAIRE 33T/7

238 71074 WASHER, FLAT RONDELLE PLATE

F-O3102OL 39

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

AUGER HOUSING / VIS SANS FIN

482

499

484

480

485

491

490

500 527

REPAIRPARTS

PIECESDERECHANGE

522

523

527

\

544

\

540

500

511

541

510

493

522

524

Ref. Gear Case Assy

521

\

525

\

\

524

520

F-031020L 40

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

AUGER HOUSING / VIS SANS FIN

Key No.

NOsurle

schema

480

Part No.
N° de piece

583146

Description

PULLEY, 4L 8.40 OD.

Description

POULIE 4L 8.40

REPAIRPARTS

PII=CESDERECHANGE

482

484

485

490

491

493

499

500

510

511

514

520

521

2001022

15X112

1501158

582957 YZ

43846

001X92

710026

1501132E549

760661E701

340720

710026

760605E701

760606E701

KEY, SQUARE 3/16 X 3/4

NUT, .50=20 HEXWDFLLK

SPACER, FRICTION PULLEY

RETAINER, BALL BRNG

BEARING, BALL

BOLT, HEX 5/16-18X .50

NUT, 5/16-18 HEXWDFLLK

HOUSING, ASSY

BLADE, SCRAPER

BOLT, 5/16--18x0.75

NUT, 5/16-18

AUGER, ASSY, LH

AUGER, ASSY, RH

CLAVETTE A SECTION CARREE 3/16 X 3/4

ECROU, 6 PANS .50-20

ENTRETOISE DE POUUE, SYSTEME DE FRICTION

CAPUCHON DE ROULEMENT A BILLES

ROULEMENT ,ik BILLES

BOULON 6 PANS 5/16=18X .50

ECROU 6 PANS 5/16-18

CARTER DES LAMES CHASSE-NEIGE

LAME RACLEUSE

BOULON 5/16=18x0.75

ECROU 5/16-18

LAME CHASSE-NEIGE (VIS SANS FIN), GAUCHE

LAME CHASSE-NEIGE (VIS SANS FIN), DROITE

522

523

524

526

527

540

541

544

F-031020L 41

9524

3943

73826

53757

70984

309016E701

340720

710026

1501216

680230 Z

SCREW, 1/4-20Xl .75

SPACER, SLEEVE

NUT, 1/4-20

BEARING, FLANGE

SCREW, 5/16-18X .75

SKID, HEIGHT ADJUST

BOLT, 5/16-18 X .75

NUT, 5/16-18

KIT, SHEAR BOLT

WRENCH

VIS 1/4-20X1.75

ENTRETOISE

ECROU 1/4-20

PALIER A BRIDE

VIS 5/16-18X .75

PATIN REGLABLE

BOULON 5/16-18 X .75

ECROU 5/16-18

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

DISCHARGE CHUTE / DEFLECTEUR DE GOULOTTE

599 583

600

604

Pop Rivets

_ 601

REPAIRPARTS

PIECESDERECHANGE

6OO

603

610

609

606

602

\

607

F-O31020L 42

Ref. Auger Housing Page

CRAFTSMAN27"SNOWBLOWER0950-52119-3 REPAIRPARTS
CRAFTSMAN27"CHASSE-NEIGEC950-52119-3 PII=CESDERECHANGE

DISCHARGE CHUTE / DI_FLECTEUR DE GOULOTTE

Key No.

NOsurie Part No.

schema N° de piece Description

582 340720 BOLT, CARRIAGE 5/16-18 X.75

Description

BOULON AUTOBLOQUANT 5/16-18X.75

583 12021 WASHER, PLASTIC

584 71038 NUT, 5/16-18 REGHEX NYLOCK

588 6711 WASHER, PLASTIC

593 6711 WASHER, PLASTIC

594 71071 WASHER, FLAT

595 71060 WASHER, SPLIT

596 71071 WASHER, FLAT

597 57171 KNOB, T 3.00

598 15x144 NUT, 5/16-18 REGHEX

599 3316 BOLT, 5/16-18X1.00

600 760990E701 CHUTE ASSEMBLY

601 2x100 BOLT, 5/16-18 Xl.00

602 71071 WASHER, FLAT

RONDELLE PLASTIQUE

ECROU 6 PANS 5/16-18 REGHEX NYLOCK

RONDELLE PLASTIQUE

RONDELLE PLASTIQUE

RONDELLE PLATE

RONDELLE-FREIN

RONDELLE PLATE

POIGNEE T 3.00

ECROU 6 PANS 5/16-18 REGHEX

BOULON 5/16-18X1.00

ENSEMBLE DEVERSOIR

BOULON 5/16-18X1.00

RONDELLE PLATE

603 71038 NUT, 5/16-18 HEXNYL

604 760268 FLAP, CHUTE

606 585214 YZ CHUTE COLLAR

607 02x101 SCREW, 1/4-20 X 0.75

609 15x145 NUT, 1/4-20 HEX NYLOCK

610 337227 RETAINER RING INNER

611 1501282 RETAINER RING OUTER

F-031020L 43

ECROU 6 PANS 5/16-18 HEXNYL

BAVETTE DE DEVERSOIR

COUVERCLE DE COURONNE DE DEVERSOIR

VIS 1/4-20 X 0.75

ECROU 6 PANS 1/4-20 NYLOCK

COURONNE INTERNE

COURONNE EXTERNE

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

340

326

/

320
/ 321

322

323

324

327

330

REPAIRPARTS

PII=CESDERECHANGE

GEARCASEI BOiTER

306

/ 310

305

\

310

Key No. Part No.

N°surle N° de

schema piece

300 896

301 895
303 910828

304 71100
305 330434

306 53749
310 780151

311 53743

312 53748
313 760529
314 897

315 53730
316 73905

320 53737
321 583126
322 48275

323 50684
324 48275

326 50795
327 53732

330 53731
340 1501147E701

-- 333431

303

300

Description

CASE, GEAR, RH
CASE, GEAR, LH
SCREW, 5/16=24 X 1.00

NUT, 5/16-24
SCREW, 5/16=24 X 1.50

PLUG, PIPE
SEAL, OIL
BEARING

WASHER, FLAT
SHAFT, AUGER OUTPUT

GASKET, GEAR BOX
WORM GEAR

KEY, WOODRUFF #91
RING, QUAD

BEARING, FLANGE
WASHER, FLANGE

BEARING, ROLLER
WASHER, FLAT

KEY
GEAR, WORM

BEARING
IMPELLER

lOoz TUBE LUBRIPLATE

\

314

316_.

_12_

312z

313

315 _

Description

BOI'TER COTE DROIT
BOI'TER O6TE GAUCHE

VIS, 5/16-24 X 1.00 PO.

ECROU, 5/16-24

VIS, 5/16-24 X 1.50

PRISE DE PIPE

JOINT A LEVRE

PALIER

RONDELLE PLATE
ARBRE DE VIS SANS FIN
JOINT PLAT

PIGNON
CLAVETTE DEMI-LUNE No. 91

ANNEAU DE QUADRUPLE

PALIER

RONDELLE

PALIER

RONDELLE, PLATE
CLAVETTE

PIGNON

PALIER
ARBRE DE LA TURBINE

lOoz LUBRIPLATE

311

\

304

301

F-O3102OL

* (NOT ILLUSTRATED)

* (NON ILLUSTRI_)

44

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

675

671

/

654

678

655

Ref. Drive Page

650

,652

REPAIRPARTS

PII=CESDERECHANGE

WHEELS / ROUE

676

/

655

671

WHL100A

F-031020L

Key No.

Nosurle

schema

650
652
653

654

655
671

673
675

676
677

678
679

680

Part No.
N° de piece

1501284 YZ
1501089

01x193

15x145
1501114

712120

1501138
1501022

577015

15x145

239
73842

1501021

Description

SHAFT, AXLE
SPRKT & HUB

SCREW, 1/4-20 x 1.75
NUT, 1/4-20 HEX NYLOCK

BEARING, AXLE

WASHER, FLAT

BUSHING, WHEEL

TIRE & RIM, RIGHT

SCREW, 1/4-20X1.75 HH
NUT, 1/4-20 HEX NYLOCK

RING, RET
PIN, KUK .25 X 1.38 DIA

TIRE & RIM, LEFT

45

673

680

Description

D'ARBRE, ROUE

ROUE DENTEE MONTAGE
VIS, 1/4-20X 1.75 PO.

ECROU, 1/4-20
PALIER

RONDELLE PLATE
PALIER

ROUE MONTAGE, GAUCHE
VIS, 1/4-20XI,75 PO.

ECROU, 1/4-20
RONDELLE DE RETENUE

GOUPILLE ,ik ANNEAU
ROUE MONTAGE, DROIT

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

REPAIRPARTS

PII:CESDERECHANGE

HANDLE / POIGNI=E

739

\

738

735 \

720

724 _

728

766 739

723

738

741

766

738

736

737

738

/

721

740

722

765

730

751

/

731

765

745

751

Ref. Engine Page

733

732

/ 7s

743

763

/

G

_"760

759

F-O31020L 46

745 762

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

Key No. Part No.

Nosurle N° de

schema piece Description

720 310614E701 HANDLE, UPPER

Description

PO_GNEE, PARTIE SUPERIEURE

REPAIRPARTS

PII=CESDERECHANGE

HANDLE / POIGNI=E

721 7288 SCREW, 3/8-16 X 3

722 71072 WASHER, FLAT

723 71062 WASHER

724 71044 NUT, 3/8-16

728 7289 STOP, PLASTIC

730 71007 SCREW, 3/8-16 X 2

731 71072 WASHER, FLAT

732 71062 WASHER

733 71044 NUT, 3/8-16

735 5146E701 HANDLE, RIGHT

736 5142E701 HANDLE, LEFT

737 760074 PIN, PIVOT CLUTCH

738 3535 NUT, PUSH ON CAP

739 4049 BUMPER, RECTANGLE

740 1501123 CABLE, DRIVE

741 761872 CABLE, AUGER CLUTCH

VIS 3/8-16 X 3

RONDELLE PLATE

RONDELLE

ECROU 3/8-16

CAPUCHON, PLASTIQUE

VIS 3/8-16 X 2

RONDELLE PLATE

RONDELLE

ECROU 3/8-16
POIGNEE, DROIT

POIGNEE, CAUCHE

AXE DE MANETTE DE COMMANDE

ECROU BORGNE

PATIN RECTANGULAIRE

C,_BLE, COMMANDE DU SYSTEME DE TRACTION

C,_BLE, COMMANDE DES LAMES CHASSE-NEIGE

743 313441 BRACKET, CABLE ADJUSTER

744 1673 SPRING, AUGER CLUTCH

745 15x145 NUT, 1/4-20

750 5543E701 HANDLE, LOWER

751 25x021 SCREW, TAP 5/16-18 X .75

759 579860 SPOOL-CABLE, AUGRT CLUTCH

760 1501059 YZ BRACKET, CABLE SPOOL YZ

762 1501122 CABLE, LOWER DRIVE 12"

763 001798 BOLT, HEX 1/4-20 X 1.5

765 308146 BOOT, CLUTCH SPRING

766 333928 GRIP

F-031020L 47

PIECE DE REGLAGE DU CABLE, SYSTEME DE TRACTION

RESSORT DE CABLE, COMMANDE DES LAMES

ECROU 1/4-20

POIGNEE, PARTIE INFERIEURE

VIS 5/16-18 X ,75

BOBINE DE PASSAGE DE CABLE, COMMANDE DES LAMES

ATTACHE DE LA BOBINE DE PASSAGE DE CABLE

CABLE, PARTIE BASSE 12", COMMANDE DES LAMES

BOULON 1/4-20XI.5

GAINE DE RESSORT, SYSTEME DE TRACTION

POIGNEE

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

CONTROL PANEL / PANNEAU DE COMMANDE

779

735

766

771

761

765

760

REPAIRPARTS

PIECESDERECHANGE

763

Ref. Handle Page

Ref. Handle Page

764

763

780_(

772

773

770

781

774

784

788

J

789

790

F-031020L 48

811

812

813

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

CONTROL PANEL / PANNEAU DE COMMANDE

Key No.

N° surie

schema

735

Part No.
N° de piece

71045

Description

NUT, 3/8-16 HEXJAM

Description

ECROU, 3/8-16

REPAIRPARTS

PIECESDERECHANGE

760

761

763

764

765

766

770

771

772

773

774

779

780

308905E701

762148

71059

71034

6056E549

3809

305260E701

302900

50786

71071

71038

304437

71042

BRACKET, SHIFT CONTROL

CARR. BOLT, 1/4-20 X 2

WASHER, HVSPTLK

NUT, 1/4-20 REGHEX

CONTROL PANEL

CARR. BOLT, 1/4-20 X 0.63

SHIFT LEVER ASSY

SCREW, 5/16-18X1.75

SPRING

FLATWASHER

NUT, 5/16-18 HEXNYL

GRIP

NUT, 5/16-24

SUPPORT DU LEVIER DE COMMANDE

BOULON, 1/4-20 X 2

RONDELLE-FREIN

CONTRE-ECROU 1/4-20

PANNEAU DE COMMANDE

BOULON, 1/4-20 X 0.63 PO.

LEVIER DE COMMANDE MONTAGE

VIS, 5/16-18X1,75 PO_

RESSORT

RONDELLE PLATE

ECROU INDESSERRABLE 5/16=18

POMMEAU

ECROU, 5/16-24

781

782

784

788

789

790

811

812

813

F-O3102OL 49

71071

71081

761668

584593YZ

71071

71081

579944

1501110 YZ

11X30

WASHER, FLAT .349X.69X.066

PIN, COTTER

ROD, SPEED CONTROL

NUT, TRUNNION 5/16-24

WASHER, FLAT .349X.69X.066

PIN, COTTER

FLANGED BEARING

ROD ASSY, YOKE PANEL

RING, RETAINER

RONDELLE PLATE

GOUPILLE, FENDUE

TIGE DE COMMANDE DE VITESSE

ECROU, TOURILLON 5/16=24

RONDELLE PLATE, ,349X 69X,066

GOUPILLE, FENDUE

PALIER

LEVIER DE CHANGEMENT DE VITESSE

CIRCLIP

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

CHUTE ROD / GOULOTTE TIGE

_55

862

855

Ref. Handle Assy 860

863

865

\

864

870

\

867

REPAIRPARTS

PIECESDERECHANGE

868

Ref. Auger Housing Assy

852-8

852-11

852-9

/

852-5

852-13

852-10

J

852-1

852-2

852-8 869

\\\\\\\\ /

\

\

\

\

F-031020L 50

/ /

852-7

852-3

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

CHUTE ROD / GOULOTTE TIGE

Key No.

N° surie

schema

852-1

Part No.
N° de piece

1501309 YZ

Description

ASSEMBLY, YOKE & ROD

REPAIRPARTS

PIECESDERECHANGE

Description

ENSEMBLE TR_NGLE-CHAPE

852-2

852-3

852-5

8526

852-7

852-8

852-9

852-10

852-11

852-13

854

855

856

86O

861

313431

1501067

579493

1501306E701

1501293

1501075 YZ

711682

578060

578309

578063

307399

309312

73664

581618

148

WASHER, CURVED SPRING

GEAR, CHUTE ROTATION 9T

PIN, COTTER

BRACKET, CHUTE GEAR

PIN, HAIR

ASSEMBLY, YOKE ADAPTER YZ

PIN, HAIR

PIN, UNIVERSAL JOINT

PIN, CLEVIS

HOUSING, UNIVERSAL

KNOB, SLEEVE

FLATWASHER

NUT, PUSH ON 3/8"

EYE BOLT 3/8-16X6.00

GROMMET, EYE BOLT

RONDELLE COURBEE

PIGNON DE ROTATION DU DEVERSOIR

GOUPILLE FENDUE

PATTE DE F_XATION DU PIGNON

GOUPILLE

ENSEMBLE ADAPTATEUR-CHAPE

GOUPILLE BETA

GOUPILLE DE JOINT UNIVERSEL

GOUPILLE DE CHAPE

CAPUCHON DE JOINT UNIVERSEL

POIGNEE DE MANIVELLE

RONDELLE PLATE

CAPUCHON 3/8"

BOULON A OEIL 3/8-16X6.00

OEILLET

862

863

864

865

867

868

869

870

F-03102OL 51

308145

71045

71072

309344

71046

002X98

15x145

1501074 YZ

BOOT, EYE BOLT

NUT, 3/8-16 HEXJAM

FLATWASHER .406X.81X.066

ADAPTER, BOOT

NUT, 3/8-16 HEXNYL

BOLT, CARRIAGE 1/4-20 X 1.00

NUT, 1/4-20

CRANK, ASSY CHUTE

BOUTIE

CONTRE-ECROU 6 PANS 3/8-16 HEXJAM

RONDELLE PLATE .406X.81X.066

ADAPTATEUR

ECROU 6 PANS 3/8-16 HEXNYL

BOULON AUTOBLOQUANT 1/4-20Xl.00

ECROU

MANIVELLE DE DEVERSOIR

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

ELECTRIC STARTER / ELECTRIQUE

8

9

REPAIRPARTS

PIECESDERECHANGE

Key No.
N° surle

schema

6

7
8
9

F-031020L 52

Part No.
N° de piece Description

6218 MOTOR, STARTER

6216 SCREW
6217 SCREW
6219 CORD, STARTER

Description

MOTEUR DEMARREUR
VIS, 1/4-20 X,50

VIS, #6-32 X 2,50
CORDON, I_LECTRIQUE

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

HEADLIGHT / MONTAGE DU PHARE

620

622

633

626

623

Ref. Handle Page

631 625

REPAIRPARTS

PIECESDERECHANGE

621

624

Key No.

Nosurie Part No.

schema N° de piece

620 583490

621 762343
622 1501514
623 307781
624 1501455
625 4029 YZ

626 002X88
627 580527
628 71061
629 71060

630 15X144
631 235
632 71060
633 15X144

634 032618

629

630

634

Description

HOUSING, HEADLIGHT UPPER

HEADLIGHT, ASSY *
HOUSING, HEADLIGHT LOWER

SCREW, #8Xl .75
WIRING HARNESS, HALOGEN
BRACKET, HEADLIGHT
BOLT, CARRIAGE - 5/16=18X2.00

WASHER, SADDLE
WASHER, EXLK .32X.6OX.040
WASHER, SPTLK .31X.58X.08
NUT, 5/16=18 REGHEX

SCREW, 5/16-18X2.00
WASHER, SPTLK
NUT, 5/16-18 REGHEX
TIE, CABLE

Description

BOI'TER SUPERIEUR DU PHARE
MONTAGE DU PHARE *
BOI'TER INFERIEUR DU PHARE

VlS, #8 X 1,75 PO.

FILS ELECTRIQUES DU PHARE, HALOGENE
SUPPORT MONTAGE DU PHARE

BOULON MECANIQUE 5/16-18X2,00 PO.
RONDELLE CINTREE

RONDELLE ,32X,6OX,040
RONDELLE FENDUE ,31X,58X,08
ECROU, 5/16-18

VIS, 5/16=18X2,00 PO.

RONDELLE FENDUE
ECROU, 5/16=18

CABLE DE BRIDE

* For replacement bulb, use Standard GE or Phillips #894.

F-O3102OL 53

* Pour I'ampoule de rechange, employez la GE standard ou #894 Phillips.

CRAFTSMAN27" SNOW BLOWERC950-52119-3
CRAFTSMAN27" CHASSE-NEIGE C950-52119-3

827

_834

REPAIRPARTS

PIECESDERECHANGE

DECALS / AUTOCOLLANTS

F-O3102OL

826

Key No.

Nosurle Part No.

schema N° de piece Description

823 48x2035 DECAL, DANGER CHUTE HAND
824 48x2037 DECAL, DANGER FOOT

826 760968 DECAL, CRAFTSMAN GOLD
827 762166 DECAL, 9/27
828 761079 DECAL, STRIPE
829 53689 DECAL, DRIVE CLUTCH
830 53690 DECAL, AUGER CLUTCH
831 827921 DECAL, GEAR SELECTOR
832 761044 DECAL, CRAFTSMAN
834 761048 DECAL, TOOLBOX INFORMATION

Description

AUTOCOLLAN_
AUTOCOLLAN7
AUTOCOLLAN7
AUTOCOLLAN7
AUTOCOLLAN7
AUTOCOLLAN7

AUTOCOLLAN7
AUTOCOLLAN7

AUTOCOLLAN7
AUTOCOLLAN7

54

DANGER MAINS, EJECTION
DANGER PIEDS

CRAFTSMAN GOLD

9/27

BANDE REFLECHISSANTE
EM BRAYAGE ROUES

EM BRAYAGE ERAISE
SELECTEUR VITESSE

CRAFTSMAN
INSTRUCTIONS BO/TE/_ OUTILS

TECUMSEH9HP4 CYCLEENGINE143.039005

MOTEUR9 HP4 TEMPSTECUMSEH143.039005

18

\

371]

83

-40

119

REPAIRPARTS

PIECESDERECHANGE

I

*

_292
_>291

e_292

87

7O

126"_

25

26

•308

315

110

101

\

i

282

x_

q

370C

219

F-O31020L 55

900

TECUMSEH9 HP4 CYCLEENGINE143.039005

MOTEUR9 HP4 TEMPSTECUMSEH143.039005

Key No.

Nosurie Part No.

schema N° de piece

1 35385

2 27652
3 65O82O

4 31857
5 30969

15 30699C

15A 30700
15B 650494

16 33454A
17 29916
18 651028

19 34663
20 35319
25 37706
26 650561

28 30322

30 37231
35 29826
36 29918

37 29216
38 29642

40 40011
40 40012
41 40009

41 40010
42 40013
42 40014
43 27888

45 36897
47 651033
48 34034
49 36896

50 35375
60 33273A
65 650128
69 37342

70 35376A
71 35377
75 35319
80 37587

81 651080
82 35878
83 30588A

84 29193
86 650833

87 650832
89 32589

90 611093
92 650880
93 650881

F-O3102OL 56

Description

RPM High 3550 to 3850
RPM Low 2000

Cylinder Ass'y (incl. 2, 20 & 72)
Dowel Pin

Screw, 1/4-20 x 1/2"
Oil Drain Extension

Extension Cap
Governor Rod (Inc. 1 5A & 1 5B)

Governor Yoke
Screw, 6-40 x 5/16"

Governor Lever
Governor Lever Clamp

Screw,Torx 3--15. 8-32 x 3/8"
Speed Control Spring

Oil Seal
Blower Housing Baffle

Screw, 1/4-20 x 5/8"
Lock Nut, 8-32
Crankshaft
Screw, 10-32 x 3/4"
Lock Washer

LockNut, 10-32
Retaining Ring

Piston, Pin & Ring Set (Std.)
Piston, Pin & Ring Set (.010" OS)

Piston, Pin Ass'y. (Std.) (Incl. 43)
Piston, Pin Ass'y. (.010" OS) (Incl. 43)
Ring Set (Std.)
Ring Set (.010 " OS)

Piston Pin Retaining Ring
Connecting Rod Asety Incl. 47 &49)
Connecting Rod Bolt

Valve Lifter
Oil Dipper
Camshaft (MCR)

Blower Housing Extension
Screw, 10-24x 1/2"

Cylinder Cover Gasket
Cylinder Cover (Incl. 71, 75 & 80)

Crankshaft bushing
Oil Seal

Governor Shaft
Washer
Governor Gear Ass'y. (Incl. 81 )

Governor Spool
Retaining Ring
Screw, I/4-20 x 1-3/16"
Screw, 1/4-20x 1-11/16"

Flywheel Key
Flywheel (W/Ring Gear)

Lock Washer
Flywheel Nut

Description

R6gime maximal: 3550 & 3859 tr/min
R_Jime de ralenti: 1900 tr/min

Cylindre (comprend ref. 2, 20 et 72)
Cheville

Vis, 1/4-20 x 1/2 po

Rallonge d'orifice de vidaoge

Bouchon
Elge du r_gulateur (comprend ref. 1 5A et 1 5B)

Paquette du r_gulateur

Vis, 6-40 x 5/16 po

Levier du r_gulateur
Bride du levier du r_gulateur

Vis, Torx 3--15, 8-32 x 3/8p0

Ressort de commande de vitesse

Joint & 16vre

D_flecteur du boitier de soufflante

Vis, 1/4-20 x 5/8 po

Ecrou de blocage, 8-32

Vi lebrequ in
Vis, 1 0-32 x 3/4 po

Rondelle-frein

Ecrou de blocage, 10-32

Circlip

Piston, axe et segments (standard)
Piston> axe at segments (cote + 0,010)

Piston, axe et segments (standard) (comprend ref. 43)
Piston> axe et segments (cote + O>0t0) (comprend ref. 43)
Segments (standard)
Segments (cote + 0,010)

Circlip d'axe de piston

Bielle (comprend ref. 46>47, 49)

Vis de bielle

Poussoir de soupape
D_fleeteur d'huile

Arbre _ cames (d_commpresseur m_canique)

Rehausse de boitier de soufflante

Vis, 1 0-24x 1/2 po
Joint du couvercle de cylindre

Couvercle de cylindre (comprend ref. 71, 75 et 80)71

Palier

Joint a I_vre
Axe du r_gulateur

Rondelle
Pignon du r_gulateur (comprend ref. 81)

Bobine du r_gulateur

Circlip
Vis, 1 /4-20 x 1 -3/1 6 po

Vis, 1/4-20x 1-11/16po
Clevette du volant

Volant (avec couronne)

Rondelle-frein
Ecrou du volant

REPAIRPARTS

PIECESDERECHANGE

TECUMSEH9 HP4 CYCLEENGINE143.039005

MOTEUR9 HP4 TEMPSTECUMSEH143.039005

100 35135A Solid State Ignition
101 610118 Spark Plug Cover

102 651024 Solid State Mounting Stud
103 651007 Screw, Torx T-15, 10-24 x 15/16"

110 35187 Ground Wire

110A 37047 Ground Wire

119 36448 Cylinder Head Gasket
120 36449 Cylinder Head
125 27878A Exhaust Valve (Std.) (IncL 151 )
125 27880A Exhaust Valve ( 1/32" OS) (Incl. 151 )
126 34035 Intake Valve (Std.) (Incl. 151 )

127 650691 Washer

130 6021A Screw, 5/16-18 x 1-1/2"
130A 650727 Screw, 5/16-18 x 1-3/4"
130B 651055 Screw, 5/16-18 x 5/8"

135 35395 Resistor Spark Plug (RJ1 9LM)

139 33369 Governor Gear Bracket

140 650836 Screw, 10-24 x 1/2"

149 27882 Valve Spring Cap
149A 35862 Valve Spring Cap

150 27881 Valve Spring

151 32581 Valve Spring Keeper

169 27896A Valve Cover Gasket

170 28423 Breather Body

171 28424 Breather Element

172 28425 Valve Cover

173 35350 Breather Tube

174 650128 Screw, 10-24 x 1/2"

178 29752 Nut & Lock Washer, 1/4-28

182 30088A Screw, 1/4-28 x 1"

183 34587A Choke Bracket

184 33263 Carburetor To Intake Pipe Gasket

185 33877 Intake Pipe

186 34667 Governor Link
186B 36652 Choke Spring

200 34677 Control Bracket (IncL 19, 203, 204 & 206)
203 31342 Compression Spring
204 651029 Screw, 5-40 x 7/16"
206 610973 Terminal
207 33878 Throtge Link

209 650821 Screw, 10-32 x 1/2"
215 35438 Control Knob
219 34586 Choke Rod
220 35440 Choke Knob

222 28820 Screw, 10-32 x 1/2"
223 650378 Screw, Torx T-3O, 5/16-18 x 1-1/8"

224 27915A Intake Pipe Gasket
260 35447A Blower Housing
261 650788 Screw, 5/16-18 x 3/4"
262 651084 Screw, 5/16 24 x 9/16"

264A 650802 Screw, 1/4-20 x 5/8"

265 33272D Cylinder Head Cover
275 35056 Muffler

276 31588 Locking Plate
277 651002 Screw, 5/16-18x4-3/16"

F-031020L 57

Module d'allumage

Capuchon de bougie
Goujon du module d'allumage

Vis, T-15 Torx, 10-24 x 15/16 po

Fil de masse
Fil de masse

Joint de culasse
Culasse

Soupape d'echappement (standard) (comprend ref, 151 )
Soupape d'echappement (cote + 1/32 po) (comprend ref, 151)
Soupape d'admission (standard) (comprend ref, 151 )

Rondelle

Vis, 5/I 6-1 8 x 1-1/2 po
Vis, 5/I 6-1 8 x 1-3/4 po
Vis, 5/1 6-1 8 x 5/8po

Bougie

Support
Vis, 1 0-24x 1/2 po
Cuvette de ressort de soupape
Cuvette de ressort de soupape

Ressort de soupape
Clavette de ressort de soupape

Joint de cache-culbuteurs

Reniflard

Filtre du reniflard
Cocvercle du reniflard

Tube du reniflard
Vis, 10-24 x 1/2 po

Ecrou et rondelle-frein> 1/4-28
Vis, 1/4-28 x 1 po

Bride de volet de d_part
Joint du carburateur

Collecteur d'admission
Tige du r_gulateur

Ressort du volet de d_part
Support de commande (comprend ref. 19, 203,204 et 206)

Ressort
Vis, 5-40 x 7/16 po

Borne

Bielle6e du r_gulateur
Vis, 10-32 x 1/2 po

Bouton de manette d' ace_l_ rati on
Tige du volet de d_part

Manette du volet de d_part
Vis, 1 0-32 x 1/2 po

Vis,TorxT-3O,5/16-18x t-1/8po
Joint de collecteur d'admission

BoTtier de soLrfflante
Vis, 5/16-18 x 3/4 po
Vis, 5/16-24 x 9/16 po

Vis, 1/4-20 x 5/8 po
Cocvercle de culasse

Silencieux

Pequette du silencieux
Vis, 5/16-18x4-3/16 po

REPAIRPARTS

PIECESDERECHANGE

TECUMSEH9 HP4 CYCLEENGINE143.039005

MOTEUR9 HP4 TEMPSTECUMSEH143.039005

281 33013 Starter Rubble Cover
282 650760 Screw, 8-32 x 3/8"
285 35985B Starter Cup

287 29752 Not & Lock Washer, 1/4-28
291 30962 Fuel Line

292 26460 Fuel Line Clamp
298 650665 Screw, 1/4-15 x 3/4"

300 34186A Fuel Tank (IncL 292 & 301)
301 35355 Fuel Cap

305 35554 Oil Fill Tube
307 35499 O" Ring

308 35540 Fill Tube Clip
310 36205 Dipstick

314 650873 Screw, 1/4-20 x 3/4"
315 611111 Alternator Coil (18 Watt) (Incl. 323)

823 611118 Terminal
325 29443 Wire Clip

328 35062 Ignition Key
329 610973 Terminal

335 35057A Carburetor Cover (Black)
336 650765 Screw, 10-32 x 1/2"

338 28942 Screw, 10-32 x 3/8"
840 34154 Fuel Tank Bracket
841 34155 Fuel Tank Bracket

342 650561 Screw, 1/4-20 x 5/8"
343 35079A Bracket, key switch

343A 651060 Screw, 10-23 x 23/64"

350 570682A Primer Ass'y
351 32180C Primer Line

355 590574 Starter Handle
364 33377 Carburetor Cover Rracket

365 650767 Screw, 8-32 x 27/64"

370C 36501 Primer Decal
370D 36534 Caution Decal

370H 35077 Control Decal
370K 36695 Starter Decal

870R 37119 Warning Decal

380 640052 Carburetor (Incl. 184)
390 590749 Rewind Starter

396 33329E Electric Starter Motor (Optional)
400 36450C Gasket Set (Incl. items marked *) Incl. part #'s

27272A, 27896A, 27915A, 29673, 83263,
38629, 84689A, 35262A, 36448

Couvercle du d6marreur
Vis, 8-32 x 3/8 po

Moyeu du d6marreur

Ecrou et rondeJJe-frein, 1/4-28
Tuyau d'essence

Collier
Vis, I/4-15 x 3/4 po

R6servoir d'essence (comprend ref,292 et 301)

Bouchon du r6servoir
Tube de rempJissage d'huile

Joint todque

Bride du tube de remplissage
Jauge d'huile

Vis,1 /4-20 x 3/4 po

Robine d'aJternateur (18 watts) (comprend ref.323)

Borne
Attache fil

CI6 de contact

Borne
Couvercle du carburateur (noir)
Vis,10-32 x 1/2 po

Vis,10-32 x 3/8 po
Support du r6servoir
Support du r6servoir

Vis,1/4-20 x 5/8 po

Support, cl6
Vis, 10-23 x 23/64 po

Amorceor
Tuyau de I'amorceur

Poign6e du d6marreur
Support du couvercJe du carborateur
Vis,8-32 x 27/64 po

Autocollant de ramorceur
Autocollant, d'avertissement
Autocollant, VoJet de d6part

Autcollant
Autocollant d'avertissement

Carburateor (comprend ref.184)

D6marreur & corde

D6marreur 61ectrique (option)

N6cessaire de joints (comprend r6f6rences identffiees *)
Comprend r6f .27272A, 27896A, 27915A, 29673, 33263,

34689A, 35262A, 36448

REPAIRPARTS

PIECESDERECHANGE

* Indicates Parts Included in Gasket Set, Ref. No. 400

F-031020L 58

* Pi_ces incluses dans le n6cessaire de joints, r6f. 400.

TECUMSEH9 HP4 CYCLEENGINE143.039005

MOTEUR9 HP4 TEMPSTECUMSEH143.039005

REPAIRPARTS

PIECESDERECHANGE

Key No.

N° surie

schema

1
2

6
7

10
14

15
16

17
18

20

20A

25
27

28
29

30
31

32
33
36

37
40

44
47

48
60

F-O3102OL

Part No.
N° de piece

640052
631776A

631970
631778

650506
632112

632174
630735

632164
650417

630766
640016
640053

631951
631024

632019
631028

631021
631022

27136A
27554

640005
632547

640055
27110

630748
631027

632760

Description

Carburetor (IncL184 of Engine Parts List)
Throttle Shaft & Lever Assembly

Throttle Return Spring
Throttle Shutter

Shutter Screw
Choke Shaft & Lever Assembly

Choke Shutter
Choke Positioning Spring

Fuel Fitting
Throttle Crack Screw/Idle Speed Screw

Tension Spring
Idle Mixture Screw

Idle Restrictor Screw Cap
Float Bowl Ass'y. (Incl. 32 & 33)
Float Shaft
Float

Float Bowl O Ring
Inlet Needle, Seat & Clip (IncL 31)

Spring Clip
Bowl Drain Assembly

Drain Plunger Gasket
Main Nozzle Tube

"O" Ring
High Speed Bowl Nut

Bowl Nut Washer
Welch Plug, Idle Mixture Well

Welch Plug, Atmospheric Vent
Repair Kit

Description

Carburateur (comprend ref. 184 de la liste de pieces du moteur)
Axe et levier du papiflon

Ressort de rappel du papillon
Cache du papiflon

Vis de cache
Axe et levier du volet de d_part

Cache du volet de d6part

Ressort de butte du volet de d_part

Raccord
Vis de ralenti

Ressort
Vis de richesse

Capachoun
Joint torique cuve (comprend ref. 32 et 33)
Axe du flotteur

Flotteer
Joint torique

Pointeau, si6ge et arr6t (comprend ref. 31)

Epingle
Vis de vidange de cuve
Joint

Tube
"O" Joint

Eorou

Rondelle d'_croe de cuve

Pastille d'obturation

Pastille d'obturation

Kit de r6paration

59

TECUMSEH9 HP4 CYCLEENGINE143.039005

MOTEUR9 HP4 TEMPSTECUMSEH143.039005

12 13

REPAIRPARTS

PIECESDERECHANGE

11

Key No.

Nosurie Part No.

schema N° de piece

590749

1 590599A
2 590600

3 590679
4 590601

5 590678
6 590680

7 590412
8 590682

11 590750A

12 590535
13 590574

F-031020L

Description

Rewind Starter
Spring Pin (Incl, 4)

Washer
Retainer
Washer

Brake Spring
Starter Dog

Dog Spring
Pulley & Rewind Spring Assembly
Starter Housing Assembly

Starter Rope (Length 98" x 9/64" dia.)
Mitten Grip Handle (Not included with starter)

60

t

I

_)"_4

_"- 2

Description

D_marreur & corde
Goupille _lastique (comprend ref. 4)

Rondelle

Fixation

Rondelle

Ressort de frein

Doigt de d_marreur

Ressort de doigt

Potpie et ressort de rappel

Boltier du d6marreur
Corde de d_marreur (Iongeur 98 po, diam_tre 9/64 pe)

Poign_e (non livr_e avec le d_marreur)

TECUMSEH9 HP4 CYCLEENGINE143.039005

MOTEUR9 HP4 TEMPSTECUMSEH143.039005

REPAIRPARTS

PII=CESDERECHANGE

Key No.

N° surle

schema

1
2
3

4

5A

6
7
8

9

10

11

13
14

15
16
22

23
26
29
3O
31

F-031020L

Part No.
N° de piece

33329E
33451

33842
33430

33431
37050
35449

35450
35915

35451B
35452A
35911
590500

33441
35453
35454
35455

35456
650819
32450B
30063
650820

Description

Electric Starter (110 Volt)
Dust Cover

Retainer Ring
Spring Retainer

Anti-drift Spring
Gear & Nut (IncL 2)
Drive End Cap Assy (Inc. 7)
"O" Ring

Armature
Housing Assy.

Brush Card Assy.
Thrust Washer

Thrust Washer
Ground Screw

Commutator End Cap Assy (Incl 7)
Switch Box Assy (Inct 26)

Case Bolt
Ground Screw

Screw, 6-32x2-1/2"
Extension Cord (10'6")

Screw, Torx T-30 1/4-20xl/2"
Screw, 1/4-20xl/2"

\6

5A

Description

El_ctrique Demarreur (110 volt)

Poussi_re Couvercle
Circlip

Ressort Fixation

Ressort

Pignon & I_crou Montage (cornprend 2)

D'embrayage garde capuchon montage(comprend 7)
Joint todque

Induit

Boiter montage
Cage de porte-balais de balais

Rondelle de poussee

Rondelle de pouss_e
Vis de masse

Commatateur arri6re capuchon montage(comprend 7)

Bo_ter d'interrupteur (comprend 26)

Boulon de montage
Vis de masse

Vis, 6-32x2-I/2 po.

Rallonge 61ectrique 3,20m (10,6 po)
Vis, Torx T-30 1/4-20xl/2 po,
Vis, 1/4-20xl/2 po.

61

Just Call:

1-800-4-MY-HOME

(1-800-469-4663)

24 hours a day, 7 days a week

For the repair of major brand appliances in your own home ...

no matter who made it, no matter who sold it!

For your nearest Sears Parts & Service location,

to bring in products like vacuums, lawn equipment and electronics.

For Sears Parts & Service, to order the replacement parts,

accessories and owner's manuals that you need to do-it-yourself.

www.sears.ca

To purchase or inquire about a Sears Maintenance Agreement, call:

1-800-361-6665

9 a.m. - 8 p.m. Mon.- Fri. EST, 9 a.m. - 4 p.m. Sat.

Pour service en francais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

EEAR

HomeCentralTM

_FMTrademarks of Sears, Roebuck and Co. used under license by Sears Canada
_:Marque depos6e/MCMarque de commerce de Sears, Roebuck and Co, utilis6e en vertu d'une licence de Sears Canada

F-031020L 62
