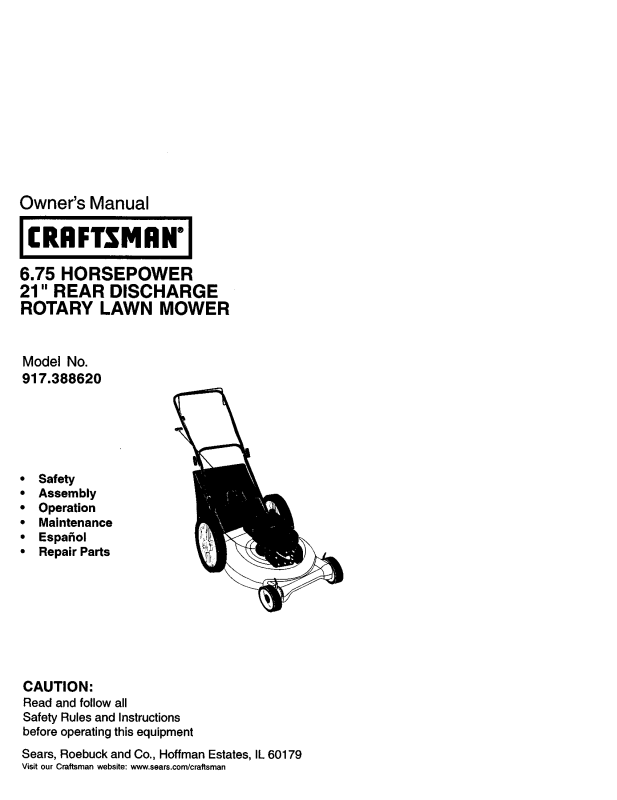

Owner's Manual
6.75 HORSEPOWER 21" REAR DISCHARGE ROTARY LAWN MOWER
Model No.
917.388620
Safety
Assembly
Maintenance
Espa_ol
Repair Parts
CAUTION:
Read and follow all Safety Rules and Instructions before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears.com/craftsman
Page 2
Warranty ............................................... 2
Safety Rules ......................................... 2
Assembly .............................................. 5
Operation .............................................. 6
Maintenance Schedule ...................... 10
Maintenance ....................................... 10
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any defect in material or work- manship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase.
This Warranty does not cover:
Expendable items which become worn dudng normal use, such as rotary mower blades, blade adapters, belts, air cleaners and spark plug.
Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only
while this product is in use in the United States. This Warranty gives you specific legal dghts, and you may also have other rights
which vary from state to state.
SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
Product Specifications ........................ 11
Service and Adjustments .................... 14
Storage ............................................... 15
Troubleshooting ................................. 16
Repair Parts ........................................ 35
Parts Ordering ..................... Back Cover
IMPORTANT: This cutting machine is capable of amputating hands and feet and
throwing objects. Failure to observe the following safety instructions could result in serious injury or death.
I.GENERAL OPERATION
Read, understand, and follow all
instructions on the machine and in the manual(s) before starling. Be thor-
oughly familiar with the controls and the proper use of the machine before
starling.
Do not put hands or feet near or under
rotating pads. Keep clear of the discharge opening at all times,
Only allow responsible individuals,
who are familiar with the instructions, to operate the machine.
Clear the area of objects such as rocks, toys, wire, bones, sticks, etc.,
which could be picked up and thrown by the blade.
Be sure the area is clear of other people before mowing. Stop machine if
anyone enters the area.
Do not operate the mower when
barefoot or wearing open sandals.
Always wear substantial foot wear.
Do not pull mower backwards unless
absolutely necessary. Always look down and behind before and while
moving backwards.
'Do not operate the mower without
proper guards, plates, grass catcher or other safety protective devices in place.
See manufacturer's instructions for
proper operation and installation of accessories. Only use accessories approved by the manufacturer.
Page 3
Stopthe blade(s) when crossing gravel
drives, walks, or roads.
Stop the engine (motor) whenever you
leave the equipment, before cleaning the mower or unclogging the chute.
Shut the engine (motor) off and wait
until the blade comes to complete stop before removing grass catcher.
Mow only in daylight or good artificial light.
Do not operate the machine while under the influence of alcohol or drugs.
Never operate machine in wet grass. Always be sure of your footing: keep a firm hold on the handle and walk; never
run.
Disengage the self-propelled mecha- nism or drive clutch on mowers so
equipped before starting the engine
(motor).
, if the equipment should start to vibrate
abnormally, stop the engine (motor) and check immediately for the cause. Vibration is generally a warning of
trouble.
Always wear safety goggles or safety glasses with side shields when
operating mower.
II. SLOPE OPERATION Slopes are a major factor related to slip
and fall accidents which can result in severe injury. All slopes require extra
caution. If you feel uneasy on a slope, do not mow it.
DO:
Mow across the face of slopes: never up and down. Exercise extreme caution when changing direction on slopes.
Remove obstacles such as rocks, tree limbs, etc.
Watch for holes, ruts, or bumps. Tall grass can hide obstacles.
DO NOT."
Do not trim near drop-offs, ditches or embankments. The operator could lose
footing or balance.
Do not trim excessively steep slopes.
Do not mow on wet grass. Reduced footing could cause slipping.
II1.CHILDREN
Tragic accidents can occur if the operator
is not alert to the presence of children. Children are often attracted to the
machine and the mowing activity. Never assume that children will remain where
you last saw them.
Keep children out of the trimming area and under the watchful care of another
responsible adult,
Be alert and turn machine off if children enter the area.
Before and while walking backwards,
look behind and down for small
children.
Never allow children to operate the
machine.
Use extra care when approaching blind
corners, shrubs, trees, or other objects that may obscure vision.
IV. SERVICE
Use extra care in handling gasoline and other fuels. They are flammable
and vapors are explosive.
-Use only an approved container.
- Never remove gas cap or add fuel
with the engine running. Allow
engine to cool before refueling. Do
not smoke.
-Never refuel the machine indoors.
- Never store the machine or fuel container inside where there is an
open flame, such as a water heater.
Never run a machine inside a closed
area.
Never make adjustments or repairs with
the engine (motor) running. Disconnect the spark plug wire, and keep the wire
away from the plug to prevent acciden- tal starting.
Keep nuts and bolts, especially blade attachment bolts, tight and keep
equipment in good condition.
Never tamper with safety devices.
Check their proper operation regularly.
Keep machine free of grass, leaves, or other debris build-up. Clean oil or fuel
spillage. Allow machine to cool before storing.
Stop and inspect the equipment if you
strike an object. Repair, if necessary, before restarting.
Never attempt to make wheel height
adjustments while the engine (motor) is running.
Grass catcher components are subject to wear, damage, and deterioration,
which could expose moving parts or allow objects to be thrown. Frequently
check components and replace with
manufacturer's recommended parts,
when necessary.
Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and
use extra caution when servicing them.
Do not change the engine governor
setting or overspeed the engine.
3
Page 4
ALook for this symbo! to point out important safety precautions. It means
CAUTION!!r BECOMEALERT!!! YOUR SAFETY IS INVOLVED.
WARNING: In order to prevent
accidental starting when setting up, transporting, adjusting or making repairs,
always disconnect spark plug wire and place wire where itcannot contact spark
plug.
AWARNING: Engine exhaust, some of its
constituents, and certain vehicle compo- nents contain or emit chemicals known to
the State of California to cause cancer and birth defects or other reproductive
harm. _WARNING: Battery posts, terminals and
related ecceseodes contain lead and lead compounds, chemicals known to the
State of California to cause cancer and birth defects or other reproductive harm.
Wash hands after handling.
These accessorieswere availablewhen this lawn mower was produced. They are not shipped with your mower. They are also availableat mostSears retailoutletsand service centers. Most Sears storescan alsoorderrepairparts for you, when you providethe model number ofyour lawn mower. Some of these accessoriesmay not applyto your lawn mower.
LAWN MOWER PERFORMANCE
CLIPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS
MULCHER KITS
STABILIZER
FOR
REAR DISCHARGE
GRASS CATCHERS
LAWN MOWERS
LAWN MOWER MAINTENANCE
MUFFLERS
BELTS BLADES
FOR
_1 GRASS CATCHERS
BLADE ADAPTERS WHEEL_
SIDE DISCHARGE
LAWN MOWERS
AIR FILTERS
GAS CANS
SPARK PLUGS
ENGINE OIL
4
Page 5
Read these instructions and this manual in its entirety before you attempt to
assemble or operate your new lawn mower.
IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.
Your new lawn mower has been as- sembled at the factory with the exception
of those parts left unassembled for shipping purposes. A!l parts such as nuts, washers, bolts, etc., necessary to com-
plete the assembly have been placed in the parts bag. To ensure safe and proper
operation of your lawn mower, all parts and hardware you assemble must be
tightened securely. Use the correct tools as necessary to ensure proper tightness.
TO REMOVE LAWN MOWER FROM CARTON
1. Remove loose parts included with
mower.
2. Cut down two end corners of carton
and lay end panel down flat.
3. Remove all packing materials except
padding between upper and lower handle and padding holding operator
presence control bar to upper handle.
4. Roll lawn mower out of carton and
check carton thorougly for additional
loose parts.
HOWTO SET UPYOUR LAWN MOWER
TO UNFOLD HANDLE IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
1. Raise lower handle section to
operating position and squeeze the
bottom ends of lower handle towards each other until the pin in handle can
be inserted into one of the three height adjustment holes,
2. Remove protective padding, raise
upper handle section into place on lower handle and tighten both handle
knobs.
3. Remove any packing material from
around control bar.
Your handles may be adjusted for your mowing comfort. Refer to Service and Adjustments section of this manual.
Operator presence _. controlbar _
Upper handle _ //// S" /;_'
_.___:_ Mowing
f_ Liftu_;,_ "_
°siti°n
Lowerhandle
Handle pin
3-Position handle
,, , adjustment
bracket
Page 6
KNOWYOUR LAWN MOWER READTHIS OWNER'S MANUALAND SAFETY RULESBEFORE OPERATINGYOUR LAWNMOWER, Comparetheillustrationswithyour lawnmowerto familiarizeyoumelf
withthe locationofvariouscontrolsandadjustments.Save thismanual forfuture reference.
These symbols may appear on your lawn mower orin literature suppliedwiththe product. Learn and understandtheirmeaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER. KEEP HANDS
CA WARNING ON OFF AND FEET AWAY
Operator presencecontrolbar
Engine zone control cable
Handle knob
Engine oil cap with
IMPORTANT: This lawn mower is
Gasoline filler cap
Wheael adjuster (on each wheel)
shipped without oil or gasoline in the
engine.
MEETS CPSC SAFETY REQUIREMENTS Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Commis- sion. The blade turns when the engine is running.
Operator presence control bar - must be Primer - pumps additional fuel from the held down to the handle to start the carburetor to the cylinder for use when engine. Release to stop the engine, starting a cold engine.
Starter handle - used for starting the engine.
Page 7
The operation of any lawn
mower can result in
foreign objects thrown into the eyes, which can result
in severe eye damage.
Always wear safety glasses or eye shields while operating your lawn mower
or performing any adjustments or repairs. We recommend a wide vision safety
mask over spectacles or standard safety
glasses.
HOWTO USEYOUR LAWN MOWER ENGINE SPEED
The engine speed was set at the factory for optimum performance. Speed is not
adjustable. ENGINE ZONE CONTROL
_CAUTION: Federal regulations require
an engine control to be installed on this lawn mower in order to minimize the risk
of blade contact injury. Do not under any circumstances attempt to defeat the
function of the operator control. The blade turns when the engine is running.
Your lawn mower is equipped with an operator presence control bar which
requires the operator to be positioned behind the lawn mower handle to start
and operate the fawn mower.
TO ADJUST CUTTING HEIGHT Raise wheels for low cut and lower wheels for high cut, adjust cutting height
to suit your requirements. Medium position is best for most lawns.
To change cutting height, squeeze adjuster lever toward wheel. Move
wheel up or down to suit your require-
ments. Be sure all wheels are in the same setting.
NOTE: Adjuster is properly positioned when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped) allow lever to be positioned between the plate tabs.
PlateTab
TO CONVERT MOWER Your lawn mower was shipped ready to be
used as a mutcher.To convertto bagging: REAR BAGGING
Liftrear door of the lawn mower and place the grass catcherframe hooksonto the
doorpivot pins.
To convertto mulchingoperation,remove grass catcherand dose rear door.
ACAUTION: Do not run your lawn mower
without clipping deflector or approved grass catcher in place. Never attempt to
operate the lawn mower with the rear door removed or propped open.
Pivotpins Grass catcher
TO EMPTY GRASS CATCHER
1. Lift up on grass catcher using the frame handle.
2. Remove grass catcher with clippings from under lawn mower handle.
3. Empty clippings from bag using both frame handle and bag handle.
NOTE: Do not drag the bag when emptying; it will cause unnecessary wear.
handle "_ I_,
handle
LowerWheelslfor High Cutm,,,__ I
"_ _.ever
RaiseWheels forLowCut
Page 8
BEFORESTARTINGENGINE
ADDOIL
Yourlawnmowerisshippedwithoutoilin
theengine. Engine holds 20 oz. of oil.
For type and grade of oil to use, see "ENGINE" in Maintenance section of this
manual.
1. Be sure lawnmowar is level and area
around oil fill is clean.
2. Remove engine oil cap and fill to the full line on the dipstick. Pour oil
slowly. Do not over fill.
NOTE: Allow oilto settle down into engine for accurate reading. To read
proper level, tighten engine oil cap, then remove it to road the dipstick.
3. Reinstall engine oil cap and tighten.
Check oil level before each use. Add
oil if needed. Fill to full line on dipstick.
Change the oil after ever./25 hours of
operation or each season. You may need to change the oil more often
under dusty, dirty conditions.
ADD GASOLINE
Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of 87 octane. Do not mix oil with gaso-
line. Purchase fuel in quantities that can be used within 30 days to assure
fuel freshness.
AWARNING: Experience indicates that alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
_, CAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or
use gasoline near an open flame.
Engineoil cap
TO START ENGINE NOTE: Due to protective coatings on the
engine, a small amount of smoke may be present during the initial use of the
product and should be considered normal.
1. To start a cold engine, push primer three (3) times before trying to start.
Use a firm push. This step is not usually necessary when starting an engine which has already run for a
few minutes.
2. Hold operator presence control bar down to the handle and pull starter
handle quickly. Do not allow starter rope to snap back.
TO STOP ENGINE
To stop engine, release operator
presence control bar.
NOTE: In cooler weather it may be necessary to repeat pdming steps. In
warmer weather over priming may cause flooding and engine will not start. If you
do flood engine, wait a few minutes before attempting to start and do not
repeat priming steps.
__._=_l..._ _'- Gasolinefiller
Page 9
MOWINGTIPS
Under certain conditions, such as very
tall grass, it may be necessary to raise the height of cut to reduce pushing
effort and to keep from overloading the engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the lawn mower over the area a second
time.
For extremely heavy cutting, reduce the width of cut by overlapping previously
cut path and mow slowly.
For better grass bagging and most cutting conditions, the engine speed
should be set in the fast position.
For side discharge lawn mowers, cutting in a counter-clockwise direction,
starting at the outside of the area to be cut, spreads grass clippings more
evenly and puts less load on the engine. To keep clippings off of
walkways, flower beds, etc., make the first cuts in a clockwise direction.
Pores in cloth grass catchers can become filled with dirt and dust with
use and catchers will collect less gross.
To prevent this, regularly hose catcher off with water and let dry before using.
Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
MULCHING MOWINGTIPS IMPORTANT: For best performance,
keep mower housing free of built-up grass and trash. See "Cleaning" in
MAINTENANCE section of this manual.
The special mulching blade will recut
the grass clippings many times and
reduce them in size so that as they fall onto the lawn they will disperse into the grass and not be noticed. Also, the
mulched grass will biodegrode quickly
to provide nutrients for the lawn.
Always mulch with your highest engine (blade) speed as this will provide the
best recutting action of the blades.
Avoid cutting your lawn when it is wet.
Wet grass tends to form clumps and interferes with the mulching action. The
best time to mow your lawn is the early afternoon. At this time the grass has
dried and the newly cut area will not be exposed to the direct sun.
For best results, adjust the lawn mower
cutting height so that the lawn mower
cuts off only the top one-third of the
grass blades. If the lawn is overgrown it will be necessary to raise the height of cut to reduce pushing effort and to keep
from overloading the engine and leaving clumps of mulched gross. For
extremely heavy mulching, reduce your width of cut by overlapping previously
cut path and mow slowly.
Certain types of gross and grass
conditions may require that an area be mulched a second time to completely
hide the clippings. When doing a second cut, mow across or perpendicu-
lar to the first cut path.
Change your cutting pattern from week
to week. Mow north to south one week then change to east to west the next
week. This will help prevent matting and groining of the lawn.
MAX 1_
9
Page 10
AS YOU COMPLETE JO_'_'_ _,-_/_._ _""I'/_"."_ _ "_ 0 v .
REGULAR SERVICE _._/_._ _=f_ERVICE DATES
Check for Loose Fasteners M _'
Clean/Inspect Grass Catcher
M (If Equipped) II/ II/ I_
Clean Lawn Mower V'
Clean Under Drive CoverfPower-Propelled Mowers) Check drive beri!pulleys
S (Power-Prot_dled Mowers) II_
Check/Sharpen/Replace Sl_de f//$
Lubrication Chart I_
_lean Battery/Recha Etactdc Start Mowe_jr_ It/ I_1
E 3hack Engine Oil Level
N Change Engine Oil I/1,2 --
G Clean Air Filter if 2
I Inspect Muffler l#/
Ni Clean or Replace Spark Rug (p/
E Replace Air Filtar Paper Cartridge II/=
1 Change mote often when operating under a _leavy load or _nhigh ambient temperatures
2. _ er,_pce more often when operat_lg _n diny ¢r dusly conditions
3. Replace blades more otten whe_ mowing in _ndy sod.
4. Gharg e 48 hours at end of _ason.
GENERAL RECOMMENDATIONS The warranty on this lawn mower does
not cover items that have been subjected
to operator abuse or negligence. To
receive full value from the warranty, operator must maintain mower as instructed in this manual.
Some adjustments will need to be made periodically to properly maintain your
unit.
All adjustments in the Service and Adjustments section of this manual
should be checked at least once each season.
Once a year, replace the spark plug,
clean or replace air filter element and check blade for wear. A new spark
plug and clean/new air filter element assures proper air-fuel mixture and helps your engine run better and last
longer.
Follow the maintenance schedule in this manual.
BEFORE EACH USE
1. Check engine oil level.
2. Check for loose fasteners.
LUBRICATION Keep unit well lubricated(See "LUBRI-
CATIONCHART").
LUBRICATIONCHART
•)Wheel adjuster
\
dl
_Handle bracket mounting pin
(I) Refer to maintenance "Engine" section.
_) Spray lubricant
IMPORTANT: Do not oil or grease plastic wheel bearings, viscous lubri-
cants will attract dust and dirt that will shorten the life of the self-lubricating
bearings, if you feel they must be lubricated, use only a dry, powdered
graphite type lubricant sparingly.
_)Brake
spring
bracket
10
Page 11
PRODUCT SPECIFICATIONS
SERIAL NUMBER DATE OF PURCHASE GASOLINE CAPACITY/TYPE: 1.5 QUARTS
UNLEADED REGULAR
OILTYPE (API-SF - SJ): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
OIL CAPACITY: 20 OZS. SPARK PLUG(GAP: .030") CHAMPION RJ19LM OR J19LM
BLADE BOLT TORQUE: 35-40 FT. LBS.
The model and serial numbers will be found on a decal attached to the rear of the lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER Always observe safety rules when
performing any maintenance, TIRES
Keep tires free of gasoline, oil, or insect control chemicals which can harm
rubber.
Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage.
BLADE CARE For best results, mower blade must be
kept sharp. Replace bent or damaged blades.
TO REMOVE BLADE
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Turn lawn mower on its side. Make
sure air filter and carburetor are up.
3. Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt. NOTE: Protect your hands with gloves and/or wrap blade with heavy cloth.
4. Remove blade bolt by turning counter-
clockwise.
5. Remove blade and attaching hard-
ware (bolt, lock washer and hardened
washer). NOTE: Remove the blade adapter and
check the key inside hub of blade adapter. The key must be in good condi-
tion to work properly. Replace adapter if damaged.
TO REPLACE BLADE
1. Position the blade adapter on the engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
2. Position blade on the blade adapter
aligning the two (2) holes in the blade with the raised lugs on the adapter.
3. Be sure the trailing edge of blade (opposite sharp edge) is up toward
the engine.
4. install the blade bolt with the lock
washer and hardened washer into blade adapter and crankshaft.
5. Use block of wood between blade and lawn mower housing and tighten the
blade bolt, turning clockwise.
The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: Blade bolt is grade 8 heat treated.
TO SHARPEN BLADE NOTE: We do not recommend sharpen-
ing blade - but if you do, be sure the blade is balanced.
Care should be taken to keep the blade balanced. An unbalanced blade will
cause eventual damage to lawn mower or engine.
The blade can be sharpened with a file
or on a grinding wheel. Do not attempt to sharpen while on the mower.
To check blade balance, drive a nail
into a beam or wall. Leave about one inch of the straight nail exposed. Place
center hole of blade over the head of the nail. If blade is balanced, it should remain in a horizontal position. If either
end of the blade moves downward, sharpen the heavy end until the blade
is balanced.
11
Page 12
Lockwasher
Blade adapter
Crankshaft
TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to drain oil, drain fuel tank by running
engine until fuel tank is empty.
1. Disconnect spark plug wire from spark plug and place wire where it cannot
come in contact with spark plug.
Crank
2. Remove engine oil cap; lay aside on a clean surface.
3. Tip lawn mower on its side as shown
/ /
and drain oil into a suitable container. Rock lawn mower back and forth to
bolt
Hardened edge Blade adapter
washer
remove any oil trapped inside of
engine.
4. Wipe off any spilled oil on lawn mower
and on side of engine.
GRASS CATCHER
The grass catcher may be hosed with water, but must be dry when used.
Check your grass catcher often for
5. Fill engine with oil. (See "Add Oil" in the Operacion section of this manual.)
6. Reconnect spark plug wire to spark
plug.
damage or deterioration. Through
normal use it will wear. If catcher needs replacing, replace only with a manufac-
turer approved replacement catcher. Give the lawn mower model number
when ordering.
ENGINE LUBRICATION
Use only high quality detergent oil rated with API service classification SF-SJ.
Select the oirs SAE viscosity grade according to your expected operating temperature.
SAE VISCOSITY GRADES
Container
AIR FILTER Your engine will not run properly and may
be damaged by using a dirty air filter. Replace the air filter every year, more
often if you mow in very dusty, dirty conditions. Do not wash air filter.
TO CHANGE AIR FILTER
1. Remove the air filter by turning
clockwise to the stop and pult away from collar.
2. Remove filter from inside of cover.
3. Clean the inside of the cover and the
collar to remove any dirt accumula-
NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these muRi-viscosity oils
will result in increased oil consumption when used above 32°F. Check your
engine oil level more frequently to avoid possible engine damage from running Collar
low on oil. _ Clip
tion.
4. Insert new filter into cover.
5. Put air filter cover and filter into collar
aligning the tab with the slot.
6. Push in on cover and turn counter- clockwise to tighten. Turn
Change the oil after every 25 hours of "_ operation or at least once a year if the
lawn mower is not used for 25 hours in one year.
Check the crankcase oil level before SI starting the engine and after each five (5)
hours of continuous use, Tighten oil plug Airfilter securely each time you check the oil
level.
12
clockwiseto
remove
Air filter cover Turn counter-
clockwise to
tighten
Page 13
MUFFLER Inspect and replace corroded muffler as it
could create a fire hazard and/or dam-
age.
SPARK PLUG
Change your spark plug each year to make your engine start easier and run
better. Set spark plug gap at .030 inch.
CLEANING IMPORTANT: For best performance,
keep mower housing free of buiif-up grass and trash. Clean the underside of
your mower after each use.
_I_CAUTION: Disconnect spark plug wire from spark plug and place wire where it
cannot come in contact with the spark
plug.
Clean the underside of your lawn
mower by scraping to remove build-up of grass and trash.
Clean engine often to keep trash from accumulating. A clogged engine runs
hotter and shortens engine life.
Keep finished surfaces and wheels free of all gasoline, oil,etc.
We do not recommend using a garden
hose to clean lawn mower unless the electrical system, muffler, air filter and
carburetor are covered to keep water
out. Water in engine can result in shortened engine life.
13
Page 14
ACAUTION: Before performing any
service or adjustments:
1. Release control bar and stop engine.
2. Make sure the blade and all moving
parts have completely stopped.
3. Disconnect spark plug wire from spark
plug and place where it cannot come in contact with plug.
LAWN MOWER TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in the Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your mower, is provided to minimize the possibility that objects will
be thrown out of the rear of the mower into the operator's mowing position, If the deflector becomes damaged, it should be
replaced. DISCHARGE GUARD
The discharge guard, attached to the discharge opening of your lawn mower, is
provided to prevent the possibility of injury resulting from objects being thrown
out of the discharge opening into the operator mowing position. If the discharge
guard becomes damaged, it should be
replaced. TO ADJUST HANDLE The handle on your lawn mower has
three (3) height positions - adjust to
height that suits you.
Squeeze the bottom ends of lower handle towards each other until the pin in handle can be inserted into one of
the three height adjustment holes.
High
Med. Low. pin
handle adjustment
bracket
TO ASSEMBLE GRASS CATCHER
1.Put grass catcher frame into grass bag with dgid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
2. Slip vinyl bindings over frame. NOTE: If vinyl bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
ACAUTION: Do not run your lawn mower without clipping deflector or approved
grass catcher in place. Never attempt to operate the lawn mower with the rear
door removed or propped open.
Catcher frame handle
/
_t Frame
opening
ENGINE ENGINE SPEED
Your engine speed has been factory set. Do not attempt to increase engine speed
or it may result in personal injury. If you believe that the engine is running too fast or too slow, take your lawn mower to an
authorized service center for repair and
adiustment. CARBURETOR
Your carburetor has a non-adjustable fixed main jet for mixture control. If your
engine does not operate properly due to suspected carburetor problems, take your
lawn mower to an authorized service
center for repair and/or adjustment. IMPORTANT: Never tamper with the
engine governor, which is factory set for proper engine speed. Overspeeding the
engine above the factory high speed setting can be dangerous. If you think the
engine-governed high speed needs adjusting, contact your nearest autho- rized service center, which has proper
equipment and experience to make any necessary adjustments.
14
Page 15
Immediately prepare your lawn mower for
storage at the end of the season or if the
unit will not be used for 30 days or more. LAWN MOWER
When lawn mower is to be stored for a period of time, clean it thoroughly, remove
all dirt, grease, leaves, etc. Store in a clean, dry area.
1. Clean entire lawn mower (See
"CLEANING" in the Maintenance section of this manual).
2. Lubricate as shown in the Mainte- nance section of this manual.
3. Be sure that all nuts, bolts, screws, and pins are securely fastened.
Inspect moving parts for damage, breakage and wear. Replace if
necessary.
4. Touch up all rusted or chipped paint surfaces; sand lightly before painting.
HANDLE You can fold your lawn mower handle for
storage.
1. Loosen the two (2) handle knobs on sides of the upper handle and allow handle to fold down to the rear.
2. Squeeze the bottom ends of lower handle toward each other until pins in
handle clear the brackets and pivot entire handle assembly forward and
allow it to rest on mower.
When setting up your handle from the
storage position, the lower handle will require manually locking into the mowing position.
IMPORTANT: When folding the handle
for storage or transportation, be sure to fold the handle as shown or you may
damage the control cables.
Operator presence controlbar
Upper
Med,
Low pin
J
3-Position handte
adjustment
bracket
ENGINE FUEL SYSTEM
IMPORTANT: it is important to prevent gum deposits from forming in essential
fuel system parts such as carburetor, fuel filter, fuel hose, or tank during storage.
Also, experience indicates that alcohol blended fuels (called gasohol or using
ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine
while in storage.
1. Drain the fuel tank.
2. Start the engine and let it run until the fuel lines and carburetor are empty.
Never use engine or carburetor cleaner
products in the fuel tank or permanent damage may occur.
Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of
fuel gum deposits during storage. Add stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at least 10 minutes after adding stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
Fold fonNard for stroage
Lower handle
Fold backward
Mowing position
15
Page 16
ENGINEOIL Drain oil (with engine warm) and replace
with clean engine oil. (See "ENGINE" in the Maintenance section of this manual).
CYLINDER
1. Remove spark plug.
2. Pour one ounce (29 ml) of oil through
spark p_ug ho_e into cylinder.
3. Pull starler handle slowly a few times to distribute oil.
4. Replace with new spark plug.
OTHER
Do not store gasoline from one season
to another.
TROUBLESHOOTING CHART
PROBLEM CAUSE
Does not start 1. Dirty air filter,
2, Out of fuel.
3. Stale fuel
4. Water in fuel.
5. Spark prug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken
blade adapter.
8. Control bar in released
position.
9. Control bar defective.
Replace your gasoline can if your can starts to rust. Rust and/or dirt in your
gasoline will cause problems.
If possible, store your unit indoors and cover it to give protection from dust and
dirt.
Cover your unit with a suitable protec-
tive cover that does not retain mois- ture. Do not use plastic. Plastic cannot
breathe which allows condensation to form and will cause your unit to rust.
IMPORTANT: Never cover mower while
engone and exhaust areas are still warm. _, CAUTION:Never store the lawn mower
with gasoline in the tank inside a building where fumes may reach an open flame or
spark. Allow the engine to cool before storing in any enclosure,
CORRECTION
1. Clean/replace air filter.
2. Fill fuel tank.
3. Drain tank and refill with fresh clean fuel.
4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or
replace blade adapter.
8. Depress control bar to
handle.
9. Replace control bar.
Lossof power
Poor cut - uneven
Excessive
vibration
1. Rear of lawn mower housingor cutting blade
dragging in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves,
and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Worn, bent or loose blade.
2. Wheel heights uneven.
3. Buildup of grass, leaves and trash under mower.
f. Worn, bent or loose blade.
2. Bent engine crankshaft.
16
1. Set to "Higher Cut" position.
2. Set to "Higher Cut" position.
3. Clean/replace air filter.
4. Clean underside of mower
housing.
5. Check oil level.
6. Cut at slower walking
speed.
1. Replace blade. Tighten blade bolt.
2. Set all wheels at same height
3. Clean underside of mower housing.
1. Replace blade. Tighten blade bolt.
12. Contact a Sears or other qualified service center.
Page 17
TROUBLESHOOTING CHART
PROBLEM CAUSE
Starter rope hard I. Engine flywheel brake is on to pull when control bar is released
2. Bent engine crankshaft.
3. Blade adapter broken.
4. Blade dragging in grass.
Grass catcher 1. Cutting height too low. 1. Raise cutting height. notfllllng(ifeo 2. Lift on blade wom off. 2. Replace blade. equipped) 3. Catcher not venting air. 3. Clean grass catcher.
CORRECTION
1, Depress control bar to
upper handle before pulling starter rope.
2. Contact a Sears or other qualified service center.
3. Replace blade adapter.
4. Move lawn mower to cut grass or to hard surface.
Hard to push 1. t. Raise cutting height.Grass is too high or wheel
height is too low.
2. Rear of lawn mower
housing or blade dragging in grass.
3. Grass catcher too full.
4. Handle height position not
right for you.
2. Raise rear of lawn mower housing one (1) setting
higher.
3. Empty grass catcher.
4, Adjust handle height to
suit.
17
Page 18
CRAFTSMAN ROTARY LAWN MOWER-- MODEL NO. 917.388620
70
44 2
68
67
38
37
\
36
43 34
27
l i
47
25
22
Page 19
KEY PART NO. NO.
1 131696
2 166860X479 3 1611(_X479
4 132001 5 63601
6 131959 7 66426
8 7478(_12 11 156577
12 750097 13 850733X004
14 136376
15 5179_ 17 165946X479
18 17600406 19 167132X(_04
20 167133X004 21 165858
22 168360X004 23 166875 24 751153
25 16r_X479 26 166243x479
27 851856 29 160635X007
30 1911_
CRAFTSMAN ROTARY LAWN MOWER -- MODEL NO. 917.388620
DESCRIPTION
Control Bar UpperHande
LowerH_dle RogeGuide
Locknut 1/4-20 Handle Bblt
Wire Tie Hex Bolt 5/16-18 x 3/4
Engine Zone Control Cable
Hex Washer Head Screw #10-24 x 1/2 Up-Stop Bracket
HandleKnob Hairpin Cotter Support Bracket
Sct'ew
Axle Arm Assembly - LF Axle Arm Assembly - RF
Rear Skirt Selector Spdng
Rear Door Assembly Kit (Incl. Springs)
Locknut 5/16-18 Handle Bracket Assembly (Left)
Handle Bracket Assembly (Right) Screw 1/4-20 x 3/8
_1 Adjusting Bracket - Front Spacer
KEY PART NO. NO. DESCRIPTION
33 87877 34 167130X004
3_5 166785
36 160828 37 15116_2 38 1643_
39 83923 40 774OO
41 88652 42 165766
43 165767 44 165912 45 15O406
46 85463
47 63124 48 167131X004
49 151161 50 57143
5_ 52 175871
53 851084 54 85O263
56 851074 56 165833 57 851514
58 161551 67 166113
68 166755 7O
- - 161(T_8
- - 176217
Selector Knob
A)de Arm ASSembly - LR
Locknut 5/16-18 Shoulder Boft 3/16-18
Wheel Assembly Shoulder Boft
Flanged Locknut Hu_.ap
Hinge Screw Spdng (LH)
S_ing(RH) Door Bblt
Hex Head Thread Rolling Screw 3/8-16 x 1 Danger Decal Nut
Axle Arm Assembly - RR Who_
WaveWasher Nut
Housing Assembly (Incl. Ref, #17, 18 & 46) . Hex Head Screw 3/8-24 x 1-3/8 Grd. 8 Helical Lockwashor Hardened Washer
21" Blade Blade Adadter
Adj_nent BOb Grass Bag
Catcher Frame Engine - (See Breakdown)
Craftsman 143.0167O2 Waming DecaJ (Not Shown)
Ownel's ManuaJ
Page 20
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016702
370C
/93
285
/90
103
130
120
119
416
125
195
182216 19 277
223_
182
185
178
174
"305
"306
36
Page 21
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016702
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 37465 Cylinder IncL 2 & 20) 150 31672 Valve Spring
2 26727 Dowe Pin 151 31673 Valve Spring Cap 6 33734 Breather Element 151A 40017 Intake Valve Seal
7 36557 Breather Ass'y. (Incl, 6 & 12A) 169 36783 * Valve Cover Gasket
12 36775 Breather Tube 172 36784 Valve Cover 12A 36558 Breather Cover & Tube 174 30200 Screw, 10-24 x 9/16"
12B 36694 Breather Tube Elbow t82 6201 Screw, 1/4-28 x 7/8" 14 28277 Washer 184 26756 * Carburetor To Intake Pipe
t 5 30589 Governor Rod (Incl. 14) Gasket 16 34839A Governor Lever 185 37466 Intake Pipe
17 31335 Governor Lever Clamp 186 32653 Govemor Link 18 651018 Screw, Torx 1"-15, 189 650839 Screw, 1/4-20 x 3/8"
19 36281 Extension Spring 195 610973 Terminal
20 32600 Oil Seal 207 4336 Throttle Link
30 37464 Crankshaft 216 33086 R.RM. Adjusting Lever
40 40027 Piston, Pin & Ring Set (Std.) 223 65045 1Screw, 1/4-20 x 1"
40028 Piston, Pin & Ring Set 224 36786 * Intake Pipe Gasket
41 40025 Piston & P n Ass'y. 239 34338 * Air Cleaner Gasket
40026 Piston& Pin Ass'y, 245 36905 Air Cleaner Filter
42 40006 Ring Set (Std.) 260 36980 Blower Housing
40007 Ring Set (.010" OS) 261 30200 Screw, 10-24 x 9/16" 43 20381 Piston Pin Retaining Ring 262 650831 Screw, 1/4-20 x 1/2" 45 36777 Connecting Rod Ass'y. 263 37184 Recoil Grille (Black)
46 32610A Connecting Rod Bolt 277 650988 Screw, 1/4-20 x 2-5/16" 48 27241 Valve Lifter 285 35000A Starter Cup
50 37460 Camshaft 287 650926 Screw, 8-32 x 21/64"
52 29914 Oil Pump Ass'y. 292 26460 Fuel Line Clamp
69 37609 * Mounting Flange Gasket 298 28763 Screw, 10-32 x 35/64" 70 37608 Mounting Flenge 300 36916 Fuel Tank (Incl. 292 & 301)
72 37614 Oil Drain Plug 305 35647 Oil FillTube 75 27897 Oil Seal 305A 37611 Fill Tube Bracket
80 30574A Governor Shaft 306 37610 * "o'-Ring 81 30590A Washer 307 35499 "O'-Ring
82 30591 Governor Gear Ass'y, 309 650562 Screw, 10-32 x 1/2" 83 30588A Governor S)p(ool 310 35648 Dipstick
86 650488 Screw, 114-20 x 1-1/4" 313 34080 Spacer
89 611004 Flywheel Key 347 651038 Screw, 10-32 x 51/64" 90 611112 Flywheel 370A 36261 Lubrication Decal
92 650815 Belleville Washer 370R 37317 Hot Surface Decal 93 650816 Flywheel Nut 380 640271 Carburetor Incl. 184)
100 34443C Solid State Ignition 390 590739 Rawnd Starter 101 610118 Spark Plug Cover 400 37613 Gasket Set 103 651007 Screw, T-15, 10-24 x 15/16" (Incl. Items Marked*)
104 37480 Cam Bushing 416 36085 Spark Arrestor Kit (Incl. t 10 37047 Ground Wire 417)(Optional)
119 36787 " Cylinder Head Gasket 417 650760 Screw, 8-32 x 3/8" Optional) 120 36825 Cylinder Head 900 -- Rep acement S/B 750865, 125 36780 Exhaust Valve (1/32" OS) order from 71-999
37288 Exhaust Valve (Std.)
126 37289 Intake Valve (Std. (Incl. 151) 590702 starter 130 6021A Screw, 5/16-18 x 1-1/2
135 37598 Resistor Spark Plug NOTE: All component dimensions given in U.S.
(Incl, 12B) 178 29752 Nut & Lock Washer, I/4-28
8-32 x 19/64" 191 36559A S.E. Brake Bracket (Incl. 195)
.010" OS) 238 650932 Screw, 10-32 x 49/64" (Std.) (Incl. 43) 241 36919 Air Cleaner Collar (,010" OS) (IncL 43) 250 37122 Air Cleaner Cover
(Incl. 46) 275 37462 Muffler
(Exhaust MCR)(Inc. Ref.104) 290 29774 Fuel Line
(Incl. 72 thru 83) 301 36246 Fuel Cap
(Incl. 81) 309A 651047 Screw, T15, 10-24 x 21/32
(Incl. 151) RPMHigh 2900 to 3200
(Incl. 151 NOTE: This engine could have been built with
(RJ19LM4) inches 1 inch = 25.4 mm
37
Page 22
CRAFTSMAN 4-CYCLE ENGINE
MODEL NUMBER 143.016702
?E_7
KEY
PART NO. DESCRIPTION
NO.
mm
640271 Carburetor (Incl. 184 of Engine Parts List)
1
31615 Throttle Shaft & Lever Assembly
2
31767 Throttle Return Spring
4
631184 * Oust Seal Washer
5
631183 * Oust Seal (Thro01e)
6
640070 Throttle Shutter
7
650506 * Shutter Screw
16
631807 Fuel Fitting
17
651025 Throttle Crack Screw/Idle Speed Screw
18
630766 Tension Spring
20
640027 Idle Restrictor Screw
20A
640200 Idle Restdctor Scrwa Cap (Black)
25
631867 Float Bowl
27
631024 * Float Shaft
28
632019 Float
29
631028 * Float Bowl "O" Ring
30
631021 * Inlet Needle, Seat, & Clip (Incl. 31)
31
631022 Spring Clip
35
640259 Primer Bulb/Retainer Ring
36
640080 Main NoZZle Tube
36A
632766 Carburetor Tube
37
632547 * "O" Ring, Main Nozzle Tube
40
640030 High Speed Bowl Nut
44
27110A * Bowl Nut Washer
47
630748 * Welch Plug, Idle Mixture Well 48 6O
631O27
632760B
Welch Plu , Atmospheric Vent
Repair kit _ncl. Items Marked * in Notes)
38
Page 23
CRAFTSMAN 4-CYCLE ENGINE
KEY NO,
1
2
3
4
5
6 7
8
11
12 13
PART NO.
590702
590599A 590600
590696 590601 590697
590698 590699
590700 590703
590535 590701
MODEL NUMBER 143,016702
DESCRIPTION Recoil Starter
_OadnhgePin(Incl.4)
Retainer
Washer
Brake Spring
Starter uog Dog Spring
Pulley & Rewind Spring Ass'y
Starter Ho_sing Ass'y.
(40 degree grommet) Starter Rope {_98" X 9/64" dia.)
starter Handle
39
KEY
NO.
3
6
7 8
11 12 13
14
PART NO.
590739 590740
590616 590617
590618A 590638
590535 590701
590760
DESCRIPTION
Rewind Starter Retainer
Starter Dog
DOg Spdng Pulley & Rewind Spring Ass'y
Stader Rousing Ass'y (40 degree grommet)
Starter Rope
(Length 98" x 9/64" dla.) Starter Handle
Spring Clip
Page 24
Get it fixed, at your home or ourst
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
1-800-4-MY-HOM Es. Anytir_,dayo, night
(1-800-469-4663)
www.sears.com
To bring in products such as vacuums,
lawn equipment and electronics for repair, call for
the location of your nearest Sears Parts & Repair Center.
1-800-488-1222 A°yt,._,d_yor night
www.sears.com
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears PartsDirectSM!
1-800-366-PART 6a.m.-11p.m.CST,
(1-800-366-7278) 7daysaweek
www.sears.com/partsdlrect
To purchase or inquire about a Sears Service Agreement:
1-800-827-6655
7 a.m.- 5p.m.CST,Mon.- Sat.
Para pedk serviciode reparaci6n a domicilio,
y para ordenar plezas con entrega a domicilio:
© Se_l_k and Co.
1-888-SU-HOGAR _
(1-888-784-6427)
® RegisteredTrademark / rMTrademark of Sears, Roebuckand Co. i_ Ma_ca Registrada/ TMMarca de Fdbdcade Seam, Roebuckand Co,
Au Canada pour service en franc,,ais:
1-877-LE-FOYER _
(1-877-533_937)
176217 _I_00 VE Printed in U.S.A.
Loading...
