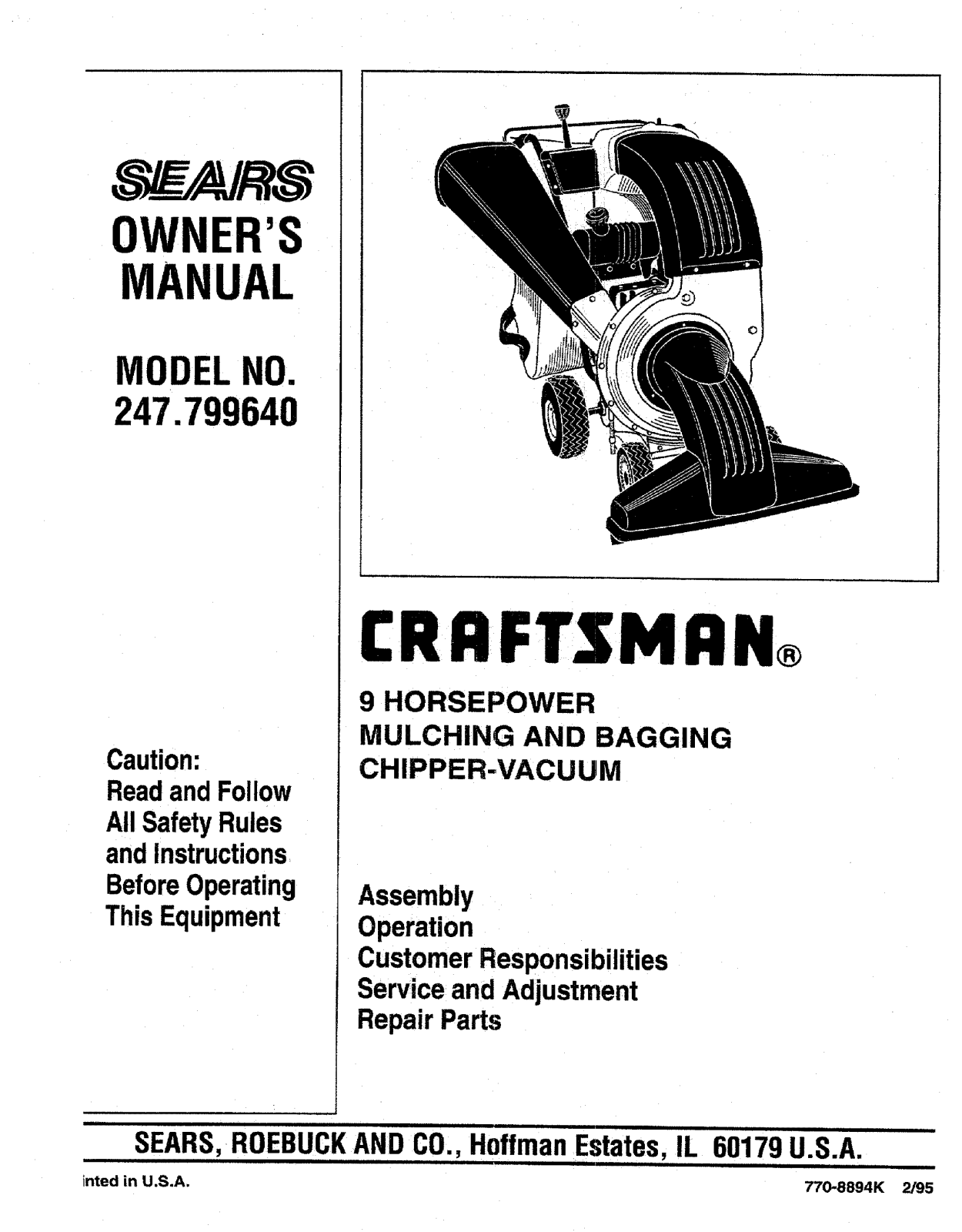

OWNER'S

MANUAL

247.799640

CRRFTSMRN®

9 HORSEPOWER

MULCHING AND BAGGING

Caution:
ReadandFollow

All SafetyRules
andInstructions

BeforeOperating

ThisEquipment

SEARS,ROEBUCKAND CO., HoffmanEstates,IL 60179 U.S.A.

inted in U,S.A. 770-8894K 2/95

CHIPPER-VACUUM

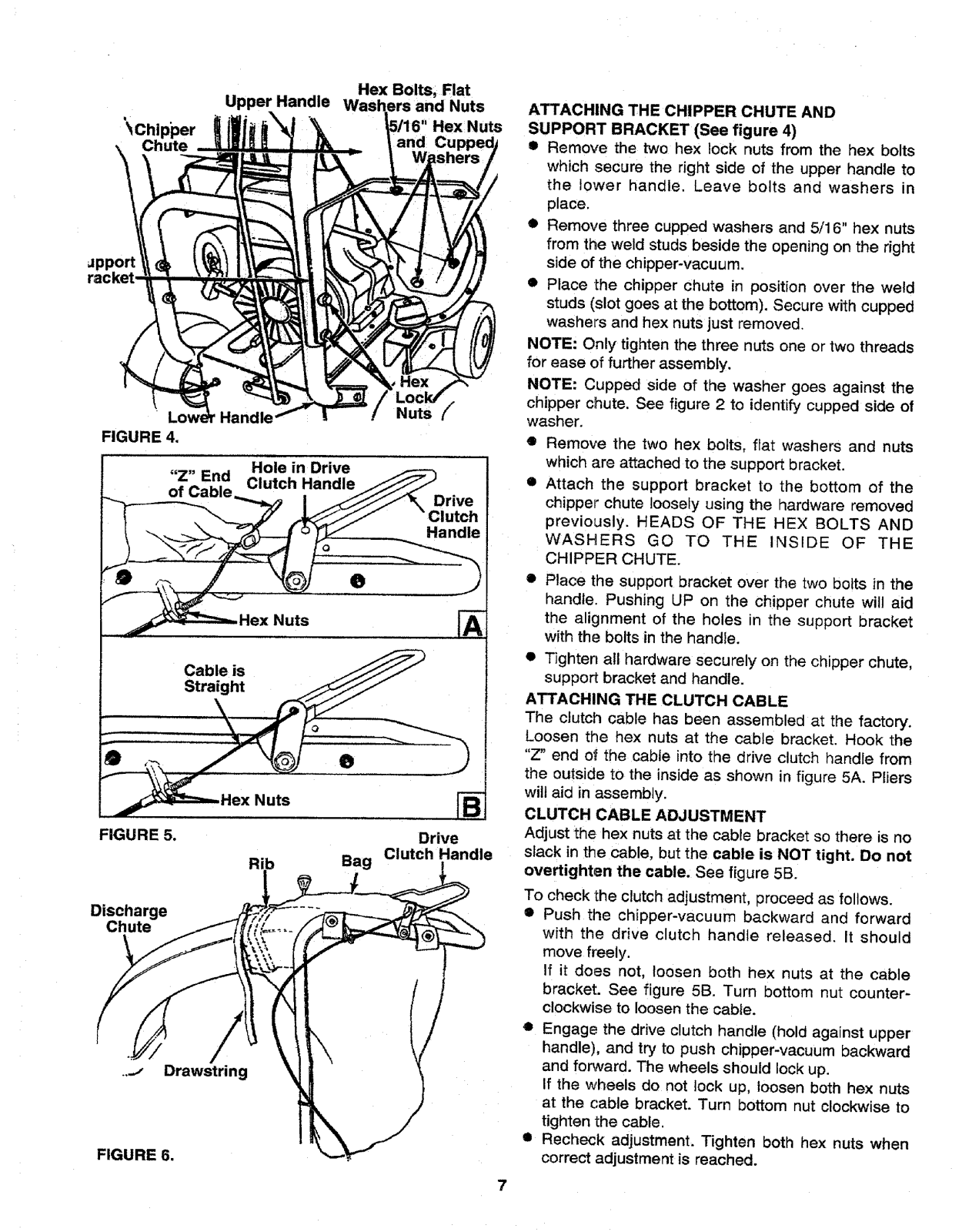

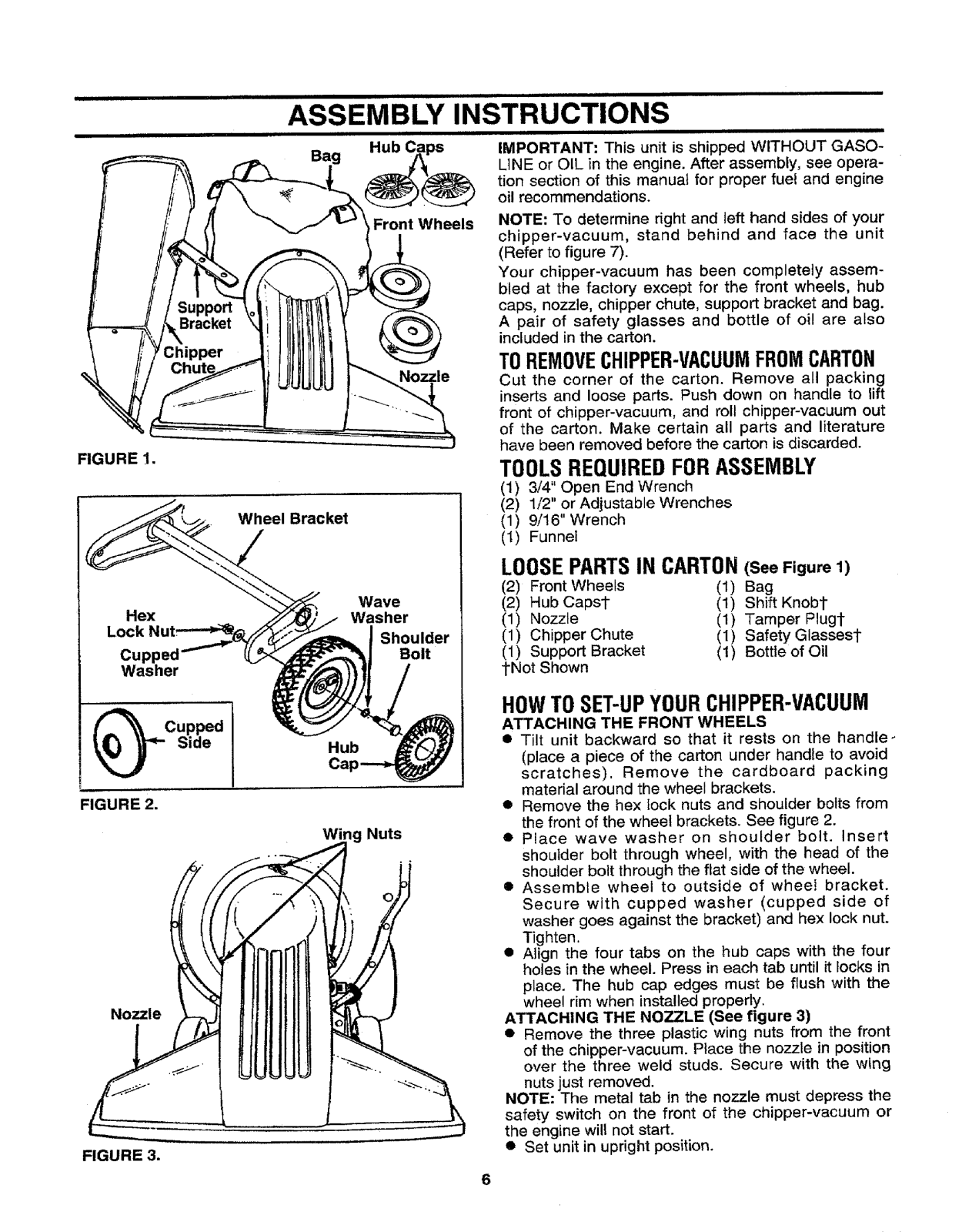

Assembly
Operation
Customer Responsibilities

Serviceand Adjustment

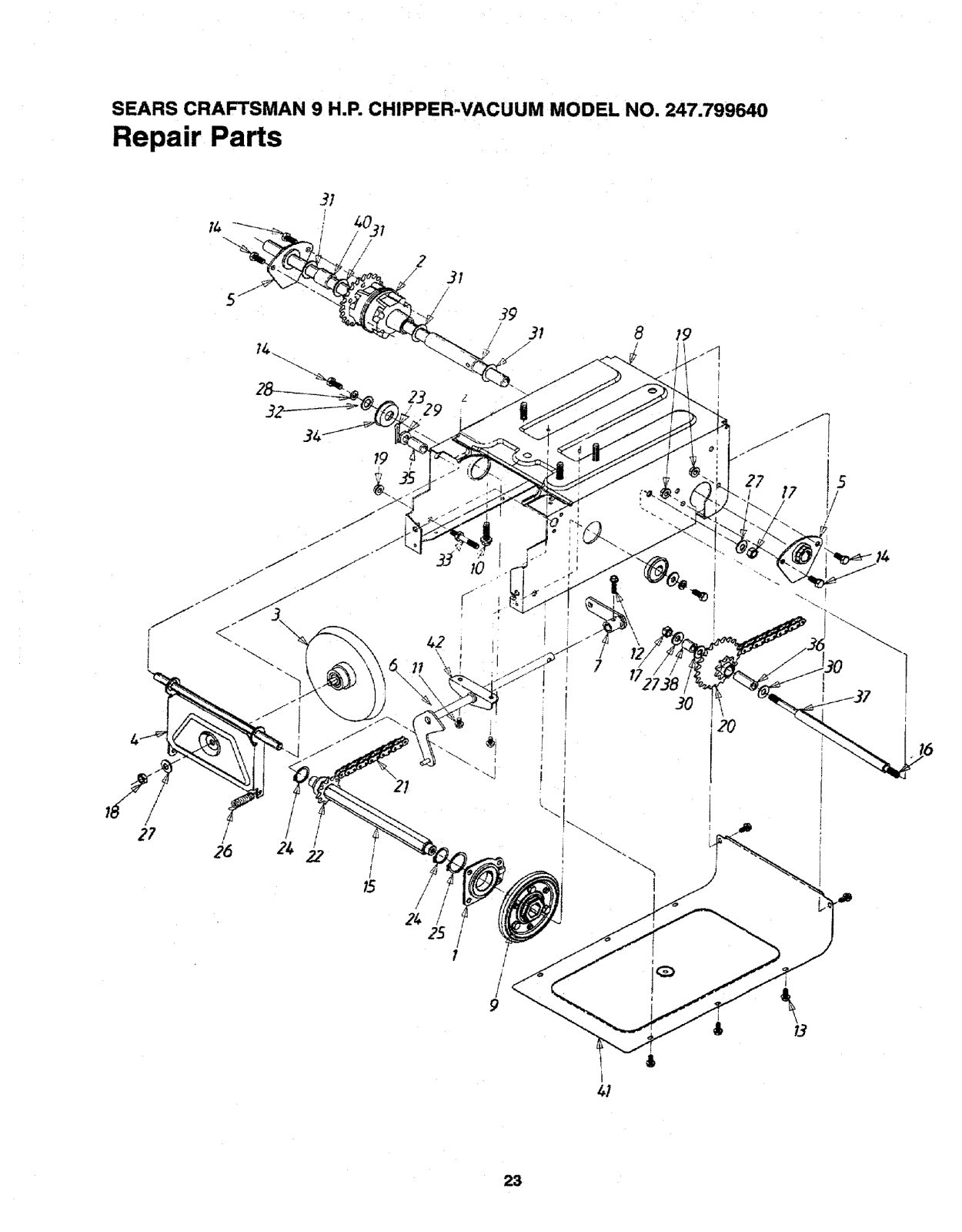

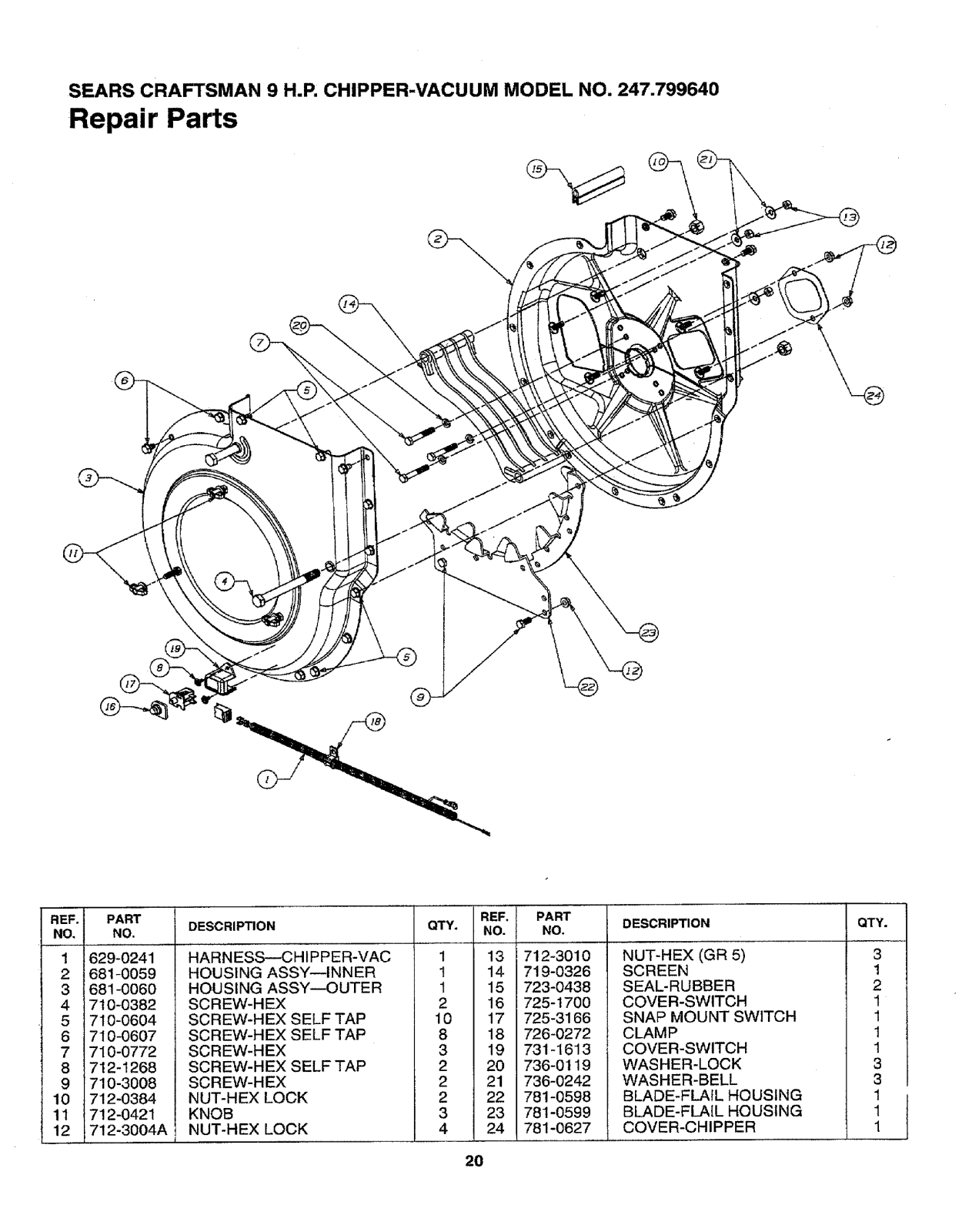

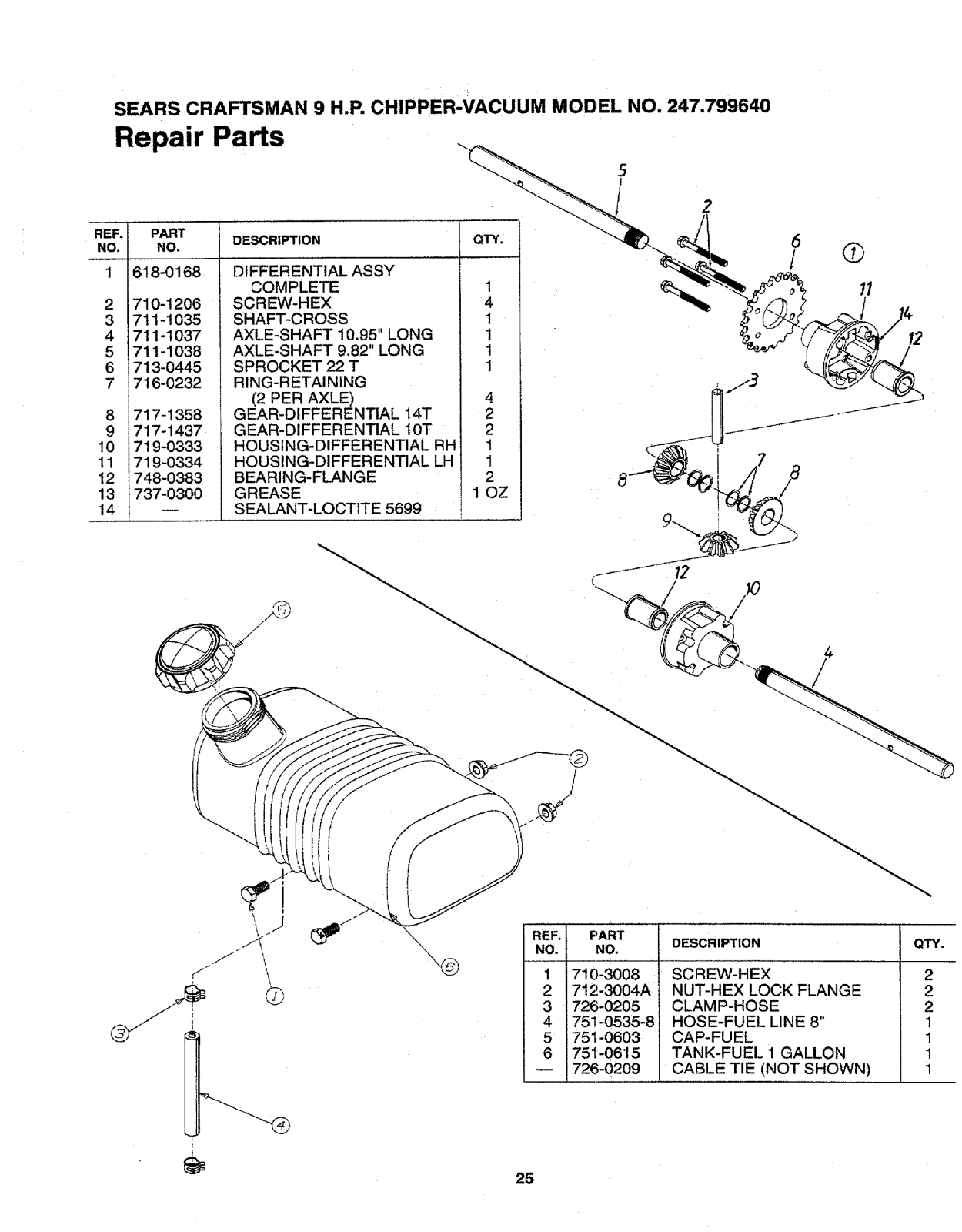

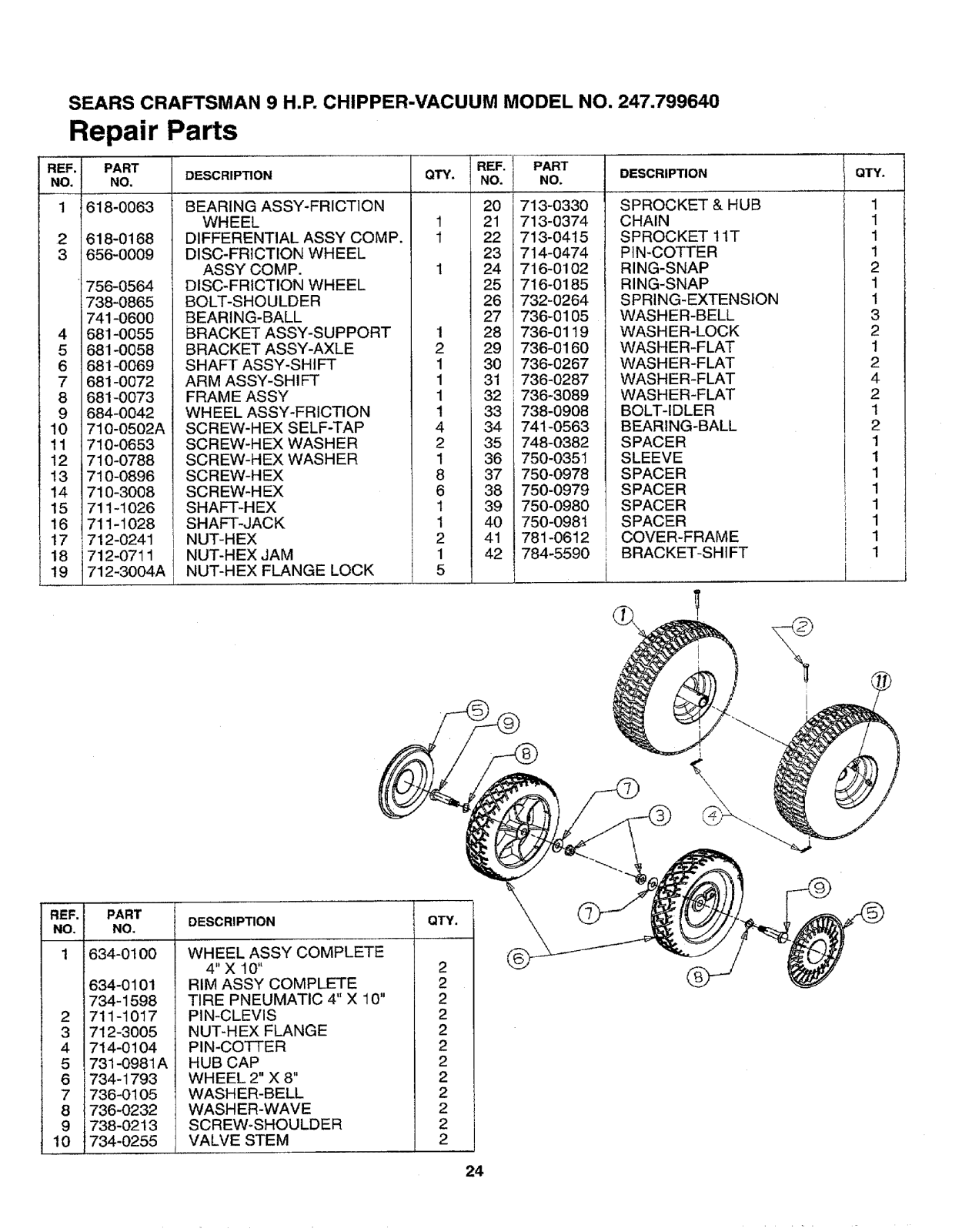

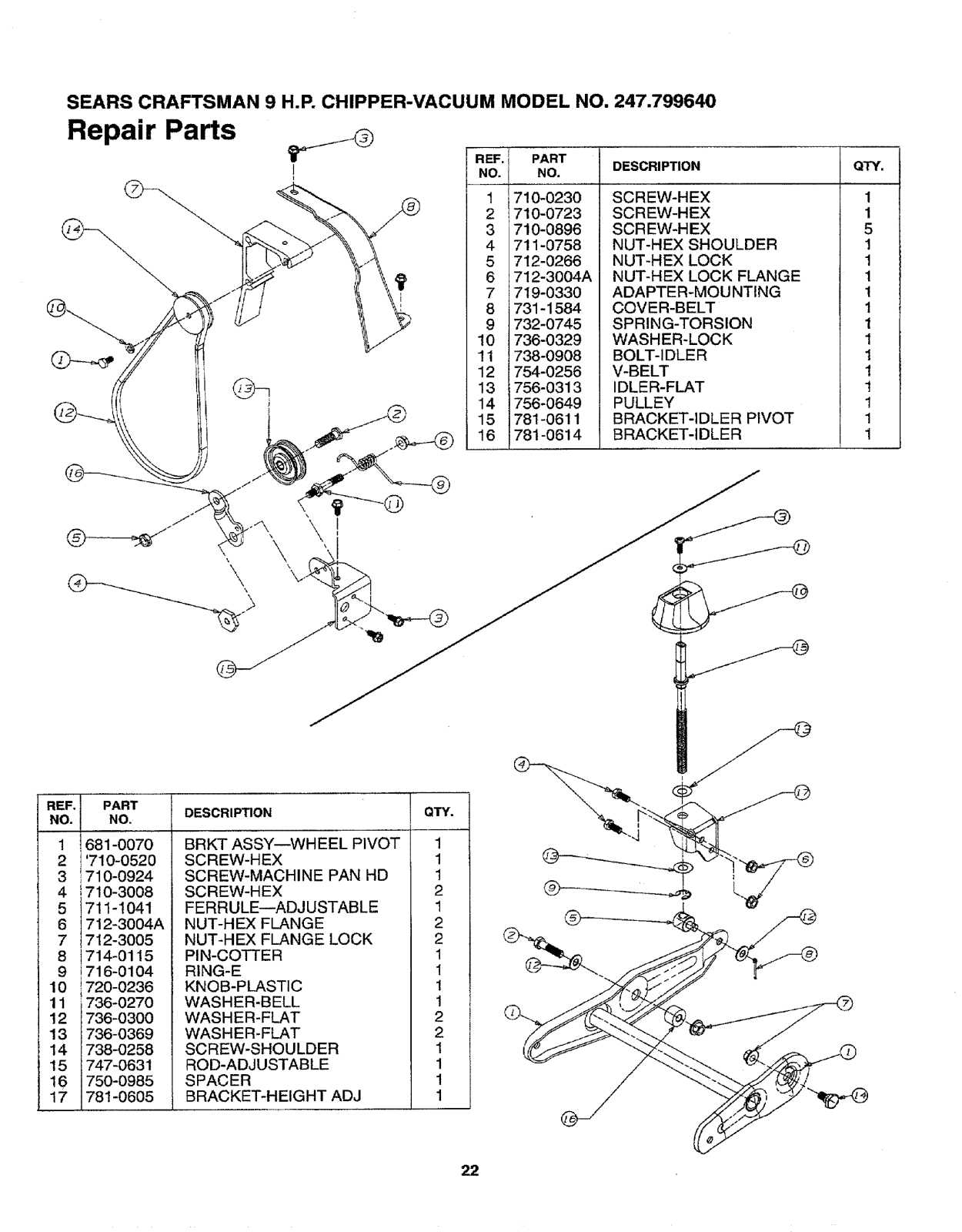

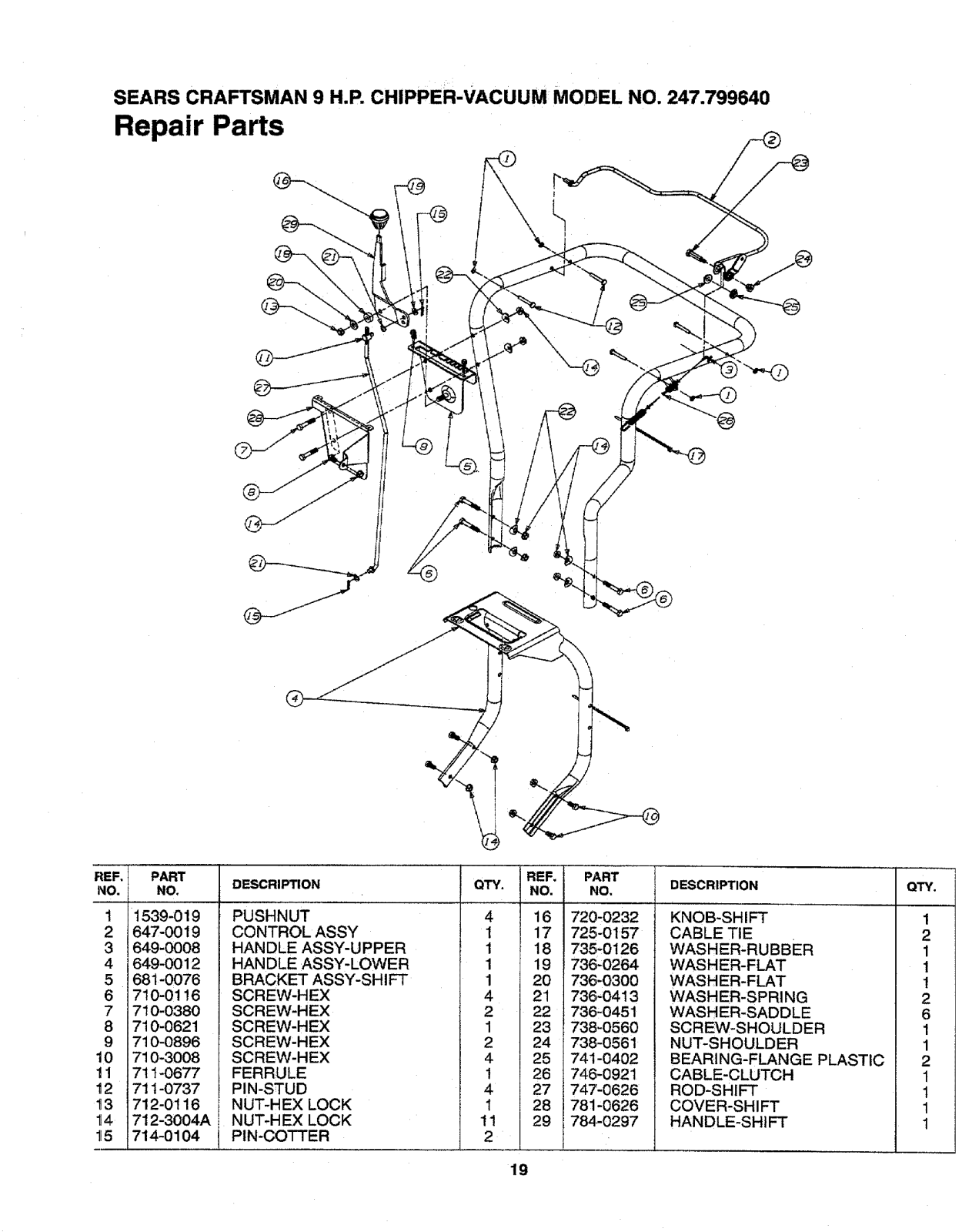

Repair Parts

i

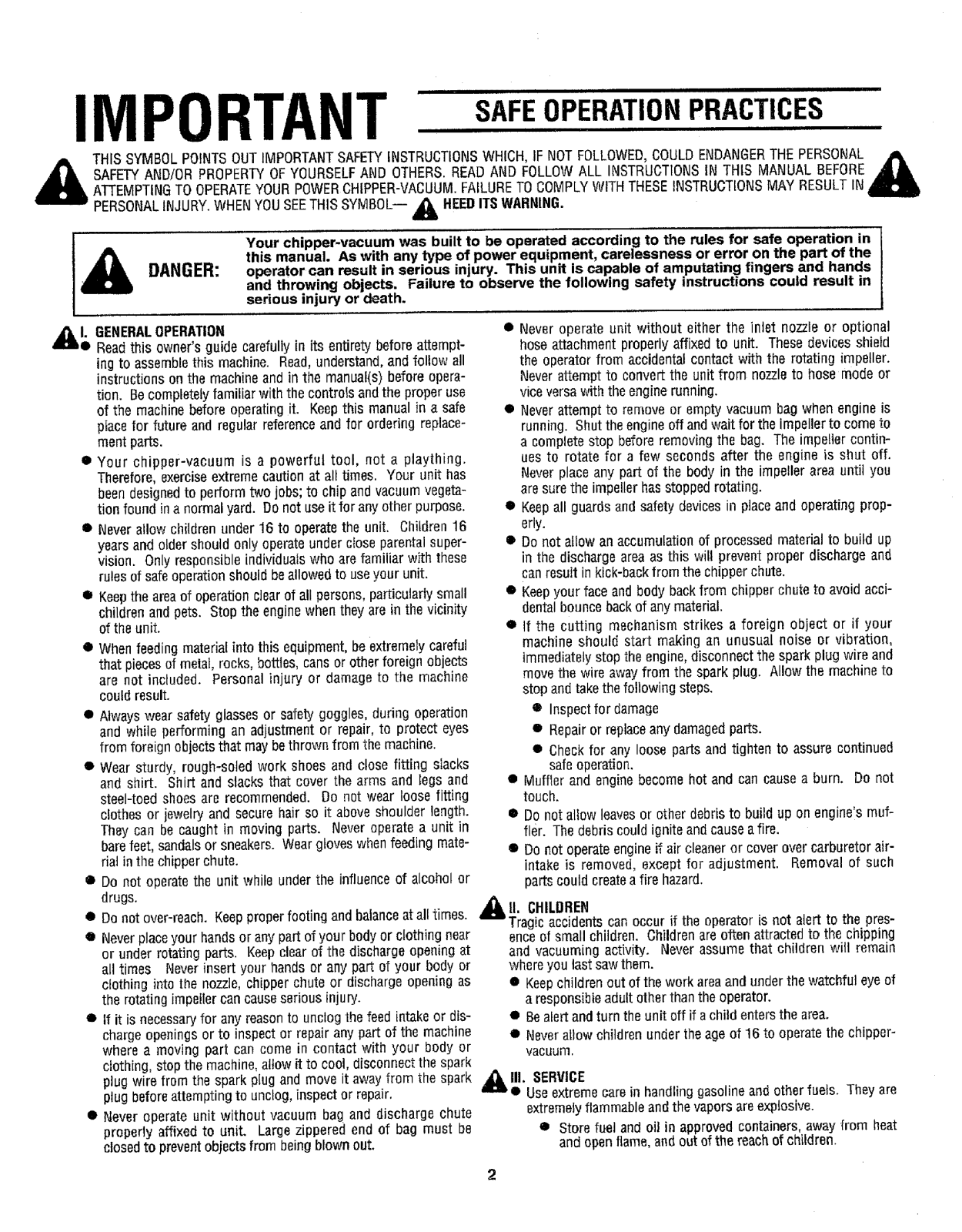

!MPORTANT OPERATIONPRACTICES

THISSYMBOLPOINTSOUTIMPORTANTSAFETYINSTRUCTIONSWHICH,IF NOTFOLLOWED,COULDENDANGERTHEPERSONALA

_ AFETYAND/ORPROPERTYOFYOURSELFANDOTHERS.READANDFOLLOWALL INSTRUCTIONSINTHIS MANUALBEFORE

ATTEMPTINGTOOPERATEYOURPOWERCHIPPER-VACUUM.FAILURETOCOMPLYWITHTHESEINSTRUCTIONSMAYRESULTIN

PERSONALINJURY.WHENYOUSEETHISSYMBOL--_ REEDITSWAFINING.

Your chipper-vacuum was built to be operated according to the rules for safe operation in

this manua. As with any type of power equipment carelessness or error on the part of the
operator can result in serious injury. This unit is capable of amputating fingers and hands
and throwing objects. Failure to observe the following safety instructions couso result in
serious injury or death.

&

DANGER:

_hl. GENERALOPERATION

• Readthis owner'sguide carefullyin its entiretybeforeattempt-
ing to assemblethis machine. Read,understand,andfollow all

instructionsonthe machineandin the manual(s)beforeopera-

tion. Becompletelyfamiliarwith thecontrolsandthe properuse

of the machinebeforeoperatingit. Keepthis manualin a safe
piecefor future and regularreferenceand for orderingreplace-

mentparts.

• Your chipper-vacuum is a powerful tool, not a plaything.
Therefore,exerciseextremecautionat all times. Yourunit has

beendesignedto performtwo jobs;to chipandvacuumvegeta-

tionfound ina normalyard. Donot useit for anyotherpurpose.

• Neverallowchildrenunder16 to operatethe unit. Children16
yearsand oldershouldonlyoperateundercloseparentalsuper-
vision. Only responsibleindividuatswho arefamiliarwith these

rulesof safeoperationshouldbeallowedto useyourunit.

• Keeptheareaof operationclearof all persons,particularlysmall

childrenandpets. Stopthe enginewhen theyarein the vicinity
ofthe unit.

• Whenfeedingmaterialinto this equipment,beextremelycareful

that piecesof metal,rocks,bottles,cansor otherforeignobjects
are not included. Personalinjury or damageto the machine
couldresult.

• Alwayswearsafetyglassesor safetygoggles,duringoperation
and while performing an adjustmentor repair,to protect eyes
from foreignobjectsthat maybethrownfromthemachine.

• Wearsturdy, rough-soledwork shoesand close fitting slacks

and shirt. Shirt and slacksthat cover the arms and legs and
steel-toedshoesare recommended.Do not wear loosefitting

clothesor jewelryand securehairso it aboveshoulderlength.
Theycan be caught in moving parts. Neveroperatea unit in

barefeet,sandalsor sneakers.Weargloveswhenfeedingmate-
rialinthe chipperchute.

• Donot operatethe unit while underthe influenceof alcoholor
drugs.

• Donotover-reach.Keepproperfootingandbalanceatalltimes.

• Neverplaceyourhandsor anypartof your bodyor clothingnear

or underrotatingparts. Keepclearofthe dischargeopeningat
all times Neverinsertyour handsor anypart of your body or

clothing intothe nozzle,chipperchute or dischargeopeningas
therotatingimpetlercancauseseriousinjury.

• If it isnecessaryfor anyreasonto unclogthefeedintakeordis-
chargeopeningsor to inspector repairanypartof the machine

wherea moving part can come in contact with your body or
clothing,stopthe machine+allowit to cool,disconnectthespark

plugwire fromthe sparkplugand moveit awayfrom the spark
plugbeforeattemptingto unclog,inspector repair.

• Neveroperateunit without vacuum bag and discharge chute

properly affixedto unit, Largezipperedendof bag must be
closedto preventobjectsfrombeingblownout.

• Neveroperateunit without eitherthe inlet nozzleor optional
hoseattachmentproperlyaffixedto unit. Thesedevicesshield
the operatorfrom accidentalcontactwith the rotating impeller.
Neverattemptto convertthe unit from nozzleto hose modeor
viceversawith the enginerunning.

• Neverattemptto removeor emptyvacuumbagwhen engineis
running. Shuttheengineoffandwaitfor theimpellerto cometo

a completestop beforeremovingthe bag. Theimpetlercontin-

uesto rotatefor a few secondsafter the engineis shut off.
Neverplaceany part of the body in the impellerareauntil you

aresurethe impellerhasstoppedrotating.

• Keepall guardsandsafetydevicesin placeandoperatingprop-
erly.

• Donotallow anaccumulationof processedmaterialto build up
in the dischargeareaasthis will preventproper dischargeand

canresuttin kick-backfrom thechipperchute.

• Keepyourfaceandbodybackfrom chipperchuteto avoid acci-
dentalbouncebackof anymaterial.

• If the cutting mechanismstrikes a foreign object or if your

machineshould start making an unusualnoise or vibration,
immediatelystoptheengine,disconnectthe sparkplugwire and

movethewire awayfrom the sparkplug. Allowthe machineto
stopandtakethefollowingsteps.

• Inspectfor damage

• Repairor replaceanydamagedparts.

• Checkfor any loosepartsand tighten to assure continued
safeoperation.

• Muffterandenginebecomehotandcancauseaburn. Do not
touch.

• Donot altowleavesor other debristo buildupon engine'smuf-
fler. Thedebriscouldigniteandcauseafire.

• Donot operateengineff air cleaneror coverover carburetorair-

intake is removed,exceptfor adjustment. Removal of such
partscouldcreateafire hazard.

_lb 11,CHILDREN

Tragicaccidentscanoccur if the operatoris not alertto the pres-

enceof smallchildren. Childrenareoftenattractedto the chipping
and vacuumingactivity. Neverassumethat children will remain

whereyoulastsawthem.

• Keepchildrenout of theworkareaandunderthewatchfuleyeof
a responsibleadultotherthantheoperator.

• Bealertandturn theunitoff if echildentersthe area.

• Neverallowchildrenunderthe ageof 16to operatethe chipper-

Vacuum.

_1 111.SERVICE

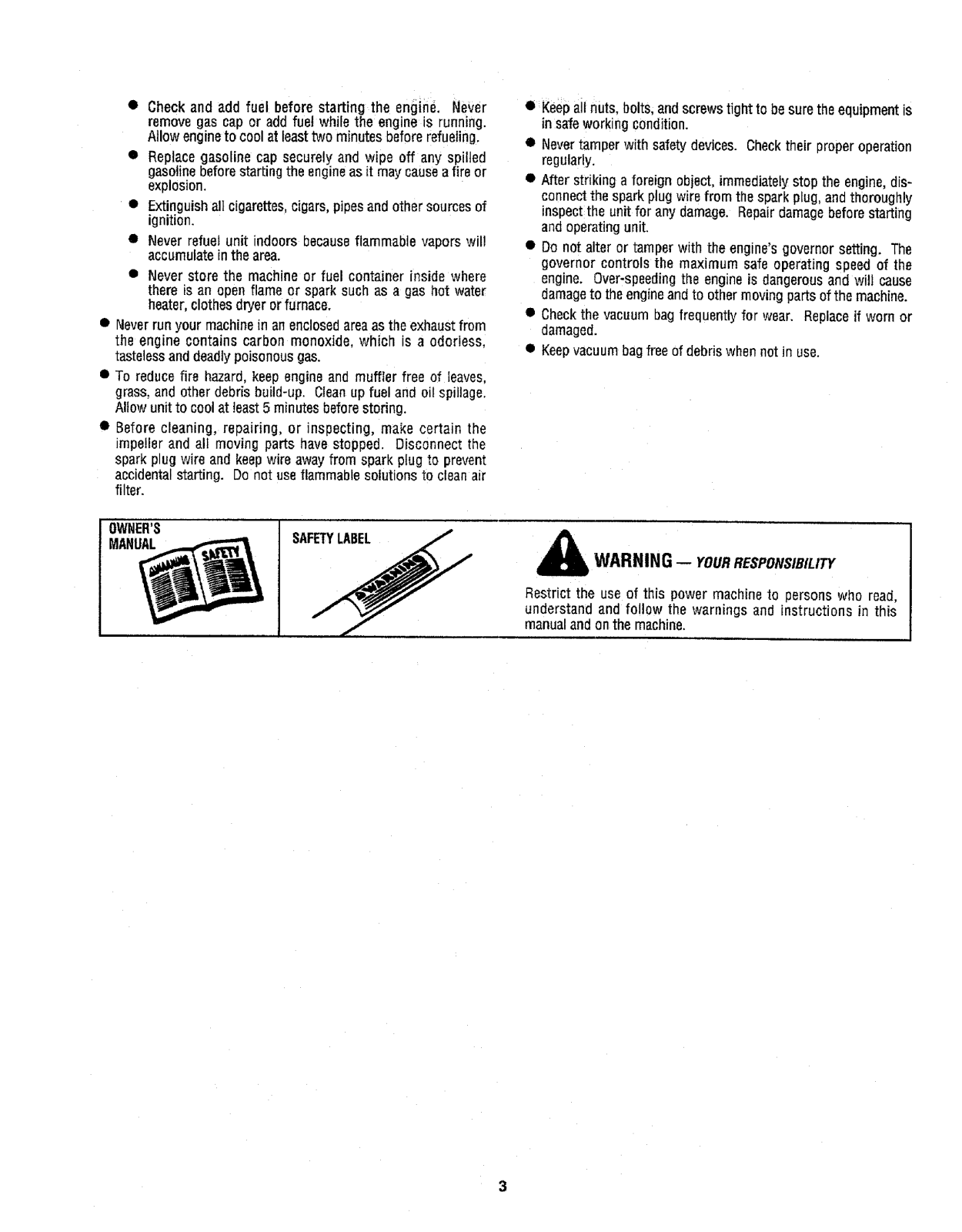

• Use extreme care in handling gasoline and other fuels. They are
extremely flammable and the vapors are explosive.

• Store fuel and oil in approved containers, away from heat
and open flame, and out of the reach of children.

• Checkand add fuel beforestarting the engine. Never
removegas caporadd fuel while the engineis running.

Allowengineto coolat leasttwominutesbeforerefueling.

• Replacegasoline cap securely and wipe off any spilled

gasolinebeforestartingthe engineasit maycauseafire or
explosion.

• Extinguishall cigarettes,cigars,pipesandothersourcesof
ignition.

• Neverrefuel unit indoors becauseflammablevapors will
accumulateinthe area.

• Never store the machineor fuel container inside where
there is an open flameor spark such as a gas not water

heater,clothesdryerorfurnace.

• Neverrunyour machineinanenclosedareaastheexhaustfrom
the engine contains carbon monoxide,which is a odorless.

tastelessanddeadlypoisonousgas.

• To reducefire hazard,keepenginearia muffler free of leaves.
grass,andother debrisbuild-up, Cleanupfuel and oi!spillage.

Allowunit to coolat least5 minutesbeforestoring.

• Beforecleaning, repairing, or inspecting, makecertain the

=rop!!letand all moving parts flare stopped. Disconnectthe

sparkplug wireand keepwireawayfrom spark plugto prevent
accidentalstarting. Donotuseflammablesolutionsto cleanair

filter.

• Keepall nuts. bolts,andscrewstightto besurethe equipmentis
in safeworkingcondition.

• Nevertamperwith safetydevices.Checktheir properoperation

regularly.

• Afterstrikinga foreignobject,immediatelystop theengine,dis-

connectthesparkplugwirefrom thesparkplug,andthoroughly
respectthe unitfor anydamage. Repairdamagebeforestarting
anooperatingunit.

• Donot alter or romperwith the engine'sgovernorsetting. The
governor controlsthe maximum safe operating speedof the
engine. Over-speedingthe engineis dangerousand will cause

damageto theengineandto othermovingpartsofthe machine.

• Checkthe vacuum Dogfrequentlyfor wear. Replaceif worn or

damaged.

• KeepvacuumbagfreeofdebriswhennotJnuse.

Restrictthe useof this power machineto personswho read,

SAF_ _ WARNING -- YOURRESPONSmluTY

understand and follow the warmngs and instructionsin this
manualandonthe machine.

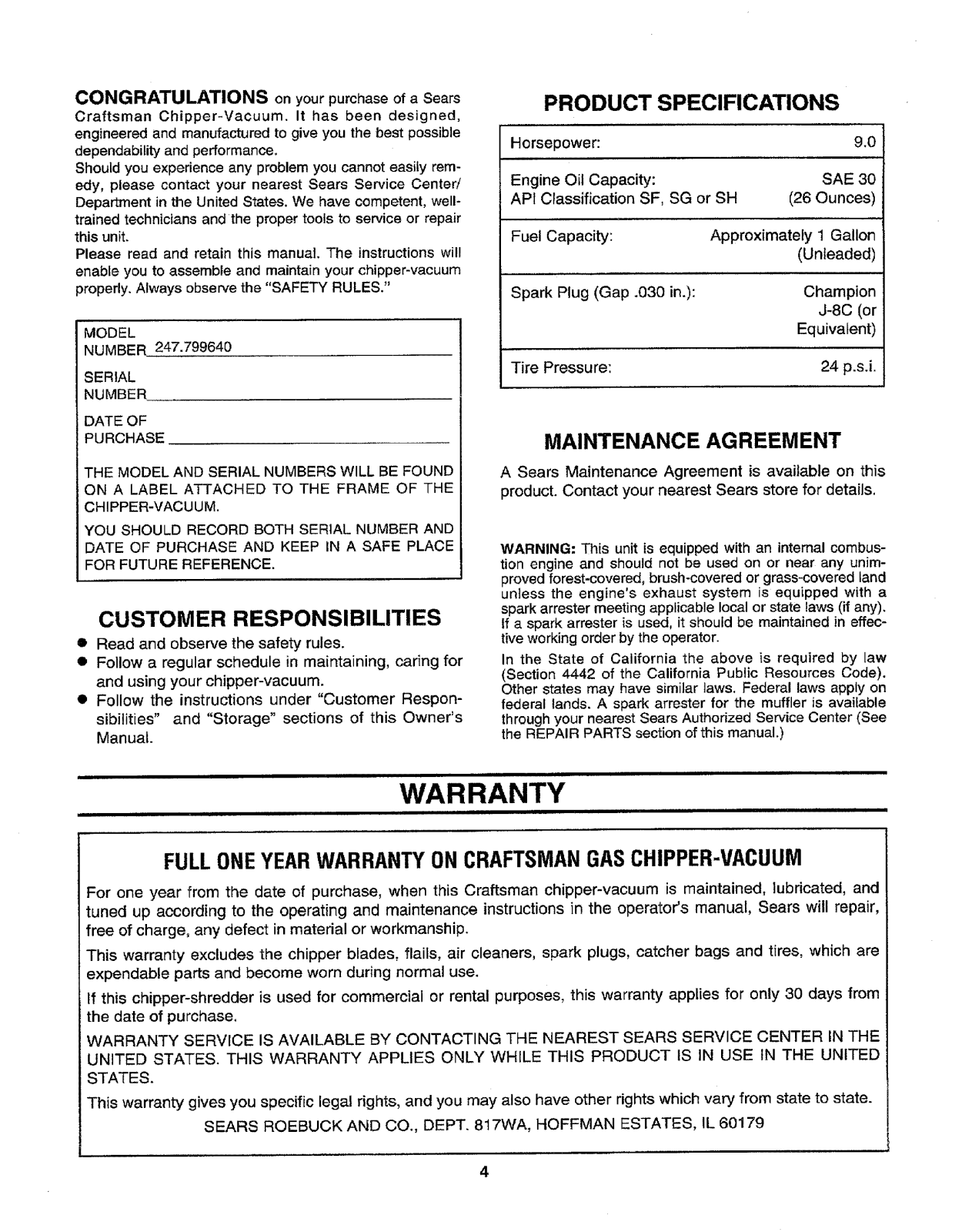

CONGRATULATIONS on your purchase of a Sears

Craftsman Chipper-Vacuum. It has been designed,

engineered and manufactured to give you the best possible

dependability and performance.
Should you experience any problem you cannot easily rem-
edy, please contact your nearest Sears Service Center/
Department in the United States, We have competent, well-

trained technicians and the proper tools to service or repair
this unit.

Please read and retain this manual. The instructions will
enable you to assemble and maintain your chipper-vacuum

properly. Always observe the "SAFETY RULES."

MODEL
NUMBER 247.799640

SERIAL
NUMBER

DATE OF
PURCHASE

PRODUCT SPECIFICATIONS

Horsepower: 9.0

Engine Oil Capacity: SAE 30
API Classification SF, SG or SH (26 Ounces)

Fuel Capacity: Approximately 1 Gallon

(Unleaded)

Spark Plug (Gap .030 in.): Champion

J-8C (or

Equivalent)

Tire Pressure: 24 p.s.i.

MAINTENANCE AGREEMENT

THE MODEL AND SERIAL NUMBERS WILL BE FOUND

ON A LABEL ATTACHED TO THE FRAME OF THE
CHIPPER-VACUUM.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND
DATE OF PURCHASE AND KEEP IN A SAFE PLACE
FOR FUTURE REFERENCE.

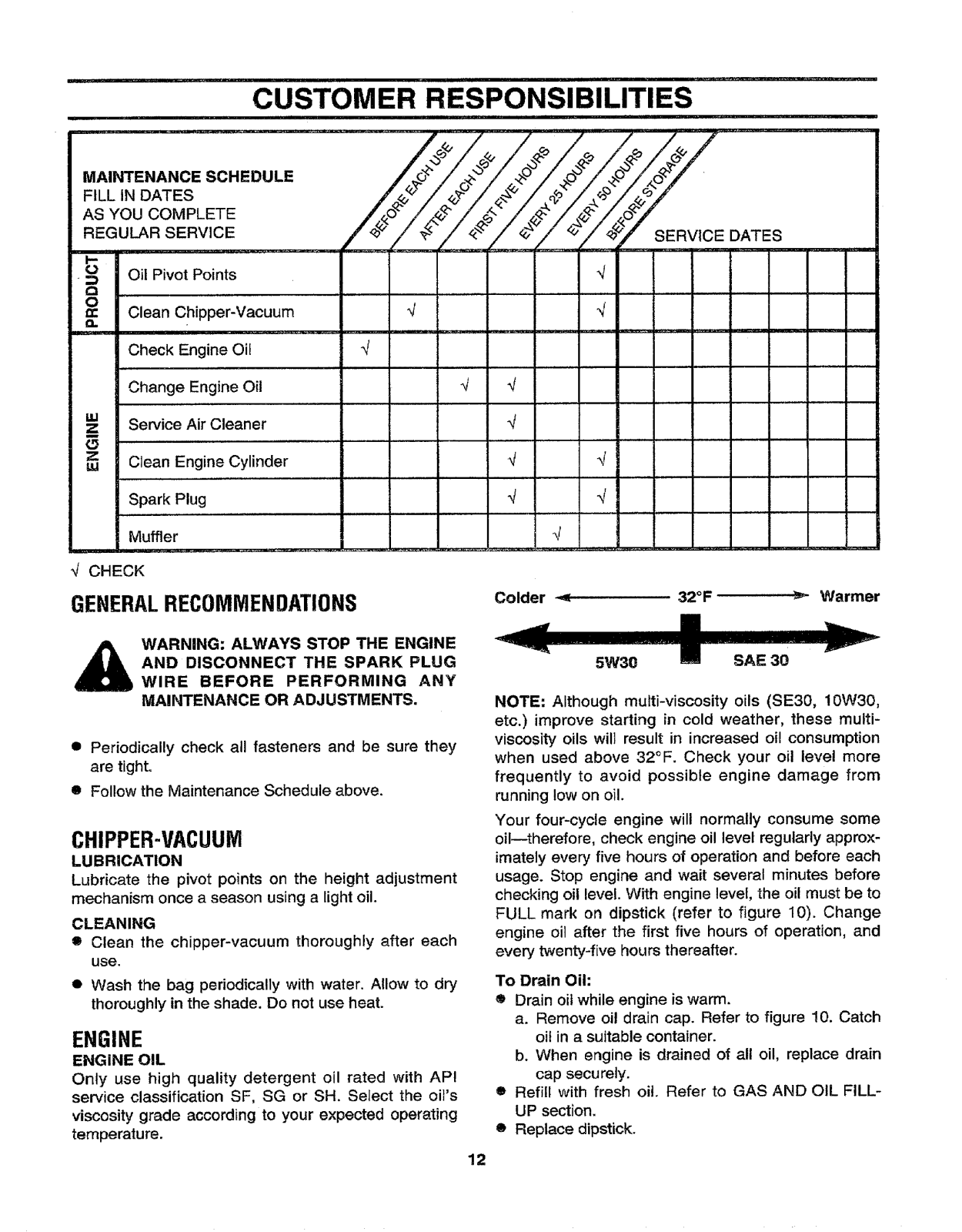

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for
and using your chipper-vacuum.

• Follow the instructions under "Customer Respon-
sibilities" and "Storage" sections of this Owner's

Manual.

A Sears Maintenance Agreement is available on this
product. Contact your nearest Sears store for details,

WARNING: This unit is equipped with an internal combus-
tion engine and should not be used on or near any unim-

proved forest-covered, brush-covered or grass-covered land
unless the engine's exhaust system is equipped with a

spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effec-

tive working order by the operator.
In the State of California the above is required by law

(Section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal laws apply on

federal lands. A spark arrester for the muffler is available
through your nearest Sears Authorized Service Center (See

the REPAIR PARTS section of this manual.)

WARRANTY

FULLONE YEAR WARRANTY ON CRAFTSMAN GASCHIPPER-VACUUM

For one year from the date of purchase, when this Craftsman chipper-vacuum is maintained, ]ubricated, and
tuned up according to the operating and maintenance instructions in the operator's manual, Sears will repair,

free of charge, any defect in material or workmanship.
This warranty excludes the chipper blades, flails, air cleaners, spark plugs, catcher bags and tires, which are

expendable parts and become worn during normal use.
If this chipper-shredder is used for commercial or rental purposes, this warranty applies for only 30 days from

the date of purchase.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN THE

UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS IN USE IN THE UNITED

STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

SEARS ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

i

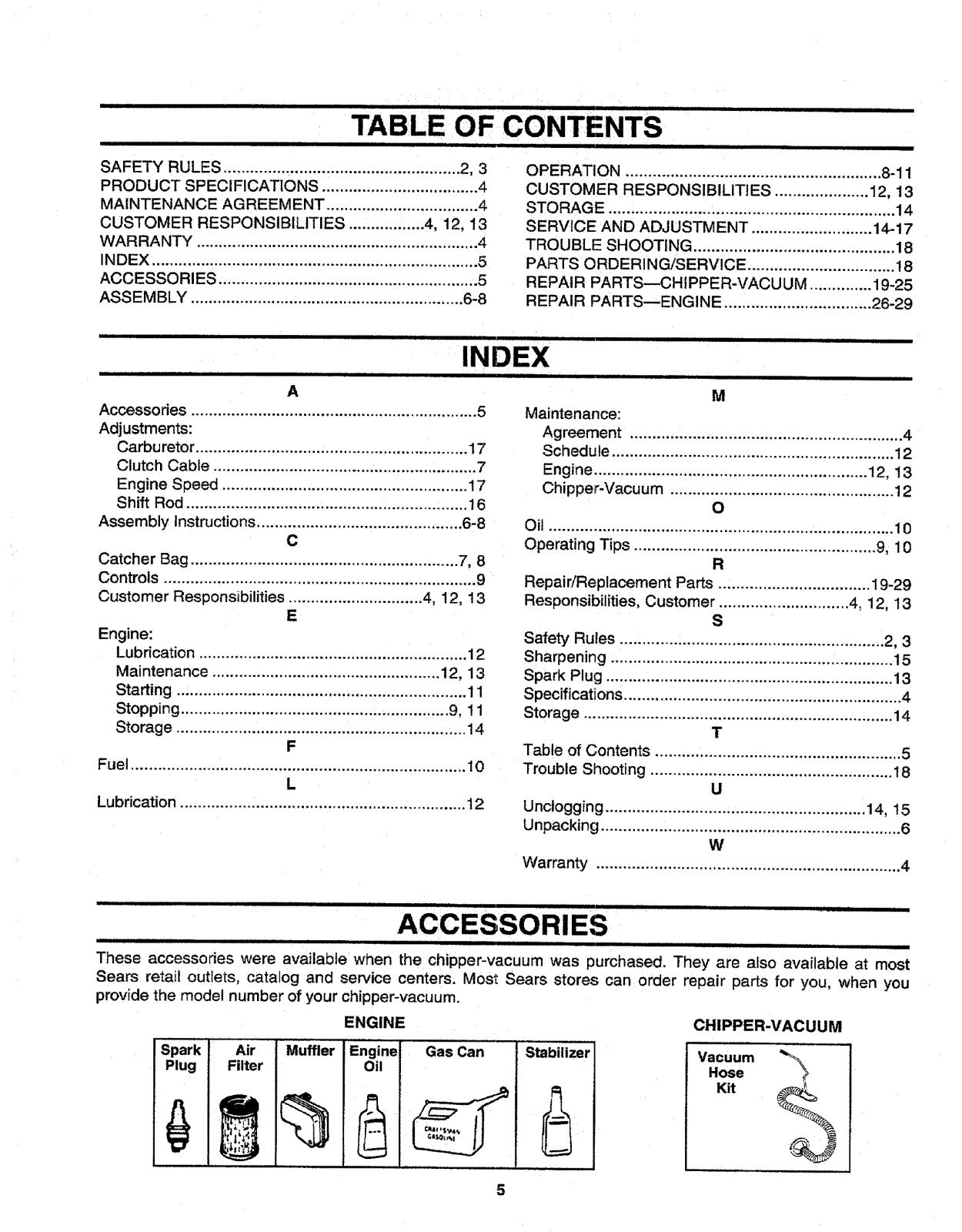

TABLE OF CONTENTS

SAFETY RULES ..................................................... 2, 3

PRODUCT SPECIFICATIONS ................................... 4

MAINTENANCE AGREEMENT .................................. 4

CUSTOMER RESPONSIBILITIES ................. 4, 12. 13

WARRANTY ............................................................... 4

INDEX ......................................................................... ,5

ACCESSORIES .......................................................... 5

ASSEMBLY ............................................................. 6-8

ill l

INDEX

=

A

Accessodes ................................................................ 5

Adjustments:

Carburetor ............................................................. 17

Clutch Cable ........................................................... 7

Engine Speed ....................................................... 17

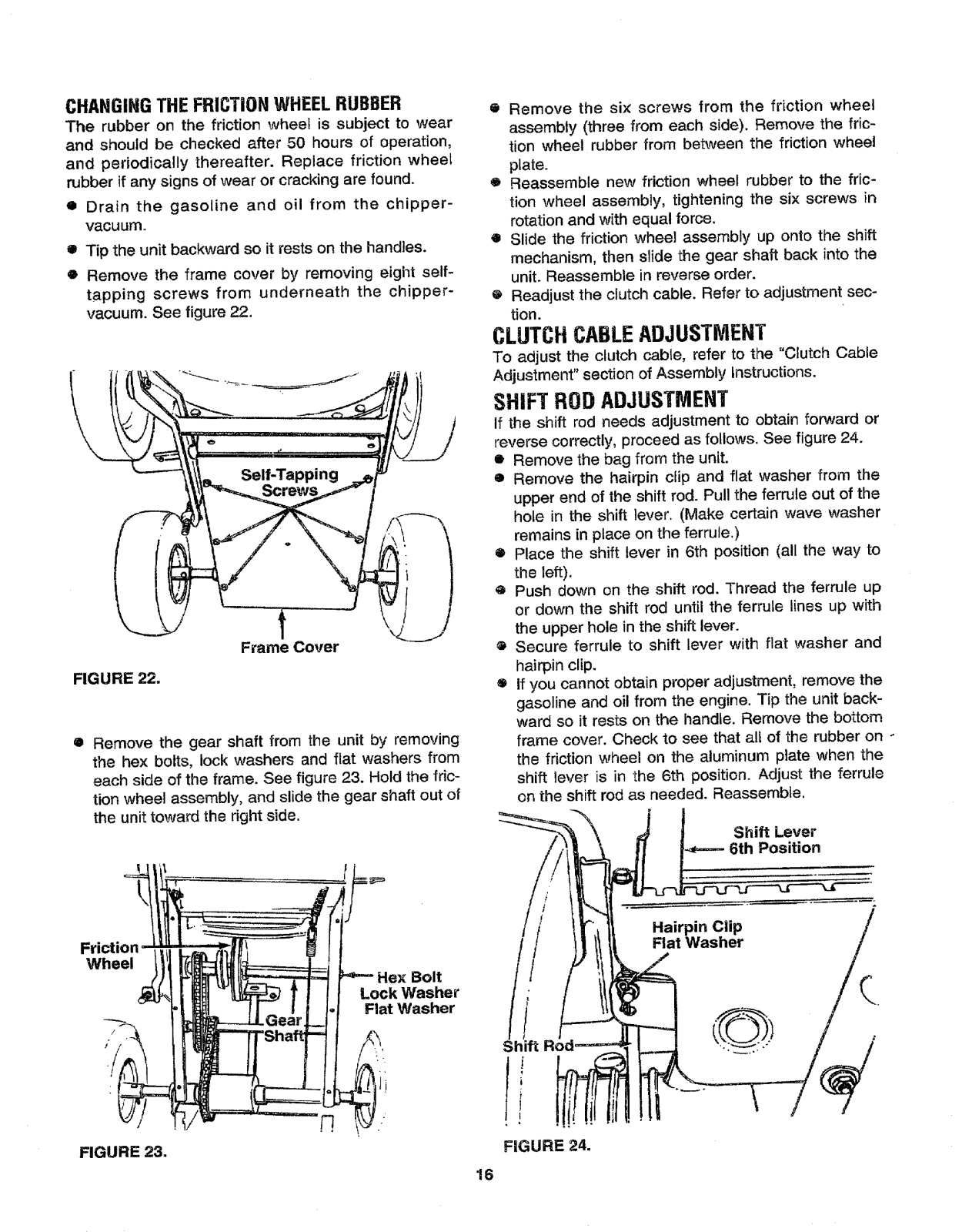

Shift Rod ............................................................... 16

Assembly Instructions .............................................. 6-8

C

Catcher Bag ............................................................ 7, 8

Controls ...................................................................... 9

Customer Responsibilities .............................. 4, 12, 13

E

Engine:

Lubrication ............................................................ 12

Maintenance ................................................... 12. 13

Starting ................................................................. 11

Stopping ............................................................ 9.11

Storage ................................................................. 14

F

Fuel ........................................................................... 10

L

Lubrication ................................................................ 12

OPERATION ......................................................... 8-11

CUSTOMER RESPONSIBILITt ES ..................... 12, 13

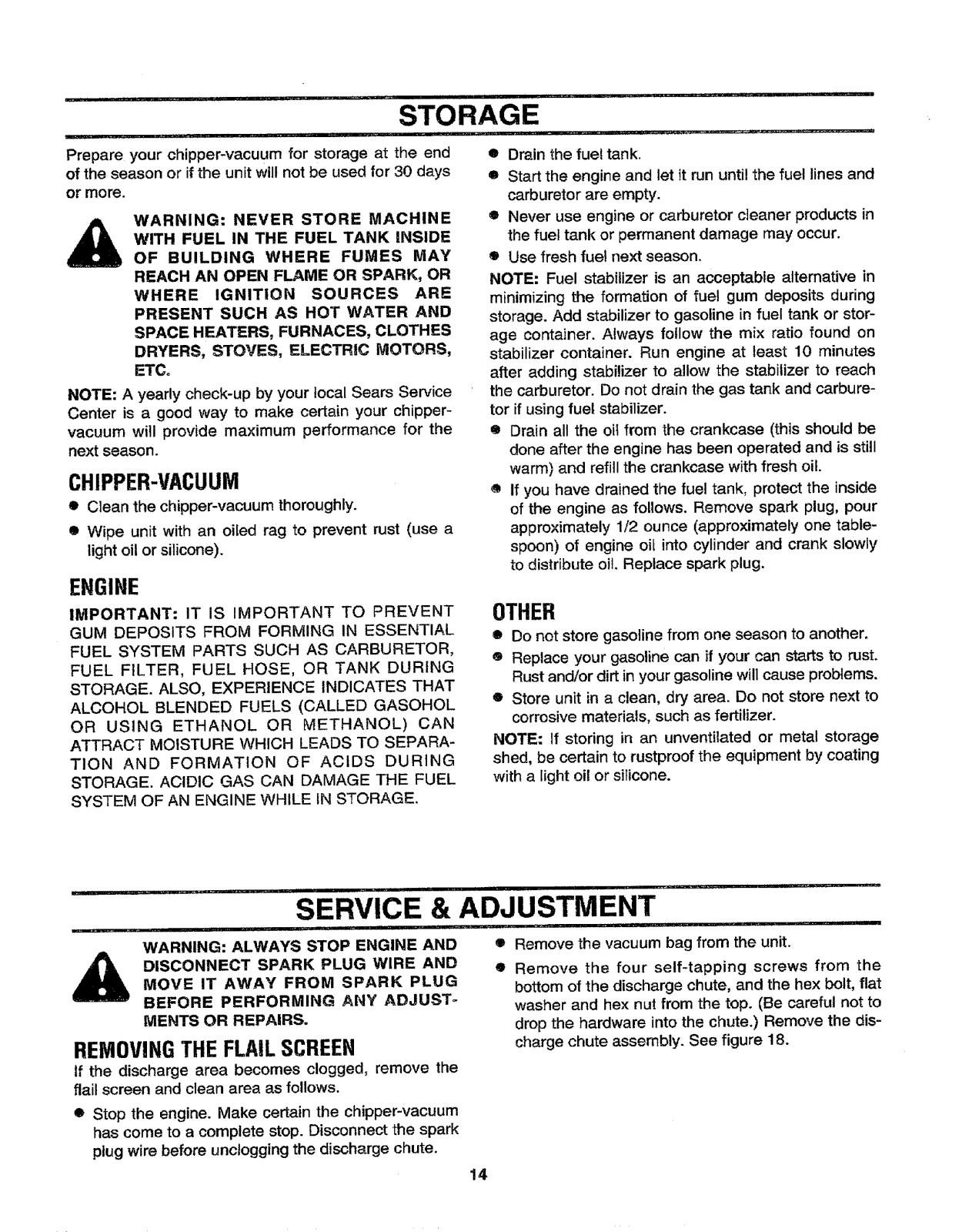

STO RAG E ................................................................ 14

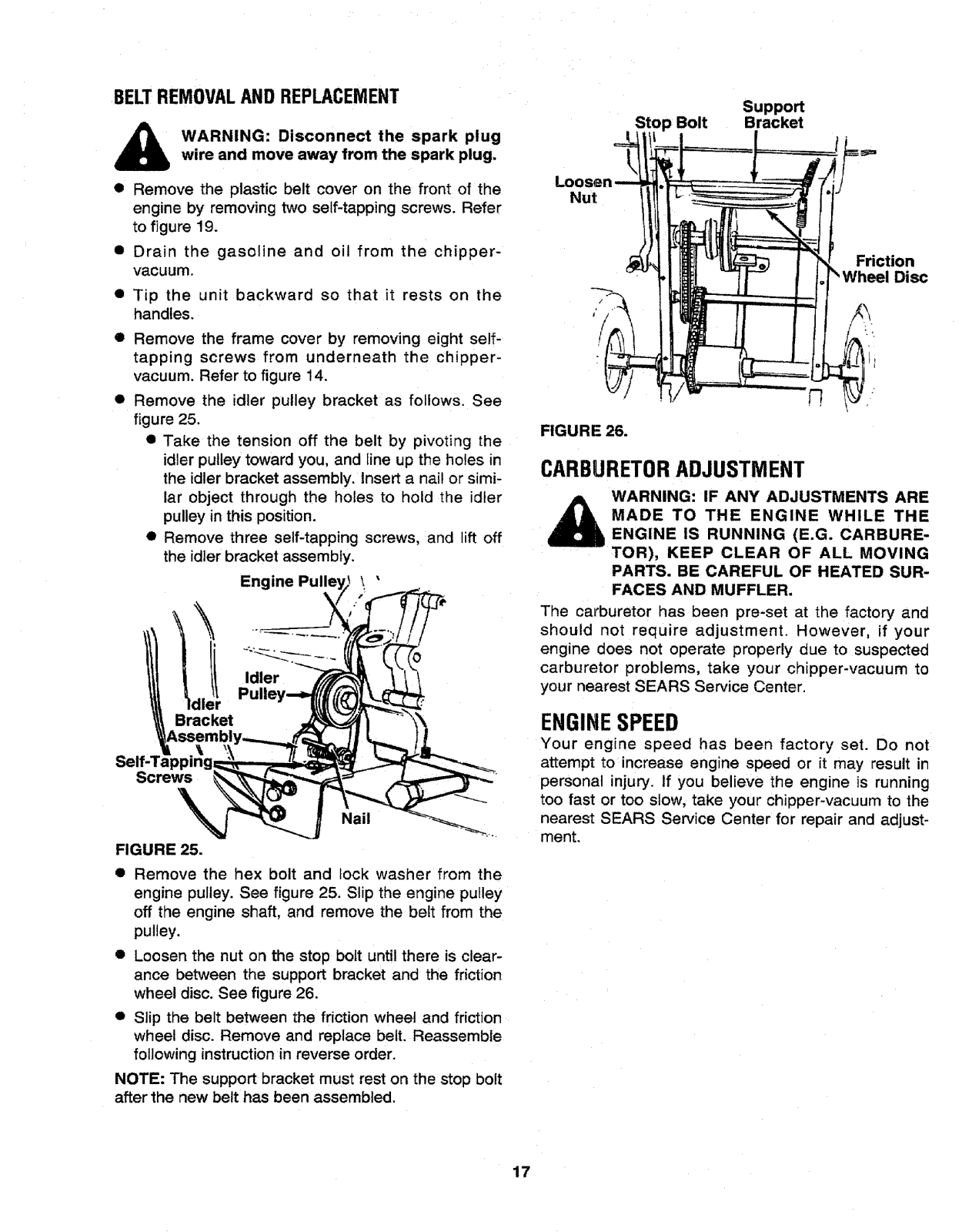

SERVICE AND ADJUSTMENT ........................... 14-17

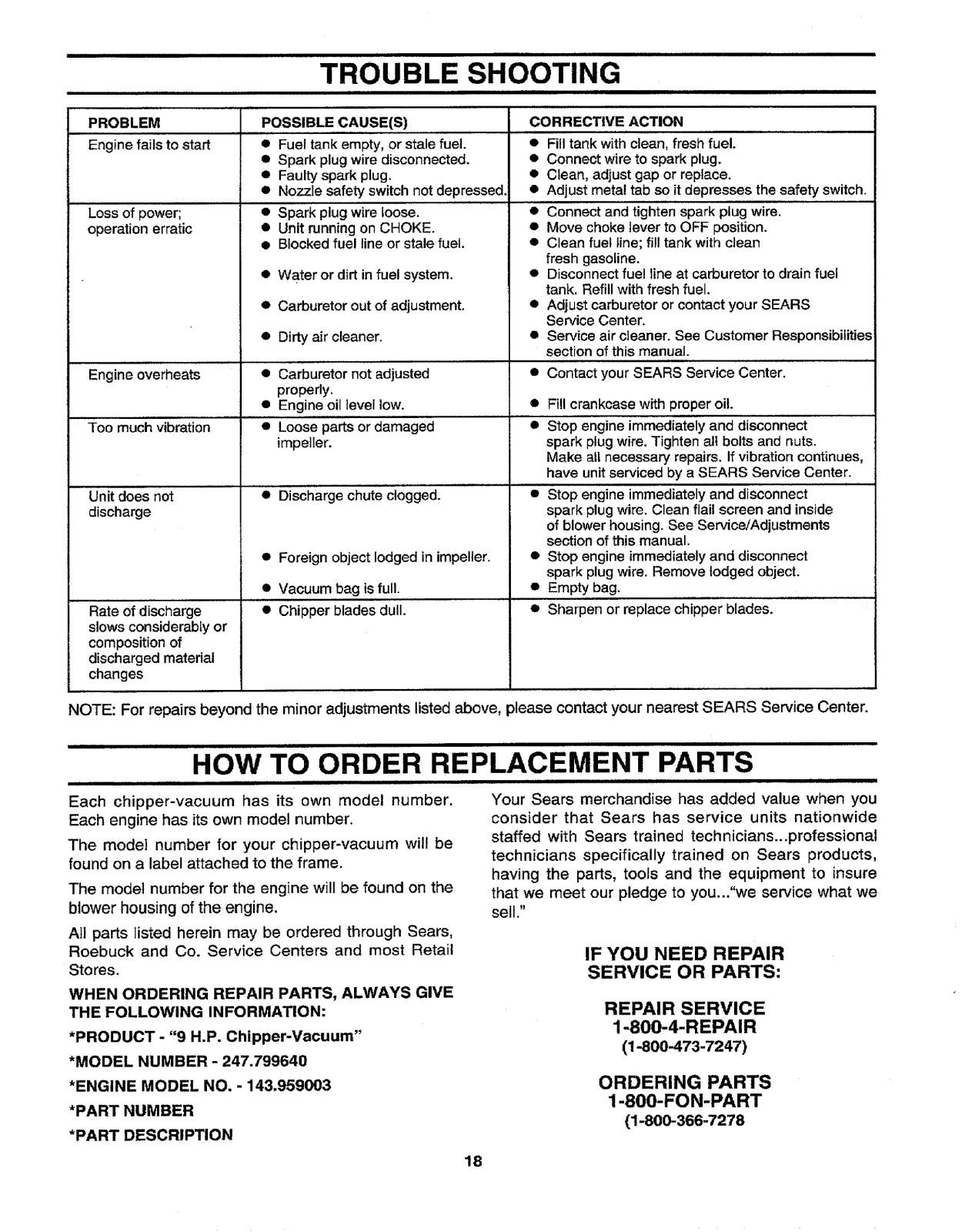

TROUBLE SHOOTING ............................................. 18

PARTS ORDERI NG/SERVICE ................................. 18

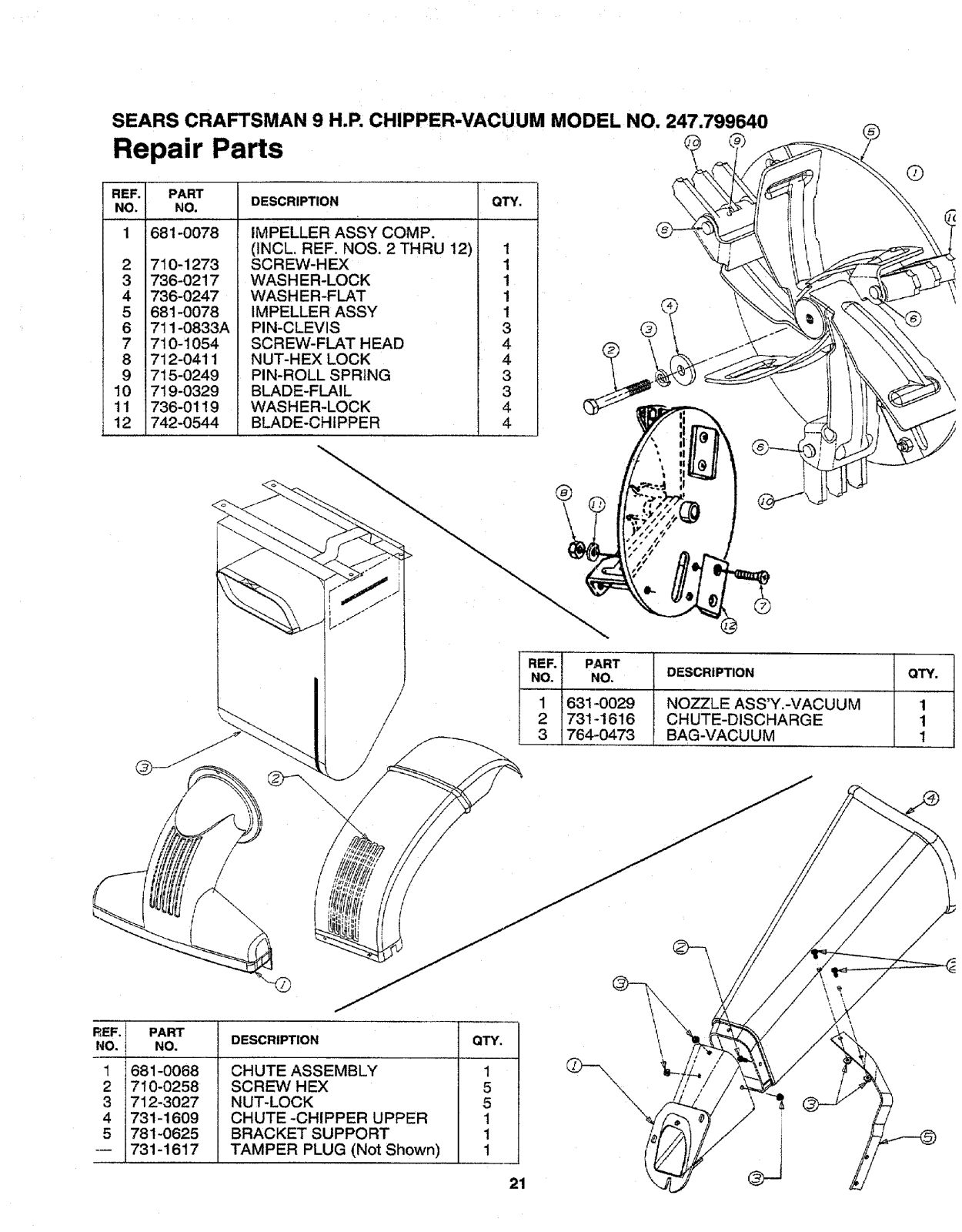

REPAIR PARTS--CHIPPER-VACUUM .............. 19-25

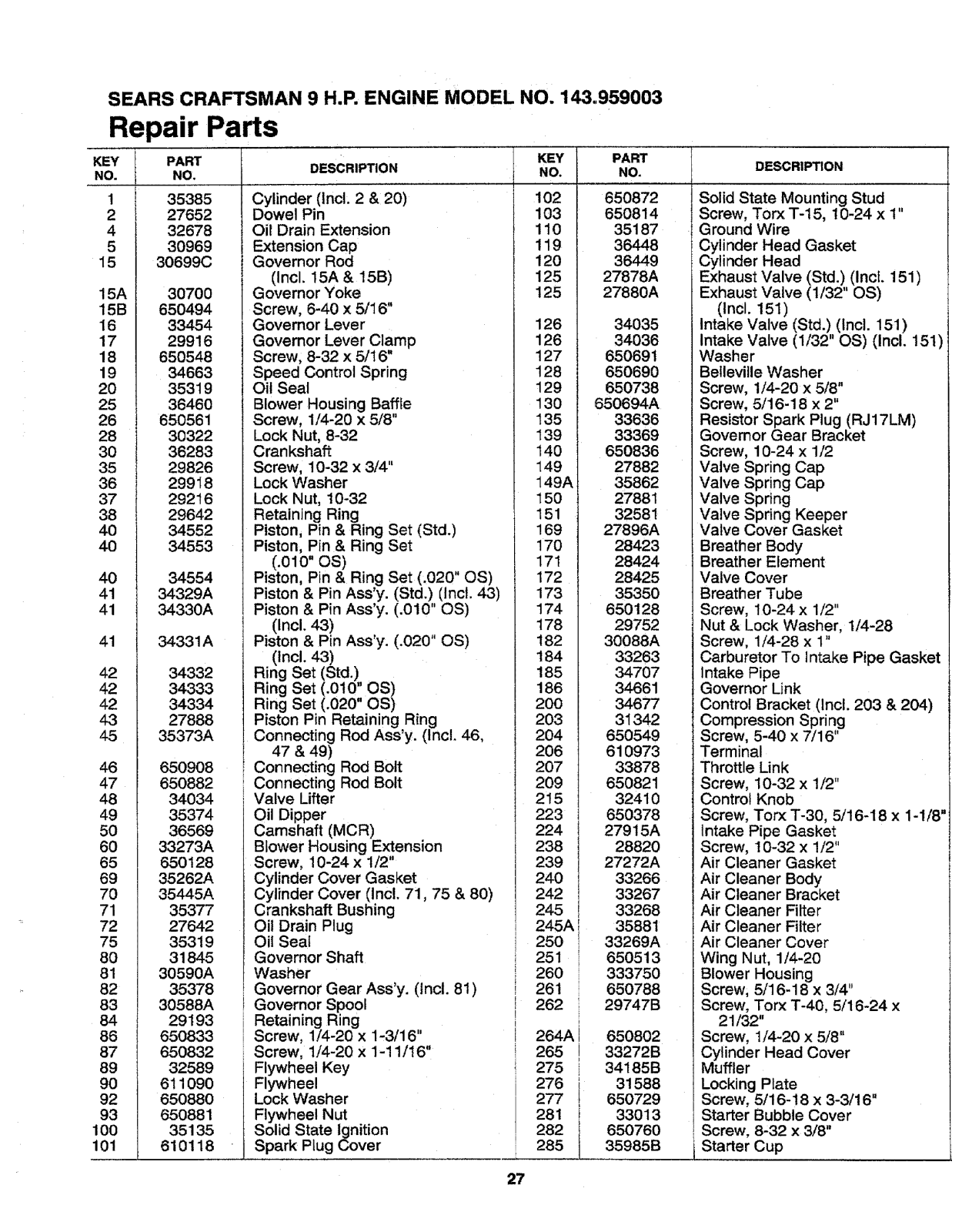

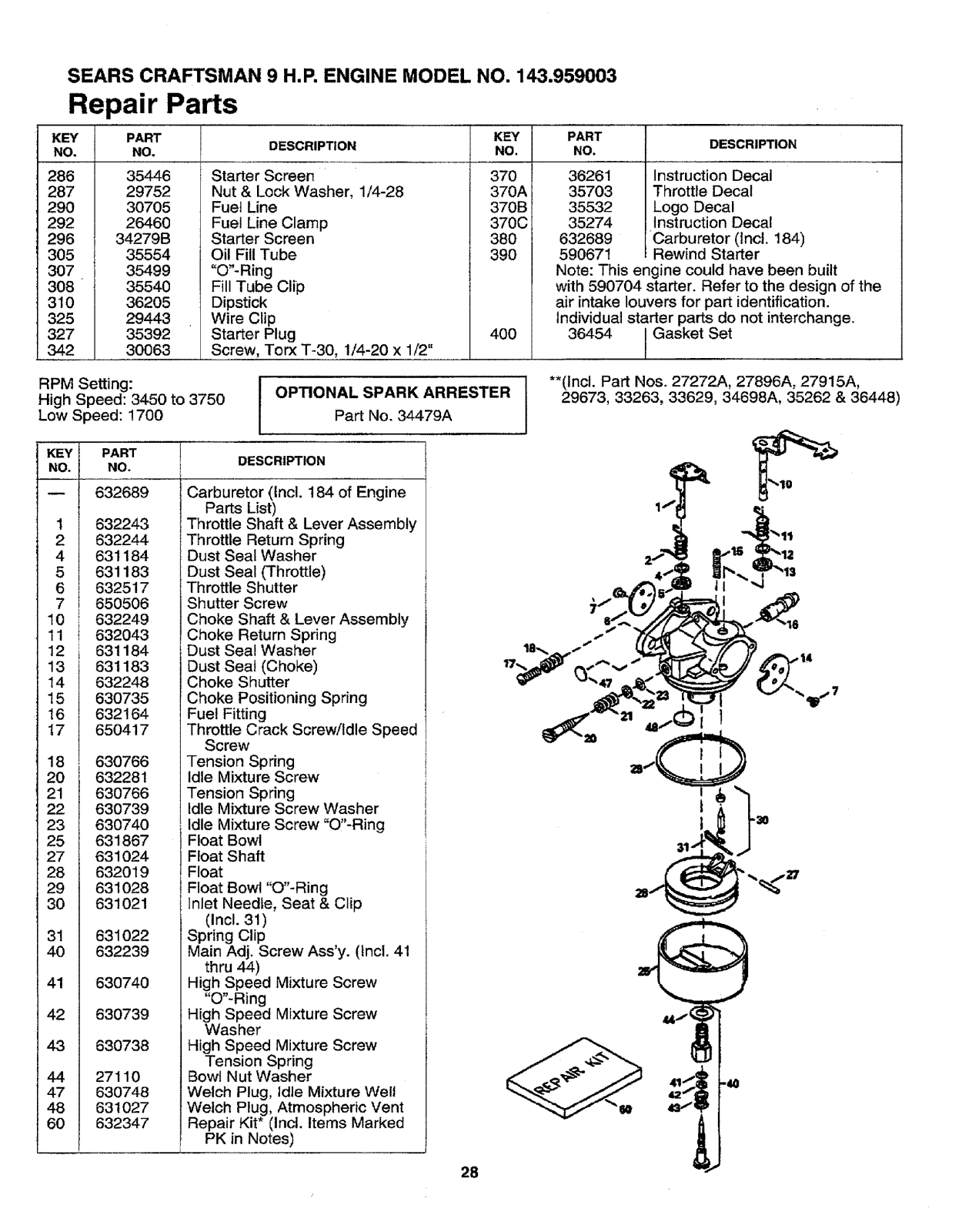

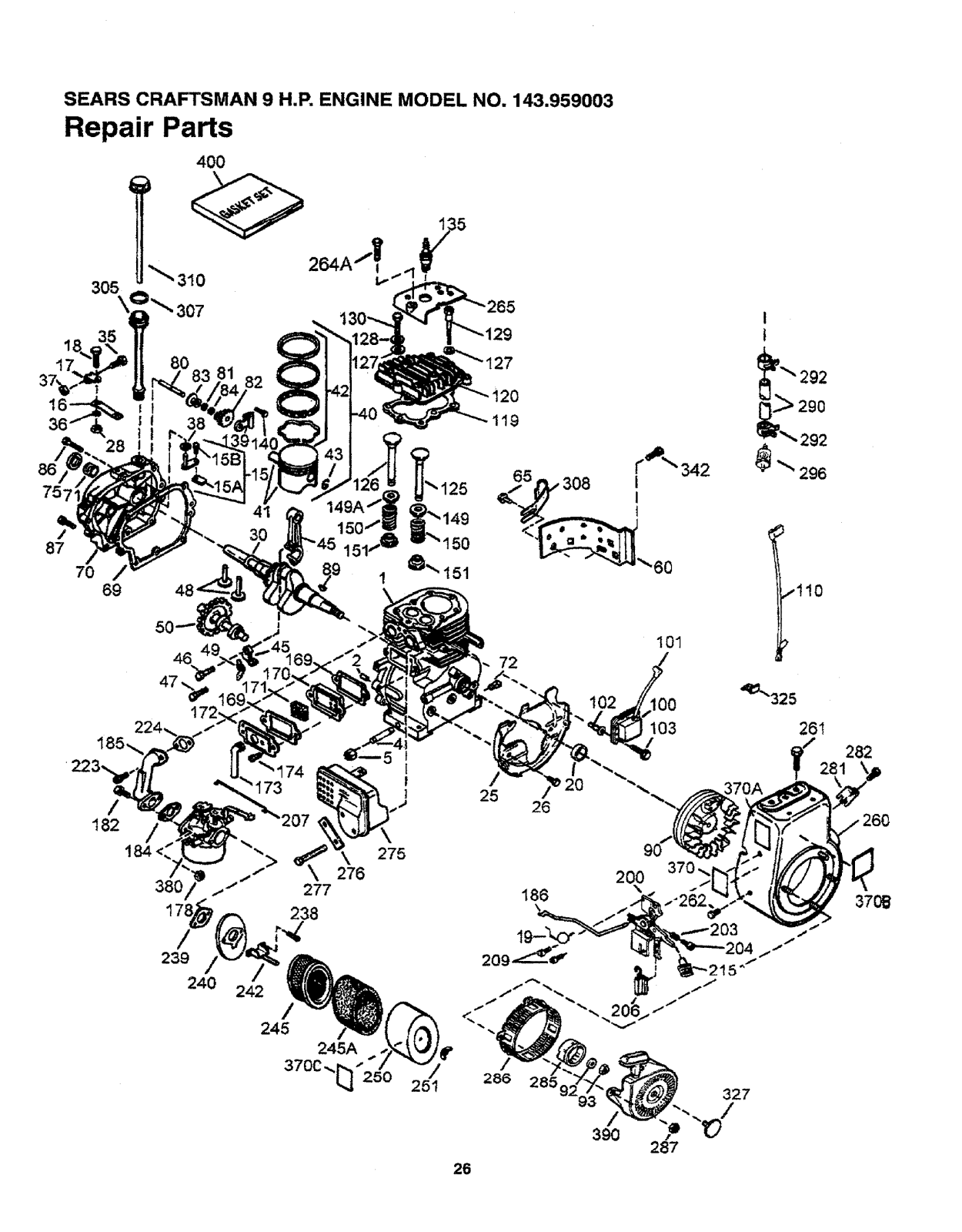

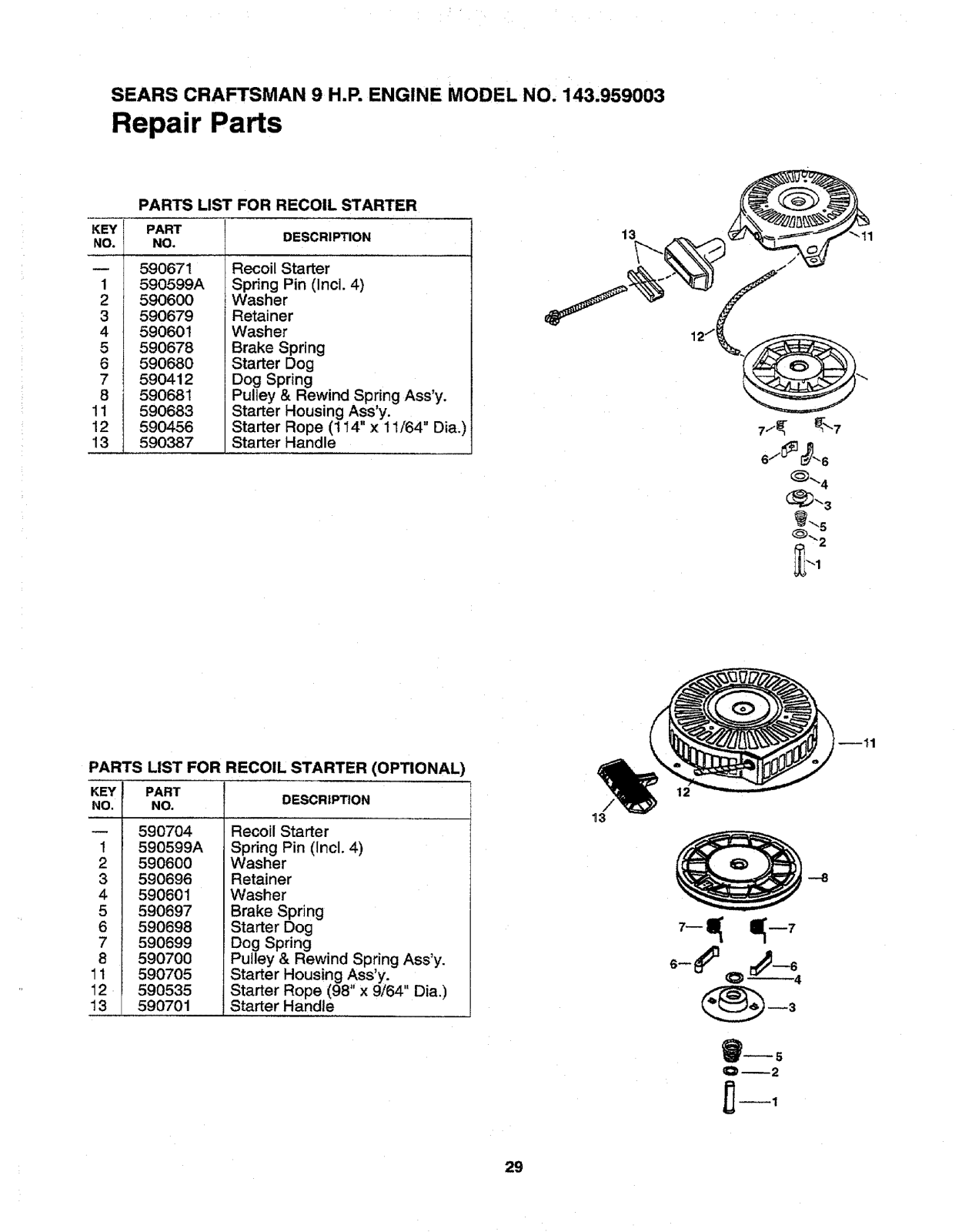

REPAIR PARTS--ENGINE ................................. 26-29

M

Maintenance:

Agreement ............................................................. 4

Schedule ............................................................... 12

Engine ............................................................. 12, 13

Chippet'-Vacuum .................................................. 12

O

Oil ............................................................................. 10

Operating Tips ...................................................... 9, 10

R

Repair/Replacement Parts .................................. 19-29

Responsibilities, Customer ............................ 4, 12, 13

S

Safety Rules ........................................................... 2, 3

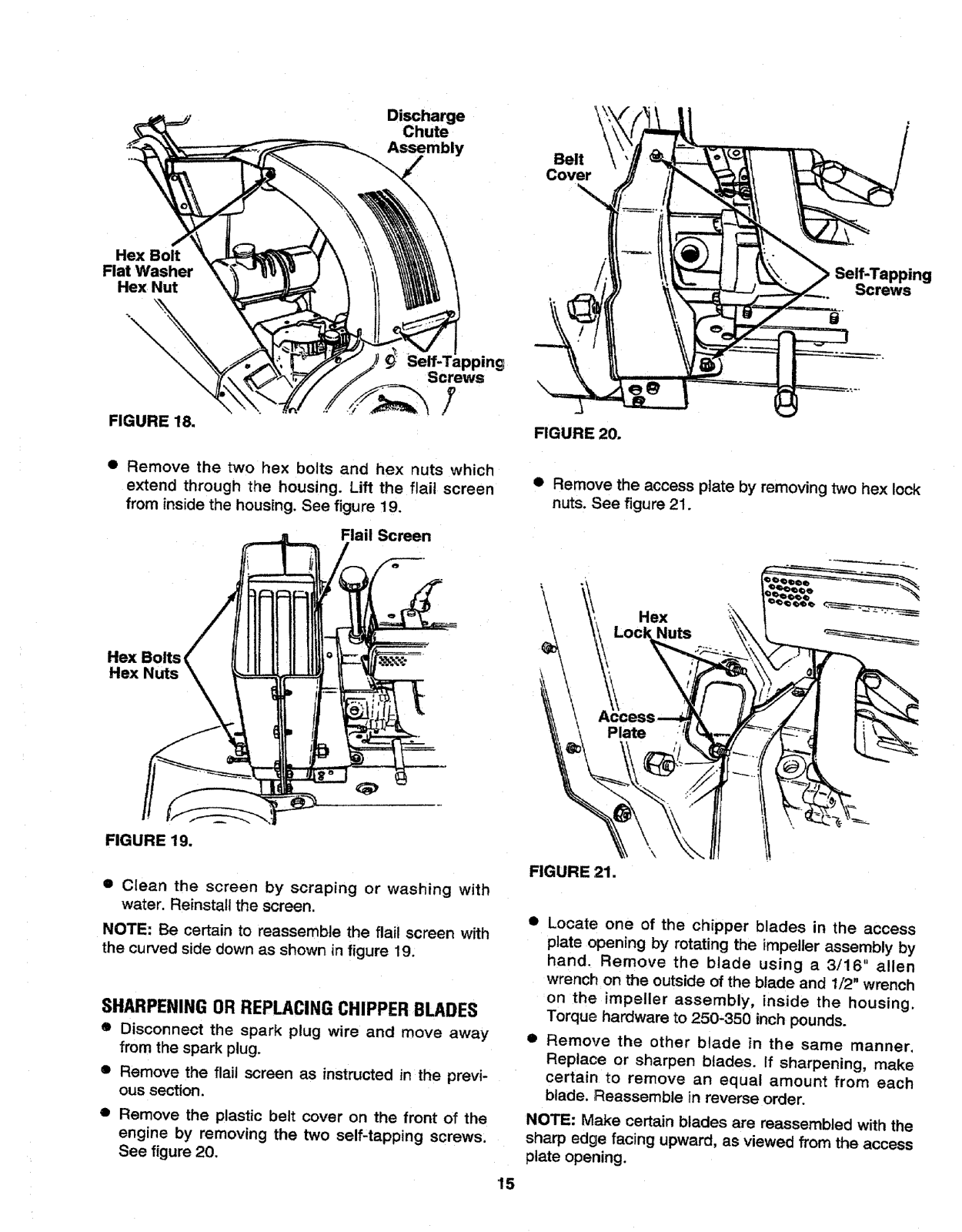

Sharpening ............................................................... 15

Spark Plug ................................................................ 13

Specifications .............................................................. 4

Storage ..................................................................... 14

T

Table of Contents ....................................................... 5

Trouble Shooting ...................................................... 18

U

Unclogging .......................................................... 14, !5

Unpacking ................................................................... 6

W

Warranty .................................................................... 4

i=lu=

ACCESSORIES

These accessories were available when the chipper-vacuum was purchased. They are also available at most

Sears retail outlets catalog and service centers. Most Sears stores can order repair parts for you, when you

provide the model number of your chipper-vacuum.

Spark

Plug

w

Air Muffler

Filter

ENGINE

Engine[ Gas Can

Oil I

Stabilizer

CHIPPER-VACUUM

Hose

Kit

Vacuum

i

FIGURE 1.

Rex

Lock

Cupped

Washer

ASSEMBLY INSTRUCTIONS

Bag

Wheel Bracket

Hub

Front Wheels

Wave

Washer

Shoulder

Bolt

iiii

IMPORTANT: This unit is shipped WITHOUT GASO-
LINE or OIL in the engine. After assembly, see opera-

tion section of this manual for proper fuel and engine

oil recommendations.
NOTE: To determine right and left hand sides of your

chipper-vacuum, stand behind and face the unit
(Refer to figure 7).

Your chipper-vacuum has been completely assem-
bled at the factory except for the front wheels, hub

caps, nozzle, chipper chute, support bracket and bag.
A pair of safety glasses and bottle of oil are also

included in the carton.

TOREMOVECHIPPER-VACUUMFROMCARTON

Cut the corner of the carton. Remove all packing
inserts and loose parts. Push down on handle to lift
front of chipper-vacuum, and roll chipper-vacuum out

of the carton. Make certain all parts and literature
have been removed before the carton is discarded.

TOOLS REQUIRED FOR ASSEMBLY

(1) 3/4" Open End Wrench

(2) 1/2" or Adjustable Wrenches
(1) 9/16" Wrench

(1) Funnel

LOOSE PARTSIN CARTON(SeeFigure1)

(2) Front Wheels (1) Bag
(2) Hub Caps-I (1) Shift Knob1-
(1) Nozzle (1) Tamper Plug-i-

(1) Chipper Chute (1) Safety Glasses-I"
(1) Support Bracket (1) Bottle of Oil
tNot Shown

FIGURE 2.

Nozzle

FIGURE 3.

Cupped

Side

Hub

Wing Nuts

HOWTOSET-UPYOURCHIPPER-VACUUM

ATTACHING THE FRONT WHEELS

• Tilt unit backward so that it rests on the handle
(place a piece of the carton under handle to avoid

scratches). Remove the cardboard packing
material around the wheel brackets.

• Remove the hex lock nuts and shoulder bolts from
the front of the wheel brackets. See figure 2.

• Place wave washer on shoulder bolt. Insert
shoulder bolt through wheel, with the head of the
shoulder bolt through the flat side of the wheel.

• Assemble wheel to outside of wheei bracket.

Secure with cupped washer (cupped side of

washer goes against the bracket) and hex lock nut.
Tighten.

• Align the four tabs on the hub caps with the four

holes in the wheel. Press in each tab until it locks in
place. The hub cap edges must be flush with the

wheel rim when installed properly.

ATTACHING THE NOZZLE (See figure 3)

• Remove the three plastic wing nuts from the front

of the chipper-vacuum. Place the nozzle in position
over the three weld studs. Secure with the wing

nuts just removed.

NOTE: The metal tab in the nozzle must depress the

safety switch on the front of the chipper-vacuum or
the engine will not start.

• Set unit in upright position.

i

_Chiploer

Chute

jpporl

racket

FIGU RE 4.

FIGURE 5.

Discharge

Chute

..J Drawstring

FIGURE 6.

"Z" End

of Cable

Cable is

Straight

Upper Handle

Hole in Drive

Clutch Handle

Nuts

Nuts

Rib

He)( Bolts, Flat

HexNuts

Nuts t/

Clutch

Handle

O

Drive

Clutch Handle

Bag

/

Drive

its

ATTACHING THE CHIPPER CHUTE AND
SUPPORT BRACKET (See figure 4)

• Remove the two hex !ock nuts from the hex bolts
which secure the right side of the upper handle to

the lower handle, Leave bolts and washers in

place.

• Remove three cupped washers and 5/16" hex nuts
from the weld studs beside the opening on the right
side of the chipper-vacuum,

• Place the chipper chute in position over the weld

studs (slot goes at the bottom). Secure with cupped
washers and hex nuts just removed.

NOTE: Only tighten the three nuts one or two threads

for ease of further assembly.

NOTE: Cupped side of the washer goes against the
chipper chute. See figure 2 to identify cupped side of

washer,

• Remove the two hex bolts, flat washers and nuts
which are attached to the support bracket.

• Attach the support bracket to the bottom of the
chipper chute loosely using the hardware removed

previously. HEADS OF THE HEX BOLTS AND
WASHERS GO TO THE INSIDE OF THE

CHIPPER CHUTE.

• Place the support bracket over the [wo bolts in the

handle. Pushing UP on the chipper chute will aid

the alignment of the holes in the support bracket
with the bolts in the handle.

• Tighten all hardware securely on the chipper chute,
support bracket and handle.

ATTACHING THE CLUTCH CABLE

The clutch cable has been assembled at the factory.

Loosen the hex nuts at the cable bracket. Hook the
"Z" end o_=the cable into the drive clutch handle from

the outside to the inside as shown in figure 5A. Pliers

will aid in assembly.

CLUTCH CABLE ADJUSTMENT

Adjust the hex nuts at the cable bracket so there is no
slack in the cable, but the cable is NOT tight. Do not
overtighten the cable. See figure 5B.

To check the clutch adjustment, oroceed as follows.

• Push tl_e chipper-vacuum backward and forward
with the drive clutch handle released. It should

move freely.

If it does not, loosen both hex nuts at the cable
bracket. See figure 5B. Turn bottom nut counter-

clockwise to loosen the cable.

• Engage the drive clutch handle (hold against upper

handle), and try to push chipper-vacuum backward
and forward. The wheels should lock up.

If the wheels do not lock up, loosen both hex nuts
at the (:able bracket, Turn bottom nut clockwise to

tighten the cable.

• Recheck adjustment, Tighten both hex nuts when

correct adjustment is reached.

7

Stra Straps on

aps on Shift Knob_ Baa

Upper Handle / I

FIGURE 7.

FIGURE 8.

i

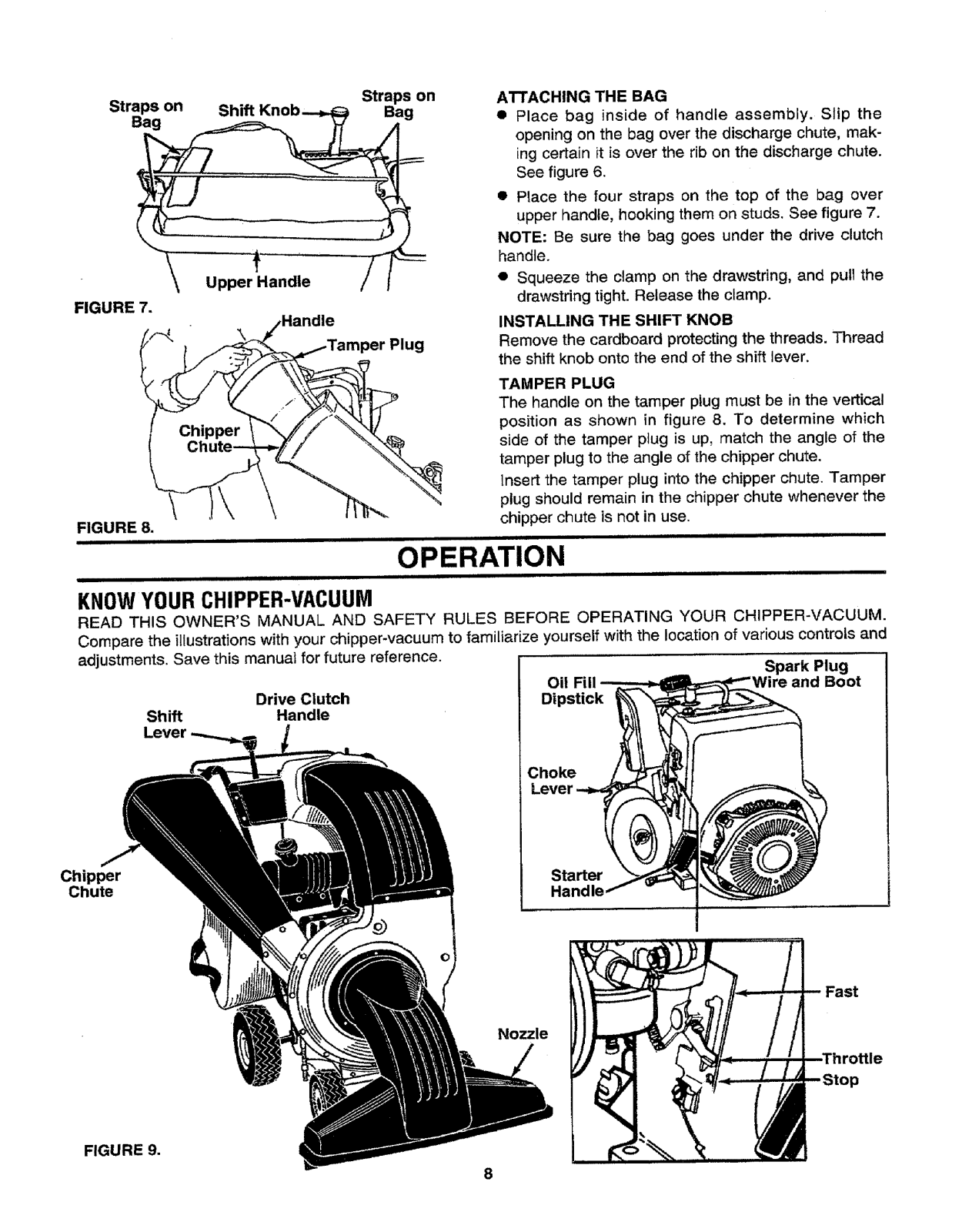

ATTACHING THE BAG

• Place bag inside of handle assembly. Slip the

opening on the bag over the discharge chute, mak-

ing certain it is over the rib on the discharge chute.
See figure 6.

• Place the four straps on the top of the bag over
upper handle, hooking them on studs. See figure 7.

NOTE: Be sure the bag goes under the drive clutch
handle.

• Squeeze the clamp on the drawstring, and puff the
drawstring tight. Release the clamp.

INSTALLING THE SHIFT KNOB

Remove the cardboard protecting the threads. Thread
the shift knob onto the end of the shift lever.

TAMPER PLUG
The handle on the tamper plug must be in the vertical

position as shown in figure 8. To determine which
side of the tamper plug is up, match the angle of the

tamper plug to the angle of the chipper chute.
insert the tamper plug into the chipper chute. Tamper

plug should remain in the chipper chute whenever the
chipper chute is not in use.

OPERATION

==1

KNOW YOUR CHIPPER-VACUUM

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR CHIPPER-VACUUM.
Compare the illustrations with your chipper-vacuum to familiarize yourself with the location of various controls and

adjustments. Save this manual for future reference.

Drive Clutch

Shift

Lever

Handle

Oil

Dipstick

Spark Plug

Boot

Chipper

Chute

FIGURE 9.

Choke

Starter
Han<

Fast

Nozzle

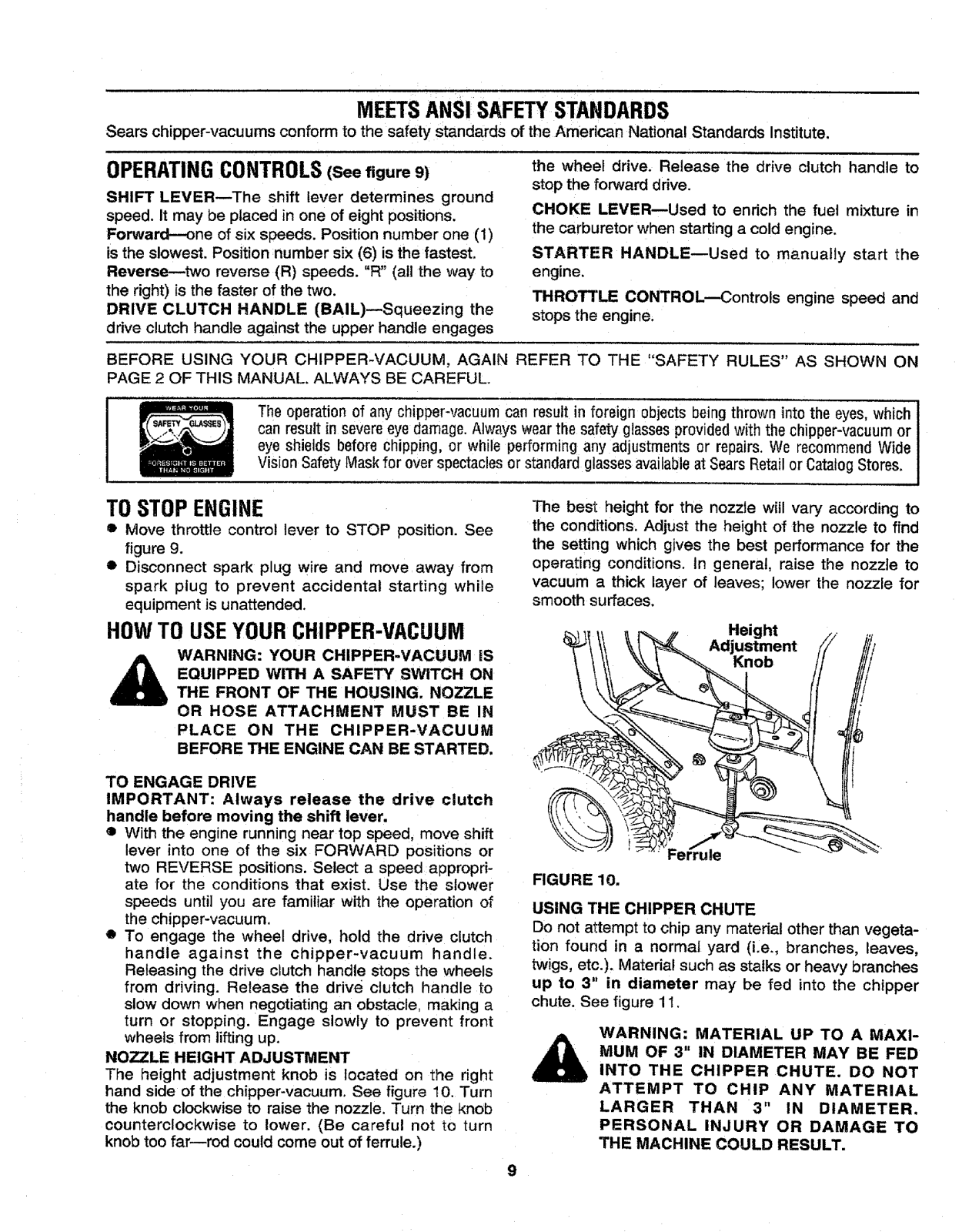

MEETSANSI SAFETY STANDARDS

Sears chipper-vacuums conform to the safety standards of the American National Standards InsUtute.

OPERATINGCONTROLS(See figure 9)

SHIFT LEVER--The shift lever determines ground

speed. It may be placed in one of eight positions.
Forward--one of six speeds. Position number one (1)

Esthe slowest. Position number six (6) is the fastest.

Reverse--two reverse (R) speeds. "R" (all the way to

the right) is the faster of the two.

DRIVE CLUTCH HANDLE (BAIL)--Squeezing the

drive clutch handle against the upper handle engages
BEFORE USING YOUR CHIPPER-VACUUM, AGAIN REFER TO THE "SAFETY RULES" AS SHOWN ON

PAGE 2 OF THIS MANUAL. ALWAYS BE CAREFUL.

The operation of any chipDer-vacuurr can result in foreign objectsbeing thrown into the eyes, which
can result in severe eye damage. Always wear the safety glasses providedwith the chipper-vacuum or
eye shields before chi_pJng, or while _erforming any adjustments er repairs We recommend Wide

Vision SafetyMask for over spectacles or standard glasses availableat Sears Retail er Catalog Stores.

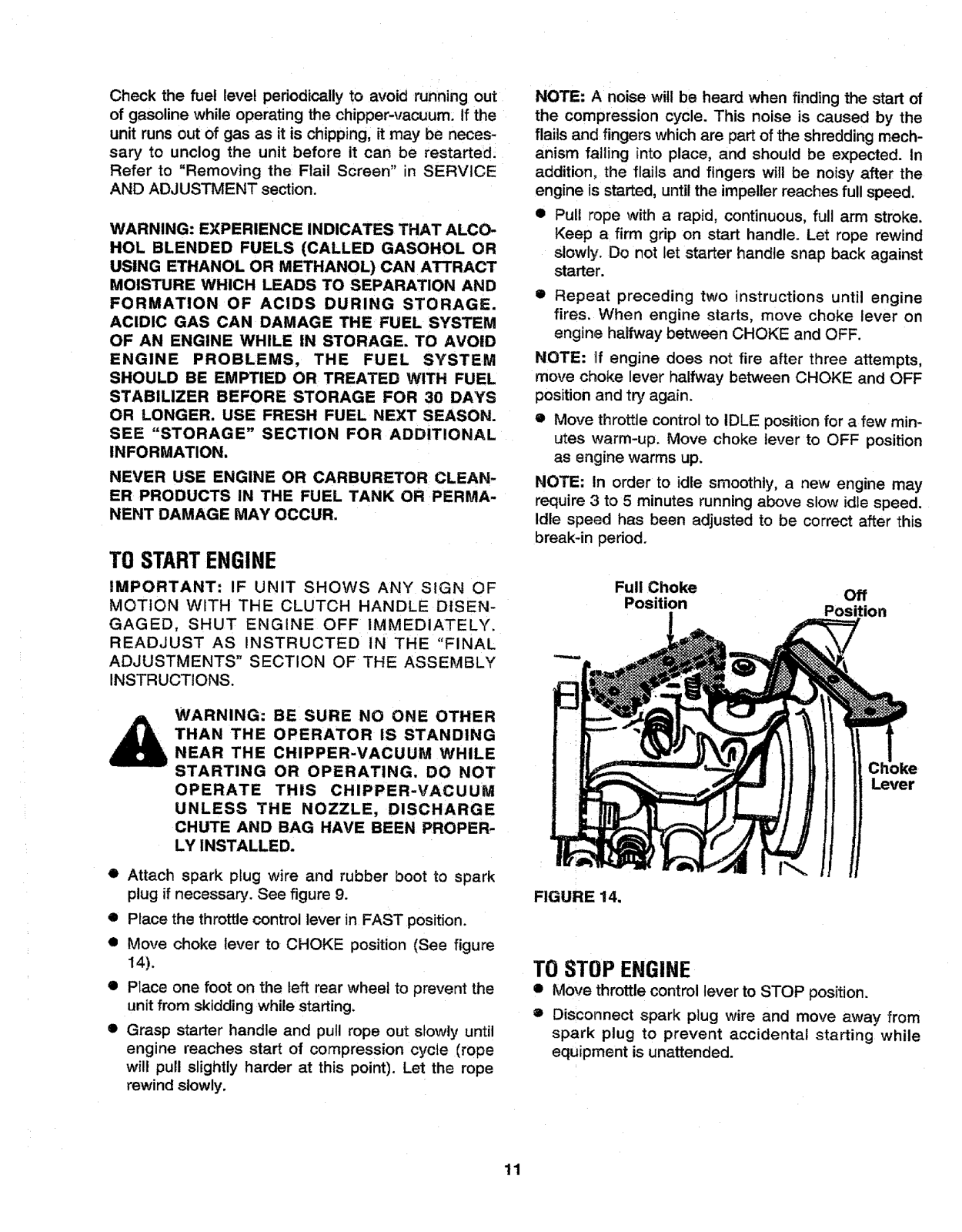

TOSTOPENGINE

• Move throttle control lever to STOP position. See
figure 9.

• Disconnect spark plug wire and move away from
spark plug to prevent accidental starting while
equipment is unattended.

HOW TO USE YOUR CHIPPER-VACUUM

EQUIPPED WITH A SAFETY SWITCH ON

_IL WARNING: YOUR CHIPPER-VACUUM iS

TO ENGAGE DRIVE

IMPORTANT: Always release the drive clutch
handle before moving the shift lever.

• With the engine running near top speed, move shift
lever into one of the six FORWARD _ositions or

two REVERSE positions. Select a speed appropri-

ate for the conditions that exist. Use the slower
speeas until you ere familiar with the operation of

the chipper-vacuum.

e To engage the wheel drive, hold the drive clutch

handle against the chipper-vacuum handle.
Releasing the drive clutch handle stops the wheels

from driving. Retease the drive clutch handle to
slow down when negotiating an obstacle making a

turn or stopping. Engage slowly to prevent front
wheels from lifting up.

NOZZLE HEIGHT ADJUSTMENT

The height adjustment knob is located on the right
hand side of the chipper-vacuum. See figure 10. Tun-

the knob clockwise to raise the nozzle. Turn the knob
counterclockwise to lower. (Be careful not to turf

knob too far--rod could come out of ferrule.)

THE FRONT OF THE HOUSING, NOZZLE
OR HOSE ATTACHMENT MUST BE IN
PLACE ON THE CHIPPER-VACUUM
BEFORE THE ENGINE CAN BE STARTED.

the wheel drive. Release the drive clutch handle to

stop the forward ddve.
CHOKE LEVER--Used to enrich the fuel mixture in

the carburetor when starting a cold engine.

STARTER HANDLE--Used to manuatty start the
engine.

THROTTLE CONTROL--Controls engine speed and
stops the engine.

The best height for the nozzle will vary according to

the conditions. Adjust the height of the nozzle to find
the setting which gives the best performance for the

operating conditions. In general, raise the nozzle to
vacuum a thick layer of leaves; lower the nozzle for

smooth surfaces.

Height

Adjustment

Knob

i!

FIGURE 10.
USING THE CHIPPER CHUTE

Do not a_empt to chip any materiel other than vegeta-
tion found in a normal yard (i.e., branches, leaves,
twigs, etc.). Matedal such as stalks or heavy branches

up to 3" in diameter may be fed into the chipper
chute. See figure 11

WARNING: MATERIAL UP TO A MAXI-

MUM OF 3" IN DIAMETER MAY BE FED
INTO THE CHIPPER CHUTE. DO NOT

ATTEMPT TO CHIP ANY MATERIAL

LARGER THAN 3" IN DIAMETER,
PERSONAL INJURY OR DAMAGE TO

THE MACHINE COULD RESULT,

9

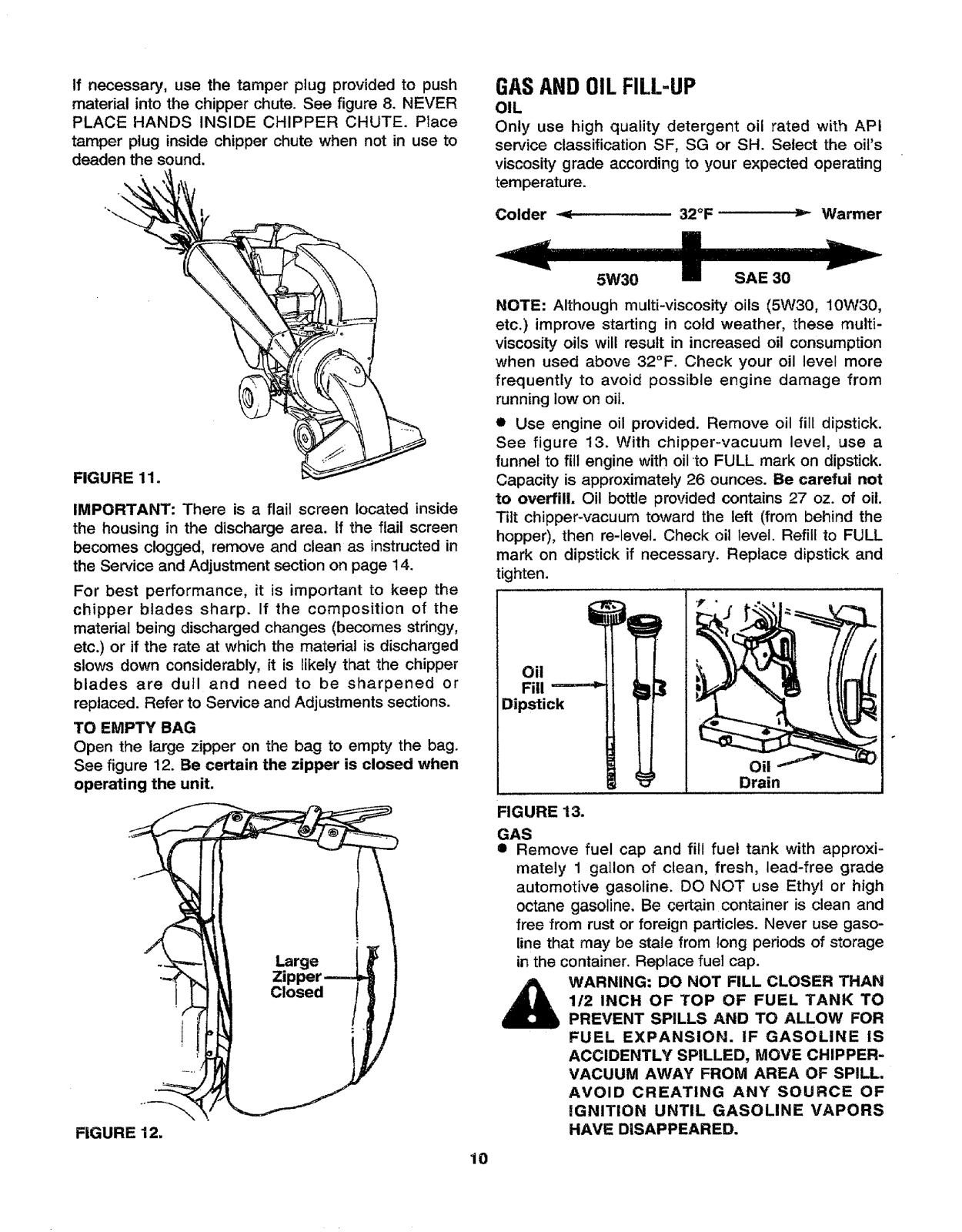

If necessary, use the tamper plug provided to push
material into the chipper chute. See figure 8. NEVER

PLACE HANDS INSIDE CHIPPER CHUTE. PIace

tamper plug inside chipper chute when not in use to

deaden the sound.

FIGURE 11.
IMPORTANT: There is a flail screen located inside

the housing in the discharge area. If the flail screen

becomes clogged, remove and clean as instructed in

the Service and Adjustment section on page 14.

For best performance, it is important to keep the

chipper blades sharp. If the composition of the

material being discharged changes (becomes stringy,
etc.) or if the rate at which the material is discharged
slows down considerably, it is likely that the chipper

blades are dutl and need to be sharpened or
replaced. Refer to Service and Adjustments sections.

TO EMPTY BAG
Open the large zipper on the bag to empty the bag.
See figure 12. Be certain the zipper is closed when

operating the unit.

GASAND OIL FILL-UP

OIL

Only use high quality detergent oil rated with API
service classification SF, SG or SH. Select the oil's

viscosity grade according to your expected operating
temperature.

Colder < 32°F _- Warmer

5W30 SAE 30

NOTE: Although multi-viscosity oils (5W30, 10W30,

etc.) improve starting in cold weather, these multi-
viscosity oils will result in increased oil consumption
when used above 32°F. Check your oil level more

frequently to avoid possible engine damage from

running low on oil.

• Use engine oil provided. Remove oil fill dipstick.

See figure 13. With chipper-vacuum level, use a

funnel to fill engine with oilto FULL mark on dipstick.

Capacity is approximately 26 ounces. Be careful not

to overfill. Oil bottle provided contains 27 oz. of oil.
Tilt chipper-vacuum toward the left (from behind the

hopper), then re-level. Check oil level. Refill to FULL
mark on dipstick if necessary. Replace dipstick and

tighten.

Oil
Fill

Dipstick

Oil

Drain

FIGURE 13.
GAS

• Remove fuel cap and fill fuel tank with approxi-
mately 1 gallon of clean, fresh, lead-free grade
automotive gasoline. DO NOT use Ethyl or high
octane gasoline. Be certain container is clean and

free from rust or foreign particles. Never use gaso-

line that may be stale from tong periods of storage
in the container. Replace fuel cap.

FIGURE 12.

_L WARNING: DO NOT FILL CLOSER THAN

10

1/'2 INCH OF TOP OF FUEL TANK TO
PREVENT SPILLS AND TO ALLOW FOR
FUEL EXPANSION. IF GASOLINE IS
ACCIDENTLY SPILLED, MOVE CHIPPER-

VACUUM AWAY FROM AREA OF SPILL.
AVOID CREATING ANY SOURCE OF
IGNITION UNTIL GASOLINE VAPORS
HAVE DISAPPEARED.
