Craftsman 79837 User Manual

Operator's Manual

CRAFTSMAN+

12 AMP Motor

200 MPH/410 CFM

ELECTRIC BLOWERNACUUM

Model No.

358.798370

®

FOR HOUSEHOLD USE

4_ WARNING:

J_l For answers to your questions about this product,

Read and follow all Safety Rules and Operating
Instructions before first use of this product.

call 7am-Tpm, Mon.-Sat., or 10am-Tpm, Sun.

• 1-800-235-5878 (Hours +isted are Centra+ Time)

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

530084333 10/20/97

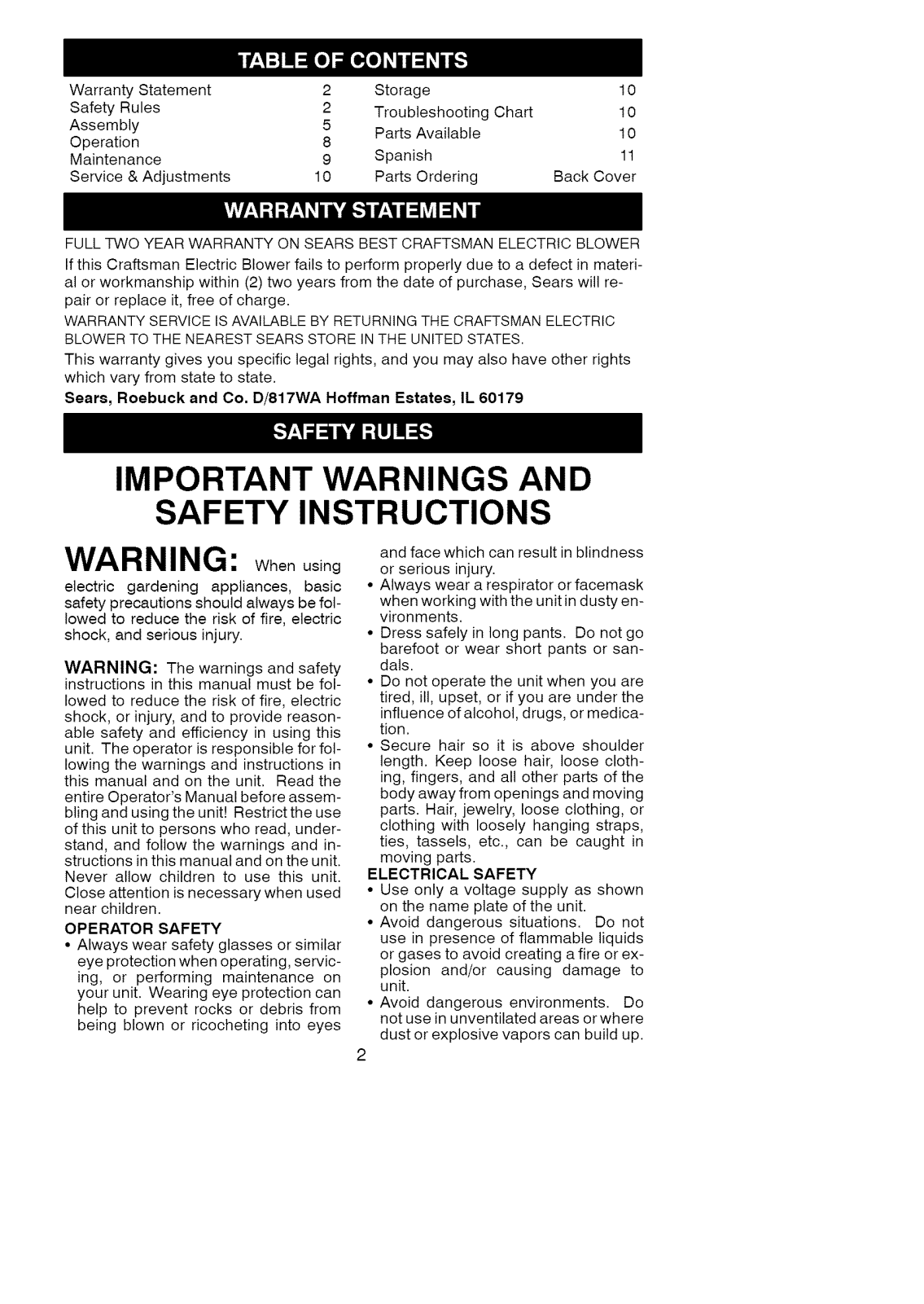

WarrantyStatement 2 Storage 10

SafetyRules 2 TroubleshootingChart 10

Assembly 5

Operation 8

PartsAvailable 10

Maintenance 9 Spanish 11
Service&Adjustments 10 PartsOrdering BackCover

FULLTWOYEARWARRANTYONSEARSBESTCRAFTSMANELECTRICBLOWER
IfthisCraftsmanElectricBlowerfailstoperformproperlyduetoadefectinmateri-

alorworkmanshipwithin(2)twoyearsfromthedateofpurchase,Searswillre-
pairorreplaceit,freeofcharge.
WARRANTYSERVICEISAVAILABLEBYRETURNINGTHECRAFTSMANELECTRIC

BLOWERTOTHENEARESTSEARSSTOREINTHEUNITEDSTATES.
Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrights

whichvaryfromstatetostate.

Sears, Roebuck and Co. D/817WA Hoffman Estates, IL 60179

IMPORTANT WARNINGS AND

SAFETY INSTRUCTIONS

WARNING: Whenusing

electric gardening appliances, basic
safety precautions should always be fol-
lowed to reduce the risk of fire, electric
shock, and serious injury.

WARNING: The warnings and safety
instructions in this manual must be fol-

lowed to reduce the risk of fire, electric
shock, or injury, and to provide reason-
able safety and efficiency in using this
unit. The operator is responsible for fol-
lowing the warnings and instructions in

this manual and on the unit. Read the
entire Operator's Manual before assem-

bling and using the unit! Restrict the use
of this unit to persons who read, under-
stand, and follow the warnings and in-

structions in this manual and on the unit.
Never allow children to use this unit.

Close attention is necessary when used
near children.

OPERATOR SAFETY

• Always wear safety glasses or similar
eye protection when operating, servic-
ing, or performing maintenance on

your unit. Wearing eye protection can
help to prevent rooks or debris from

being blown or ricocheting into eyes

2

and face which can result in blindness
or serious injury.

• Always wear a respirator or facemask
when working with the unit in dusty en-

vironments.

• Dress safely in long pants. Do not go
barefoot or wear short pants or san-

dais.

• Do not operate the unit when you are
tired, ill, upset, or if you are under the

influence of alcohol, drugs, or medica-

tion.

• Secure hair so it is above shoulder
length. Keep loose hair, loose cloth-

ing, fingers, and all other parts of the
body away from openings and moving
parts. Hair, jewelry, loose clothing, or
clothing with loosely hanging straps,
ties, tassels, etc., can be caught in
moving parts.

ELECTRICAL SAFETY

• Use only a voltage supply as shown
on the name plate of the unit.

• Avoid dangerous situations. Do not
use in presence of flammable liquids
or gases to avoid creating a fire or ex-
plosion and/or causing damage to

unit.
Avoid dangerous environments. Do

not use in unventilated areas or where
dust or explosive vapors can build up.

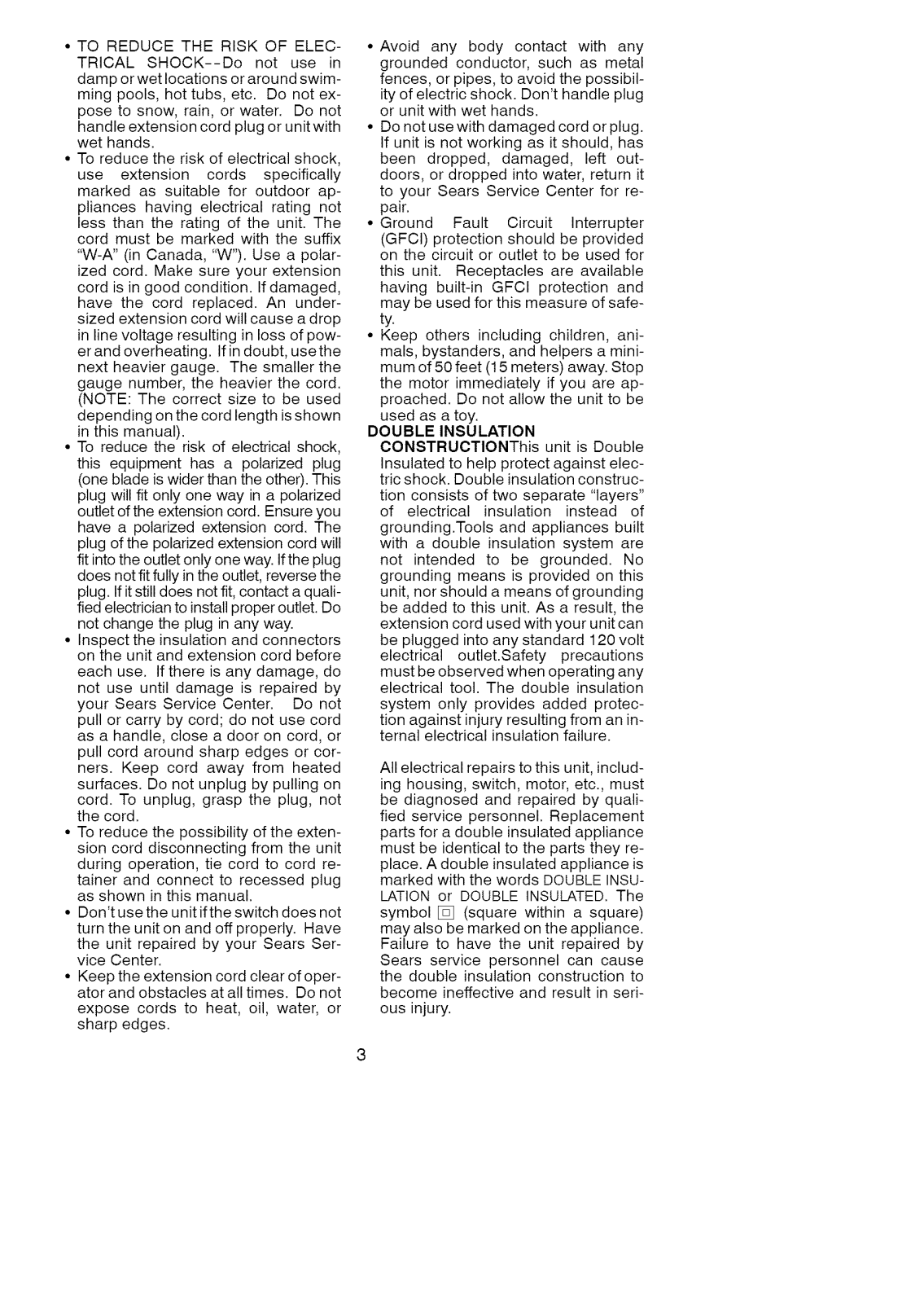

• TO REDUCE THE RISK OF ELEC-
TRICAL SHOCK--Do not use in

damp or wet locations or around swim-
ming pools, hot tubs, etc. Do not ex-
pose to snow, rain, or water. Do not
handle extension cord plug or unit with

wet hands.

• To reduce the risk of electrical shock,
use extension cords specifically
marked as suitable for outdoor ap-
pliances having electrical rating not
less than the rating of the unit. The

cord must be marked with the suffix
"W-A" (in Canada, "W"). Use a polar-

ized cord. Make sure your extension
cord is in good condition. If damaged,
have the cord replaced. An under-

sized extension cord will cause a drop
in line voltage resulting in loss of pow-

er and overheating. If in doubt, use the
next heavier gauge. The smaller the

gauge number, the heavier the cord.

(NOTE: The correct size to be used

depending on the cord length is shown
in this manual).

• To reduce the risk of electrical shock,
this equipment has a polarized plug

(one blade is wider than the other). This
plug will fit only one way in a polarized
outlet of the extension cord. Ensure you
have a polarized extension cord. The
plug of the polarized extension cord will
fit into the outlet only one way. Ifthe plug
does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a quali-
fied electrician to install proper outlet. Do
not change the plug in any way.

• Inspect the insulation and connectors
on the unit and extension cord before

each use. If there is any damage, do
not use until damage is repaired by
your Sears Service Center. Do not
pull or carry by cord; do not use cord
as a handle, close a door on cord, or
pull cord around sharp edges or cor-
ners. Keep cord away from heated
surfaces. Do not unplug by pulling on

cord. To unplug, grasp the plug, not
the cord.

• To reduce the possibility of the exten-
sion cord disconnecting from the unit

during operation, tie cord to cord re-
tainer and connect to recessed plug

as shown in this manual.

• Don't use the unit if the switch does not
turn the unit on and off properly. Have

the unit repaired by your Sears Ser-
vice Center.

• Keep the extension cord clear of oper-
ator and obstacles at all times. Do not

expose cords to heat, oil, water, or
sharp edges.

• Avoid any body contact with any
grounded conductor, such as metal
fences, or pipes, to avoid the possibil-

ity of electric shock. Don't handle plug

or unit with wet hands.

• Do not use with damaged cord or plug.

If unit is not working as it should, has
been dropped, damaged, left out-
doors, or dropped into water, return it
to your Sears Service Center for re-
pair.

• Ground Fault Circuit Interrupter
(GFCI) protection should be provided

on the circuit or outlet to be used for
this unit. Receptacles are available

having built-in GFCI protection and
may be used for this measure of safe-
ty.

• Keep others including children, ani-

mals, bystanders, and helpers a mini-
mum of 50 feet (15 meters) away. Stop

the motor immediately if you are ap-
proached. Do not allow the unit to be

used as a toy.

DOUBLE INSULATION

CONSTRUCTIONThis unit is Double

Insulated to help protect against elec-

tric shock. Double insulation construc-
tion consists of two separate "layers"

of electrical insulation instead of
grounding.Tools and appliances built

with a double insulation system are
not intended to be grounded. No
grounding means is provided on this
unit, nor should a means of grounding
be added to this unit. As a result, the
extension cord used with your unit can
be plugged into any standard 120 volt
electrical outlet.Safety precautions
must be observed when operating any

electrical tool. The double insulation
system only provides added protec-

tion against injury resulting from an in-
ternal electrical insulation failure.

All electrical repairs to this unit, includ-

ing housing, switch, motor, etc., must

be diagnosed and repaired by quali-
fied service personnel. Replacement

parts for a double insulated appliance
must be identical to the parts they re-

place. A double insulated appliance is
marked with the words DOUBLE INSU-

LATION or DOUBLE INSULATED. The

symbol [] (square within a square)
may also be marked on the appliance.

Failure to have the unit repaired by

Sears service personnel can cause
the double insulation construction to

become ineffective and result in seri-
ous injury.

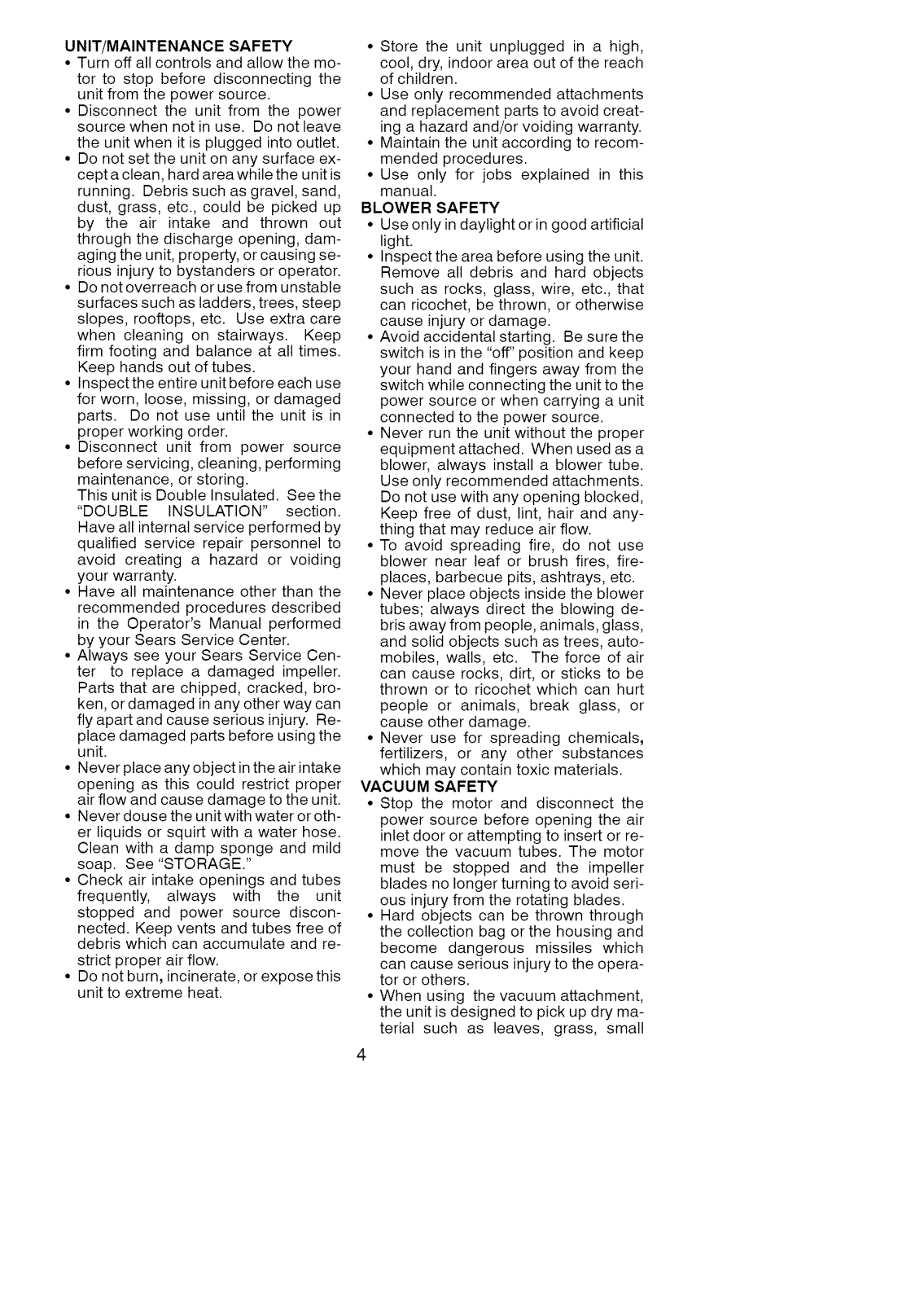

UNIT/MAINTENANCE SAFETY

• Turn off all controls and allow the mo-
tor to stop before disconnecting the

unit from the power source.

• Disconnect the unit from the power
source when not in use. Do not leave

the unit when it is plugged into outlet.

• Do not set the unit on any surface ex-
cept a clean, hard areawhile the unit is
running. Debris such as gravel, sand,
dust, grass, etc., could be picked up
by the air intake and thrown out
through the discharge opening, dam-
aging the unit, property, or causing se-
rious injury to bystanders or operator.

• Do not overreach or use from unstable
surfaces such as ladders, trees, steep

slopes, rooftops, etc. Use extra care
when cleaning on stairways. Keep

firm footing and balance at all times.

Keep hands out of tubes.

• Inspectthe entire unit before each use
for worn, loose, missing, or damaged

parts. Do not use until the unit is in
proper working order.

• Disconnect unit from power source
before servicing, cleaning, performing
maintenance, or storing.

This unit is Double Insulated. See the
"DOUBLE INSULATION" section.

Have all internal service performed by
qualified service repair personnel to
avoid creating a hazard or voiding
your warranty.

• Have all maintenance other than the
recommended procedures described

in the Operator's Manual performed
by your Sears Service Center.

• Always see your Sears Service Cen-
ter to replace a damaged impeller.

Parts that are chipped, cracked, bro-
ken, or damaged in any other way can
fly apart and cause serious injury. Re-
place damaged parts before using the

unit.

• Never place any object in the air intake
opening as this could restrict proper

air flow and cause damage to the unit.

• Never douse the unit with water or oth-
er liquids or squirt with a water hose.

Clean with a damp sponge and mild
soap. See "STORAGE."

• Check air intake openings and tubes
frequently, always with the unit

stopped and power source discon-
nected. Keep vents and tubes free of
debris which can accumulate and re-

strict proper air flow.

• Do not burn, incinerate, or expose this
unit to extreme heat.

• Store the unit unplugged in a high,
cool, dry, indoor area out of the reach

of children.

• Use only recommended attachments
and replacement parts to avoid creat-

ing a hazard and/or voiding warranty.

• Maintain the unit according to recom-
mended procedures.

• Use only for jobs explained in this
manual.

BLOWER SAFETY

• Use only in daylight or in good artificial
light.

• Inspect the area before using the unit.

Remove all debris and hard objects
such as rocks, glass, wire, etc., that
can ricochet, be thrown, or otherwise
cause injury or damage.

• Avoid accidental starting. Be sure the
switch is in the "off" position and keep

your hand and fingers away from the
switch while connecting the unit to the

power source or when carrying a unit
connected to the power source.

• Never run the unit without the proper
equipment attached. When used as a
blower, always install a blower tube.

Use only recommended attachments.
Do not use with any opening blocked,
Keep free of dust, lint, hair and any-

thing that may reduce air flow.

• To avoid spreading fire, do not use
blower near leaf or brush fires, fire-
places, barbecue pits, ashtrays, etc.

• Never place objects inside the blower
tubes; always direct the blowing de-
bris away from people, animals, glass,
and solid objects such as trees, auto-
mobiles, walls, etc. The force of air
can cause rocks, dirt, or sticks to be

thrown or to ricochet which can hurt
people or animals, break glass, or

cause other damage.

• Never use for spreading chemicals,
fertilizers, or any other substances
which may contain toxic materials.

VACUUM SAFETY

• Stop the motor and disconnect the
power source before opening the air

inlet door or attempting to insert or re-

move the vacuum tubes. The motor
must be stopped and the impeller

blades no longer turning to avoid seri-
ous injury from the rotating blades.

• Hard objects can be thrown through
the collection bag or the housing and
become dangerous missiles which
can cause serious injury to the opera-

tor or others.

• When using the vacuum attachment,
the unit is designed to pick up dry ma-
terial such as leaves, grass, small

twigs,andbitsofpaper.Donotvacu-
um stones,gravel,metal,broken
glass,etc.,toavoidseveredamageto
theimpeller.Toavoidthepossibilityof
electricalshock,donotattempttovac-
uumwaterorotherliquids.

• Neverruntheunitwithouttheproper
equipmentattached.Whenusedasa
vacuum,alwaysinstallvacuumtubes
andcollectionbagassembly.Make
surethecollectionbagassemblyis
completelyzippedwhenunitisrun-
ningtoavoidflyingdebris.Useonly

recommendedattachments.

• Avoidsituationswhichcouldsetthe
collectionbagonfire.Donotvacuum

discardedmatches,cigars,cigarettes,
orashfromfireplaces,barbecuepits,

brushpiles,etc.Toavoidspreading
fire,donotuseblowernearleafor
brushfires,fireplaces,barbecuepits,

ashtrays,etc.

• Alwaysusethecollectionbagshoul-

derstrapwhenvacuumingtoavoid
lossofcontrol.

• Checkair intakeopenings,elbow
tube,andvacuumtubesfrequently,al-
wayswiththeunitstoppedandthe
powersourcedisconnected.Keep

ventsandtubesfreeofdebriswhich
canaccumulateandrestrictproperair

flow.Donotusewithanyopening
blocked,Keepfreeofdust,lint,hair
andanythingthatmayreduceairflow.

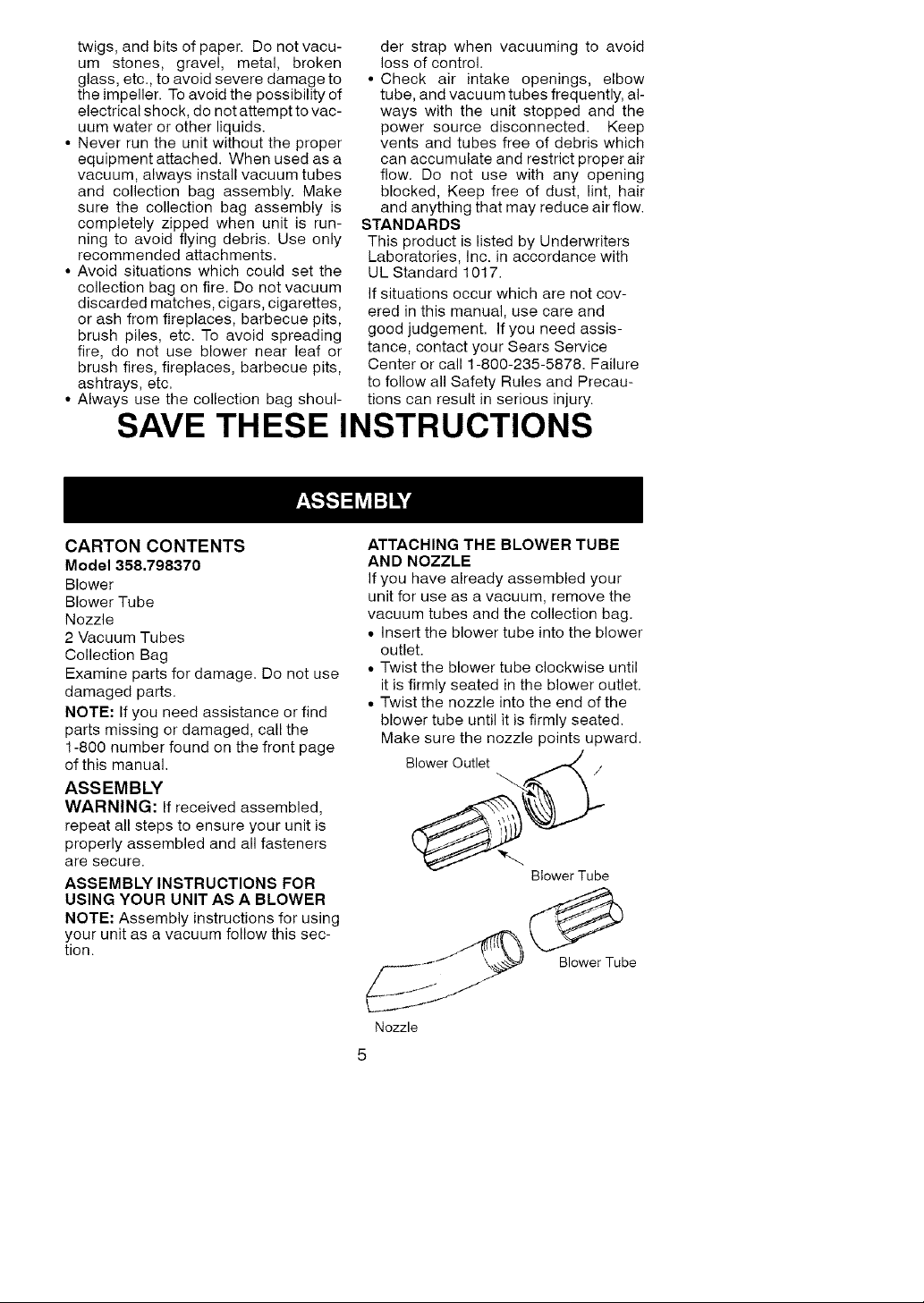

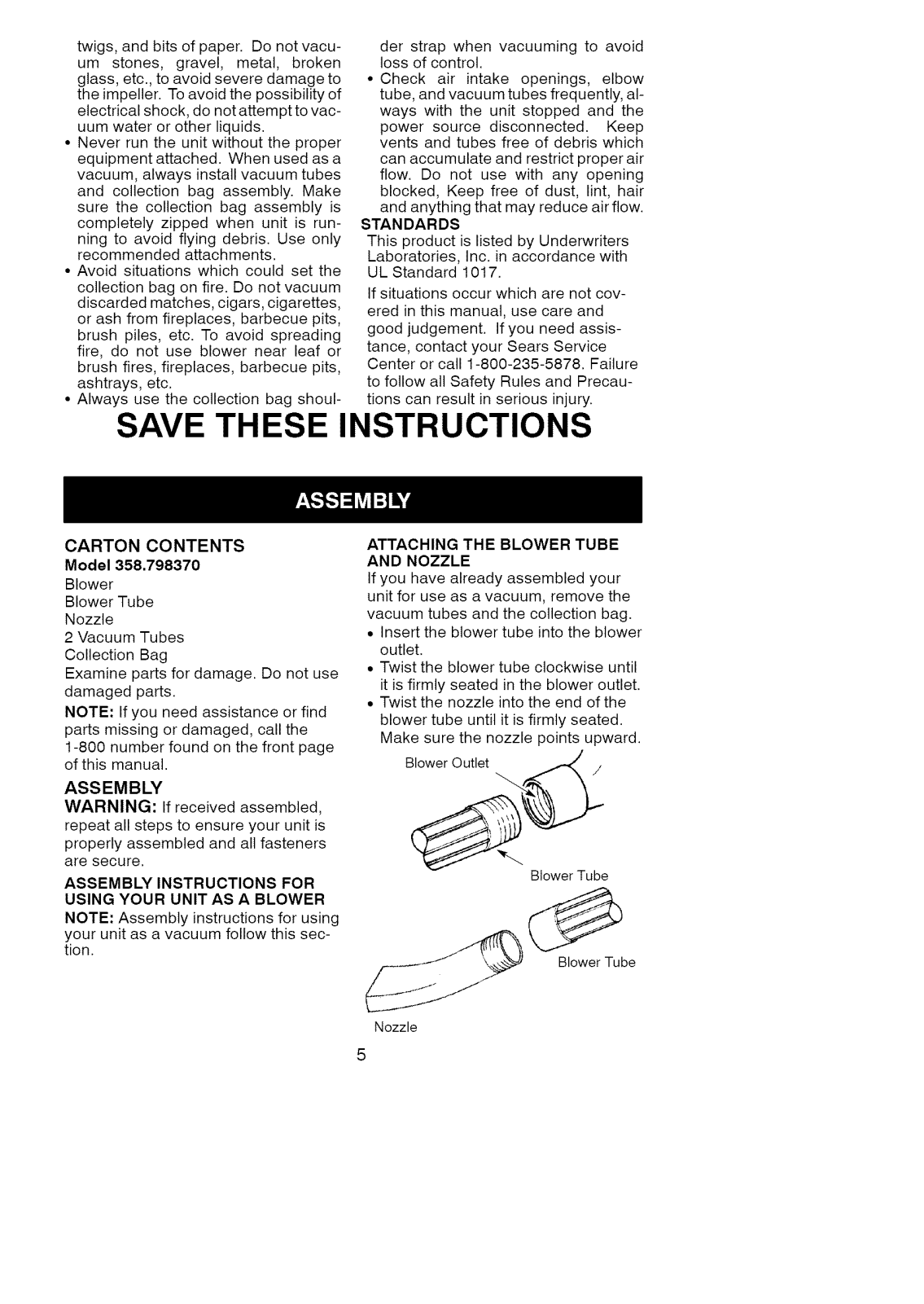

STANDARDS

This product is listed by Underwriters
Laboratories, Inc. in accordance with

UL Standard 1017.
If situations occur which are not cov-

ered in this manual, use care and
good judgement. If you need assis-
tance, contact your Sears Service

Center or call 1-800-235-5878. Failure
to follow all Safety Rules and Precau-

tions can result in serious injury.

SAVE THESE INSTRUCTIONS

CARTON CONTENTS

Model 358.798370
Blower

Blower Tube
Nozzle

2 Vacuum Tubes
Collection Bag

Examine parts for damage. Do not use
damaged parts.

NOTE: If you need assistance or find
parts missing or damaged, call the
1-800 number found on the front page

of this manual.

ASSEMBLY

WARNING: If received assembled,
repeat all steps to ensure your unit is

properly assembled and all fasteners

are secure.

ASSEMBLY INSTRUCTIONS FOR
USING YOUR UNIT AS A BLOWER

NOTE: Assembly instructions for using
your unit as a vacuum follow this sec-

tion.

ATTACHING THE BLOWER TUBE
AND NOZZLE

If you have already assembled your
unit for use as a vacuum, remove the

vacuum tubes and the collection bag.

• Insert the blower tube into the blower
outlet.

• Twist the blower tube clockwise until

it is firmly seated in the blower outlet.

• Twist the nozzle into the end of the
blower tube until it is firmly seated.

Make sure the nozzle points upward.

Blower Outlet _...._._,_,_._% \ /

Blower Tube

Blower Tube

Nozzle

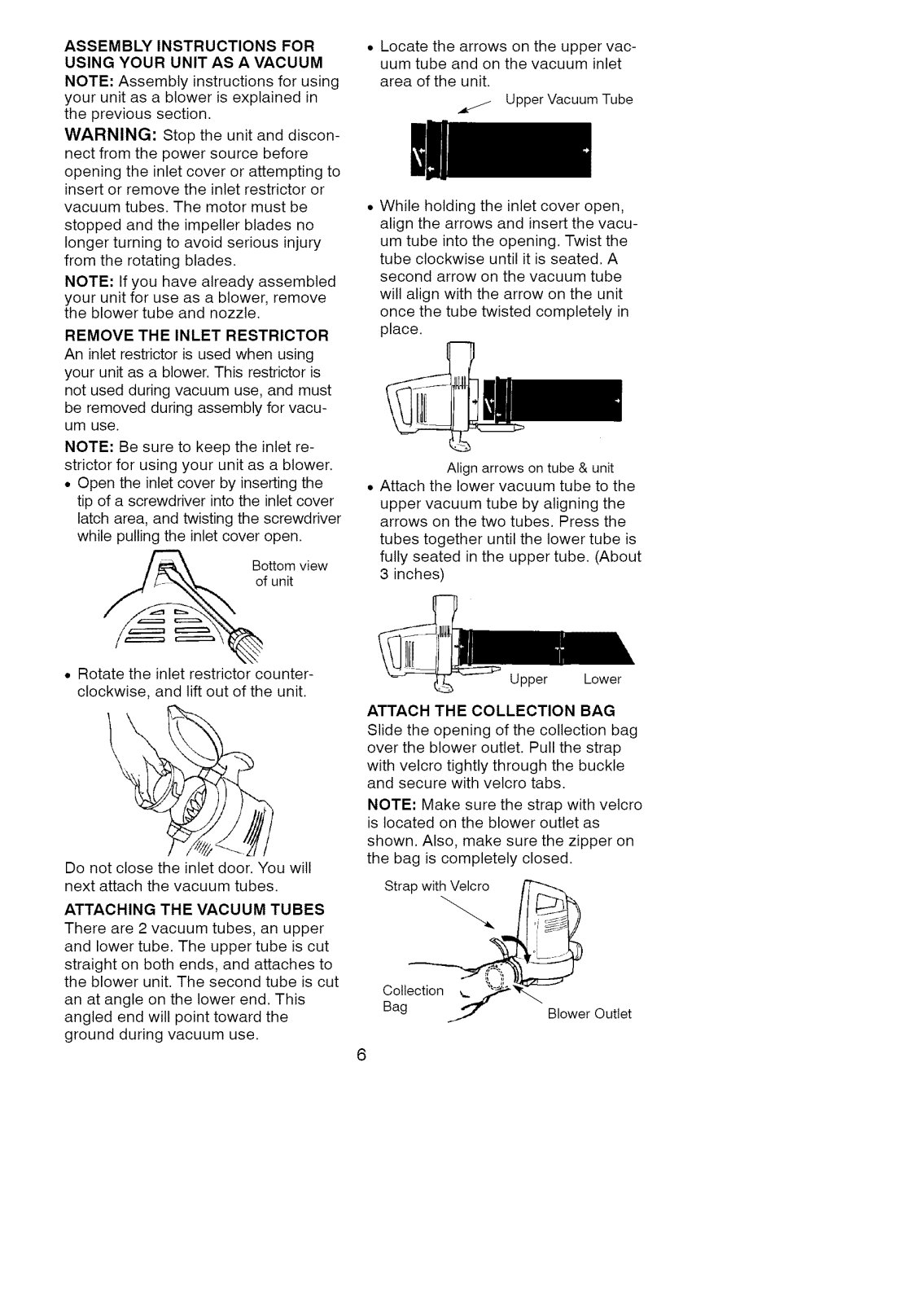

ASSEMBLY INSTRUCTIONS FOR
USING YOUR UNIT AS A VACUUM

NOTE: Assembly instructions for using
your unit as a blower is explained in
the previous section.

WARNING: Stop the unit and discon-
nect from the power source before
opening the inlet cover or attempting to

insert or remove the inlet restrictor or
vacuum tubes. The motor must be

stopped and the impeller blades no
longer turning to avoid serious injury
from the rotating blades.

NOTE: If you have already assembled
your unit for use as a blower, remove

the blower tube and nozzle.
REMOVE THE INLET RESTRICTOR

An inlet restrictor is used when using
your unit as a blower. This restrictor is
not used during vacuum use, and must
be removed during assembly for vacu-

um use.
NOTE: Be sure to keep the inlet re-

strictor for using your unit as a blower.

• Open the inlet cover by inserting the
tip of a screwdriver into the inlet cover
latch area, and twisting the screwdriver
while pulling the inlet cover open.

Bottom view

• Locate the arrows on the upper vac-
uum tube and on the vacuum inlet

area of the unit.

Upper Vacuum Tube

• While holding the inlet cover open,
align the arrows and insert the vacu-
um tube into the opening. Twist the

tube clockwise until it is seated. A
second arrow on the vacuum tube

will align with the arrow on the unit
once the tube twisted completely in

place.

Align arrows on tube & unit

• Attach the lower vacuum tube to the
upper vacuum tube by aligning the

arrows on the two tubes. Press the
tubes together until the lower tube is

fully seated in the upper tube. (About
3 inches)

of unit

• Rotate the inlet restrictor counter-
clockwise, and lift out of the unit.

Do not close the inlet door. You will
next attach the vacuum tubes.

ATTACHING THE VACUUM TUBES

There are 2 vacuum tubes, an upper
and lower tube. The upper tube is cut

straight on both ends, and attaches to
the blower unit. The second tube is cut

an at angle on the lower end. This
angled end will point toward the
ground during vacuum use.

Upper Lower

ATTACH THE COLLECTION BAG
Slide the opening of the collection bag

over the blower outlet. Pull the strap
with velcro tightly through the buckle

and secure with velcro tabs.
NOTE: Make sure the strap with velcro

is located on the blower outlet as
shown. Also, make sure the zipper on

the bag is completely closed.

Stra_

Collection __ _T.._
Bag _ BlowerOutlet

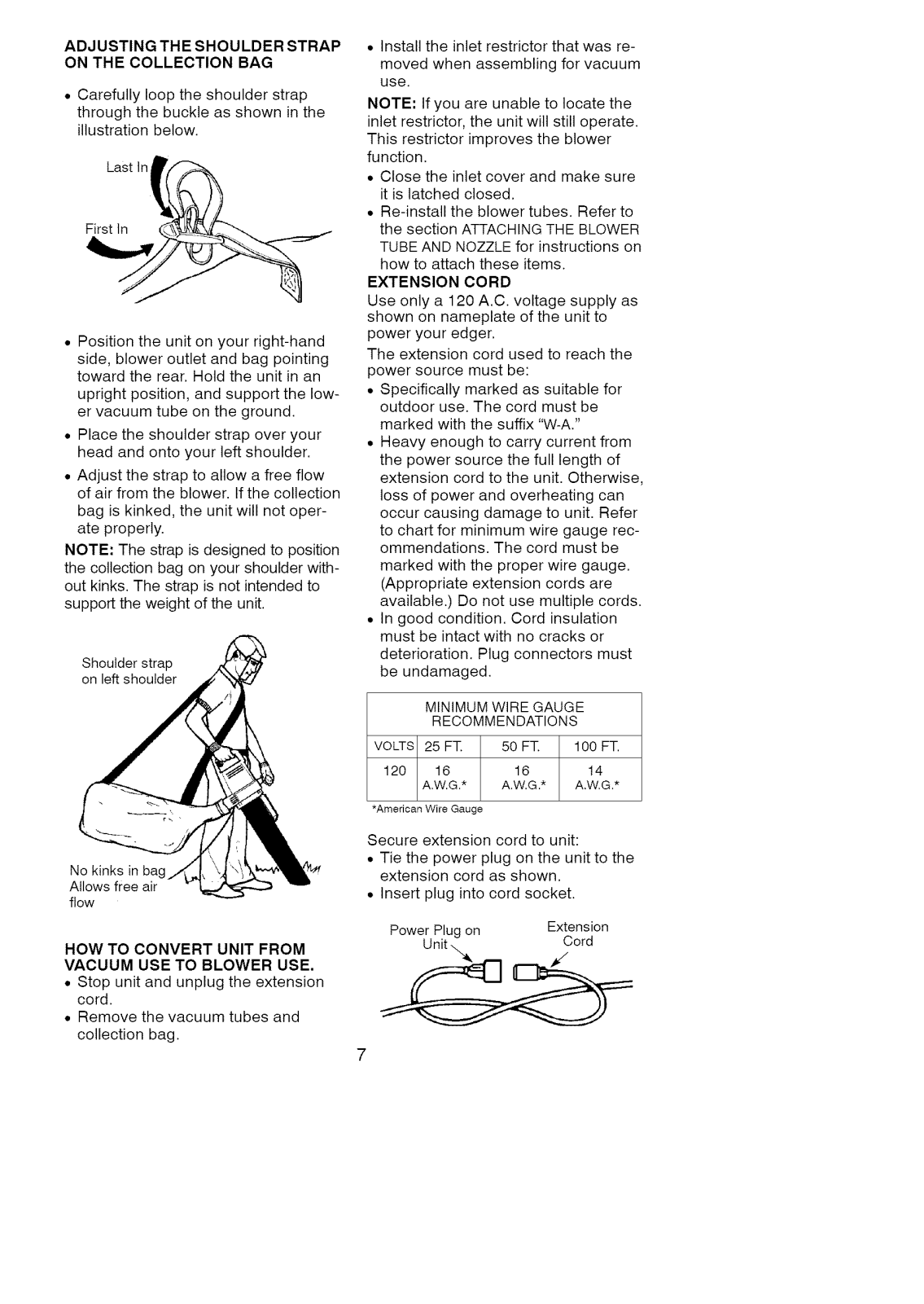

ADJUSTING THE SHOULDER STRAP
ON THE COLLECTION BAG

• Carefully loop the shoulder strap
through the buckle as shown in the

illustration below.

Last In

First In

• Position the unit on your right-hand
side, blower outlet and bag pointing

toward the rear. Hold the unit in an
upright position, and support the low-
er vacuum tube on the ground.

• Place the shoulder strap over your
head and onto your left shoulder.

• Adjust the strap to allow a free flow
of air from the blower. If the collection

bag is kinked, the unit will not oper-
ate properly.

NOTE: The strap is designed to position
the collection bag on your shoulder with-
out kinks. The strap is not intended to
support the weight of the unit.

Shoulder strap
on left shoulder

No kinks in bag

Allows free air
flow

HOW TO CONVERT UNIT FROM
VACUUM USE TO BLOWER USE.

• Stop unit and unplug the extension
cord.

• Remove the vacuum tubes and
collection bag.

• Install the inlet restrictor that was re-
moved when assembling for vacuum

use.

NOTE: If you are unable to locate the
inlet restrictor, the unit will still operate.
This restrictor improves the blower

function.

• Close the inlet cover and make sure

it is latched closed.

• Re-install the blower tubes. Refer to
the section ATTACHING THE BLOWER
TUBE AND NOZZLE for instructions on
how to attach these items.

EXTENSION CORD
Use only a 120 A.C. voltage supply as

shown on nameplate of the unit to
power your edger.

The extension cord used to reach the
power source must be:

• Specifically marked as suitable for
outdoor use. The cord must be
marked with the suffix "W-A."

• Heavy enough to carry current from
the power source the full length of
extension cord to the unit. Otherwise,
loss of power and overheating can
occur causing damage to unit. Refer
to chart for minimum wire gauge rec-

ommendations. The cord must be
marked with the proper wire gauge.

(Appropriate extension cords are

available.) Do not use multiple cords.

• In good condition. Cord insulation
must be intact with no cracks or

deterioration. Plug connectors must
be undamaged.

MINIMUM WIRE GAUGE

RECOMMENDATIONS

VOLTS 25 FT. 50 FT. 100 FT.

120 16 16 14

A,W.G,* A,W.G.* A,W,G,*

*American Wire Gauge

Secure extension cord to unit:

• Tie the power plug on the unit to the
extension cord as shown.

• Insert plug into cord socket.

Power Plug on Extension

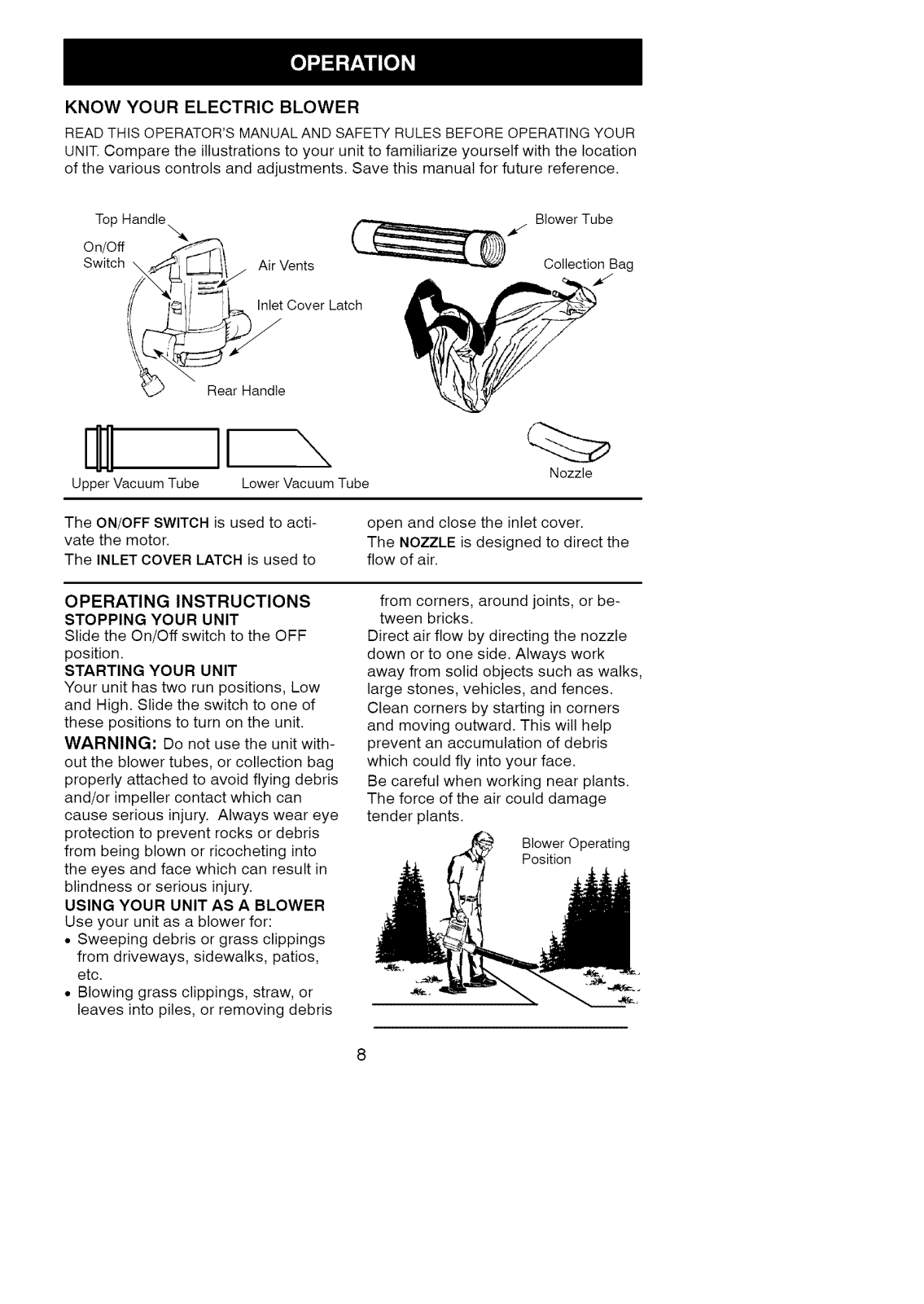

KNOW YOUR ELECTRIC BLOWER
READ THISOPERATOR'SMANUAL AND SAFETY RULES BEFORE OPERATINGYOUR

UNIT.Compare the illustrations to your unit to familiarize yourself with the location
of the various controls and adjustments. Save this manual for future reference.

Blower Tube

Collection Bag

Upper Vacuum Tube Lower Vacuum Tube

The ON/OFF SWITCH is used to acti-
vate the motor.

The INLET COVER LATCH is used to

OPERATING INSTRUCTIONS
STOPPING YOUR UNIT
Slide the On/Off switch to the OFF
position.

STARTING YOUR UNIT
Your unit has two run positions, Low

and High. Slide the switch to one of
these positions to turn on the unit.

WARNING: Do not use the unit with-
out the blower tubes, or collection bag

properly attached to avoid flying debris
and/or impeller contact which can
cause serious injury. Always wear eye
protection to prevent rocks or debris
from being blown or ricocheting into
the eyes and face which can result in
blindness or serious injury.
USING YOUR UNIT AS A BLOWER
Use your unit as a blower for:

• Sweeping debris or grass clippings
from driveways, sidewalks, patios,

etc.

• Blowing grass clippings, straw, or
leaves into piles, or removing debris

Nozzle

open and close the inlet cover.
The NOZZLE is designed to direct the

flow of air.

from corners, around joints, or be-
tween bricks.

Direct air flow by directing the nozzle
down or to one side. Always work
away from solid objects such as walks,
large stones, vehicles, and fences.
Clean corners by starting in corners
and moving outward. This will help
prevent an accumulation of debris
which could fly into your face.

Be careful when working near plants.
The force of the air could damage
tender plants.

Blower Operating
Position

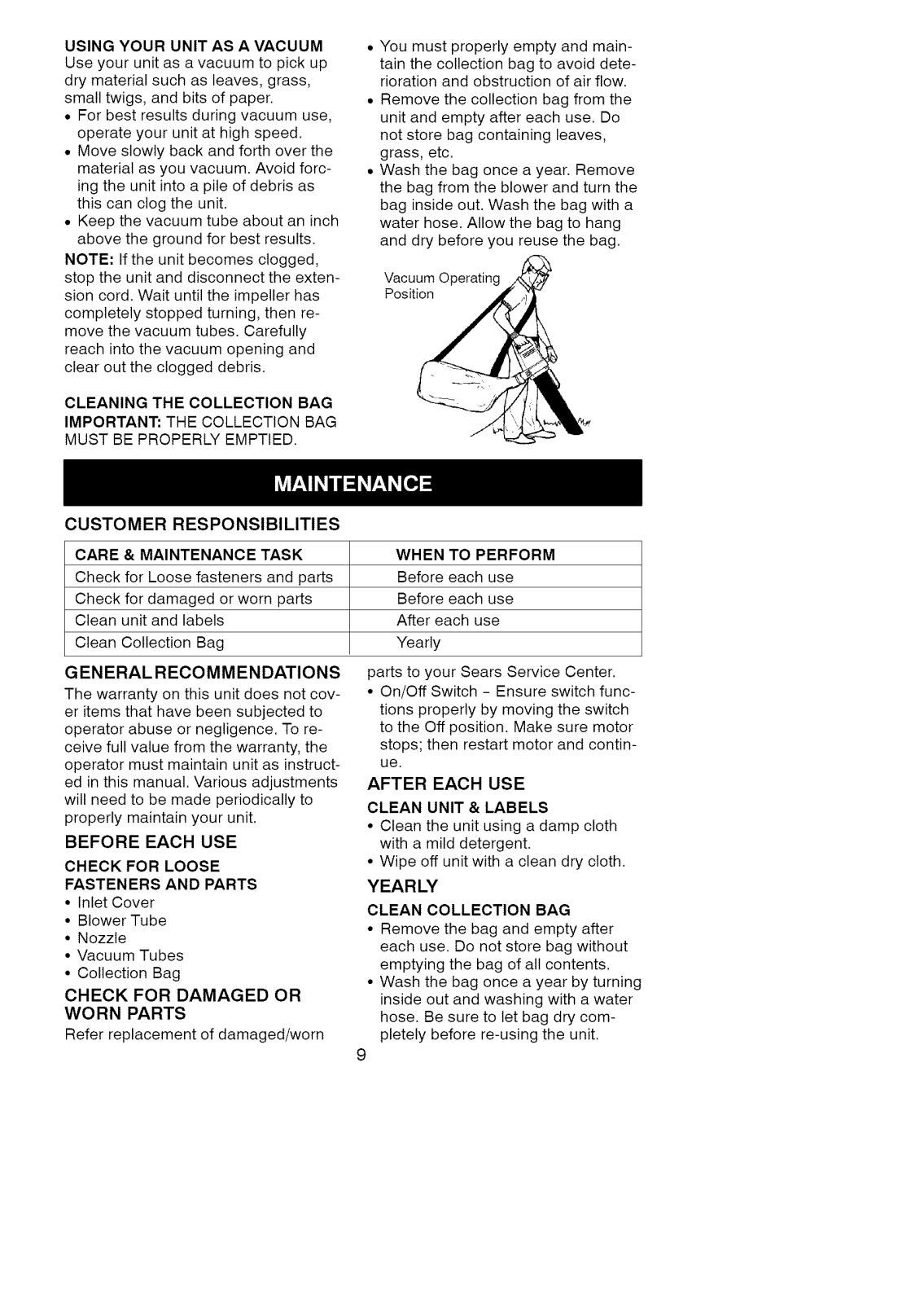

USINGYOURUNITASAVACUUM
Useyourunitasavacuumtopickup
drymaterialsuchasleaves,grass,
smalltwigs,andbitsofpaper.

• Forbestresultsduringvacuumuse,
operateyourunitathighspeed.

• Moveslowlybackandforthoverthe
materialasyouvacuum.Avoidforc-

ingtheunitintoapileofdebrisas
thiscanclogtheunit.

• Keepthevacuumtubeaboutaninch
abovethegroundforbestresults.

• You must properly empty and main-
tain the collection bag to avoid dete-

rioration and obstruction of air flow.

• Remove the collection bag from the
unit and empty after each use. Do
not store bag containing leaves,
grass, etc.

• Wash the bag once a year. Remove
the bag from the blower and turn the
bag inside out. Wash the bag with a
water hose. Allow the bag to hang
and dry before you reuse the bag.

NOTE:Iftheunitbecomesclogged,
stoptheunitanddisconnecttheexten-
sioncord.Waituntiltheimpellerhas

Vacuum Operating

Position

completelystoppedturning,thenre-
movethevacuumtubes.Carefully
reachintothevacuumopeningand

clearoutthecloggeddebris.
CLEANINGTHECOLLECTIONBAG

IMPORTANT: THE COLLECTION BAG
MUST BE PROPERLY EMPTIED.

CUSTOMER RESPONSIBILITIES

CARE & MAINTENANCE TASK WHEN TO PERFORM
Check for Loose fasteners and parts Before each use

Check for damaged or worn parts Before each use
Clean unit and labels After each use

Clean Collection Bag Yearly

G ENERAL RECOMMENDATIONS
The warranty on this unit does not cov-

er items that have been subjected to
operator abuse or negligence. To re-
ceive full value from the warranty, the
operator must maintain unit as instruct-
ed in this manual. Various adjustments

will need to be made periodically to
properly maintain your unit.

BEFORE EACH USE
CHECK FOR LOOSE

FASTENERS AND PARTS

• Inlet Cover

• Blower Tube

• Nozzle

• Vacuum Tubes

• Collection Bag
CHECK FOR DAMAGED OR

WORN PARTS
Refer replacement of damaged/worn

parts to your Sears Service Center.

• On/Off Switch - Ensure switch func-
tions properly by moving the switch
to the Off position. Make sure motor
stops; then restart motor and contin-

ue.

AFTER EACH USE

CLEAN UNIT & LABELS

• Clean the unit using a damp cloth
with a mild detergent.

• Wipe off unit with a clean dry cloth.

YEARLY
CLEAN COLLECTION BAG

• Remove the bag and empty after
each use. Do not store bag without
emptying the bag of all contents,

• Wash the bag once a year by turning

inside out and washing with a water
hose, Be sure to let bag dry com-
pletely before re-using the unit.

9

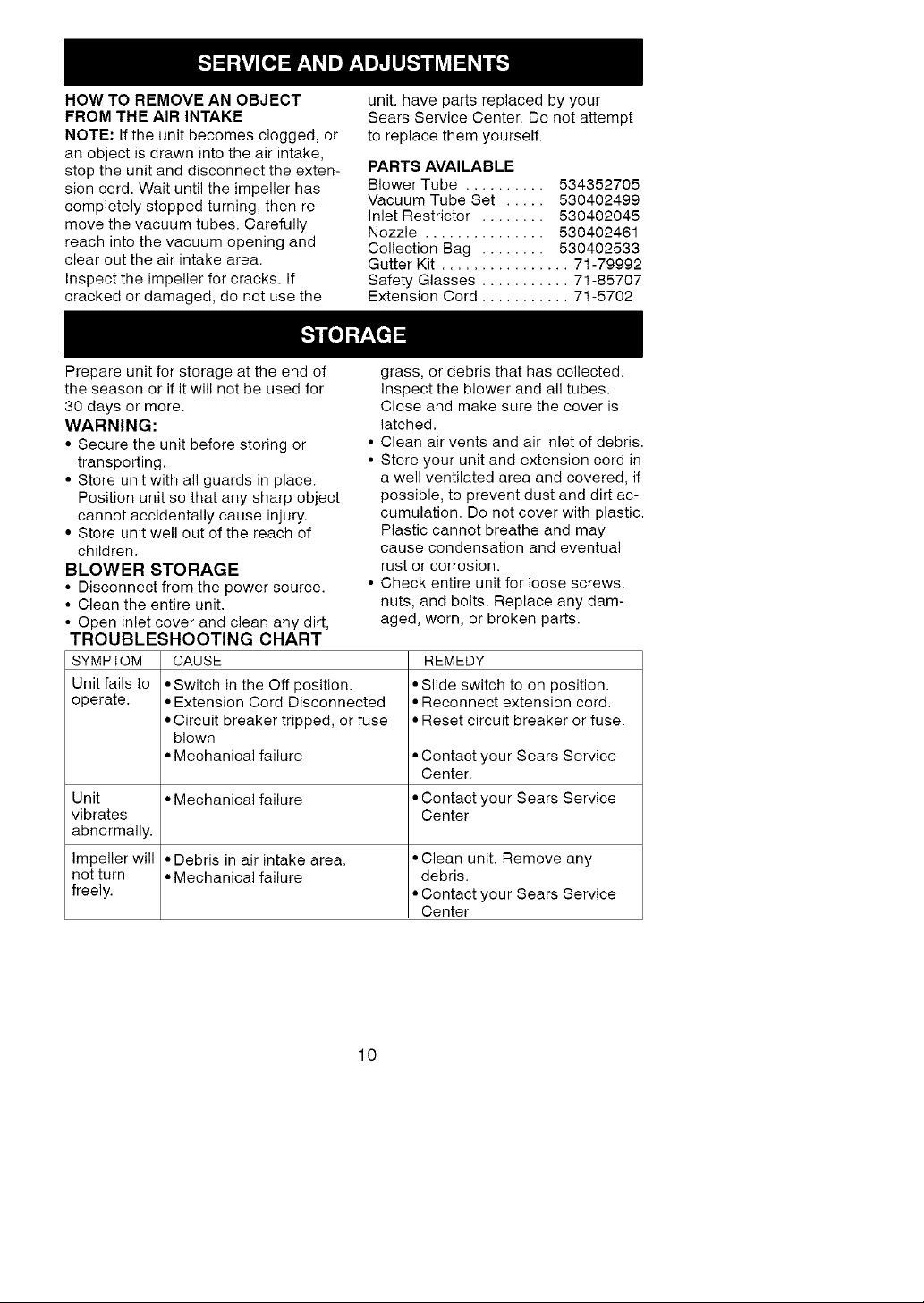

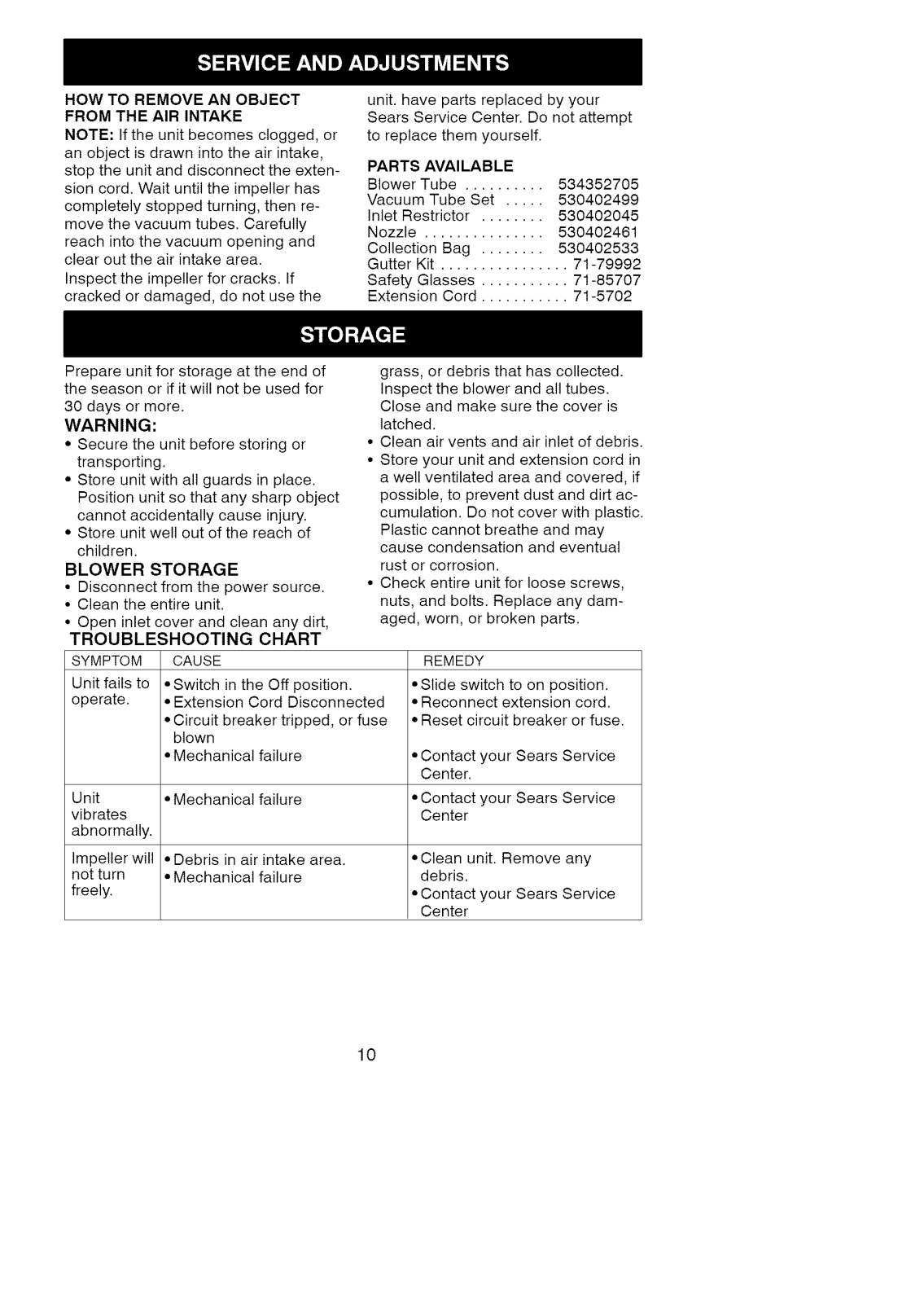

HOWTOREMOVEANOBJECT
FROMTHEAIRINTAKE

NOTE; If the unit becomes clogged, or
an object is drawn into the air intake,

stop the unit and disconnect the exten-
sion cord. Wait until the impeller has

completely stopped turning, then re-
move the vacuum tubes. Carefully
reach into the vacuum opening and

clear out the air intake area.
inspect the impeller for cracks. If

cracked or damaged, do not use the

unit. have parts replaced by your
Sears Service Center. Do not attempt
to replace them yourself.

PARTS AVAILABLE

Blower Tube .......... 534352705

Vacuum Tube Set ..... 530402499

inlet Restrictor ........ 530402045

Nozzle ............... 530402461

Collection Bag ........ 530402533

Gutter Kit ................ 71-79992

Safety Glasses ........... 71-85707

Extension Cord ........... 71-5702

Prepare unit for storage at the end of
the season or if it will not be used for

30 days or more.
WARNING:

• Secure the unit before storing or
transporting.

• Store unit with all guards in place.

Position unit so that any sharp object

cannot accidentally cause injury.

• Store unit well out of the reach of
children.

BLOWER STORAGE

• Disconnect from the power source.

• Clean the entire unit.

• Open inlet cover and clean any dirt,

grass, or debris that has collected.

Inspect the blower and all tubes.

Close and make sure the cover is
latched.

• Clean air vents and air inlet of debris.

• Store your unit and extension cord in
a well ventilated area and covered, if
possible, to prevent dust and dirt ac-
cumulation. Do not cover with plastic.

Plastic cannot breathe and may

cause condensation and eventual

rust or corrosion.

• Check entire unit for loose screws,
nuts, and bolts. Replace any dam-
aged, worn, or broken parts.

TROUBLESHOOTING CHART

SYMPTOM CAUSE REMEDY
Unit fails to • Switch in the Off position. • Slide switch to on position.

operate. • Extension Cord Disconnected • Reconnect extension cord.

• Circuit breaker tripped, or fuse • Reset circuit breaker or fuse.
blown

• Mechanical failure • Contact your Sears Service

Unit • Mechanical failure • Contact your Sears Service
vibrates Center

abnormally.
Impeller will • Debris in air intake area. • Clean unit. Remove any

not turn • Mechanical failure debris.
freely. • Contact your Sears Service

Center.

Center

10
